BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL CISCO LIMITED LIFETIME WARRANTY!!!

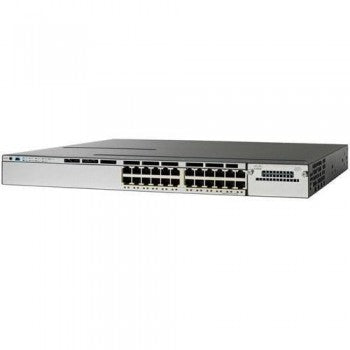

The Cisco Catalyst 3850 series is the enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst 3850 series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
Specifications
- Manufacturer: Cisco Systems
- Brand: Cisco
- Product Line: Cisco Catalyst
- Model: 3850-24U-L
- Packaged Quantity: 1
- RAM
- Installed Size: 4 GB, 4 GB, 4 GB, 4 GB
- Flash Memory
- Installed Size: 2 GB, 2 GB, 2 GB, 2 GB
- Performance
- Performance: Switching capacity: 92 Gbps, Stacking bandwidth: 480 Gbps
- Capacity
- Capacity: NetFlow entries: 24000, Switched virtual interfaces (SVIs): 1000, IPv4 routes: 24000
- Networking
- Type: Switch
- Subcategory: Network hubs and switches
- Subtype: Gigabit Ethernet
- Form Factor: Rack-mountable, Desktop
- Stackable: Stackable
- Ports Qty: 24
- MAC Address Table Size: 32000 entries
- Jumbo Frame Support: 9198 bytes
- Manageable: Yes
- Remote Management Protocol: SNMP 2c, RMON 1, RMON 2, SNMP 3, SNMP 1, SSH, CLI, Telnet
- Power Over Ethernet (PoE): UPOE
- PoE Budget: 800 watt
- Status Indicators: PoE, System, Port transmission speed, Port duplex mode, Status
- Qty: 24
- Type: 10/100/1000 (UPOE)
- Expansion Slots
- Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
- Type: Cisco IOS LAN Base
- Power Device
- Type: Internal power supply
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1 (with optional power supply)
- Installed Qty: 1
- Max Supported Qty: 2
- Power Provided: 1100 watt
- Nominal Voltage: AC 120/230 V
- Frequency Required: 50/60 hertz
- Miscellaneous
- Height (Rack Units): 1
- Authentication Method: TACACS+, Kerberos, RADIUS, Secure Shell (SSH)
- MTBF: 237,310 Hours
- Width: 17.5 inch
- Depth: 17.7 inch
- Height: 1.8 inch
- Weight: 16.53 lbs
