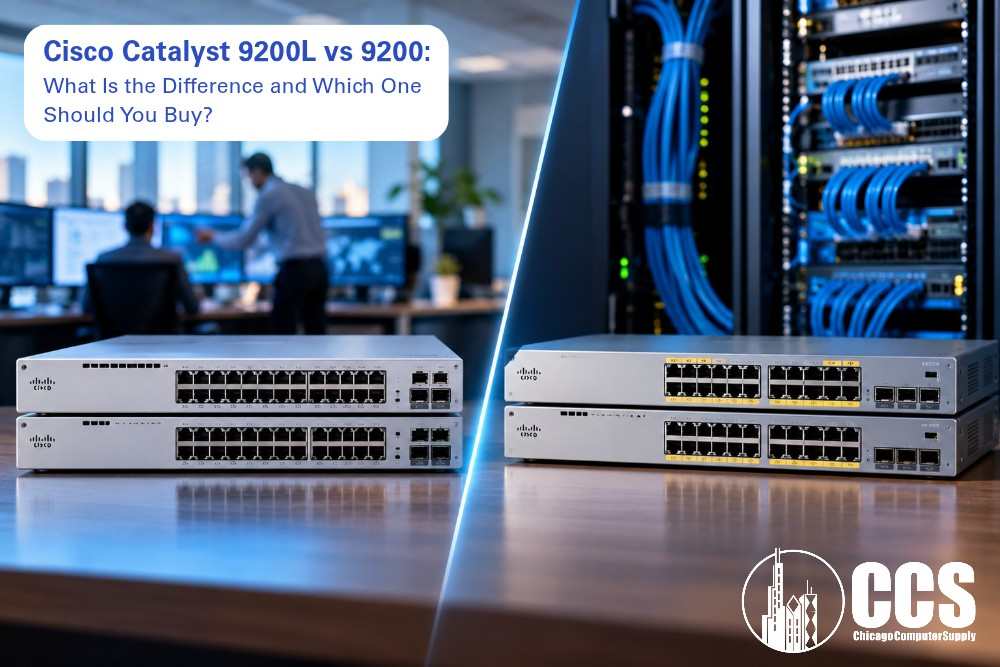

Cisco Catalyst 9200L vs 9200: What Is the Difference and Which One Should You Buy?

Selecting the right hardware for your enterprise access layer often feels like walking a tightrope between current budgetary limits and future operational growth. Many network planners face unexpected bottlenecks when choosing between fixed and modular models. Making the right decision protects both your hardware investment and your team's sanity.

Modern campus access demands reliable hardware that can handle high bandwidth, PoE devices, and continuous uptime without ballooning management overhead. The Cisco Catalyst 9200 Series Switches represent the modern standard for foundational enterprise branch and campus deployments.

Quick Summary: Cisco Catalyst 9200L vs 9200

The Cisco Catalyst 9200 delivers modular uplinks, field-replaceable fans, and 160 Gbps StackWise bandwidth for scalable, high-availability campus access. The Cisco Catalyst 9200L provides fixed uplinks, fixed fans, and 80 Gbps StackWise bandwidth. Choose the 9200 for modular flexibility and maximum resilience, or select the 9200L for cost-effective branch deployments.

Network Hardware Decisions: The True Cost of Downtime

Access layer switching forms the quiet foundation of modern business productivity. When a switch fails, workstations go dark, voice calls drop, and security access readers disconnect immediately. Enterprise studies across the network monitoring industry show that unexpected network downtime costs mid-sized organizations more than $5,600 per minute. Hardware decisions carry direct balance sheet consequences.

Many procurement teams mistakenly treat all access switches as simple interchangeable utilities. They buy fixed hardware to trim 20% off initial capital expenditures. Six months later, uplink traffic spikes, or a cooling fan bearing freezes inside a shallow branch closet. A fixed fan requires swapping out the entire chassis, turning a five-minute maintenance window into hours of company-wide disruption.

Upgrading to enterprise-tier campus infrastructure requires knowing how to choose the right enterprise switch based on port density, thermal tolerances, and real operational resilience. At Chicago Computer Supply, we see how smart architectural design prevents unnecessary lifecycle churn. Evaluating hardware resilience early ensures your operational footprint stays calm, stable, and cost-effective for years to come.

Architectural Foundations: Fixed Versus Modular Hardware

The core architectural divergence between the 9200 and the 9200L centers on modular units versus fixed units. In Cisco naming conventions, the letter "L" stands for "Lite." This letter designates a fixed configuration switch built for predictable environments with lean budgets.

The standard Catalyst 9200 provides Field-Replaceable Units (FRUs) across fans, power supplies, and network uplink modules. If you want to transition your uplinks from 1G SFP to 10G SFP+ or 25G modular interfaces later, you swap the uplink sled. You never need to unrack the switch chassis or disconnect downlink patch cables.

The Catalyst 9200L features factory-fixed uplink ports and internal fixed fans. It provides dual power supply slots for power redundancy, but you cannot service the cooling blowers in the field. If your branch traffic patterns remain static and budget control is your priority, the 9200L offers exceptional efficiency without sacrificing Layer 2 security.

Stacking Bandwidth and Resilience: StackWise-160 Versus StackWise-80

Stacking brings multiple switches together under one control plane and a single management IP address. Both hardware variants support up to eight stacked switches per logical cluster. However, the physical backplane throughput between them shows a substantial performance gap.

The standard 9200 leverages StackWise-160, delivering 160 Gbps of bidirectional stacking throughput. This backplane bandwidth supports heavy east-west data transfers, video conferencing, and multi-gigabit access points without dropping packets. It provides the necessary backbone for dense enterprise floors.

The 9200L runs on StackWise-80, providing 80 Gbps of stacking bandwidth. This capacity works wonderfully for small branch sites and light office floor distribution. Crucially, network engineers cannot mix standard 9200 and 9200L models inside the same physical stack. Their backplane timing and ASIC interconnections operate on entirely different internal designs.

Uplink Configurations and Future-Proofing

Uplink interfaces connect your local switch stack to distribution or core aggregation layers. The Catalyst 9200 offers hot-swappable modular uplink cages. Organizations can start with 4-port 1G modules and slide in 4-port 10G or 2-port 25G modules as business throughput needs double over time.

The Catalyst 9200L builds its uplinks straight into the main system board. You choose your uplink type when purchasing the switch, selecting either four 1G SFP ports, four 10G SFP+ ports, or two 25G ports on select mGig options.

Once deployed, that hardware configuration remains permanent. If your upstream aggregation link saturates, upgrading the 9200L requires purchasing a completely new switch.

Planning these transitions helps your team avoid unexpected replacement expenses down the road. When planning a multi-tier network overhaul, reviewing the Cisco Catalyst 9200 vs 9300 vs 9500 tier structure clarifies how edge switches tie into aggregation layers. Choosing the right uplink format early keeps your long-term roadmap clean and budget-friendly.

Power over Ethernet and Energy Resiliency

Real-World Implementation Scenarios

Hardware specifications provide helpful baseline metrics, but real deployment environments test physical equipment under true operational stress. Examining how different business environments select access-layer hardware highlights the practical trade-offs between both lines.

The Expanding Regional Healthcare Clinic

A growing healthcare provider added three diagnostic imaging clinics across county lines. Each clinic required connectivity for 80 endpoints, including medical cart workstations, nurse station VoIP phones, and IP surveillance cameras. Uplink bandwidth demands to their local core routers remained steady at 1 Gbps.

The engineering team chose the Catalyst 9200L-48P with fixed 10G uplinks. The fixed configuration kept per-port acquisition costs low while providing clean PoE+ to all security cameras and voice terminals. Dual power supplies offered uninterrupted operations across critical shifts. Because branch data traffic remained predictable, the StackWise-80 backplane met every speed requirement without unnecessary expense.

The Enterprise Headquarters Renovation

A mid-sized corporate headquarters upgraded five floors of office space to support hybrid hot-desking, Wi-Fi 6E access points, and unified smart lighting. Data modeling projected local workstation traffic would double over three years.

The team deployed standard Catalyst 9200 modular switches equipped with dual hot-swappable fans and StackWise-160 stacking kits. Six months after installation, corporate leadership added uncompressed ultra-high-definition video studios. The network engineers swapped the switch uplinks from 1G to 10G modules within minutes. The switch stack remained online the entire time, saving tens of thousands of dollars in replacement equipment and emergency contractor fees.

Selecting Your Access Switch in 4 Steps

Choosing hardware requires matching technical requirements against budget realities. Chicago Computer Supply uses this practical evaluation sequence to simplify infrastructure planning for enterprise clients:

• Practitioner Insight: In our enterprise installations, access point power consumption jumps substantially after firmware feature rollouts. Calculate PoE draw using maximum rated draws rather than average idle numbers.

• Practitioner Insight: Backplane saturation often looks like random packet loss during video calls. Choosing StackWise-160 protects high-density offices from silent backplane choking.

• Practitioner Insight: We frequently assist clients who bought fixed 1G uplinks to reduce immediate expenses, only to replace functional switches two years later during core network modernizations.

• Practitioner Insight: Match your licensing tier to long-term monitoring plans. Network Advantage unlocks full Flexible NetFlow telemetry, which simplifies root-cause diagnosis across complex corporate networks.

Architectural Pitfalls to Avoid

Network design missteps often stem from small oversight items rather than major hardware defects. Knowing common access-layer pitfalls saves hours of troubleshooting later.
