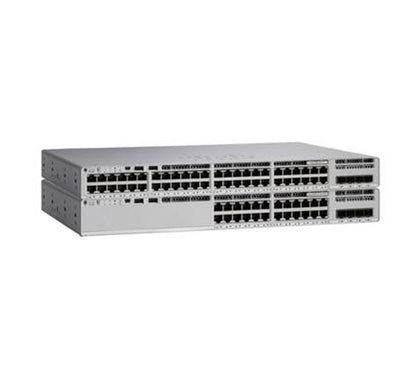

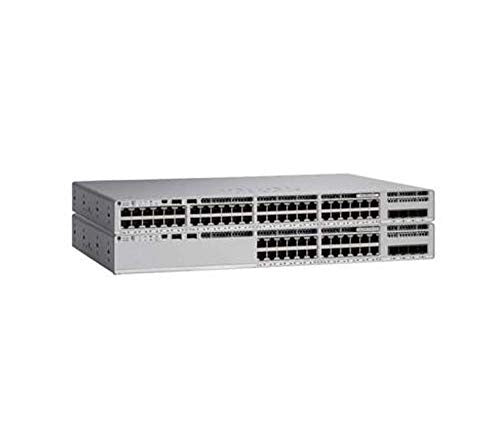

Cisco Catalyst 9200L 24-Port Network Essentials Switch C9200L-24T-4G-E

BRAND NEW WITH THE FULL CISCO WARRANTY!!!

The C9200L-24T-4G-E is a secure, enterprise-grade access switch designed for modern campus and branch networks. It delivers twenty-four Gigabit Ethernet data ports and four fixed 1G SFP uplinks, providing reliable connectivity for user devices, servers, and aggregation layers.

Built on the Cisco Catalyst 9200L platform, this switch runs Cisco IOS XE with Network Essentials software. It focuses on operational simplicity, strong security foundations, and consistent performance for organizations that need dependable Layer 2 and essential Layer 3 capabilities without unnecessary complexity.

Key Features

·         Twenty-four Gigabit Ethernet data ports for wired access

·         Four fixed 1G SFP uplink ports for aggregation

·         Network Essentials software for enterprise access networks

·         Cisco IOS XE with automation and telemetry support

·         Stackable architecture with 80 Gbps stacking bandwidth

Technical Specifications

Manufacturer: Cisco
Brand: Cisco
Product Line: Catalyst
Product Series: 9200L
Model: C9200L-24T-4G-E
Edition: Network Essentials
Product Type: Managed Gigabit Ethernet Switch
Packaged Quantity: 1 Unit

Ports & Interfaces

·         24 × 10/100/1000Base-T RJ-45 data ports

·         4 × 1G SFP fixed uplink ports

Performance

·         Switching Capacity: 56 Gbps

·         Forwarding Rate: 83.33 Mpps

·         Stacking Bandwidth: 80 Gbps

·         Jumbo Frame Support: Up to 9198 bytes

Memory

·         DRAM: 2 GB

·         Flash: 4 GB

Networking & Routing

·         Layer Support: Layer 2 with essential Layer 3 features

·         Routing Protocols: OSPF, EIGRP, IS-IS, RIP

·         Advanced monitoring with Flexible NetFlow

Power & Cooling

·         Default Power Supply: PWR-C5-125WAC

·         Fans: Fixed redundant design

·         Redundant power support with field-replaceable components

Physical Specifications

·         Form Factor: Rack-mountable

·         Dimensions: 1.73 × 17.5 × 11.3 in

·         Weight: 4.35 kg

UPC: 00889728170123

Use Cases

The C9200L-24T-4G-E is ideal for enterprise access layers, branch offices, education campuses, and corporate environments that require stable wired connectivity, secure segmentation, and scalable uplink capacity without PoE requirements.

Why Choose C9200L-24T-4G-E

·         Optimized for enterprise access with Network Essentials licensing

·         Provides consistent Gigabit performance with SFP uplinks

·         Supports stacking for growth and resiliency

·         Delivers Cisco-grade security and operational stability

·         Backed by a full Cisco manufacturer's warranty

FAQs

What type of network is the C9200L-24T-4G-E best suited for?

It is for enterprise access networks that require reliable wired connectivity and secure switching without PoE.

Does this switch support stacking?

Yes. The switch supports stacking with up to 80 Gbps stacking bandwidth for scalability and redundancy.

Are the uplink ports fixed or modular?

This model includes four fixed 1G SFP uplink ports.

Which software license will we get?

The switch ships with Network Essentials software, providing core enterprise switching and routing features.

Does a Cisco warranty cover this switch?

Yes. It is brand new, factory sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
