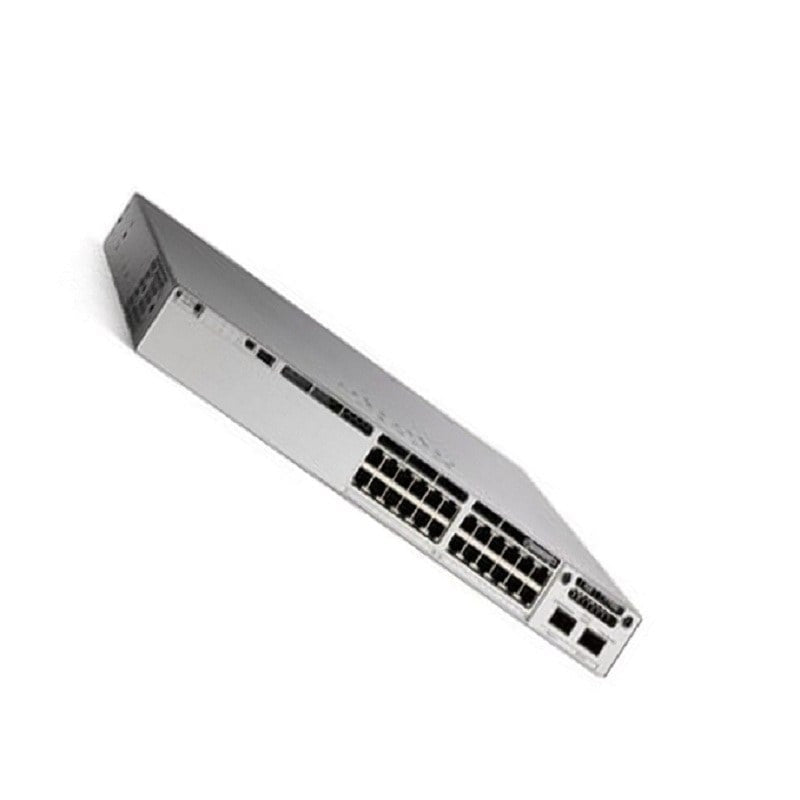

C9300-24T-A Cisco Catalyst 9300 Series 24-Port Layer 3 Switch | Network Advantage

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9300-24T-A is an enterprise-class access switch built for organizations that require advanced Layer 3 routing, secure segmentation, and long-term network scalability. Designed as part of the Catalyst 9300 Series, this model delivers consistent gigabit performance while supporting modern software-defined networking strategies.

With Network Advantage licensing, the C9300-24T-A enables deeper routing intelligence, enhanced policy control, and advanced analytics across the access layer. Its stackable architecture and high routing scale make it a strong foundation for campus and branch networks that must grow without added complexity.

Key Features

• 24 Gigabit Ethernet access ports for enterprise connectivity
• Network Advantage software for advanced Layer 3 routing
• High routing and VLAN scale for segmented networks
• Stackable architecture for simplified expansion
• Built for secure, always-on enterprise access deployments

Technical Specifications

General

• Manufacturer: Cisco Systems
• Product Line: Cisco Catalyst
• Series: 9300
• Model: C9300-24T-A
• Software Edition: Network Advantage
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable

Ports & Interfaces

• 24 × 10/100/1000 Gigabit Ethernet RJ-45 ports
• Uplink support via modular Catalyst 9300 architecture

Performance & Capacity

• Switching capacity: 128 Gbps
• Stacking bandwidth: 480 Gbps
• Forwarding rate: 154.76 Mpps
• VLAN IDs supported: 4,000
• Switched Virtual Interfaces (SVIs): 2,000
• IPv4 routing entries: 32,000
• IPv6 routing entries: 16,000
• Flexible NetFlow entries: 64,000

Networking & Management

• Advanced routing: OSPF, EIGRP, BGP, IS-IS, RIP, VRRP
• Policy-based routing support
• Managed via CLI, SNMP, NETCONF, RESTCONF

Hardware & Reliability

• Stackable: Yes
• Internal power supply with optional redundancy
• Hot-plug support
• Jumbo frame support: 9,198 bytes
• MAC address table: 32,000 entries

Physical

• Height: 1.7 in (1RU)
• Width: 17.5 in
• Depth: 17.5 in
• Weight: 16.03 lbs

UPC: 00889728051675

Use Cases

The C9300-24T-A is ideal for enterprise access layers, campus networks, and branch offices that require advanced routing, secure segmentation, and scalable architecture. It fits organizations standardizing on Catalyst 9300 platforms for consistent policy enforcement, high availability, and long-term network evolution.

Why Choose the C9300-24T-A

• Enables advanced Layer 3 routing with Network Advantage
• Supports large-scale segmentation and enterprise policies
• Designed for standardized Catalyst 9300 deployments
• Scales easily through high-speed stacking
• Ships brand new with full Cisco manufacturer warranty

FAQs

What software license does the C9300-24T-A include?

This model includes Cisco Network Advantage, enabling advanced routing, policy control, and enterprise features.

Is this switch suitable for enterprise networks?

Yes. It is for enterprise access layers, campus environments, and branch deployments.

Does the C9300-24T-A support stacking?

Yes. It supports high-bandwidth stacking for simplified management and scalability.

Is this a PoE switch?

No. This model is a data-only Gigabit Ethernet switch.

Is the product new and covered by Cisco's warranty?

Yes. It is brand new, factory-sealed, and backed by the full Cisco manufacturer's warranty.
