C9500-16X-E Cisco Catalyst 9500 16-Port 10G Layer 3 Switch | Network Essentials

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

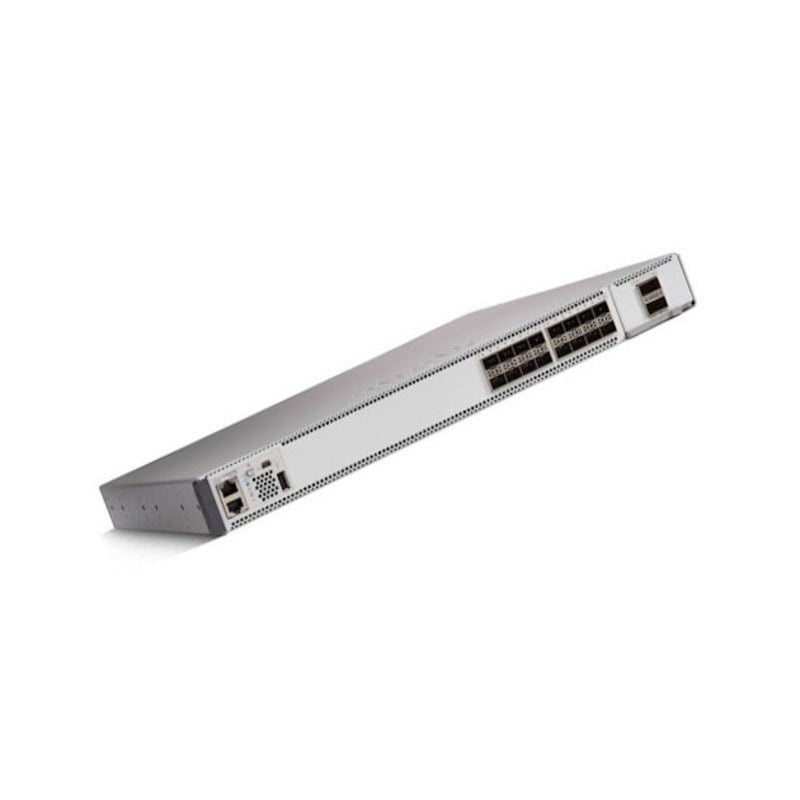

The Cisco Catalyst C9500-16X-E is a fixed core and aggregation Layer 3 switch built for enterprise campus networks that require reliable 10 Gigabit connectivity, strong routing performance, and simplified operations. With 16 × 10GBase-T RJ-45 ports and additional SFP+ uplinks, it supports high-speed distribution links, server connectivity, and modern access-to-core designs.

Designed on the Catalyst 9500 platform, the C9500-16X-E delivers the scale and stability organizations need for always-on environments. It also supports automation-friendly management and enterprise-grade security, making it a practical choice for networks that must grow without losing control or visibility.

Key Features

• 16 × 10GBase-T RJ-45 ports for high-speed enterprise connectivity
• Includes 2 × 10G SFP+ uplinks for flexible backbone integration
• Network Essentials software for core Layer 3 routing and switching
• Front-to-rear airflow design for efficient rack cooling
• 256-bit AES encryption support for strong network security
• Built for enterprise campus core and aggregation switching

Technical Specifications

General

• Brand: Cisco
• Product Line: Cisco Catalyst
• Product Series: 9500
• Model: C9500-16X-E
• Software Edition: Network Essentials
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable

Ports & Interfaces

• 16 × 10Gbit LAN RJ-45
• 2 × 10GBase-X SFP+
• 2 × USB 3.0

Switching & Scale

• Switching type: 10 Gigabit Ethernet
• Jumbo frame support: 9,198 bytes
• MAC address table size: 64K entries

Hardware

• CPU clock speed: 2.4 GHz
• Processors installed: 1
• RAM installed: 16 GB
• Flash memory installed: 16 GB
• Built-in devices: RFID tag

Management & Security

• Remote management: NETCONF, RESTCONF, SNMP (v1/v2c/v3), RMON 1/2, TFTP
• Encryption: 256-bit AES
• Manageable: Yes

Routing Protocols

• IGMP, OSPF, PIM-SM, PIM-SSM
• Policy-based routing (PBR)
• RIP-1, RIP-2, RIPng, VRRP

Power & Reliability

• Power provided: 950W
• Power supplies installed: 1
• Power supplies supported: 2
• Redundant power supply: Optional (1+1)
• Hot-plug: Hot-plug
• Frequency: 50–60 Hz
• Airflow: Front-to-rear
• MTBF: 179,660 hours

Environmental

• Operating temperature: 32°F to 104°F
• Storage temperature: -4°F to 149°F
• Operating humidity: 5% to 90% (non-condensing)
• Storage humidity: 5% to 95% (non-condensing)

UPC: 889728035422

Use Cases

The C9500-16X-E fits enterprise networks that need compact 10G core or aggregation switching without moving to larger port-density platforms. It works well for campus distribution layers, high-speed server-room switching, and backbone upgrades, where RJ-45 10G connections simplify copper-based deployments while still supporting fiber uplinks via SFP+.

Why Choose the C9500-16X-E

• Delivers fast 10G copper connectivity for core and aggregation roles
• Supports flexible uplink design with included SFP+ ports
• Provides stable Layer 3 routing for enterprise campus networks
• Enables secure management with modern automation-ready protocols
• Designed for reliable airflow and long-term rack performance
• Ships brand new, factory sealed, with full Cisco warranty

FAQs

What type of ports does the C9500-16X-E provide?

It provides 16 × 10GBase-T RJ-45 ports and 2 × 10G SFP+ uplink interfaces.

Is the C9500-16X-E meant for core or access switching?

It is for enterprise core and aggregation deployments, not basic access switching.

Does it support Layer 3 routing?

Yes. It supports Layer 3 routing features and protocols, including OSPF, VRRP, and policy-based routing.

Does the switch support redundant power supplies?

Yes. It supports two power supplies with optional 1+1 redundancy.

Does Cisco's warranty cover this product?

Yes. It ships brand new, factory sealed, and includes full Cisco manufacturer warranty support.
