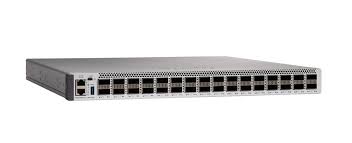

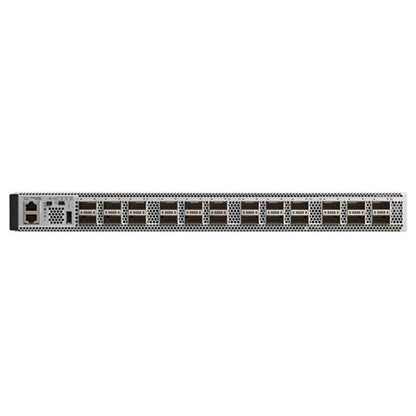

C9500-24Q-E Cisco Catalyst 9500 24-Port 40G QSFP Layer 3 Switch | Network Essentials

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY

Overview

The Cisco Catalyst C9500-24Q-E is a purpose-built enterprise core and aggregation switch designed for high-speed campus networks that need dependable Layer 3 routing and dense 40 Gigabit connectivity. With 24 QSFP 40G ports, this switch supports backbone uplinks, distribution-to-core connectivity, and modern network expansion without performance bottlenecks.

Built on the Catalyst 9500 platform, the C9500-24Q-E delivers secure, scalable switching for organizations running critical applications across large campuses. It also supports automated management, making it easier to standardize operations while maintaining strong control at the core.

Key Features

• 24 × 40G QSFP ports for high-density core uplinks and backbone design
• Network Essentials software for reliable enterprise Layer 3 switching
• Built for campus core and aggregation deployments
• Front-to-rear airflow for efficient rack cooling in data rooms
• Strong security with 256-bit AES encryption support
• Automation-ready remote management with NETCONF and RESTCONF

Technical Specifications

General

• Manufacturer: Cisco
• Product Line: Cisco Catalyst
• Product Series: 9500
• Model: C9500-24Q-E
• Software Edition: Network Essentials
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable

Ports & Interfaces

• 24 × 40Gbit LAN QSFP
• 2 × USB 3.0

Switching & Capacity

• Switching type: 40 Gigabit Ethernet
• Jumbo frame support: 9,198 bytes
• MAC address table size: 64K entries

Hardware

• CPU clock speed: 2.4 GHz
• Processors installed: 1
• RAM installed: 16 GB (DDR4 SDRAM)
• Flash memory installed: 16 GB
• Built-in device: RFID tag

Management & Security

• Remote management: NETCONF, RESTCONF, SNMP (v1/v2c/v3), RMON 1/2, TFTP
• Encryption: 256-bit AES
• Manageable: Yes

Routing Protocols

• IGMP, MPLS, OSPF, PIM-SM, PIM-SSM
• RIP-1, RIP-2, RIPng, VRRP

Power & Reliability

• Power provided: 950W
• Power supplies installed: 1
• Power supplies supported: 2
• Redundant power supply: Optional (1+1)
• Hot-plug: Hot-plug
• Airflow: Front-to-rear

Environmental

• Operating temperature: 32°F to 104°F
• Storage temperature: -4°F to 149°F
• Operating humidity: 5% to 90% (non-condensing)
• Storage humidity: 5% to 95% (non-condensing)
• MTBF: 127,660 hours

UPC: 889728035460

Use Cases

The C9500-24Q-E is a great fit for enterprise campus core networks where 40G QSFP uplinks connect distribution switches, high-traffic buildings, or aggregation points. It works well in universities, hospitals, and large corporate environments that need stable Layer 3 routing, predictable switching performance, and a clean path to scale core bandwidth as demand grows.

Why Choose the C9500-24Q-E

• Delivers dense 40G QSFP connectivity for high-bandwidth campus networks
• Supports core and aggregation switching with enterprise-grade reliability
• Runs Network Essentials for streamlined Layer 3 feature requirements
• Simplifies operations with automation-ready management interfaces
• Designed for efficient airflow and stable rack performance
• Ships brand new, factory sealed, with full Cisco warranty

FAQs

What type of ports does the C9500-24Q-E provide?

It provides 24 × 40G QSFP ports for high-speed backbone and uplink connections.

Is the C9500-24Q-E designed for campus core deployments?

Yes. The Catalyst 9500 Series is purpose-built for enterprise core and aggregation roles.

Does this switch support Layer 3 routing?

Yes. It is a managed Layer 3 switch and supports routing protocols such as OSPF and VRRP.

Does it support redundant power supplies?

Yes. It supports two power supplies with optional 1+1 redundancy.

Is this switch new and covered by Cisco's warranty?

Yes. It is brand new, factory sealed, and includes full Cisco manufacturer warranty coverage.
