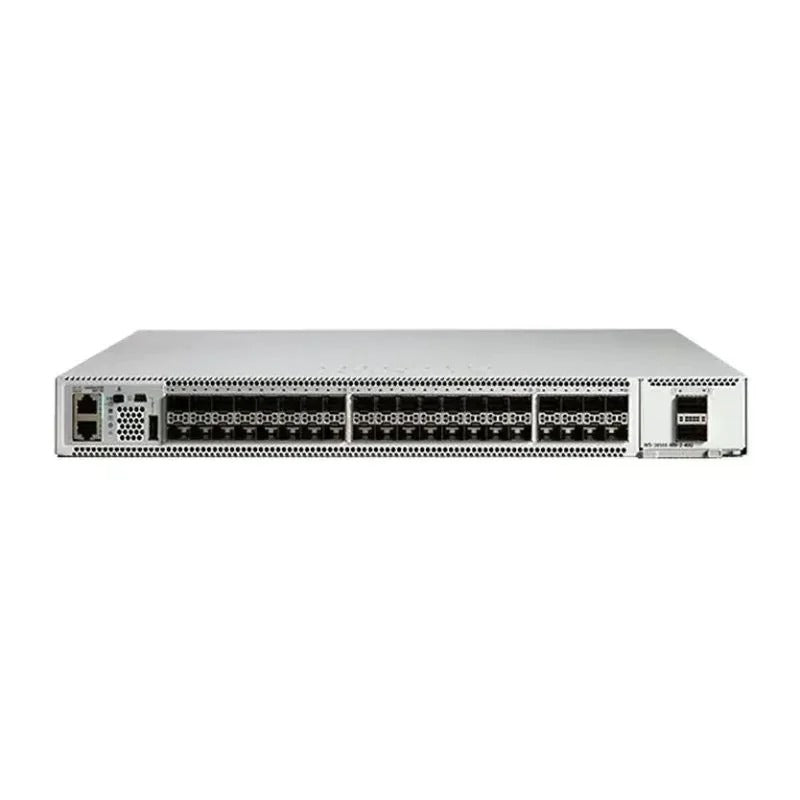

C9500-40X-2Q-E Cisco Catalyst 9500 Series 40-Port 10G + 40G Core Switch | Network Advantage

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9500-40X-2Q-E is a high-capacity enterprise core and aggregation switch designed for modern campus and large-scale networks. Built on a fixed-core x86 architecture, it delivers predictable performance, deep routing scale, and advanced programmability.

With forty 10G SFP+ ports and two integrated 40G QSFP+ uplinks, this switch supports high-speed aggregation while simplifying network design. Network Advantage software enables advanced Layer 3 routing, segmentation, and security across mission-critical environments.

Key Features

• 40 × 10G SFP+ ports with 2 × 40G QSFP+ uplinks
• Network Advantage software for advanced Layer 3 routing
• Fixed-core x86 architecture for deterministic performance
• High routing, multicast, and ACL scale for large enterprises
• Built for campus core and aggregation deployments
• Technical Specifications

General

• Manufacturer: Cisco
• Product Line: Catalyst
• Product Series: 9500
• Model: C9500-40X-2Q-E
• Software Edition: Network Advantage
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable (1RU)

Ports & Interfaces

• 40 × 10G SFP+ ports
• 2 × 40G QSFP+ uplink ports
• Jumbo Frame Support: 9,198 bytes
• MAC Address Table: Up to 64,000 entries

Performance & Scale

• Switching Capacity: Up to 960 Gbps
• Forwarding Rate: Up to 720 Mpps
• IPv4 Routes: Up to 80,000 host routes
• IPv6 Routes: Up to 40,000 host routes
• VLAN IDs: 4,094
• Switched Virtual Interfaces (SVIs): Up to 4,000

Routing & Traffic Handling

• IPv4 Multicast Routes: Up to 32,000
• IPv6 Multicast Routes: Up to 16,000
• QoS ACL Entries: Up to 18,000
• Security ACL Entries: Up to 18,000
• PVST Instances: 300

Memory & Processing

• CPU: 4-core x86 processor at 2.4 GHz
• DRAM: 16 GB
• Flash Storage: 16 GB

Environmental

• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 149°F
• Operating Altitude: Up to 10,000 ft at 40°C

UPC: 889728035538

Use Cases

The C9500-40X-2Q-E is ideal for enterprise campus cores, aggregation layers, and high-density distribution networks. It supports organizations that require both 10G access aggregation and 40G uplink connectivity for data-intensive workloads, large VLAN environments, and advanced segmentation strategies.

Why Choose the C9500-40X-2Q-E

• Combines 10G access aggregation with native 40G uplinks
• Designed for scalable enterprise core architectures
• Network Advantage enables advanced routing and security
• Fixed-core design ensures stability and low latency
• Ships brand new with full Cisco manufacturer warranty

Frequently Asked Questions

What makes the C9500-40X-2Q-E different from standard 40X models?

It includes two integrated 40G QSFP+ uplink ports for higher-speed core connectivity.

Is this switch suitable for campus core deployments?

Yes. It is purpose-built for enterprise core and aggregation roles.

Does the switch support advanced routing protocols?

Yes. Network Advantage enables full Layer 3 routing, multicast, and policy-based routing.

Can this model handle large VLAN and SVI counts?

Yes. It supports thousands of VLANs and SVIs for large network designs.

Is this product new and under warranty?

Yes. It is factory-sealed, retail-boxed, and covered by the full Cisco warranty.
