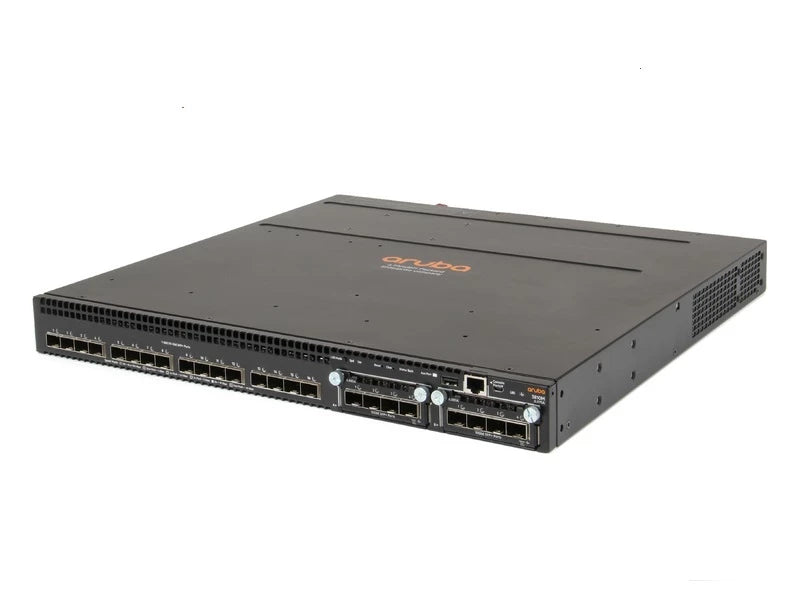

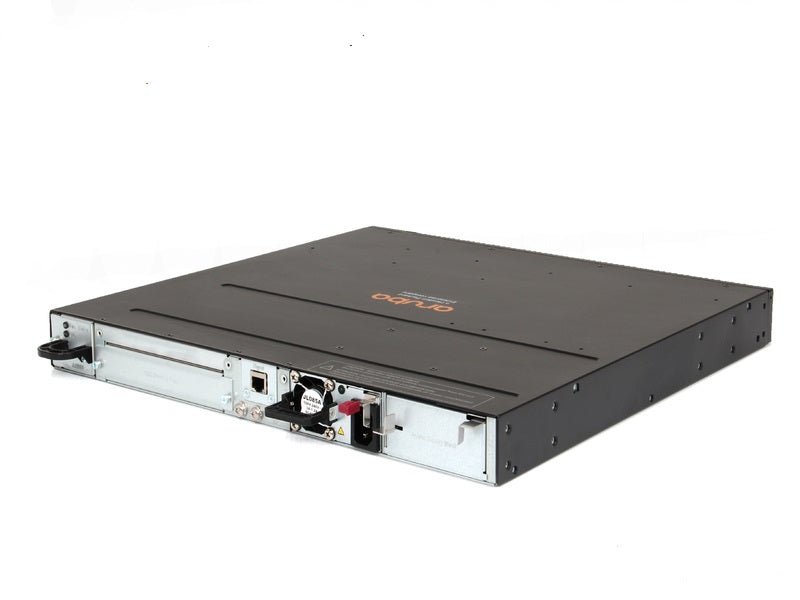

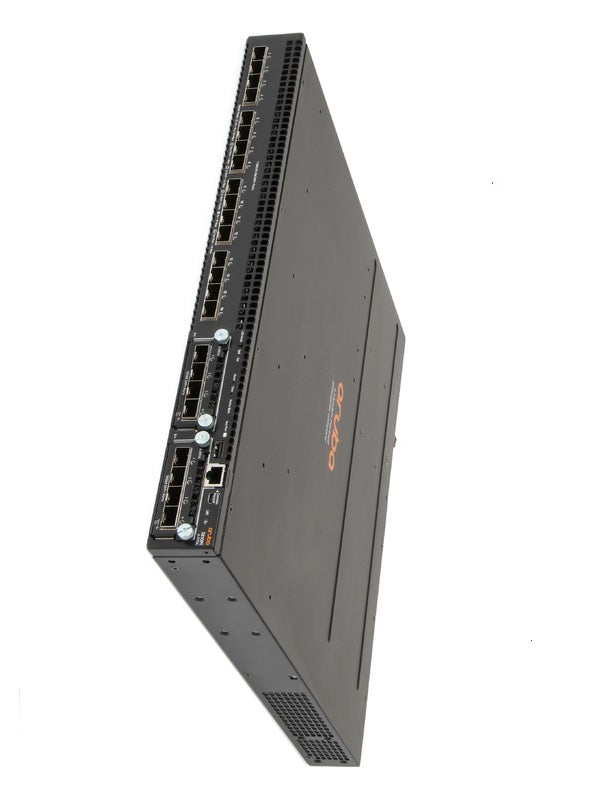

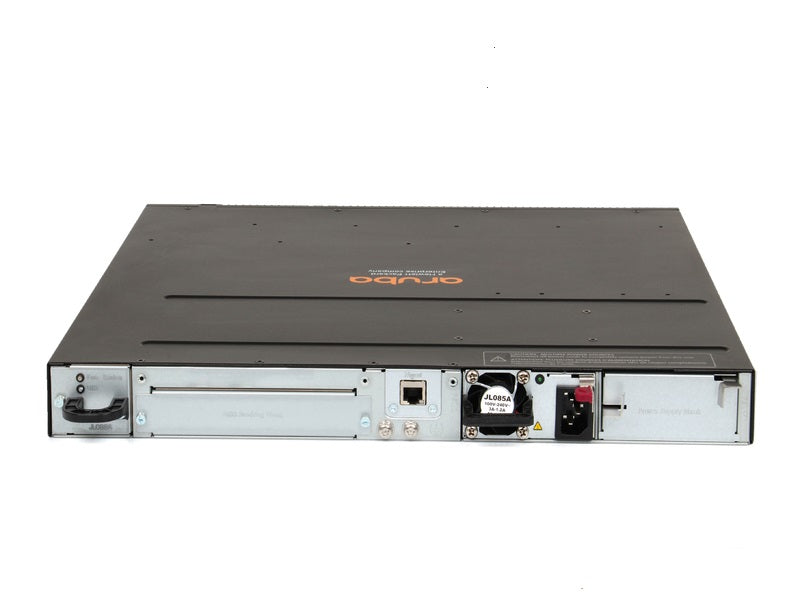

HPE Aruba 3810M 16SFP+ 2-Slot Switch JL075A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Aggregation layers must move traffic quickly and reliably. As networks expand with more devices and cloud workloads, switches must support higher bandwidth and flexible scaling. The HPE Aruba 3810M JL075A delivers that capability with sixteen high-speed SFP+ ports and modular expansion slots designed for enterprise environments.

This switch is best for network aggregation and high-performance access deployments. It supports additional module expansion for uplinks, stacking, or 40GbE connectivity. Combined with Aruba’s management ecosystem and enterprise routing capabilities, JL075A enables scalable network growth across campuses, branch offices, and enterprise infrastructure.

Key Features

• 16 × 1/10GbE SFP+ fiber ports for high-speed connectivity
• 2 open module slots for expansion modules
• Support for additional SFP+ or 40GbE QSFP+ uplink modules
• MACsec support on ports 1–16 for enhanced security
• Virtual Switching Framework stacking support
• Up to 480 Gbps switching capacity for enterprise workloads
• Integration with Aruba AirWave, Aruba Central, and IMC management platforms
• Designed for enterprise aggregation and high-performance network layers

Technical Specifications

Brand: HPE Aruba
SKU / Part Number: JL075A
Product Series: Aruba 3810M
Product Type: Managed Layer 3 Switch
Form Factor: Rack-mountable

Ports
Fixed Ports: 16 × SFP+ 1GbE / 10GbE fiber ports
Expansion Slots: 2 open module slots
Module Support: Up to 8 additional SFP+ ports or 2 × 40GbE QSFP+ ports with optional modules

Performance
Switching Capacity: 480 Gbps
Switch Fabric Speed: 508 Gbps
Throughput: Up to 285.7 Mpps

Latency
1GbE Latency: < 2.8 µs
10GbE Latency: < 1.8 µs
40GbE Latency: < 1.5 µs

Memory and Processor
CPU: Dual ARM Cortex-A9 @ 1 GHz
RAM: 2 GB DDR3 SDRAM
Packet Buffer: 13.5 MB

Stacking
Stacking Capability: Virtual switching for up to 10 switches

Management and Monitoring
Management Platforms: Aruba AirWave, Aruba Central, IMC
Management Interfaces: CLI, Web browser, configuration menu
Out-of-Band Management: RJ-45 Ethernet, serial RS-232C, micro USB

Power and Environment
Power Supply: Supports 1 or 2 power supplies (ordered separately)
Input Voltage: 100–240 VAC, depending on configuration
Operating Humidity: 15%–95% at 104°F (40°C) non-condensing

Physical
Dimensions (H × W × D): 1.73 × 17.42 × 16.98 in
Weight: 13.28 lb

Use Cases

JL075A acts as an aggregation switch in enterprise networks. It connects multiple access switches while maintaining high-speed fiber links to core infrastructure. Campus environments benefit from its modular expansion and stacking capabilities. Data-heavy organizations also use it to support high-bandwidth applications that require fast, reliable switching between network segments.

Why Choose HPE Aruba 3810M JL075A

• High-speed 10GbE SFP+ ports for enterprise aggregation networks
• Modular expansion slots for flexible network growth
• Support for 40GbE uplink modules for backbone connectivity
• Virtual stacking capability for simplified network scaling
• Advanced routing and security capabilities for enterprise networks
• Integration with Aruba management platforms for centralized monitoring
• Designed for high-performance campus and aggregation deployments
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL075A?

It is a managed Layer 3 enterprise switch designed for aggregation and high-performance network deployments.

How many SFP+ ports does JL075A provide?

The switch includes sixteen SFP+ ports that support 1GbE or 10GbE fiber connectivity.

Can the switch be expanded with additional modules?

Yes. It includes two open module slots that support additional SFP+ or 40GbE QSFP+ expansion modules.

Does JL075A support stacking?

Yes. It supports Virtual Switching Framework, allowing up to ten switches to operate as a single logical unit.

Are power supplies included with this switch?

No. Order power supplies separately, and the switch supports one or two PSUs.

Is the product new and covered by warranty?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
