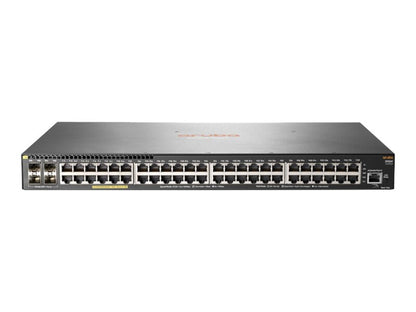

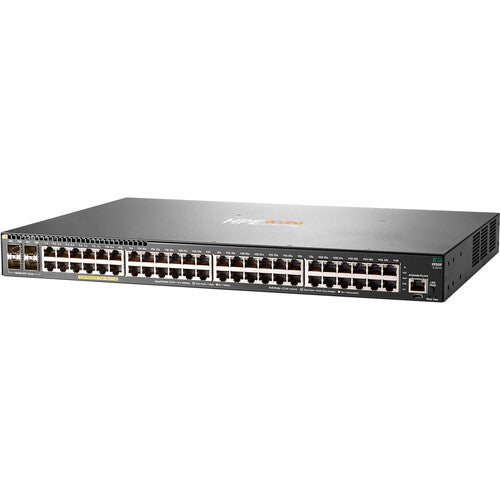

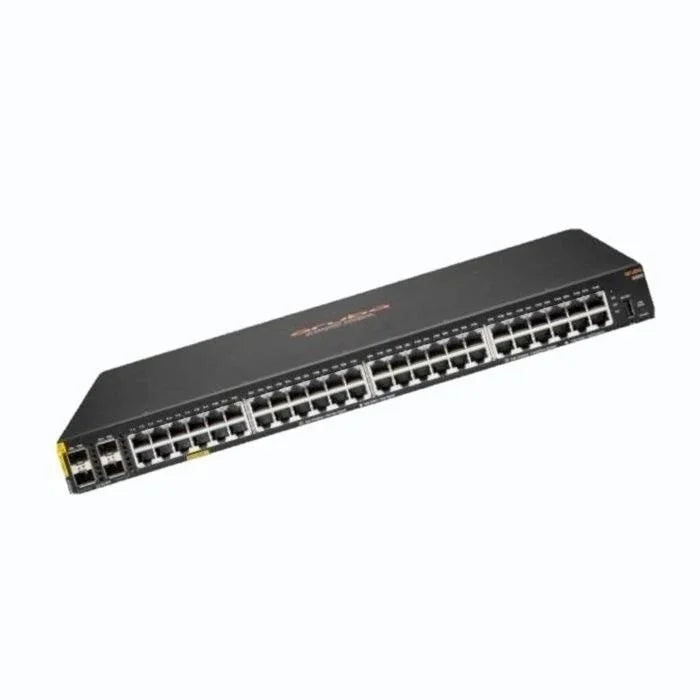

HPE Aruba 2930F 48G PoE+ 4SFP+ TAA 48-Port Rack-Mountable Switch JL264A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Edge networks carry the weight of modern business traffic. Phones, wireless access points, and cameras all depend on stable switching and reliable power. The HPE Aruba 2930F JL264A delivers that stability with forty-eight Gigabit Ethernet PoE+ ports designed for enterprise access networks.

This switch also ensures strong uplink performance for growing workloads. Four integrated SFP+ uplink ports provide 1GbE or 10GbE connectivity for fast aggregation to core switches. With Layer 3 routing features and Aruba management integration, the JL264A supports secure segmentation, centralized control, and predictable network performance across branch offices, campus environments, and SMB networks.

Key Features

• 48 × 10/100/1000 Gigabit Ethernet PoE+ access ports
• 4 × 1/10GbE SFP+ uplink ports for high-speed aggregation
• Up to 370W PoE+ power budget for access points, cameras, and phones
• Layer 3 routing, including static routing, RIP, and Access OSPF
• Virtual Switching Framework (VSF) support for scalable deployments
• Advanced QoS and traffic segmentation capabilities
• Centralized management with Aruba AirWave, Aruba Central, and IMC
• TAA-compliant model suitable for government and regulated environments

Specifications

Brand: HPE Aruba
SKU / Part Number: JL264A
Product Series: Aruba 2930F
Product Type: Managed Layer 3 Access Switch
Form Factor: Rack-mountable

Ports
Access Ports: 48 × RJ-45 autosensing 10/100/1000 PoE+
Uplink Ports: 4 × SFP+ 1/10GbE (PHY-less)

Performance
Switching Capacity: 176 Gbps
Throughput: Up to 112 Mpps
Latency: 1GbE < 3.8 µs
Latency: 10GbE < 1.6 µs

Memory and Processor
CPU: Dual Core ARM Cortex-A9 @ 1016 MHz
RAM: 1 GB DDR3 SDRAM
Flash Storage: 4 GB eMMC
Packet Buffer: 12.38 MB (4.5 MB ingress / 7.875 MB egress)

PoE
PoE Type: PoE+
PoE Budget: Up to 370W

Management and Monitoring
Management Platforms: Aruba AirWave, Aruba Central, IMC
Interfaces: CLI, Web browser, configuration menu
Protocols: SNMP, Telnet, RMON1, FTP
Out-of-Band Management: Serial RS-232C or micro-USB

Power and Environment
Input Voltage: 100–127 / 200–240 VAC
Power Consumption: 459 W maximum
Operating Humidity: 15%–95% at 104°F (40°C) non-condensing
Heat Dissipation: 293 BTU/hr

Physical
Dimensions (H × W × D): 1.73 × 17.42 × 11.98 in
Weight: 9.83 lb

Use Cases

JL264A works well in enterprise wiring closets where many PoE devices require reliable connectivity. It powers wireless access points, IP phones, and surveillance cameras while delivering fast Gigabit connections for desktops and servers. Branch offices benefit from Layer 3 routing features that simplify network segmentation. In SMB networks, it delivers reliable switching performance while enabling centralized management via Aruba platforms.

Why Choose HPE Aruba 2930F JL264A

• High-density 48-port PoE+ access switch for enterprise networks
• Integrated 10GbE SFP+ uplinks for fast aggregation to core switches
• Up to 370W PoE budget for access points, phones, and cameras
• Virtual Switching Framework support for scalable switch deployments
• Layer 3 routing capabilities for branch and campus segmentation
• Enterprise security and QoS features for stable network performance
• TAA-compliant hardware suitable for regulated environments
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL264A?

It is a managed Layer 3 access switch designed for enterprise edge, branch offices, and SMB networks.

How many Ethernet ports does JL264A include?

It includes 48 Gigabit Ethernet PoE+ ports for wired devices and powered network endpoints.

Does the switch support high-speed uplinks?

Yes. JL264A includes four SFP+ ports supporting 1GbE or 10GbE uplink connectivity.

What is the PoE power capacity of this switch?

The switch supports PoE+ with a total power budget of up to 370W.

Does the switch support stacking?

Yes. It supports Aruba Virtual Switching Framework (VSF), allowing multiple switches to operate as a single logical device.

Is the product new and covered by warranty?

Yes. The unit is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
