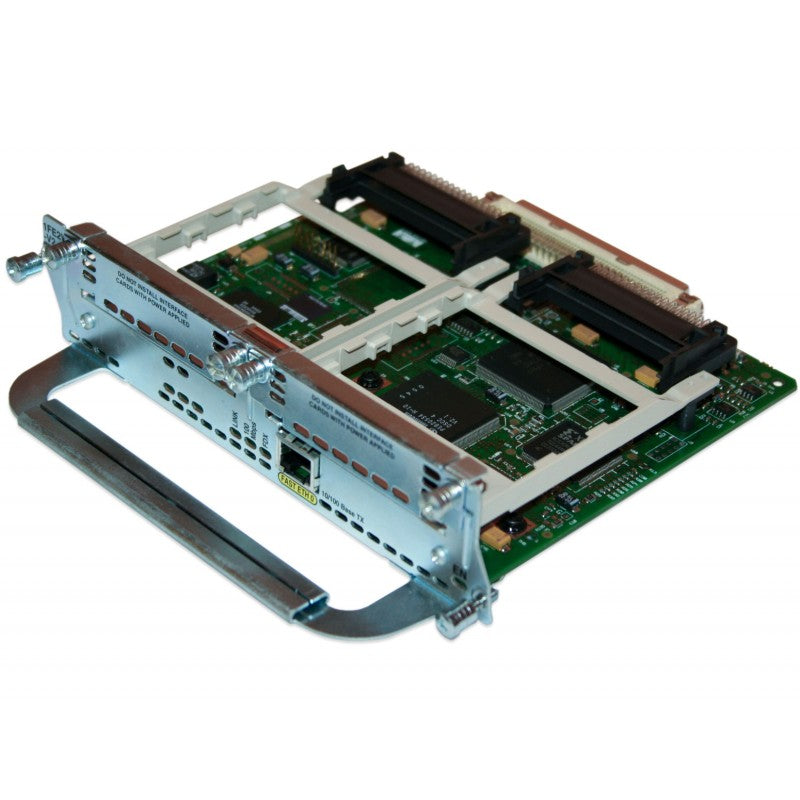

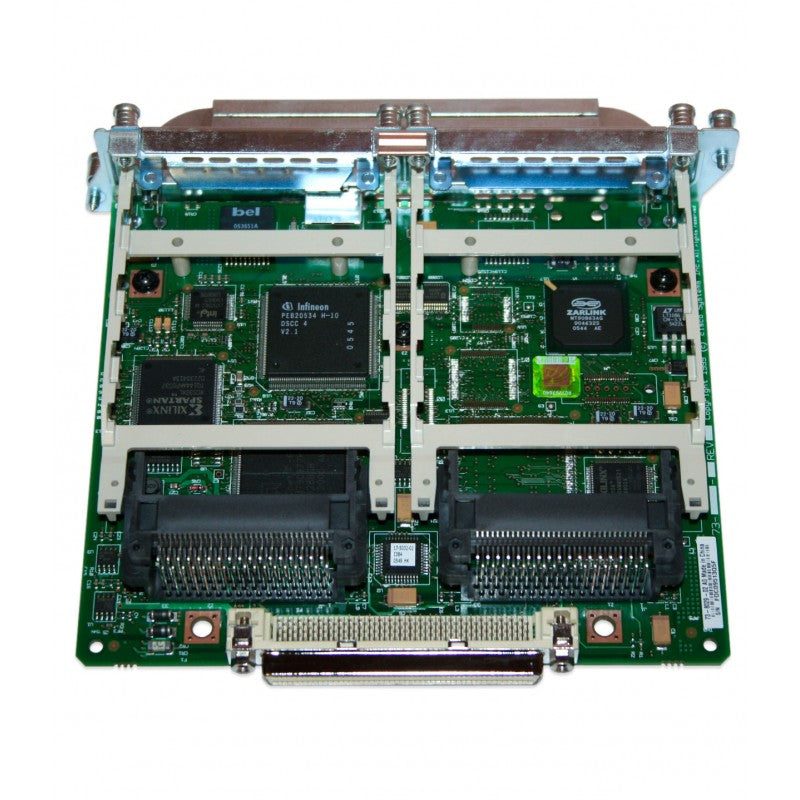

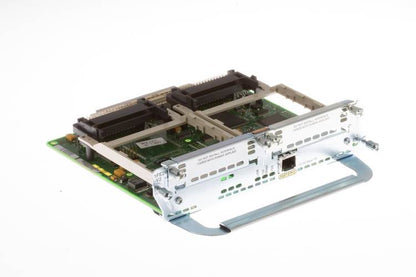

Cisco NM-1FE2W-V2 Fast Ethernet Network Module

BRAND NEW. FACTORY SEALED. FULL CISCO WARRANTY INCLUDED. MANUFACTURED BY CISCO. FROM CHICAGO COMPUTER SUPPLY

Overview

The Cisco NM-1FE2W-V2 is a versatile Fast Ethernet network module designed to expand WAN and Ethernet capabilities on Cisco branch and enterprise routers. It combines one 10/100 Fast Ethernet port with two integrated WAN interface card (WIC) slots, allowing organizations to scale connectivity without adding separate modules.

Built for legacy and transitional network environments, this module increases WIC density while maintaining stable throughput and protocol flexibility. It best suits branch offices that require both LAN connectivity and modular WAN expansion in a single slot.

Key Features

• One 10/100 Fast Ethernet port with auto-sensing support
• Two integrated WAN card slots for WIC and VWIC modules
• Increases WAN interface density in supported Cisco routers
• Supports up to 8 Mbps throughput per WIC interface
• Full and half-duplex operation for Ethernet connectivity
• TDM-enabled architecture for mixed voice and data use

Technical Specifications

Device Type: Network Module

Model: NM-1FE2W-V2

Ethernet Interface: 1 x 10/100 Fast Ethernet

WAN Expansion: 2 x WIC/VWIC slots

Duplex Support: Full and half duplex

Throughput: Up to 8 Mbps per WIC

Form Factor: Plug-in network module

Manufacturer: Cisco

Use Cases

The Cisco NM-1FE2W-V2 is ideal for branch offices that need both LAN connectivity and modular WAN expansion without consuming multiple router slots. It allows organizations to combine Fast Ethernet access with dual WIC or VWIC support in a single module, making it well-suited for environments running legacy WAN circuits, voice integrations, or hybrid data networks. Network administrators often deploy this module to increase interface density, support incremental WAN upgrades, or maintain structured voice and data services in space-constrained router platforms.

Why Choose Cisco NM-1FE2W-V2

• Reduces hardware footprint by combining LAN and WAN expansion
• Preserves investment in existing WIC and VWIC cards
• Proven Cisco reliability for long-term deployments
• Flexible design for evolving branch network needs
• Ideal for legacy and hybrid router environments

FAQs

What does the NM-1FE2W-V2 module provide?

It provides one Fast Ethernet port and two WAN card slots in a single Cisco network module.

Is this module compatible with older Cisco routers?

Yes. It gets support on several Cisco 2600, 3600, 3700, and 3800 series routers.

Can I use both WICs and VWICs in this module?

Yes. The module supports standard WIC and VWIC cards.

Does it support full-duplex Ethernet?

Yes. It supports both full-duplex and half-duplex Ethernet operation.

Is this a genuine Cisco product with a warranty?

Yes. It is Cisco's genuine hardware and ships with full Cisco warranty coverage.
