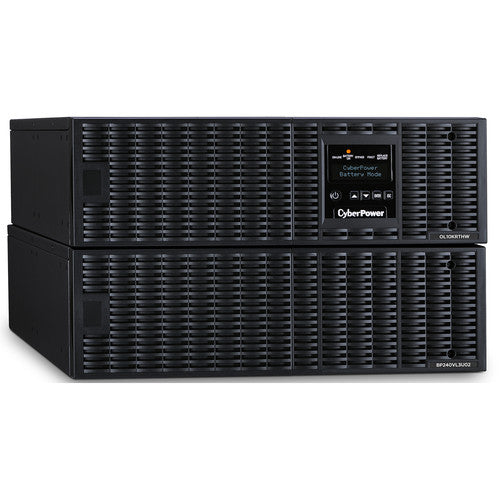

CyberPower Smart App Online 10000VA 10000W UPS OL10KRTHW

The CyberPower Smart App Online OL10KRTHW is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables up to 97% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL10KRTHW enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance.

Specifications

• Manufacturer: Cyber Power
• Brand: Cyberpower
• Product Line: CyberPower Smart App Online
• Model: OL10KRTHW
• Packaged Quantity: 1
• Subcategory: UPS
• Product Type: UPS
• Remote Management Interface: USB, RS-232
• Expansion Slots: 1 (total) / 0 (free) x expansion slot
• Interfaces: 1 x EPO (emergency power off), 1 x management (USB) - 4 pin USB Type B, 1 x management, 1 x management (RS-232) - 9 pin D-Sub (DB-9)
• Type: PowerPanel Business Edition
• Form Factor: Rack-mountable / external
• UPS Technology: On-line
• Voltage Provided: AC 200/208/220/230/240 volt
• Voltage Provided Margin: ± 2%
• Frequency Provided: 50/60 hertz
• Frequency Provided Margin: ± 0.25Hz
• UPS Output Waveform: Sinewave
• Power Provided: 10000 watt
• Power Capacity (VA): 10000 volt ampere per kilogram
• Voltage Required: AC 200-240 volt
• Frequency Required: 40 - 70 hertz
• Input Connector Type: Hardwire
• Output Connector Type: Terminal block
• Output Connector Qty: 1
• Surge Energy Rating: 2430 joules
• Circuit Protection: Circuit breaker, Fuse
• Efficiency: 97% Eco mode
• Power Factor (PF): 0.99
• Power Device Features: GreenPower UPS Technology, Audible alarm, LCD display, Hot-swappable batteries, Smart Battery Management (SMB), Internal bypass, Emergency power off, Cold-start function, Eco-efficiency, Overload protection, Built-in maintenance bypass
• Power Output Connectors Details: 1 x terminal block
• Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
• Voltage Provided: 12 volt
• Run Time (Up To): 3.6 minute (time unit)
• Load Type: At full load
• Recharge Time: 5 Hours
• Lead Acid Battery Features: Sealed
• Run Time (Up To): 3.6 min at full load, 10 min at half load
• Batteries Qty: 20
• Battery Technology: Lead acid
• Battery Capacity: 9 additional minute
• Color Category: Black
• Rack Mounting Kit: Included
• Height (Rack Units): 3
• Equipment Protection Value: 300000 US Dollars
• Compliant Standards: RoHS, IEC 61000-4-5, FCC Class A certified, UL 1778 5th edition, CSA C22.2 No. 107.3
• Width: 17 inch
• Depth: 32.3 inch
• Height: 10.4 inch
