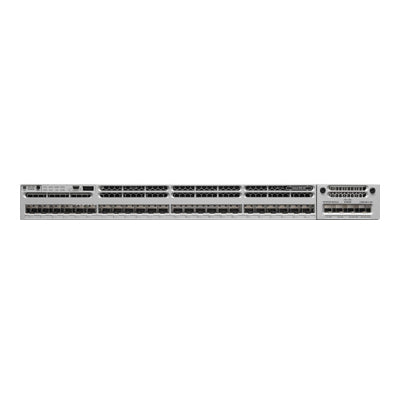

Cisco Catalyst 3850-24S-E 24-Ports Managed Switch WS-C3850-24S-E

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL CISCO WARRANTY!!! Cisco · PoE · Gigabit Ethernet · Switches · Managed · 24 ethernet ports · Layer 3 · VLAN · 24 count The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable Ethernet access and aggregation layer switch that provide full convergence between wired and wireless on a single platform. Cisco's Unified Access Data Plane application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at power over Ethernet plus, Cisco universal power over Ethernet, modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies.

Specifications

• Manufacturer: Cisco Systems, Cisco Systems
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 3850-24S-E
• Packaged Quantity: 1
• RAM
• Installed Size: 4 GB, 4 GB, 4 GB, 4 GB
• Flash Memory
• Installed Size: 2 GB, 2 GB, 2 GB, 2 GB
• Performance
• Performance: Stacking bandwidth: 480 Gbps, Switching capacity: 92 Gbps, Forwarding performance: 68.4 Mpps
• Capacity
• Capacity: IPv4 routes: 24000, NetFlow entries: 24000, Switched virtual interfaces (SVIs): 1000
• Networking
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Rack-mountable, Desktop
• Stackable: Stackable
• Ports Qty: 24
• Advanced Switching: Layer 3
• Routing Protocol: RIP-1, RIP-2, IS-IS, PIM-SM, BGP-4, PIM-SSM, OSPFv3, EIGRP, RIPng, EIGRP for IPv6
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: Telnet, CLI, SNMP 2c, SSH, SNMP 3, RMON 2, SNMP 1, RMON 1
• Status Indicators: PoE, Port duplex mode, System, Status, Port transmission speed
• Qty: 24
• Type: Gigabit SFP
• Expansion Slots
• Expansion Slots: 1 (total) / 1 (free) x expansion slot
• Interface Provided
• Interfaces: 1 x management (Gigabit LAN) RJ-45, 1 x management (RS-232) RJ-45, 1 x management (mini-USB) Type B, 1 x USB Type A, 24 x 1000Base-X SFP, 2 x network stack device
• Type: Internal power supply
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 350 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50/60 hertz
• Width: 17.5 inch
• Depth: 17.7 inch
• Height: 1.8 inch

Features : Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF) UPC : 00882658684593
