01D2H Dell Pro Slim QCS1250 Core Ultra 5 Slim Desktop PC

BRAND NEW WITH FULL DELL WARRANTY!!!

Overview

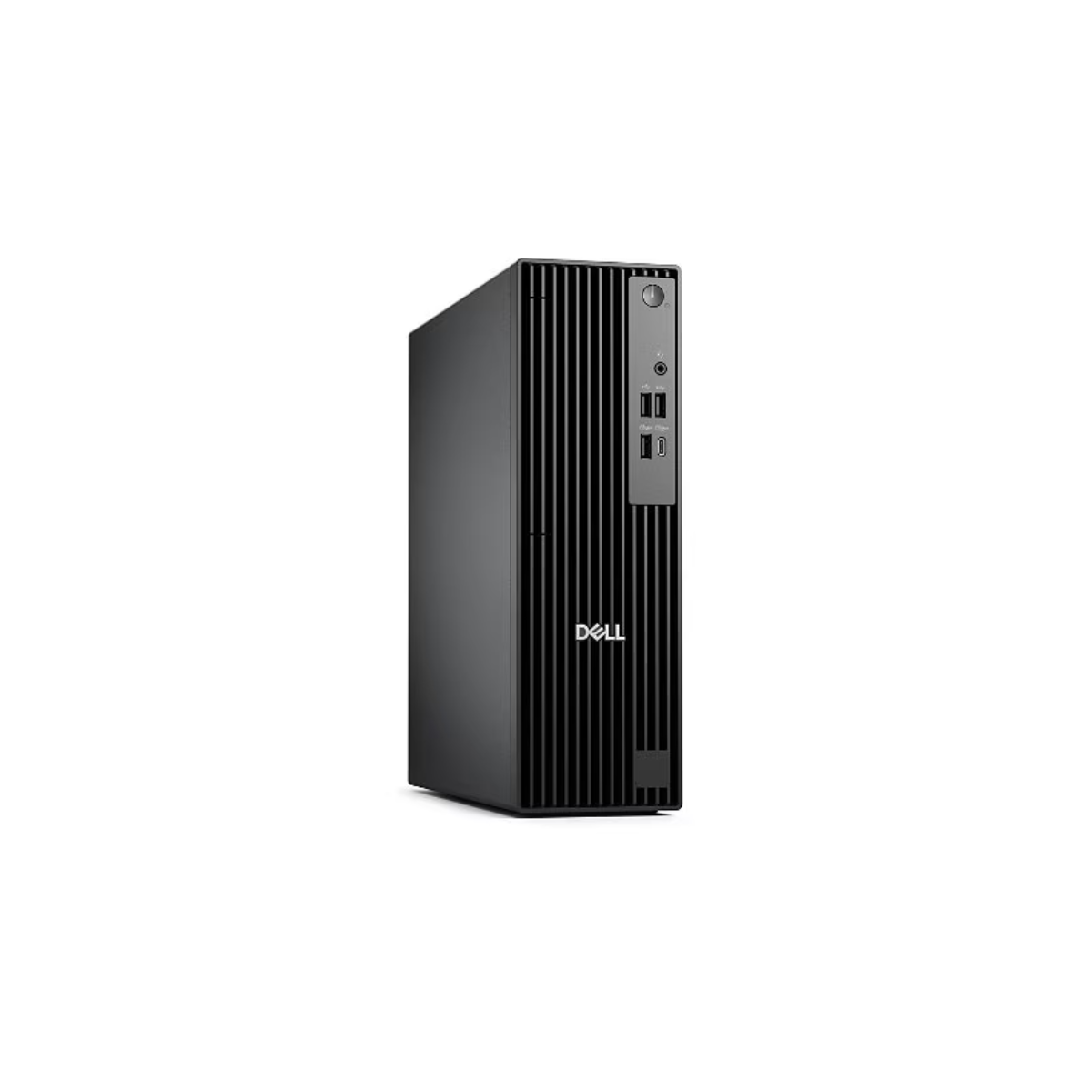

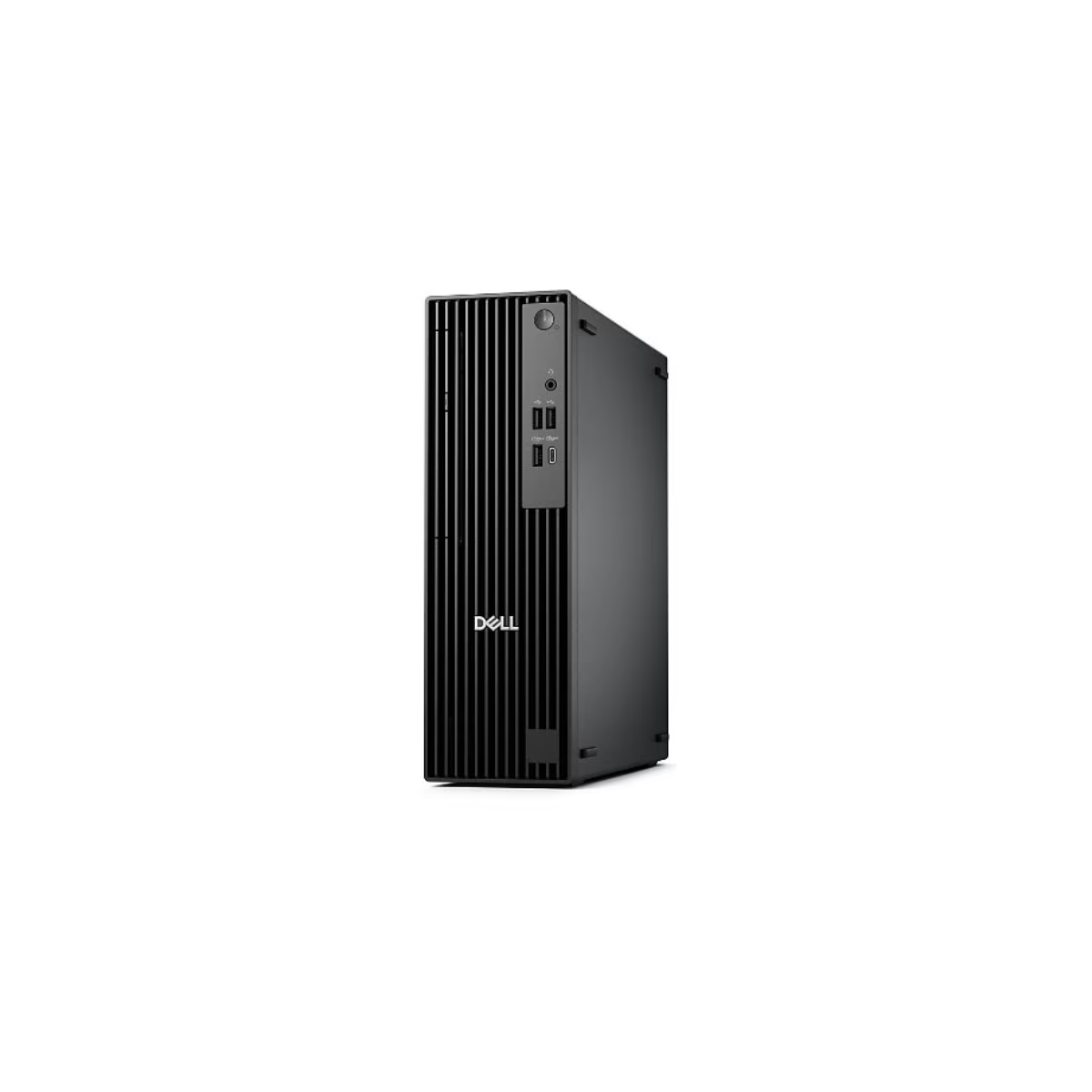

01D2H Dell Pro Slim QCS1250 Core Ultra 5 Slim Desktop PC is a compact commercial desktop built around the Intel Core Ultra 5 235 processor, 16GB of DDR5 memory and a 512GB PCIe NVMe SSD. The 14-core processor combines six Performance cores with eight Efficient cores and reaches up to 5.0 GHz, while Intel Graphics and the integrated Intel AI Boost NPU provide the platform with both conventional business graphics capability and dedicated AI acceleration.

The system is designed for business environments that need modern processing capability without the footprint of a conventional tower. Its slim chassis supports horizontal or vertical placement and provides Gigabit Ethernet, multiple USB interfaces, HDMI 2.1, DisplayPort 1.4a and low-profile PCIe expansion. This makes the 01D2H suitable for corporate workstations, administrative offices, education, branch offices and other deployments where compact dimensions and future expandability are important.

Key Features – 01D2H Dell Pro Slim QCS1250

• Processor: Intel Core Ultra 5 235, 14 cores, up to 5.0 GHz
• Memory: 16GB DDR5 SDRAM
• Storage: 512GB M.2 PCIe NVMe SSD
• Controller: Intel Q870 platform
• Graphics: Integrated Intel Graphics
• Networking / Ports:
  • Gigabit Ethernet
  • USB-C and USB-A connectivity
  • HDMI 2.1
  • DisplayPort 1.4a
• Power & Cooling: 180W internal power supply
• Management: Dell commercial endpoint-management capabilities
• Security: TPM 2.0, chassis intrusion switch, Kensington security slot and padlock ring
• Form Factor: Slim desktop

Technical Specifications

• Processor Type: Intel Core Ultra 5 235
• Processor Cores: 14 cores / 14 threads
  • 6 Performance cores
  • 8 Efficient cores
• Maximum Turbo Frequency: Up to 5.0 GHz
• Cache: 24MB
• NPU: Intel AI Boost, up to 13 TOPS
• Chipset / Platform: Intel Q870
• Memory Technology: DDR5 SDRAM
• Installed Memory: 16GB
• Memory Configuration: 1 × 16GB
• Memory Slots: 2 × DIMM
• Memory Speed: Up to 5600 MT/s
• Storage Interface: PCIe NVMe
• Installed Storage: 512GB M.2 NVMe SSD
• Storage Expansion: M.2 2230/2280 SSD support
• RAID Support: Not specified for this exact SKU
• Expansion Slots:
  • 1 × half-height PCIe x16
  • 2 × half-height PCIe x1
  • M.2 wireless slot
  • M.2 storage slot
• Networking: Gigabit Ethernet
• I/O Ports:
  • USB-C
  • USB-A
  • HDMI 2.1
  • DisplayPort 1.4a
  • RJ-45 Gigabit Ethernet
  • 3.5mm audio/headset connection
• Operating System Compatibility: Windows 11 Pro
• Power Supply: 180W
• Security: TPM 2.0, chassis intrusion detection, Kensington security slot

Physical Specifications

• Form Factor: Slim desktop
• Weight:
  • 3.90 kg
  • 8.60 lbs
• Dimensions:
  • 303.5 × 95 × 293 mm (H × W × D)
  • 11.95 × 3.74 × 11.54 inches (H × W × D)
• Rack Compatibility: Not rack-mountable; designed for desktop placement in horizontal or vertical orientation
• Placement: Horizontal or vertical
• Color: Black

Ideal For

• Corporate office workstations
• Business productivity environments
• Administrative and professional users
• Branch-office deployments
• Education and institutional computing
• Space-constrained desktop environments
• Multi-monitor business workstations
• AI-assisted productivity applications
• Professional office deployments
• Organizations standardizing compact commercial desktops

Warranty & Support

• Standard Manufacturer Warranty: Dell 3-Year Basic Onsite Service after Remote Diagnosis with Hardware-Only Support.
• Support Contract Compatibility: Compatible Dell commercial support upgrades, including applicable ProSupport services, can be selected according to the system's service configuration.
• Management: Dell commercial endpoint-management tools are available for centralized business PC administration.

FAQs – 01D2H Dell Pro Slim QCS1250

1. Can the 16GB memory in the 01D2H be upgraded?
Yes. The QCS1250 platform provides two DIMM slots, allowing the installed 16GB configuration to be expanded with compatible DDR5 memory.

2. Can the 512GB SSD be upgraded?
Yes. The QCS1250 platform supports an M.2 2230/2280 NVMe storage interface, providing an upgrade path beyond the factory-installed 512GB SSD.

3. Does the 01D2H support PCIe expansion?
Yes. The slim chassis provides one half-height PCIe x16 slot and two half-height PCIe x1 slots for compatible low-profile expansion hardware.

4. Can the 01D2H connect multiple displays?
Yes. The system provides DisplayPort 1.4a and HDMI 2.1 outputs. Additional display connectivity can be achieved through supported optional port modules.

5. Is the 01D2H suitable for business networks?
Yes. The system includes Gigabit Ethernet for wired corporate-network connectivity. Wireless connectivity depends on the installed configuration.

6. Is the 01D2H rack-mountable?
No. The 01D2H is a slim desktop PC, not a 1U or 2U rack server. It is intended for desktop deployment in horizontal or vertical orientation.
