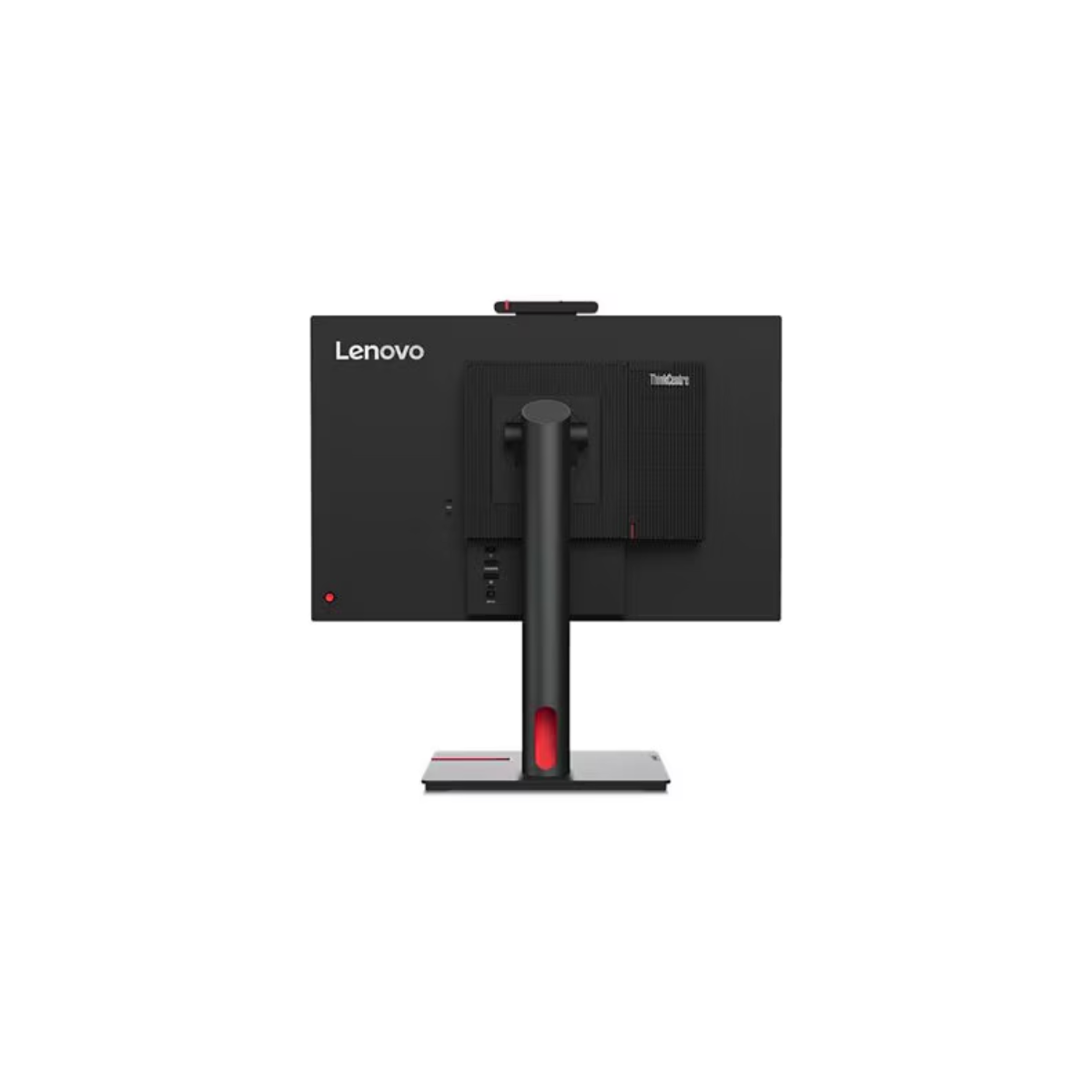

12NAGAR1UZ Lenovo ThinkCentre Tiny-in-One 24 Gen 5 23.8" FHD Monitor

BRAND NEW WITH FULL LENOVO WARRANTY!!!

Overview

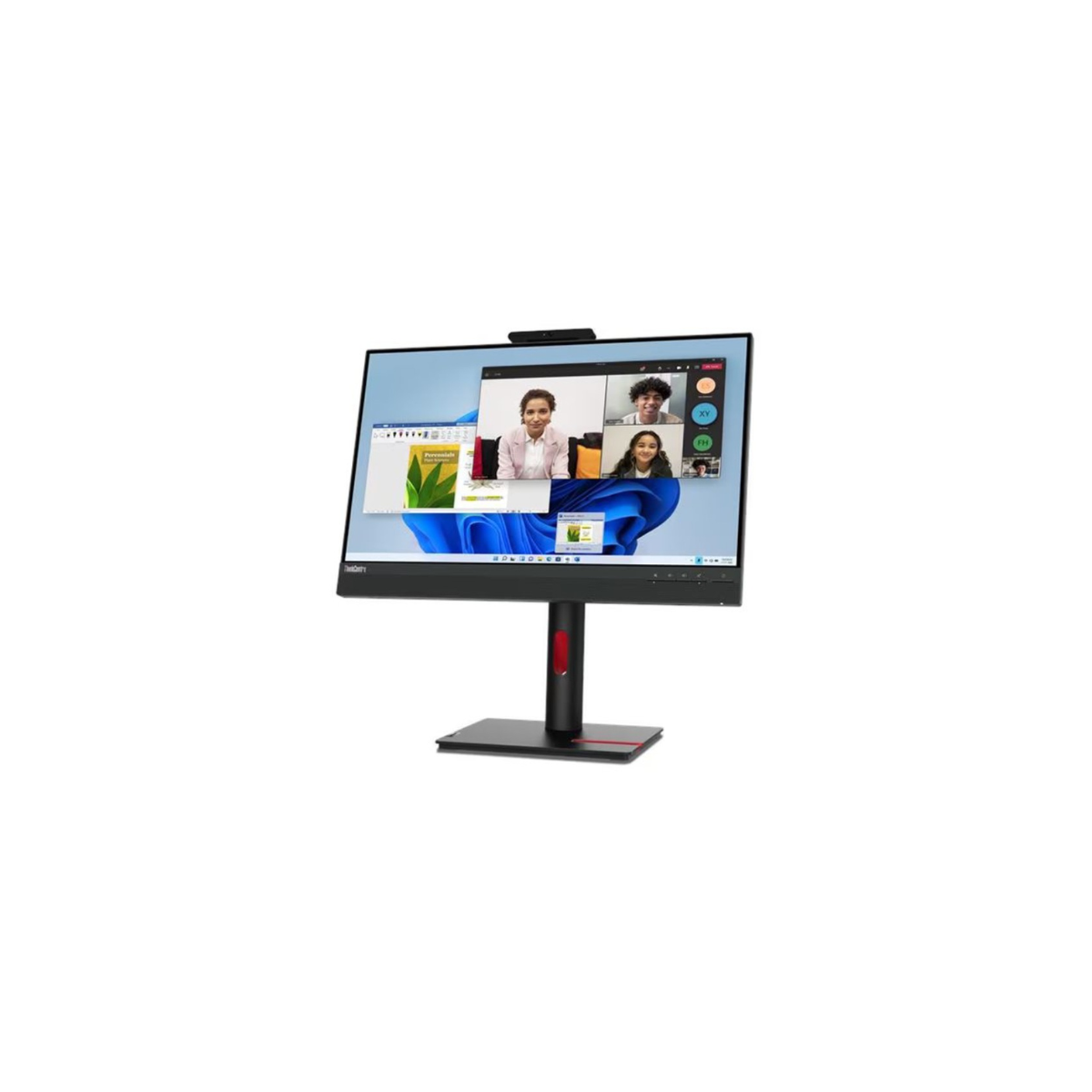

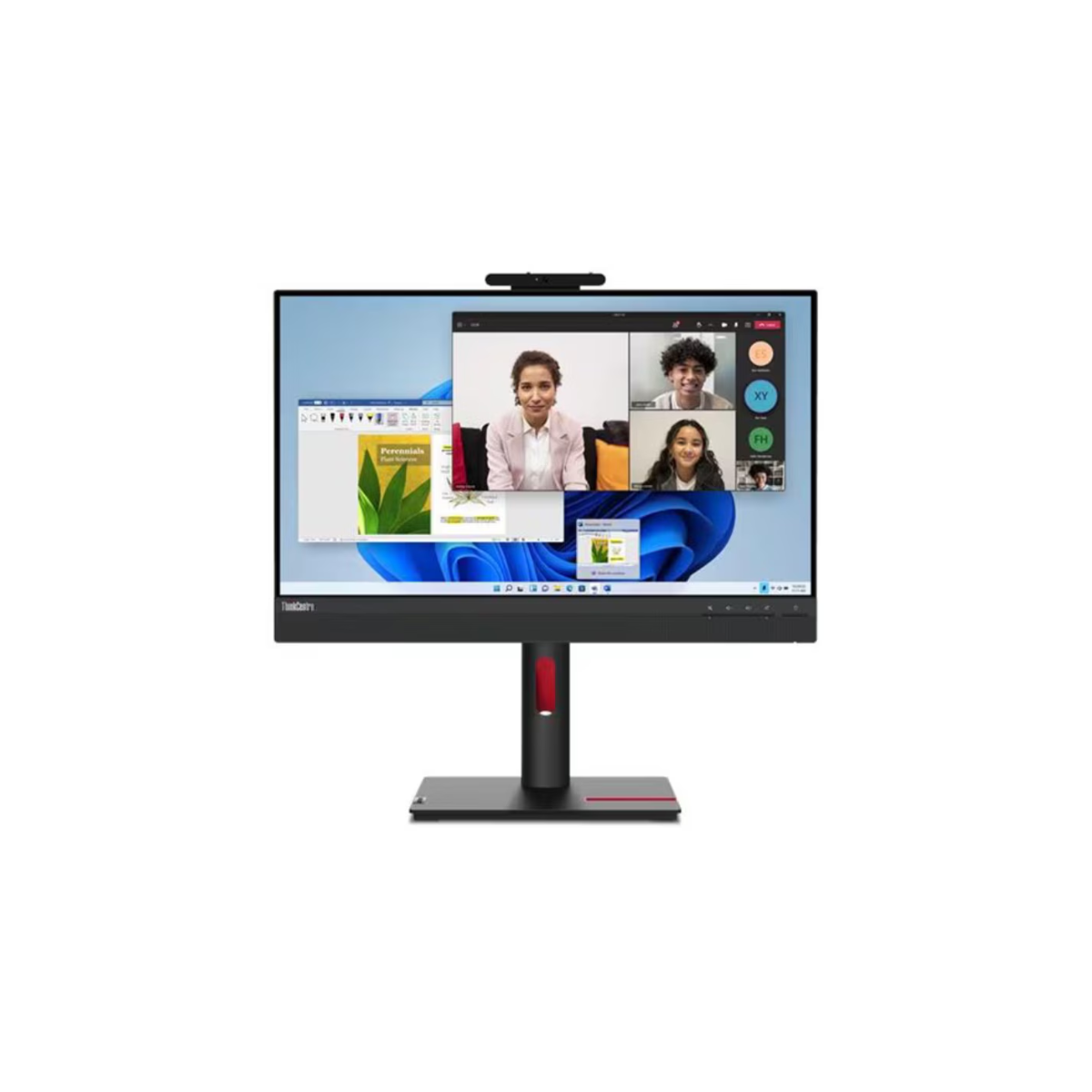

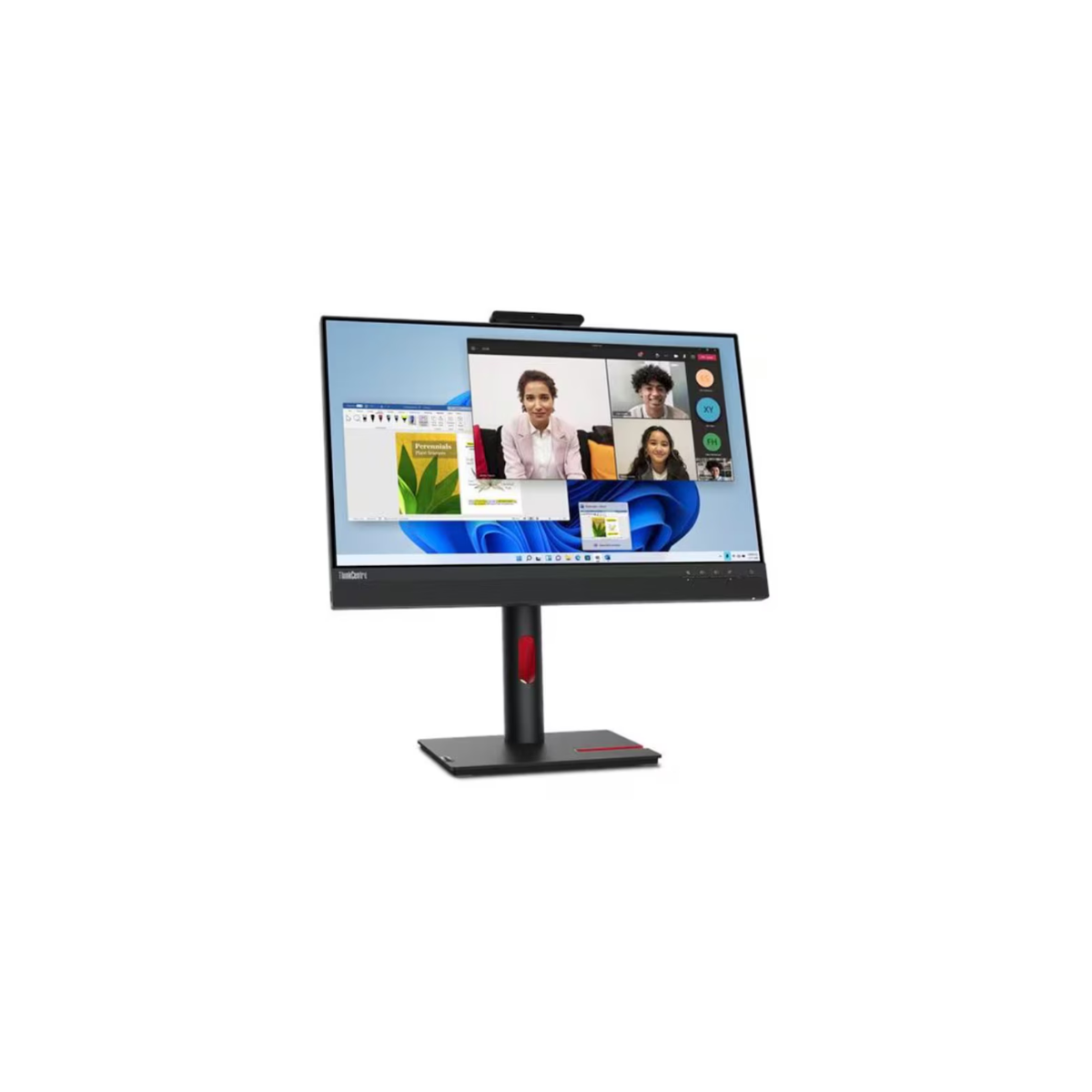

The 12NAGAR1UZ Lenovo ThinkCentre Tiny-in-One 24 Gen 5 23.8-inch FHD IPS Monitor is a business-focused display designed for professional desktop environments and compatible Lenovo Tiny PC deployments. It combines a 1920 × 1080 Full HD IPS panel, 99% sRGB color coverage, integrated FHD 1080p camera, microphone, and 3W × 2 stereo speakers in a space-efficient desktop design. The non-touch display operates at 60Hz with 250 cd/m² brightness and a 1000:1 contrast ratio.

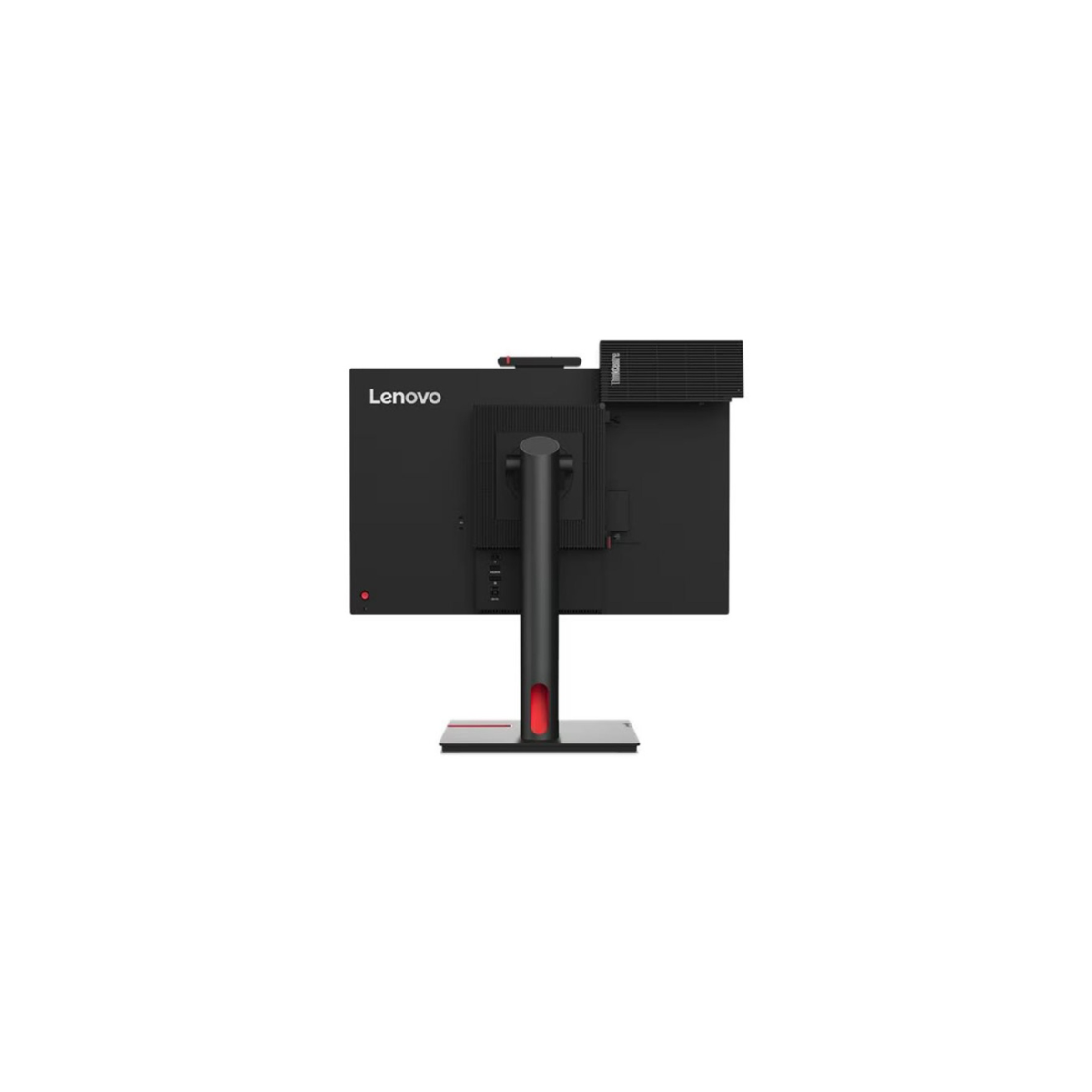

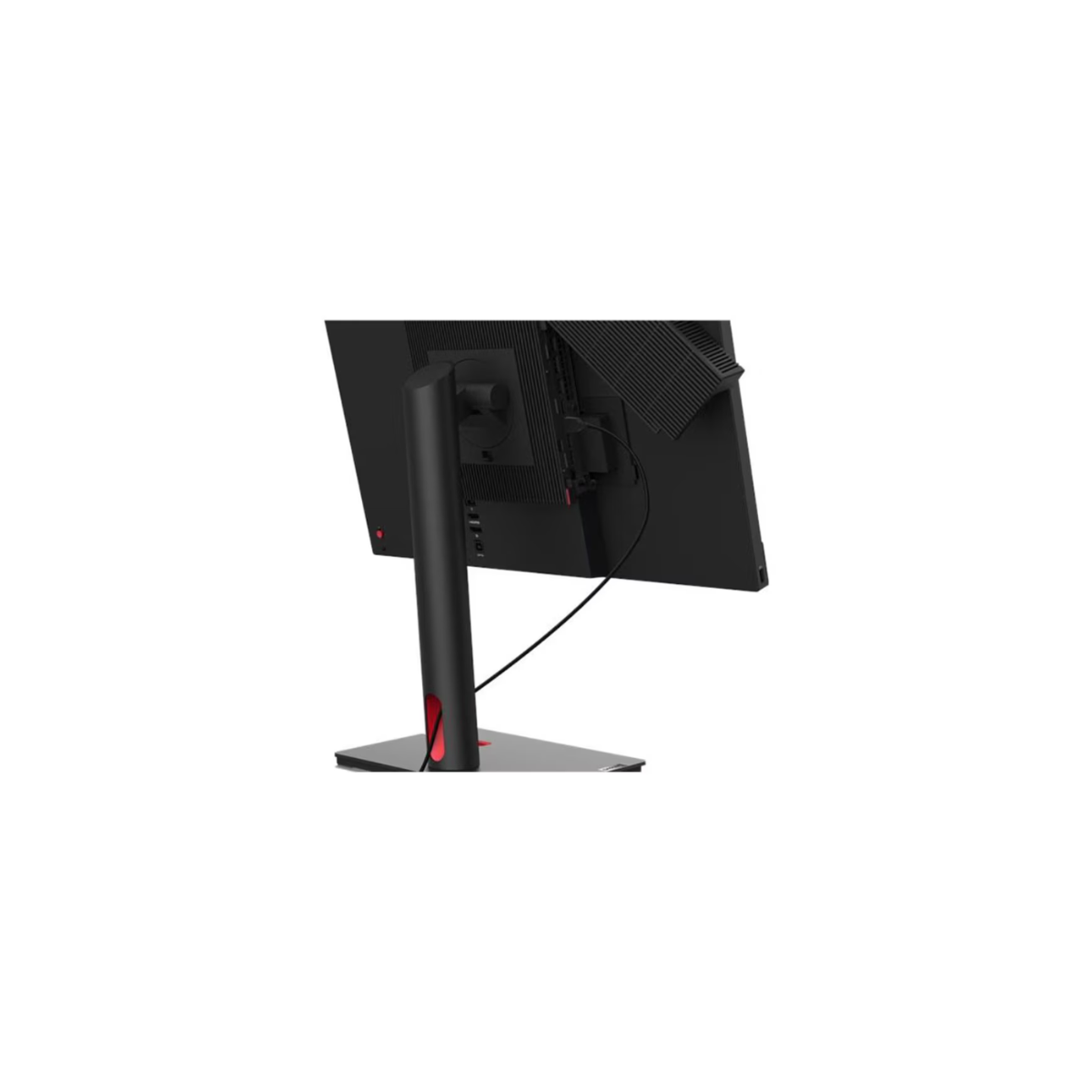

The modular ThinkCentre Tiny-in-One design allows compatible ThinkCentre Tiny and ThinkStation Tiny systems from 4th generation onward to be integrated with the monitor, helping businesses standardize compact workstation deployments. HDMI 1.4, DisplayPort 1.2, USB connectivity, an integrated KVM switch, and a fully adjustable stand provide practical functionality for corporate users.

Key Features – Lenovo ThinkCentre Tiny-in-One 24 Gen 5

• Processor: No integrated processor; designed for compatible Lenovo Tiny PCs
• Memory: No integrated system memory
• Storage: No integrated storage
• Controller: Integrated display controller
• Display: 23.8-inch IPS, Full HD 1920 × 1080
• Refresh Rate: 60Hz

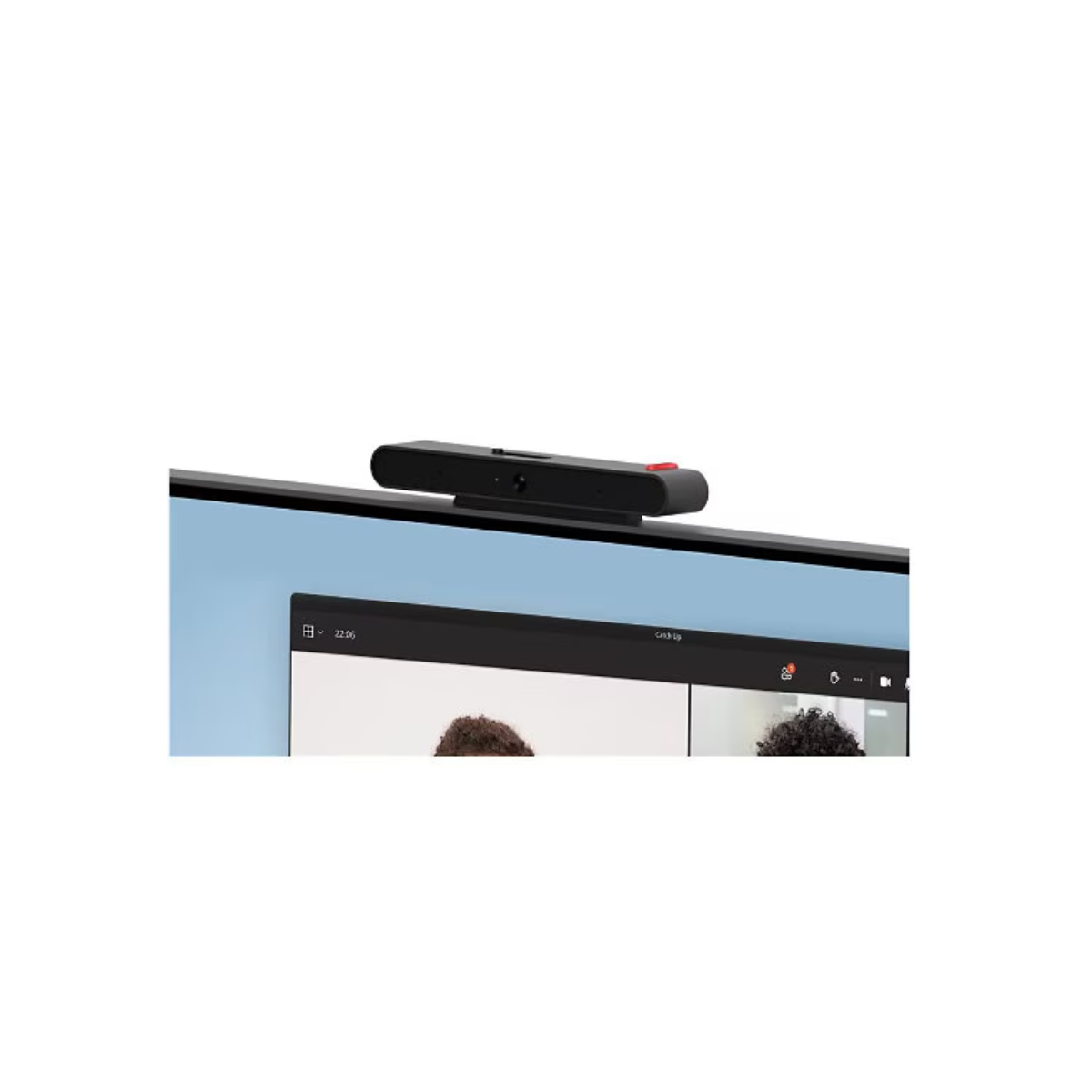

• Camera: FHD 1080p RGB camera
• Audio: Integrated microphone and 3W × 2 stereo speakers
• Networking / Ports: HDMI 1.4, DisplayPort 1.2, USB-B 3.2 Gen 1 upstream, USB 3.2 Gen 1 downstream
• Power & Cooling: External 90W power adapter; AC 100–240V, 50–60Hz
• Management: Lenovo ThinkColour / Lenovo Accessories and Display Manager support
• Security: Kensington Security Slot
• Form Factor: 23.8-inch desktop monitor with Lenovo Tiny PC integration
• Special Features: Integrated KVM switch and Natural Low Blue Light

Technical Specifications

• Processor Type: Not applicable to the monitor
• Chipset / Platform: Lenovo ThinkCentre Tiny-in-One 24 Gen 5
• Memory Technology: Not applicable
• Storage Interface: Not applicable
• RAID Support: Not applicable
• Expansion Slots: Not applicable
• Networking: No integrated Ethernet port
• Panel Technology: IPS
• Display Size: 23.8 inches
• Resolution: 1920 × 1080 Full HD
• Aspect Ratio: 16:9
• Backlight: WLED
• Pixel Pitch: 0.275 × 0.275 mm
• Pixel Density: 93 dpi
• Brightness: 250 cd/m²
• Contrast Ratio: 1000:1
• Dynamic Contrast Ratio: 3M:1
• Viewing Angle: 178° horizontal / 178° vertical
• Response Time: 4ms Extreme Mode / 6ms Typical Mode
• Color Support: 16.7 million colors
• Color Depth: 8-bit (6-bit + FRC)
• Color Gamut: 99% sRGB
• Screen Surface: Anti-glare
• I/O Ports: 1 × HDMI 1.4, 1 × DisplayPort 1.2, 1 × USB-B 3.2 Gen 1 upstream, 1 × USB 3.2 Gen 1 downstream
• Operating System Compatibility: Windows 10 and Windows 11
• Management Software: Lenovo ThinkColour supports Windows 10/11, Mac OS, and Windows on Arm, with functionality varying by system
• VESA Mount: 100 × 100 mm Lenovo PSREF

Physical Specifications

• Form Factor: 23.8-inch flat-panel desktop monitor
• Weight:
  • Monitor with stand: 6.0 kg / 13.2 lbs
  • Monitor head only: 3.7 kg / 8.2 lbs
• Dimensions:
  • Lowest position: 539.8 × 207.6 × 384.6 mm
  • Lowest position: 21.25 × 8.17 × 15.14 inches
  • Highest position: 539.8 × 207.6 × 539.6 mm
  • Highest position: 21.25 × 8.17 × 21.24 inches
  • Head only: 539.8 × 72.8 × 367.6 mm
  • Head only: 21.25 × 2.87 × 14.47 inches

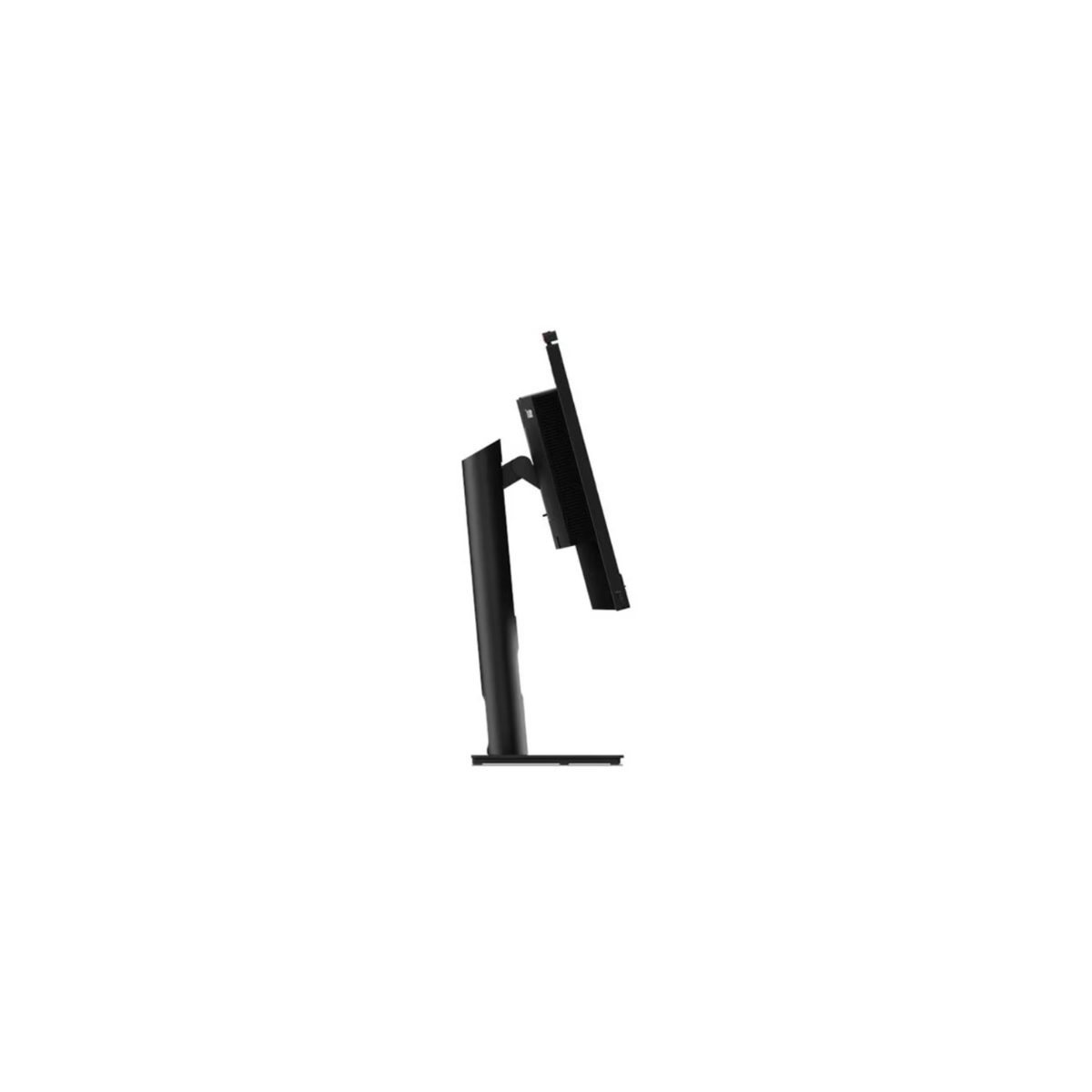

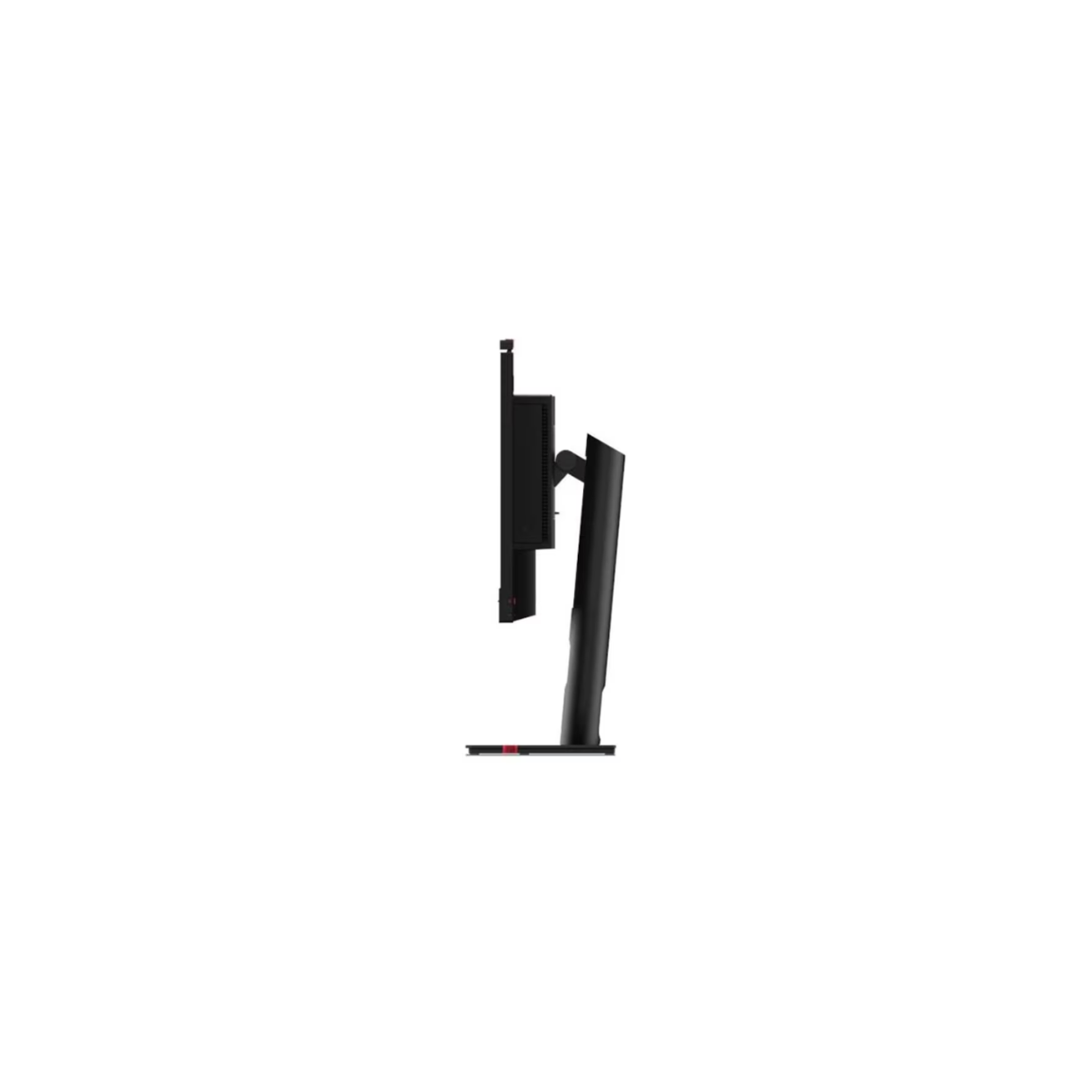

• Stand Adjustment: Up to 155 mm height adjustment, -5° to +23.5° tilt, ±45° swivel, and -5° to +90° pivot
• Rack Compatibility: Not rack-mountable; supports 100 × 100 mm VESA mounting
• Packaging Weight: 9.5 kg / 20.9 lbs Lenovo PSREF

Ideal For

• Corporate office workstations
• Lenovo ThinkCentre Tiny PC deployments
• Lenovo ThinkStation Tiny workstation environments
• Space-constrained business desktops
• Call centers and shared workstations
• Administrative and front-office environments
• Video conferencing and VoIP-enabled workstations
• Standardized Lenovo enterprise workstation deployments
• Organizations requiring integrated camera and audio functionality

Warranty & Support

• Standard Manufacturer Warranty: 3-year limited Lenovo warranty
• Support Contract Compatibility: Compatible with applicable Lenovo warranty and support services.
• Enterprise Management: Lenovo ThinkColour / Lenovo Accessories and Display Manager provides supported display-management functionality.

FAQs – 12NAGAR1UZ Lenovo ThinkCentre Tiny-in-One 24 Gen 5

1. Which Lenovo computers are compatible with the 12NAGAR1UZ?
The monitor supports ThinkCentre Tiny and ThinkStation Tiny systems from 4th generation onward, allowing compatible Tiny PCs to be integrated into the workstation setup.

2. Does the 12NAGAR1UZ include a built-in webcam?
Yes. The monitor includes an FHD 1080p RGB camera, integrated microphone, and 3W × 2 stereo speakers for video conferencing and VoIP applications.

3. What video connections are available?
The monitor provides one HDMI 1.4 port and one DisplayPort 1.2 port. It also includes USB-B upstream and USB 3.2 Gen 1 downstream connectivity.

4. Can the monitor be mounted on a monitor arm?
Yes. The 12NAGAR1UZ supports a 100 × 100 mm VESA mounting pattern, allowing use with compatible monitor arms and mounting systems.

5. Does the monitor include a redundant power supply?
No. This is a standalone monitor using an external 90W power adapter with AC 100–240V, 50–60Hz input. It does not provide redundant power supplies.

6. Is the 12NAGAR1UZ suitable for enterprise workstation deployment?
Yes. Its compact form factor, Tiny PC integration, integrated camera and audio, KVM switch, ergonomic stand, VESA support, and 3-year limited warranty make it suitable for standardized business workstation environments.
