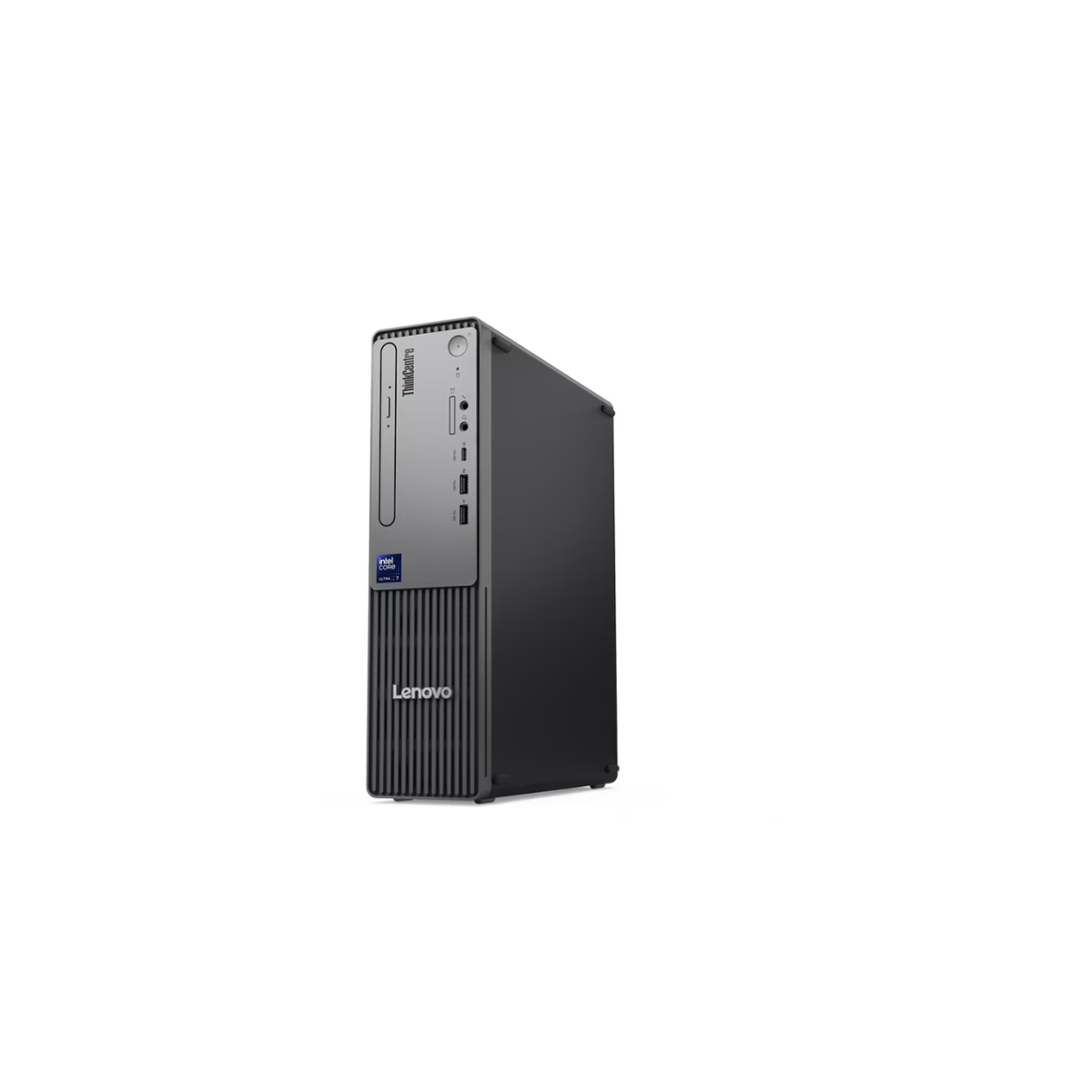

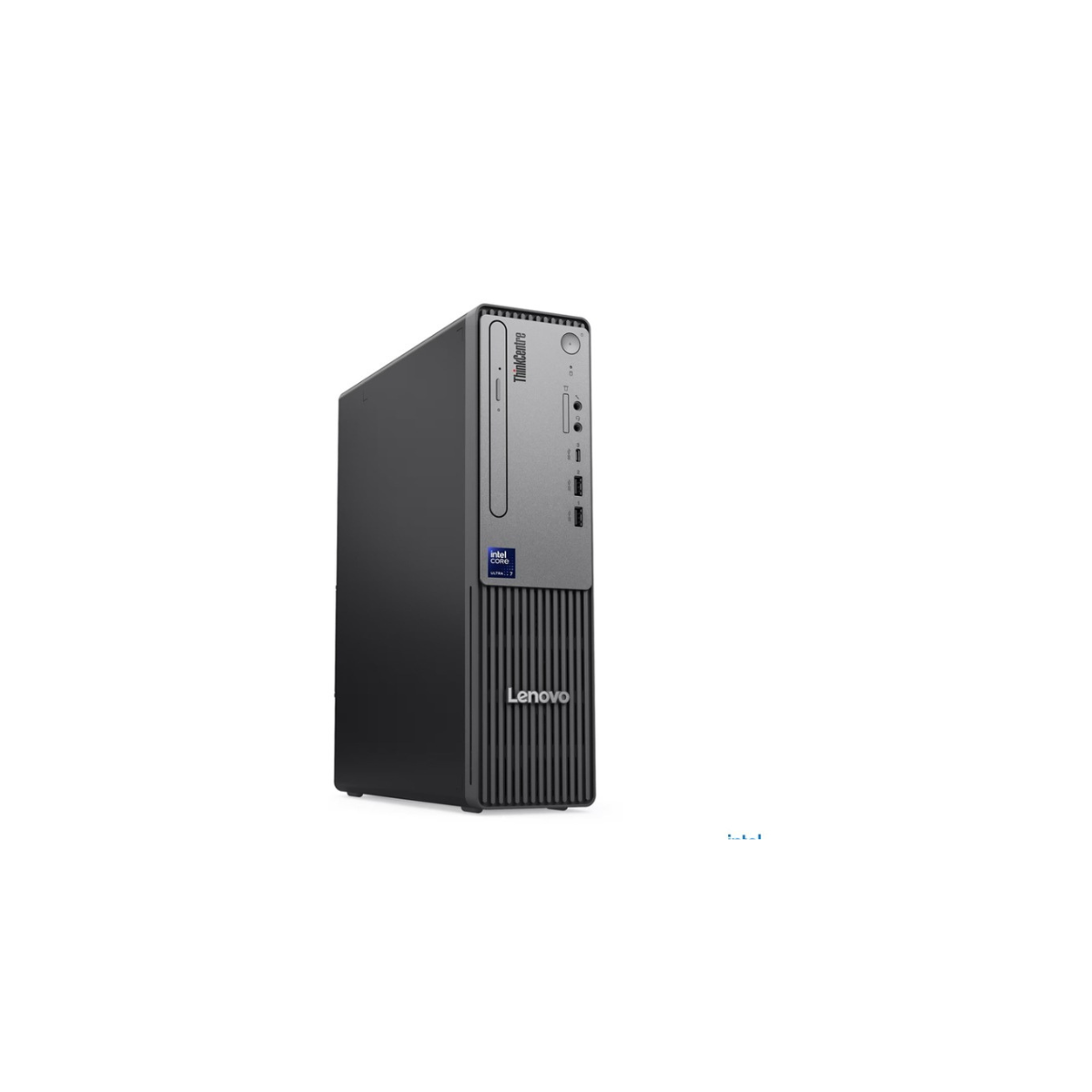

13DQ001GUS Lenovo ThinkCentre neo 50s Gen 6 SFF Core Ultra 5 225 16GB 512GB SSD

BRAND NEW WITH FULL LENOVO WARRANTY!!!

Overview

The 13DQ001GUS Lenovo ThinkCentre neo 50s Gen 6 SFF is a business desktop powered by the Intel Core Ultra 5 225 processor with 10 cores and turbo speeds up to 4.9 GHz. This configuration combines 16GB DDR5-5600 memory with a 512GB PCIe 4.0 x4 NVMe SSD to provide responsive performance for productivity applications, multitasking, business software, and everyday professional workloads.

Designed in an 8.2-liter Small Form Factor chassis, the ThinkCentre neo 50s Gen 6 provides enterprise-oriented connectivity without requiring a large desktop footprint. It includes Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.3, multiple USB ports, HDMI 2.1, DisplayPort 1.4, and a low-profile PCIe expansion architecture. The 200W power supply and Windows 11 Pro make this configuration well suited to corporate offices, education, branch locations, and managed workstation deployments.

Key Features – 13DQ001GUS Lenovo ThinkCentre neo 50s Gen 6

• Processor: Intel Core Ultra 5 225, 10 cores / 10 threads, up to 4.9 GHz turbo, 20MB Intel Smart Cache.
• Memory: 16GB DDR5-5600 UDIMM, installed as 1 × 16GB; two DIMM slots; supports up to 64GB.
• Storage: 512GB M.2 2280 PCIe 4.0 x4 NVMe SSD with TCG Opal 2.0 encryption.
• Controller: Intel B860 chipset/platform.
• Networking / Ports: Gigabit Ethernet, Wi-Fi 6E 802.11ax and Bluetooth 5.3.
• Power & Cooling: 200W power supply with 90% efficiency.
• Management: Windows 11 Pro; this configuration does not provide Intel vPro support.
• Security: Discrete TPM 2.0, TCG certification, FIPS 140-2 certification, Kensington Security Slot and padlock loop.
• Form Factor: Small Form Factor (SFF), 8.2L.

Technical Specifications

• Processor Type: Intel Core Ultra 5 225
• Processor Cores / Threads: 10 cores / 10 threads
• Maximum Turbo Frequency: Up to 4.9 GHz
• Processor Cache: 20MB Intel Smart Cache
• Chipset / Platform: Intel B860
• Memory Technology: DDR5-5600 SDRAM
• Installed Memory: 16GB, 1 × 16GB
• Maximum Memory: Up to 64GB
• Memory Slots: 2 × DDR5 UDIMM
• Storage Interface: PCIe 4.0 x4 NVMe
• Installed Storage: 512GB M.2 2280 SSD
• Storage Security: TCG Opal 2.0
• RAID Support: No RAID configuration is specified for this exact SKU.
• Expansion Slots: 1 × PCIe 4.0 x16 low-profile; 1 × PCIe 3.0 x1 low-profile; 3 × M.2 slots, including WLAN and SSD positions.
• Networking: Integrated 10/100/1000 Ethernet; Wi-Fi 6E 802.11ax; Bluetooth 5.3.

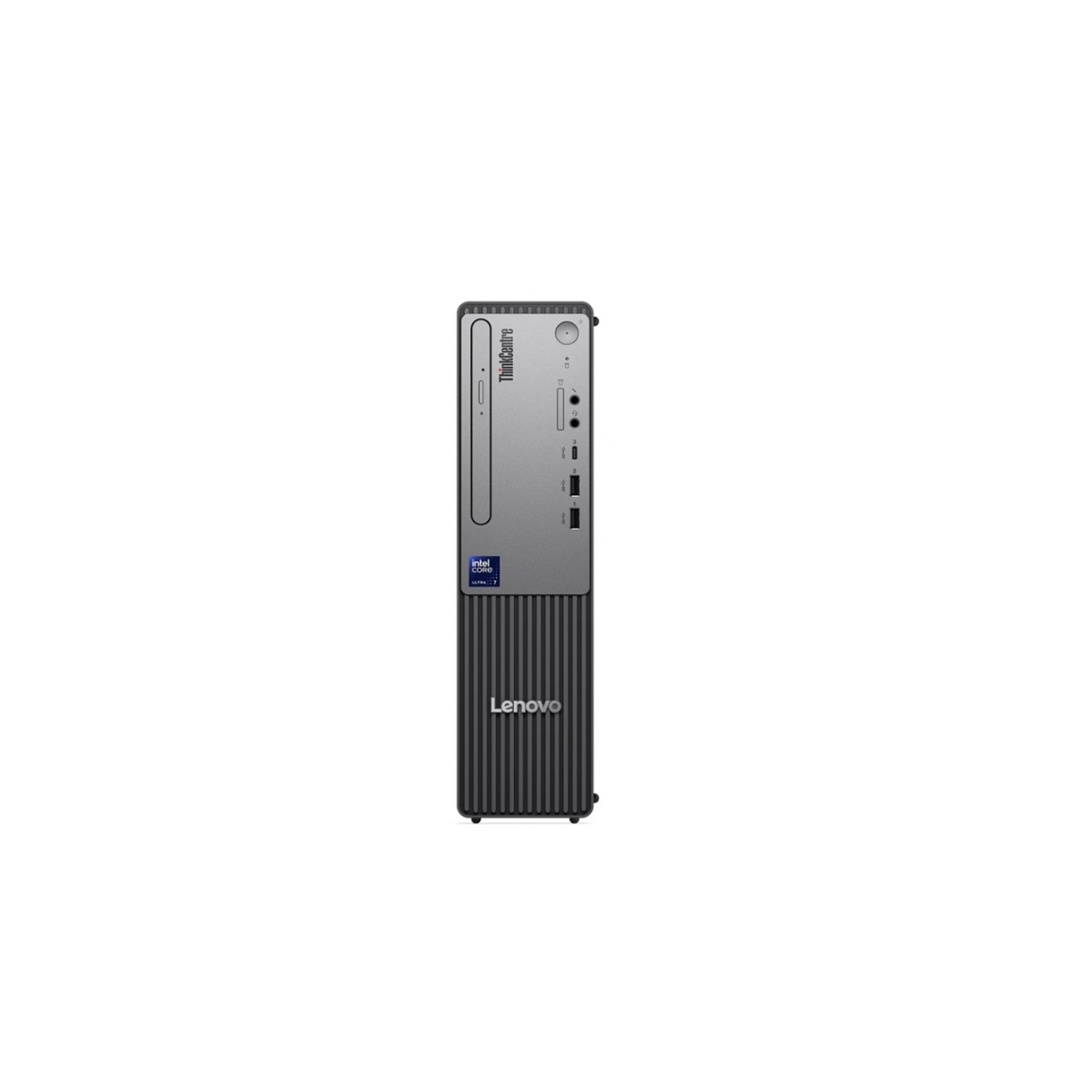

• Front I/O: 1 × USB-C 5Gbps with 15W charging; 2 × USB-A 5Gbps; 1 × 3.5mm headphone/microphone combo jack; 1 × 3.5mm microphone jack.

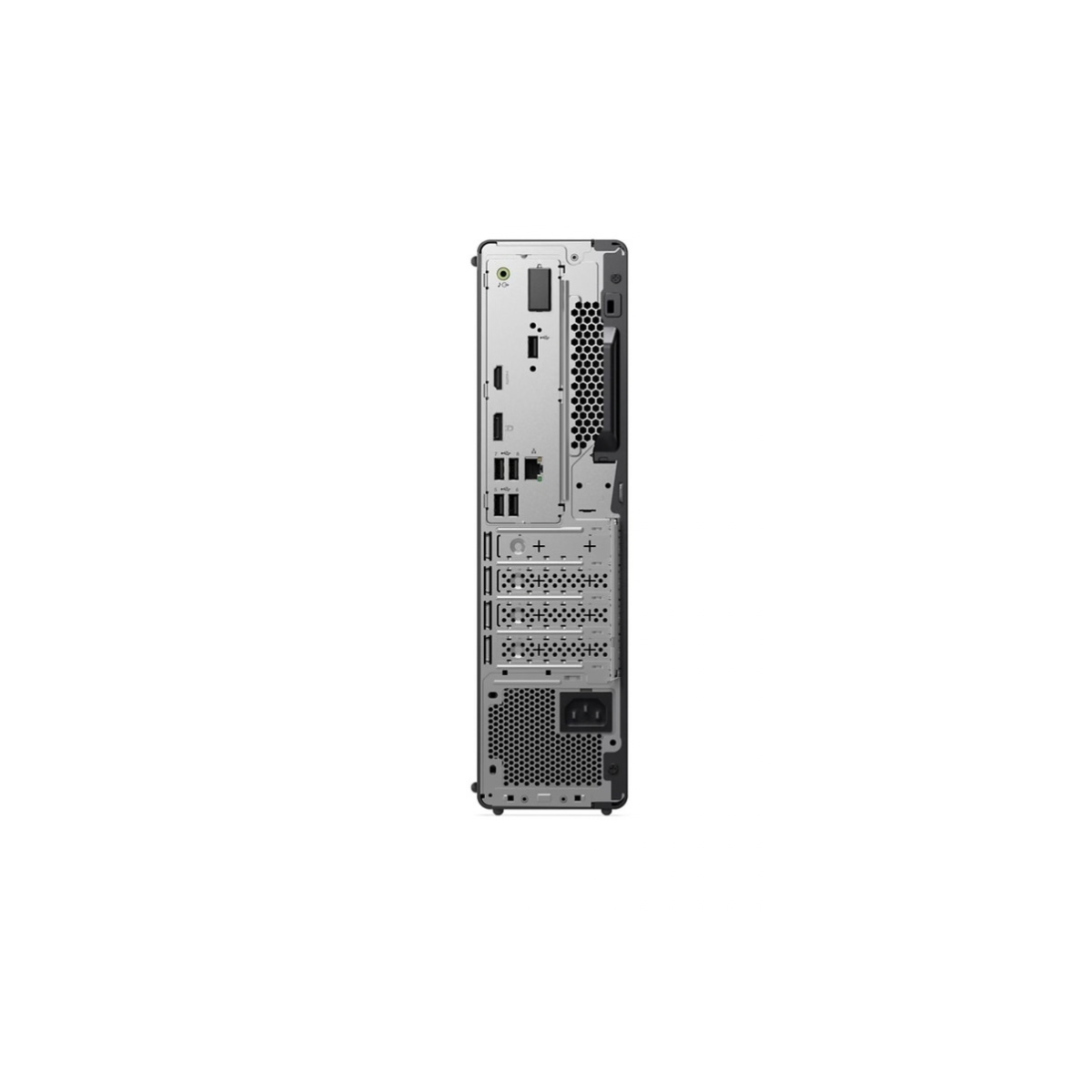

• Rear I/O: 2 × USB-A 2.0; 2 × USB-A 5Gbps, including one with Smart Power On; 1 × HDMI 2.1 TMDS; 1 × DisplayPort 1.4; 1 × RJ-45 Ethernet; 1 × 3.5mm line-out.
• Graphics: Integrated Intel Graphics.
• Audio: Realtek ALC623-CG High Definition Audio codec; 1W speaker.
• Operating System Compatibility: Windows 11 Pro, English.
• Input Devices: Lenovo Calliope USB keyboard and mouse included.

Physical Specifications

• Form Factor: Small Form Factor (SFF), 8.2L
• Weight:
  • 4.62 kg
  • 10.19 lbs
• Dimensions:
  • 92.5 × 291.7 × 339.5 mm (W × D × H)
  • 3.6 × 11.5 × 13.4 inches (W × D × H)
• Rack Compatibility: Not designed as a rack-mount server. This is a desktop SFF system intended for standalone or office workstation deployment.

Ideal For

• Corporate office workstations
• Small and medium business deployments
• Enterprise productivity environments
• Education and training facilities
• Branch and satellite offices
• Finance, administration, and professional-services workstations
• Space-conscious desktop installations
• Managed Windows 11 Pro workstation fleets
• Business users requiring PCIe expansion capability

Warranty & Support

• Standard Manufacturer Warranty: 1-year limited warranty with onsite service.
• Support Contract Compatibility: Lenovo support and extended service options can be added according to the applicable Lenovo service program and deployment requirements.

FAQs – 13DQ001GUS Lenovo ThinkCentre neo 50s Gen 6

1. Can the memory be upgraded on the 13DQ001GUS?
Yes. The system has two DDR5 UDIMM slots and supports up to 64GB of DDR5-5600 memory. The supplied configuration uses one 16GB module, leaving the second memory slot available.

2. Can additional storage be installed?
Yes. The platform supports up to three drives: one 3.5-inch HDD and two M.2 SSDs. The supplied configuration includes one 512GB M.2 2280 PCIe 4.0 x4 NVMe SSD.

3. Does the 13DQ001GUS support wireless networking?
Yes. This SKU includes Wi-Fi 6E 802.11ax and Bluetooth 5.3, along with integrated Gigabit Ethernet for wired network connectivity.

4. What expansion options are available?
The system provides one low-profile PCIe 4.0 x16 slot and one low-profile PCIe 3.0 x1 slot. It also provides three M.2 slots for WLAN and storage expansion.

5. Does this configuration have redundant power supplies?
No. The 13DQ001GUS uses a single 200W power supply rated at 90% efficiency. It is designed as a business desktop rather than a redundant-power server platform.

6. Is this system suitable for enterprise office deployment?
Yes. Its Core Ultra 5 processor, 16GB DDR5 memory, 512GB NVMe storage, Windows 11 Pro, Gigabit Ethernet, Wi-Fi 6E, TPM 2.0 security, and compact SFF chassis make it appropriate for managed business workstation deployments.
