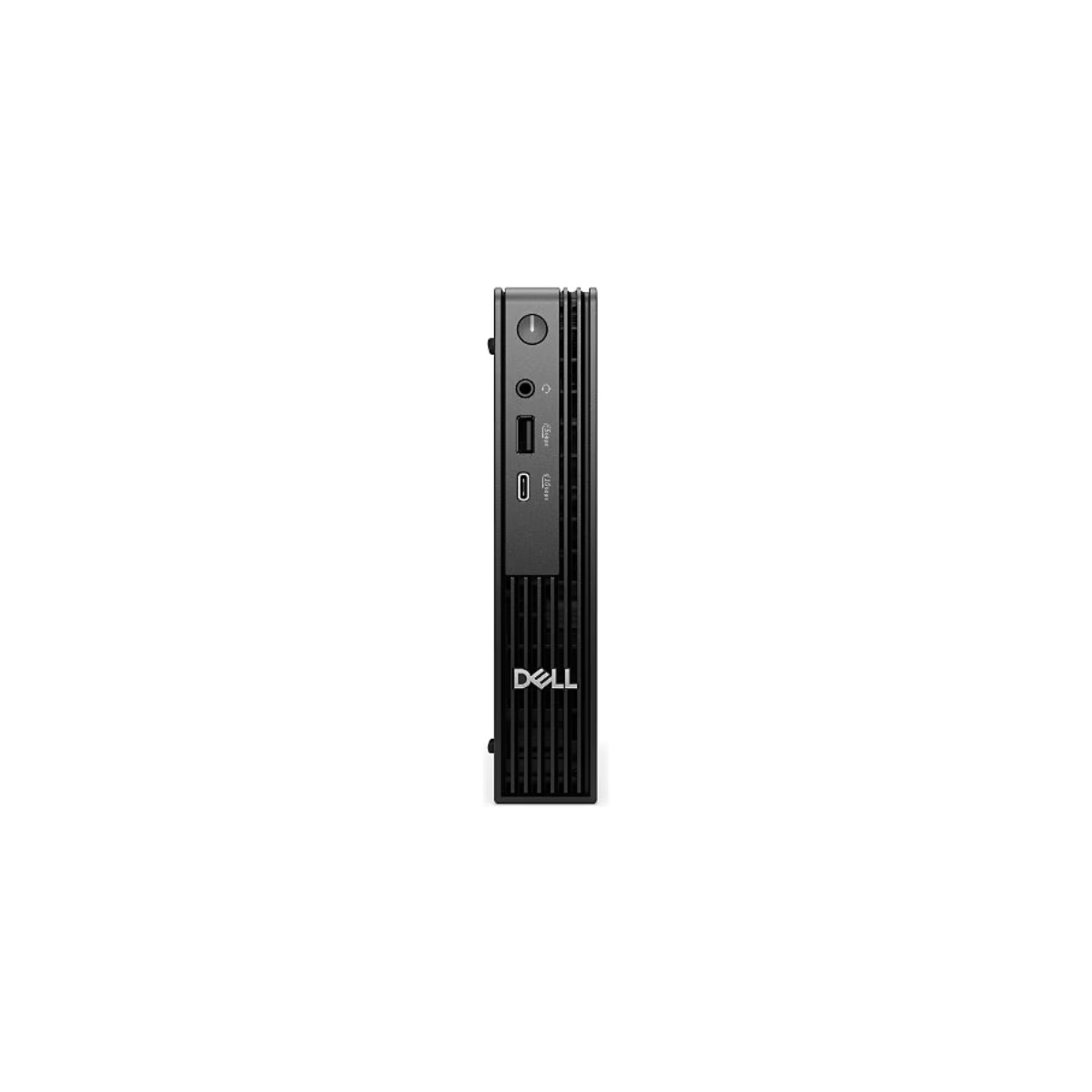

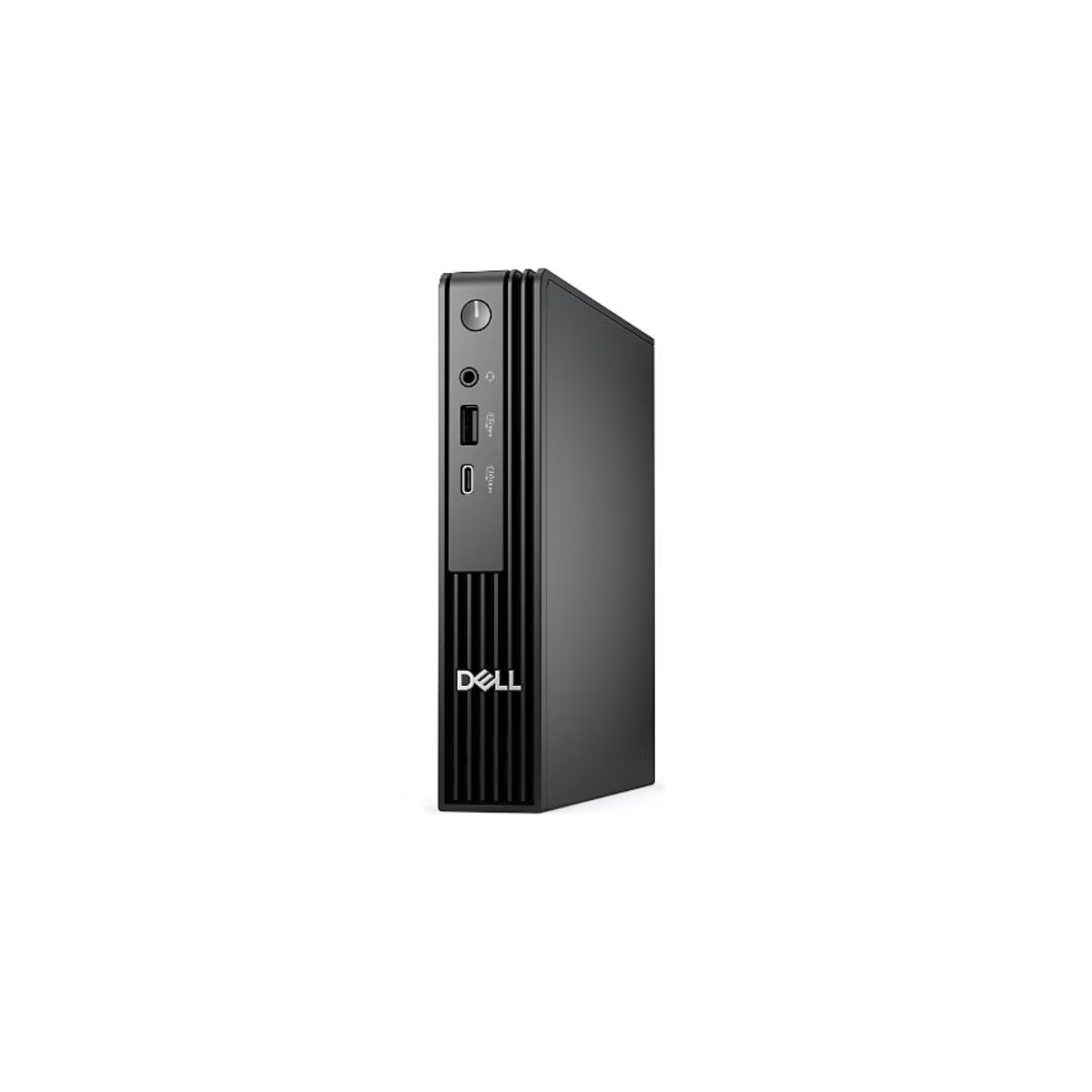

1D5HX Dell Pro Micro QCM1250 Core i5 Micro Desktop

BRAND NEW WITH FULL DELL WARRANTY!!!

Overview

1D5HX Dell Pro Micro QCM1250 Core i5 Micro Desktop is a compact business PC built around the 14-core Intel Core i5-14500T processor, 16GB DDR5 memory and a 256GB PCIe NVMe SSD. The processor operates at 1.7 GHz base frequency and reaches up to 4.8 GHz Turbo, while integrated Intel UHD Graphics 770 handles business display workloads without requiring a discrete graphics card.

The system is designed for organizations that need capable desktop computing in a very small footprint. With Gigabit Ethernet, wireless connectivity, multiple USB interfaces, HDMI and DisplayPort, the 1D5HX can support everyday business productivity, office applications, multi-display workstations and space-constrained deployments. Its Micro chassis measures only 182 × 178 × 36 mm, while Dell provides security features including TPM 2.0, chassis intrusion protection and a Kensington security slot.

Key Features – 1D5HX Dell Pro Micro QCM1250

• Processor: Intel Core i5-14500T, 14 cores / 20 threads, 1.7 GHz base, up to 4.8 GHz Turbo
• Memory: 16GB DDR5 SDRAM
• Storage: 256GB M.2 PCIe Gen4 NVMe SSD, TLC
• Controller: Intel platform chipset with integrated system management
• Graphics: Intel UHD Graphics 770
• Networking / Ports:
  • 1 × Gigabit Ethernet RJ-45
  • Wi-Fi and Bluetooth supported through compatible wireless configuration
  • USB 3.2 and USB 2.0 ports
  • HDMI
  • DisplayPort
• Power & Cooling: 90W external AC adapter; active internal cooling fan
• Management: Dell commercial management and deployment tools; Dell Command Suite support
• Security: TPM 2.0, chassis intrusion protection, Kensington security slot and padlock ring
• Form Factor: Micro PC

Technical Specifications

• Processor Type: Intel Core i5-14500T
• Processor Cores / Threads: 14 cores / 20 threads
• Processor Base Frequency: 1.7 GHz
• Maximum Turbo Frequency: 4.8 GHz
• Processor Power: 35W
• Cache: 24MB
• Chipset / Platform: Dell Pro Micro QCM1250 platform
• Memory Technology: DDR5 SDRAM
• Installed Memory: 16GB
• Memory Configuration: 1 × 16GB
• Memory Slots: 2
• Maximum Supported Memory: 64GB
• Memory Speed: 4800 MT/s for the i5-14500T configuration
• Storage Interface: PCIe Gen4 NVMe
• Installed Storage: 256GB M.2 2230 TLC NVMe SSD
• Storage Expansion: 2 × M.2 2230/2280 SSD slots
• RAID Support: Not specified for this exact configuration
• Expansion Slots: 2 × M.2 storage slots; 1 × M.2 2230 slot for Wi-Fi/Bluetooth
• Graphics: Intel UHD Graphics 770
• Networking: Gigabit Ethernet; optional wireless connectivity
• I/O Ports:
  • 1 × USB 3.2 Gen 2 Type-C
  • 1 × USB 3.2 Gen 1 Type-A
  • 2 × USB 3.2 Gen 1 Type-A
  • 2 × USB 2.0 Type-A
  • 1 × HDMI
  • 1 × DisplayPort
  • 1 × RJ-45 Gigabit Ethernet
  • 1 × headset/microphone combination jack
• Operating System: Windows 11 Pro
• Audio: High-definition audio with integrated speaker
• Wireless: Compatible Wi-Fi 6E / Wi-Fi 7 configurations are available for the QCM1250 platform; the exact wireless card should be confirmed against the purchased SKU.

Physical Specifications

• Form Factor: Micro PC
• Weight:
  • 1.16 kg starting weight
  • 2.56 lbs starting weight
• Dimensions:
  • 182 × 36 × 178 mm (H × W × D)
  • 7.17 × 1.42 × 7.01 inches (H × W × D)
• Rack Compatibility: Not rack-mountable as a standard 1U/2U server; intended for desktop or compatible mounting solutions
• Mounting: Dell offers compatible mounting accessories for Pro Micro systems.

Physical-specification note: Dell lists the QCM1250's starting weight as 1.16 kg (2.56 lbs). Because the chassis weight can change with installed components and configuration, this is the manufacturer's published starting weight rather than an invented fixed shipping weight.

Ideal For

• Corporate office workstations
• Small and medium business deployments
• Administrative and productivity workloads
• Reception and front-desk systems
• Space-constrained desktop environments
• Multi-monitor business workstations
• Education and institutional deployments
• Branch-office computing
• Retail and point-of-service environments
• Organizations standardizing compact commercial PCs

Warranty & Support

• Standard Manufacturer Warranty: 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support.
• Support Contract Compatibility: Dell commercial support options, including ProSupport services, may be available depending on the service configuration selected.
• Management: Dell provides commercial management utilities including Dell Command | Configure, Dell Command | Monitor, Dell Command | Update and related endpoint-management tools.

FAQs – 1D5HX Dell Pro Micro QCM1250

1. Can the 16GB memory be upgraded?
Yes. The QCM1250 platform has two memory slots and supports up to 64GB of DDR5 memory. The 1D5HX configuration uses one 16GB module, leaving the second memory slot available.

2. Can the 256GB SSD be upgraded?
Yes. Dell's QCM1250 platform provides two M.2 2230/2280 SSD slots, allowing storage expansion beyond the installed 256GB NVMe drive.

3. Does the 1D5HX support multiple displays?
Yes. The system provides HDMI and DisplayPort outputs. Dell also offers optional display-interface modules for configurations requiring additional display connectivity.

4. Is the 1D5HX suitable for business networks?
Yes. It includes Gigabit Ethernet and can be configured with supported Wi-Fi and Bluetooth wireless adapters. This provides both wired and wireless connectivity for typical business environments.

5. What security features are included?
The QCM1250 platform supports TPM 2.0, chassis intrusion protection, a Kensington security slot and a padlock ring. These features help organizations secure the physical system and support enterprise endpoint-security policies.

6. Is the 1D5HX a rack-mount server?
No. The 1D5HX is a Micro form-factor business desktop, not a 1U or 2U rack server. Its 182 × 178 × 36 mm chassis is designed primarily for desktop and compact workplace installations.
