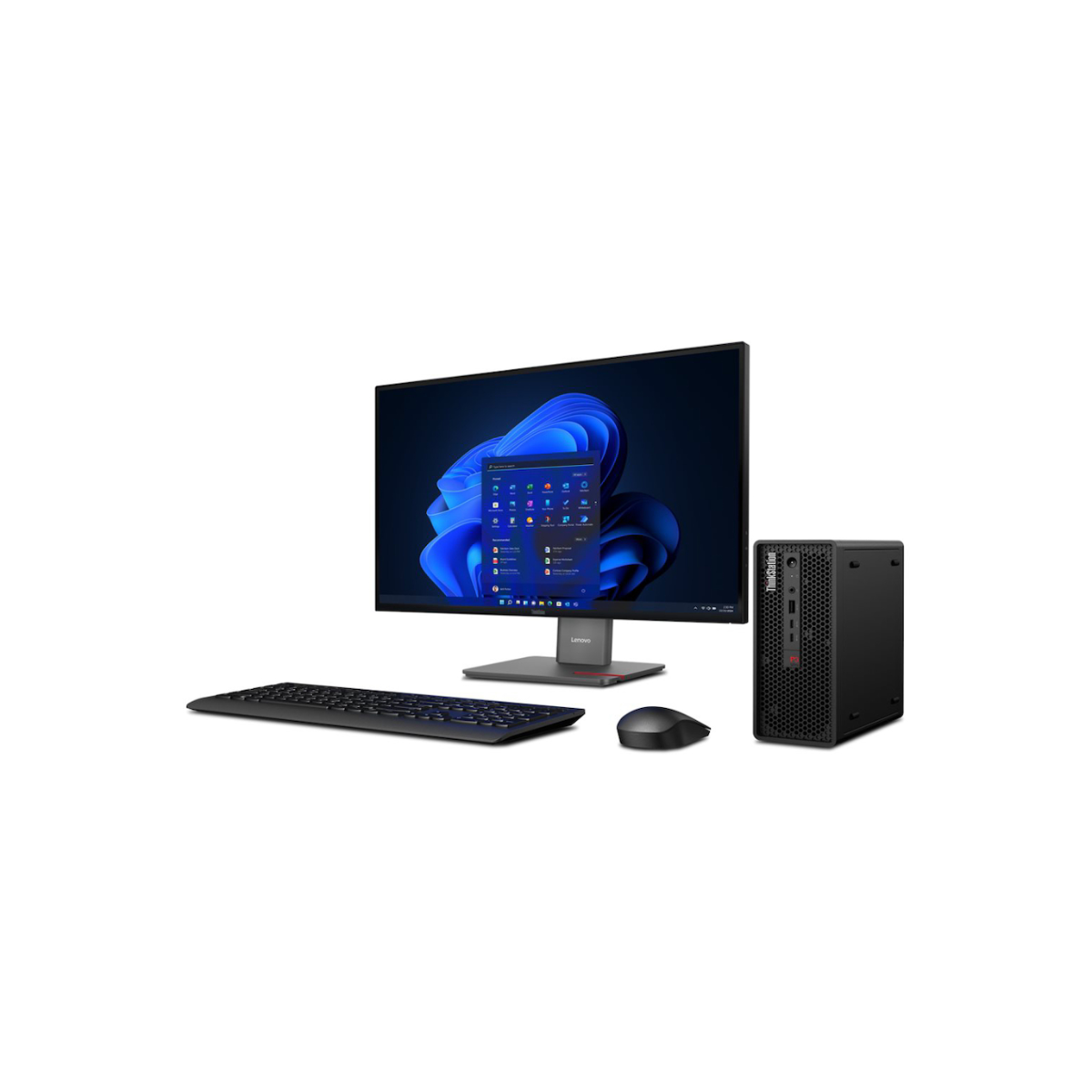

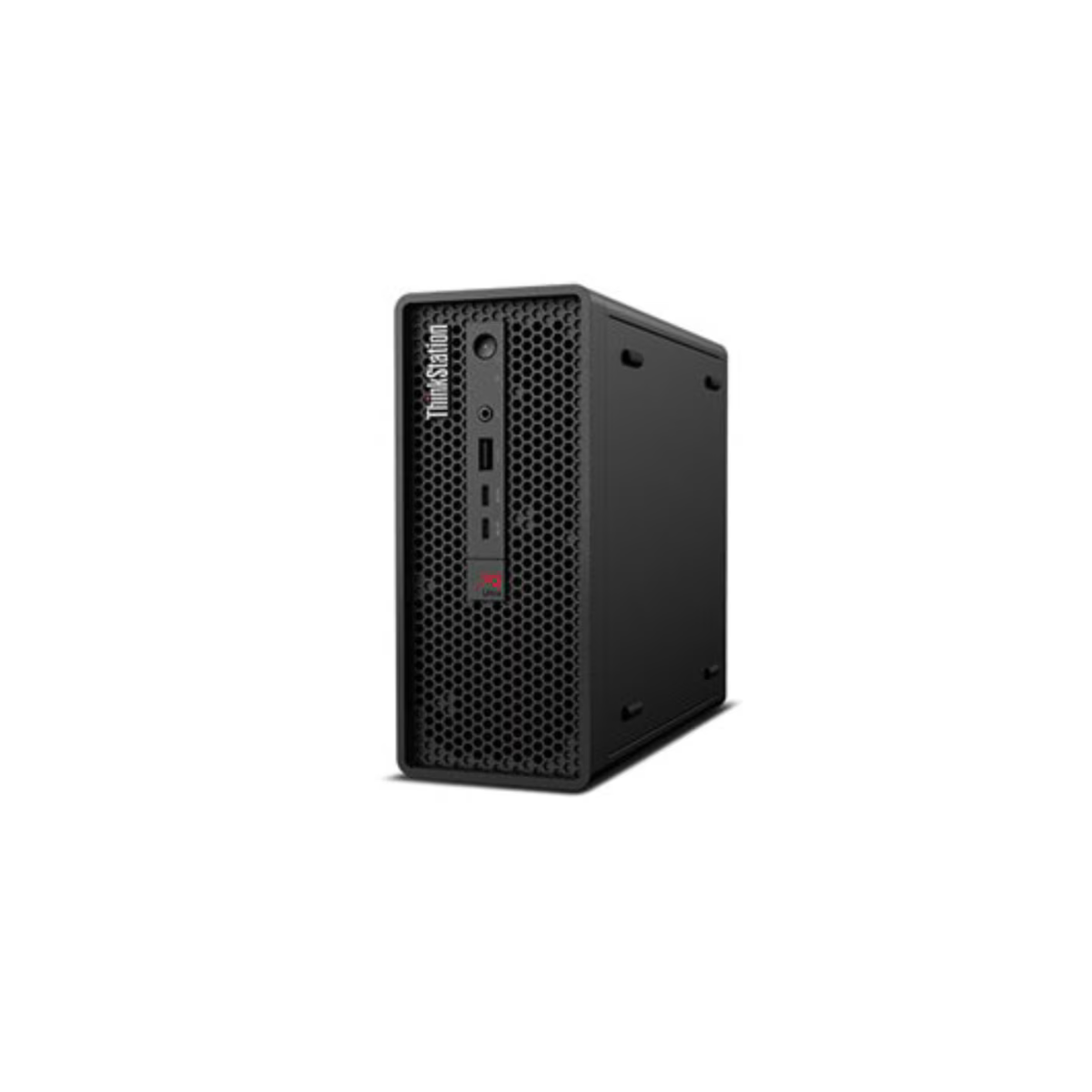

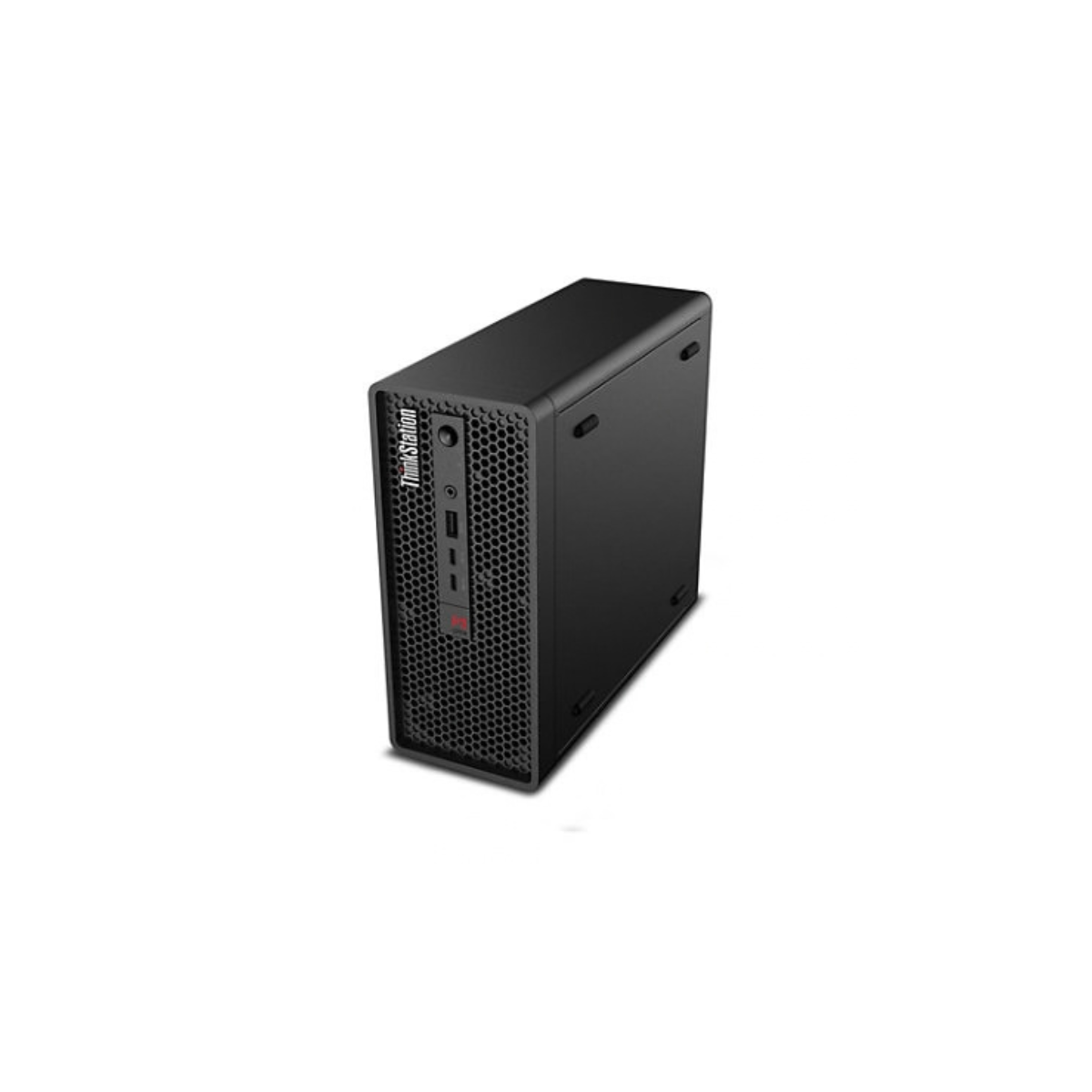

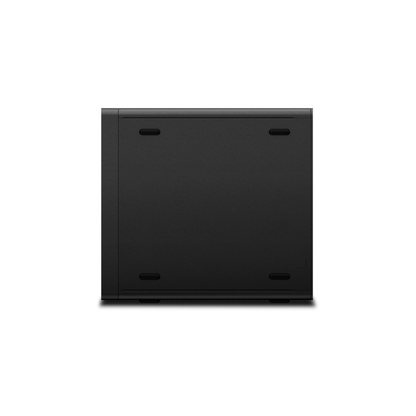

30J50033US Lenovo ThinkStation P3 Ultra SFF Gen 2 Core Ultra 9 285 32GB 1TB SSD RTX A1000

BRAND NEW WITH FULL LENOVO WARRANTY!!!

Overview

The 30J50033US Lenovo ThinkStation P3 Ultra SFF Gen 2 is a compact professional workstation engineered for demanding business, engineering, design, visualization, and technical computing workloads. It combines the 24-core Intel Core Ultra 9 285 processor, 32GB DDR5-6400 CSODIMM memory, a 1TB PCIe 5.0 x4 NVMe SSD, and a dedicated NVIDIA RTX A1000 8GB graphics card in a space-efficient Small Form Factor chassis.

Designed for professional environments where workstation-class processing and graphics are required without a large tower footprint, the 30J50033US supports Intel vPro Enterprise with AMT 16, Wi-Fi 7, Gigabit Ethernet, and multiple high-speed USB and display connections. Its 330W 90%-efficient external adapter and compact 3.6 kg maximum-configured chassis make it practical for engineering offices, CAD workstations, financial analysis, content creation, and other specialized professional deployments.

Key Features – 30J50033US Lenovo ThinkStation P3 Ultra SFF Gen 2

• Processor: Intel Core Ultra 9 285, 24 cores / 24 threads, up to 5.6 GHz turbo, 36MB Intel Smart Cache.
• Memory: 32GB CSODIMM DDR5-6400 Non-ECC; 2 memory slots; supports up to 128GB.
• Storage: 1TB M.2 2280 PCIe 5.0 x4 Performance NVMe Opal SSD.
• Graphics: NVIDIA RTX A1000 with 8GB GDDR6 dedicated graphics memory.
• Controller: Integrated NVMe controller and integrated SATA controller.
• Networking / Ports: Intel I219-LM Gigabit Ethernet, Intel Wi-Fi 7 BE200 2x2 and Bluetooth 5.4.
• Power & Cooling: 330W 90% external power adapter.
• Management: Intel vPro Enterprise with Intel AMT 16.
• Security: Discrete TPM 2.0, TCG and FIPS 140-2 certification, Kensington Security Slot, and chassis intrusion switch.
• Form Factor: Small Form Factor workstation.

Technical Specifications

• Processor Type: Intel Core Ultra 9 285
• Processor Cores / Threads: 24 cores (8 P-cores + 16 E-cores) / 24 threads
• Processor Frequency: 2.5 GHz base; up to 5.6 GHz maximum turbo
• Processor Cache: 36MB Intel Smart Cache
• Processor Socket: FCLGA1851
• Chipset / Platform: Intel W880
• AI Processing: Intel AI Boost NPU, up to 13 TOPS; AI-ready workstation platform
• Memory Technology: DDR5-6400 CSODIMM Non-ECC
• Installed Memory: 32GB, 1 × 32GB
• Maximum Memory: Up to 128GB using 2 × 64GB DDR5 CSODIMM
• Memory Slots: 2 × DDR5 SO-DIMM, dual-channel capable
• Storage Interface: PCIe 5.0 x4 NVMe
• Installed Storage: 1TB M.2 2280 Performance NVMe Opal SSD
• Maximum Storage Support: Up to 4 × M.2 PCIe SSDs; Lenovo specifies up to 4TB per drive
• RAID Support: No RAID configuration is specified for this exact SKU.
• Expansion Slots: The platform supports two- or three-slot configurations depending on riser selection; this includes PCIe 4.0 x16 and PCIe 4.0 x8 configurations.
• Graphics: NVIDIA RTX A1000 8GB GDDR6, dedicated
• Networking: Intel I219-LM 1 × Gigabit Ethernet; Intel Wi-Fi 7 BE200 802.11be 2x2; Bluetooth 5.4

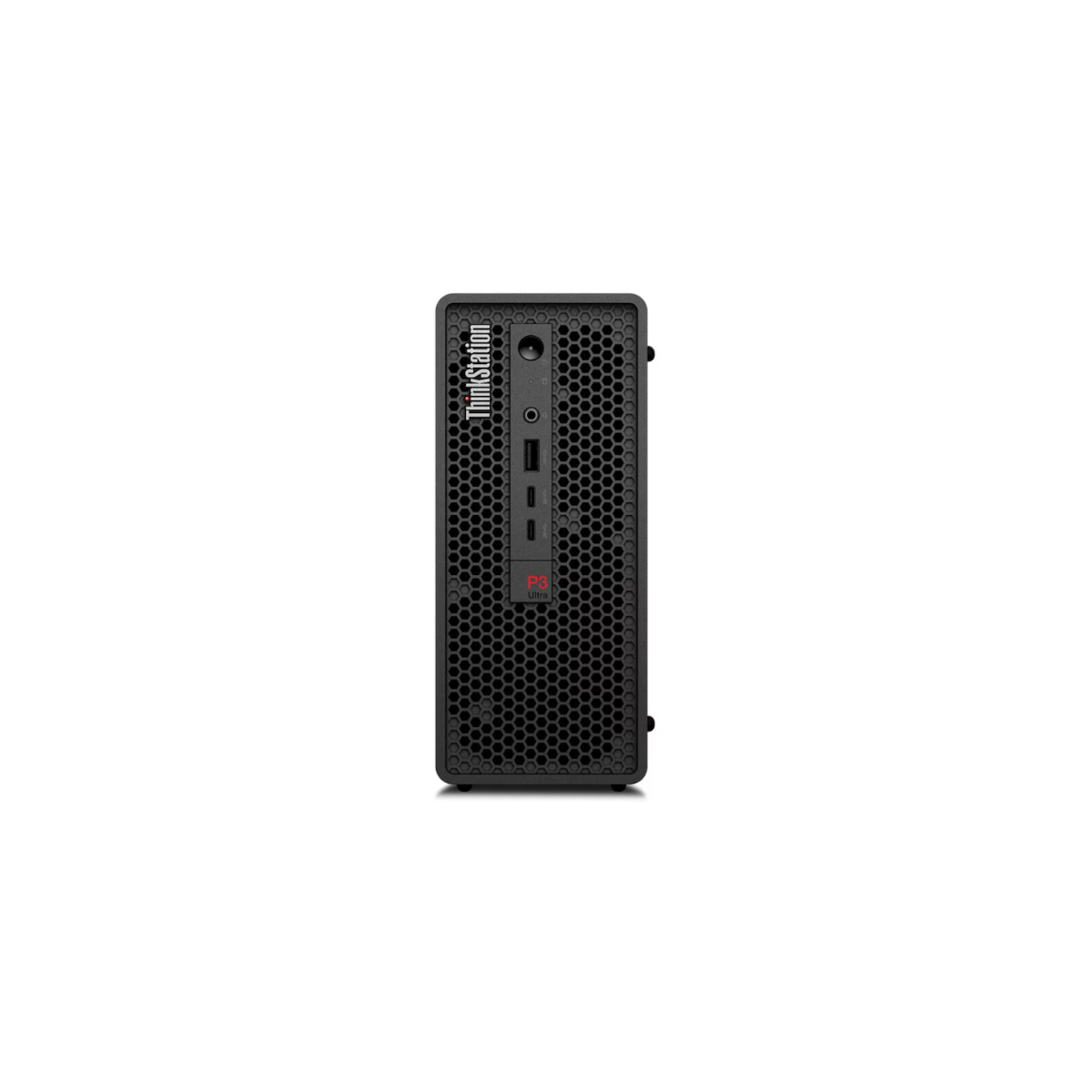

• Front I/O: 2 × USB-C 20Gbps / USB 3.2 Gen 2x2, 1 × USB-A 10Gbps / USB 3.2 Gen 2, 1 × 3.5mm headphone/microphone combo jack

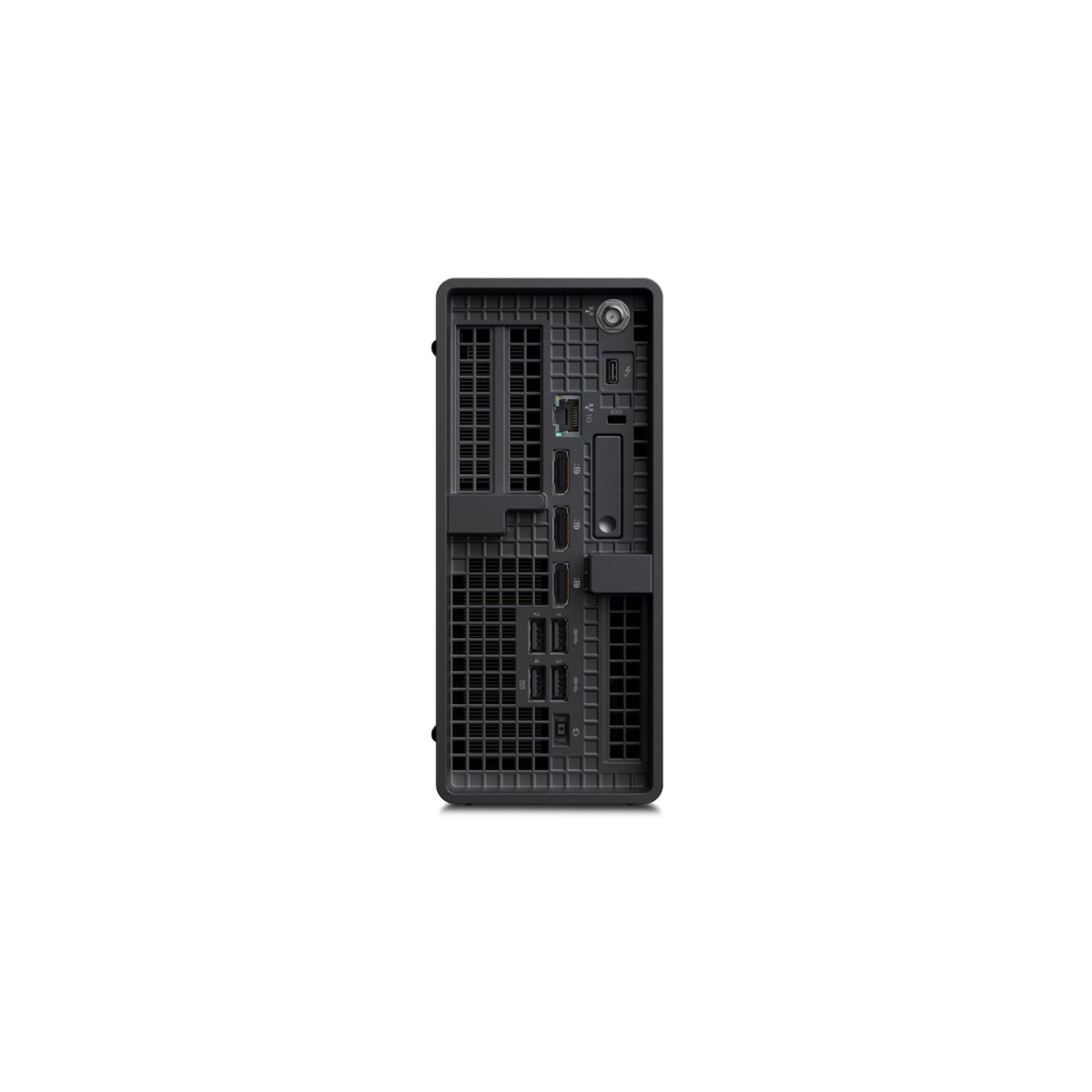

• Rear I/O: 4 × USB-A 10Gbps / USB 3.2 Gen 2, 3 × DisplayPort 1.2, 1 × Gigabit Ethernet RJ-45
• Audio: Realtek ALC623-CG High Definition Audio
• Operating System: Windows 11 Pro, English US/UK
• System Management: Intel vPro Enterprise with Intel AMT 16
• Power Adapter: 330W, 90% efficiency

Physical Specifications

• Form Factor: Small Form Factor workstation
• Weight:
  • 3.6 kg
  • 7.94 lbs
  • Lenovo specifies this as the maximum-configuration weight.
• Dimensions:
  • 87 × 223 × 202 mm (W × D × H)
  • 3.43 × 8.78 × 7.95 inches (W × D × H)
• Rack Compatibility: Not a rack-mount server. The chassis is designed for desktop/workstation placement rather than standard 19-inch rack installation.

Ideal For

• Professional CAD and engineering workstations
• Architecture and design environments
• 3D modeling and visualization
• Product development and simulation
• Data analysis and technical computing
• AI-assisted professional workflows
• Financial and analytical workstation deployments
• Medical imaging and specialized professional applications
• Enterprise workstation fleets requiring remote management
• Space-constrained professional environments

Warranty & Support

• Standard Manufacturer Warranty: 3-year onsite Lenovo warranty.
• Support Contract Compatibility: Lenovo Premier Support and Premier Support Plus upgrades are available for this platform. Lenovo lists 3-year Premier Support and 3-/4-year Premier Support Plus upgrade options for the P3 Ultra SFF Gen 2 platform.

FAQs – 30J50033US Lenovo ThinkStation P3 Ultra SFF Gen 2

1. Can the memory be upgraded on the 30J50033US?
Yes. The workstation has two DDR5 SO-DIMM slots and supports up to 128GB using two 64GB DDR5 CSODIMM modules. The supplied configuration contains one 32GB module.

2. Can the storage be expanded beyond the included 1TB SSD?
Yes. The P3 Ultra SFF Gen 2 platform supports up to four M.2 PCIe SSDs, with Lenovo specifying support for drives up to 4TB each. The 30J50033US ships with one 1TB PCIe 5.0 x4 NVMe SSD.

3. Is the NVIDIA RTX A1000 suitable for professional graphics workloads?
Yes. The included RTX A1000 provides 8GB of dedicated GDDR6 graphics memory and is positioned as a professional workstation GPU for applications requiring dedicated graphics acceleration.

4. Does this workstation support remote management?
Yes. The 30J50033US supports Intel vPro Enterprise with Intel AMT 16, providing enterprise-oriented remote management capabilities for compatible IT environments.

5. Does the workstation use redundant power supplies?
No. The 30J50033US uses a single external 330W power adapter rated at 90% efficiency. It is a compact workstation rather than a redundant-power server platform.

6. Is the 30J50033US suitable for deployment in space-constrained offices?
Yes. The Small Form Factor chassis measures only 87 × 223 × 202 mm and weighs 3.6 kg at maximum configuration, providing workstation-class processing and dedicated graphics in a compact footprint.
