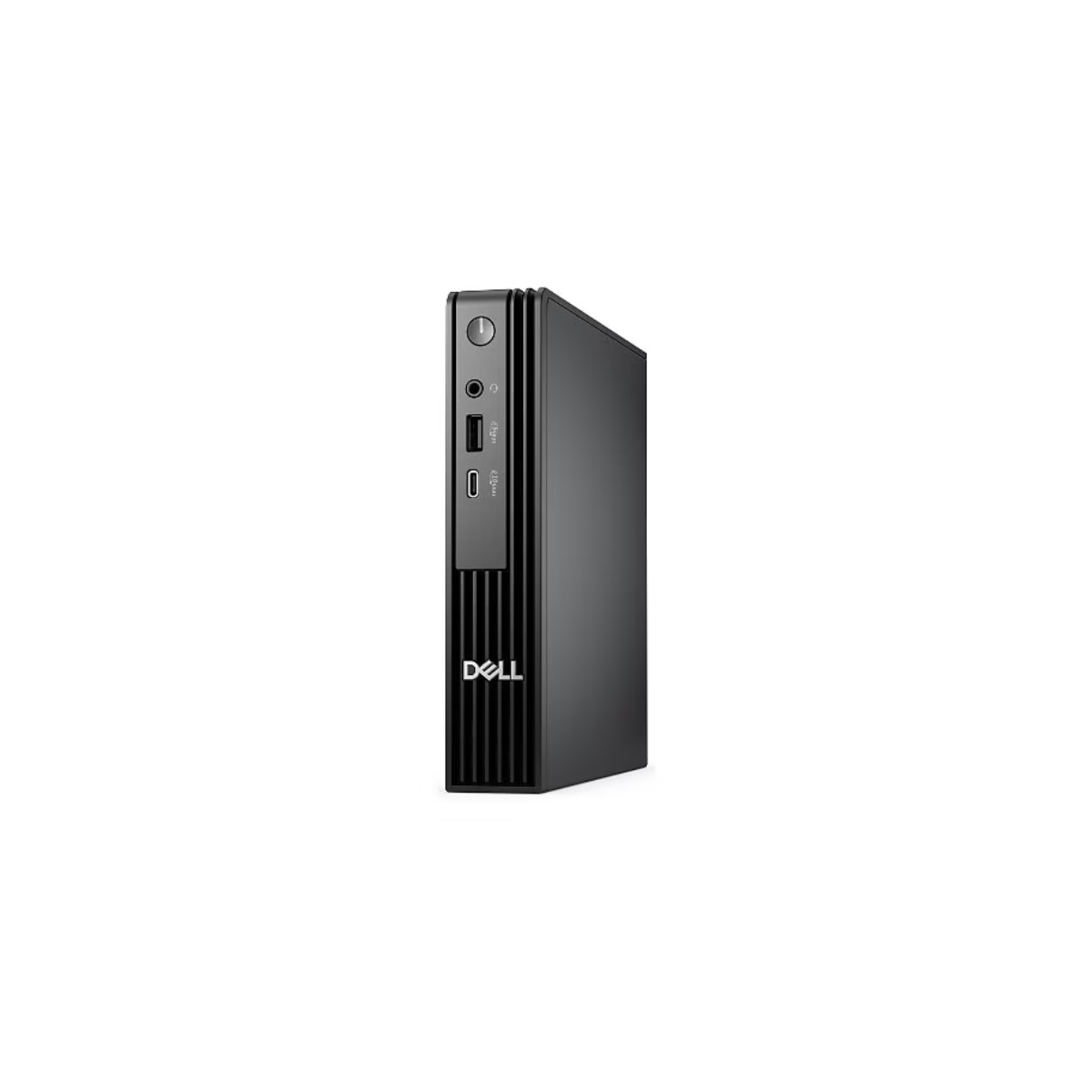

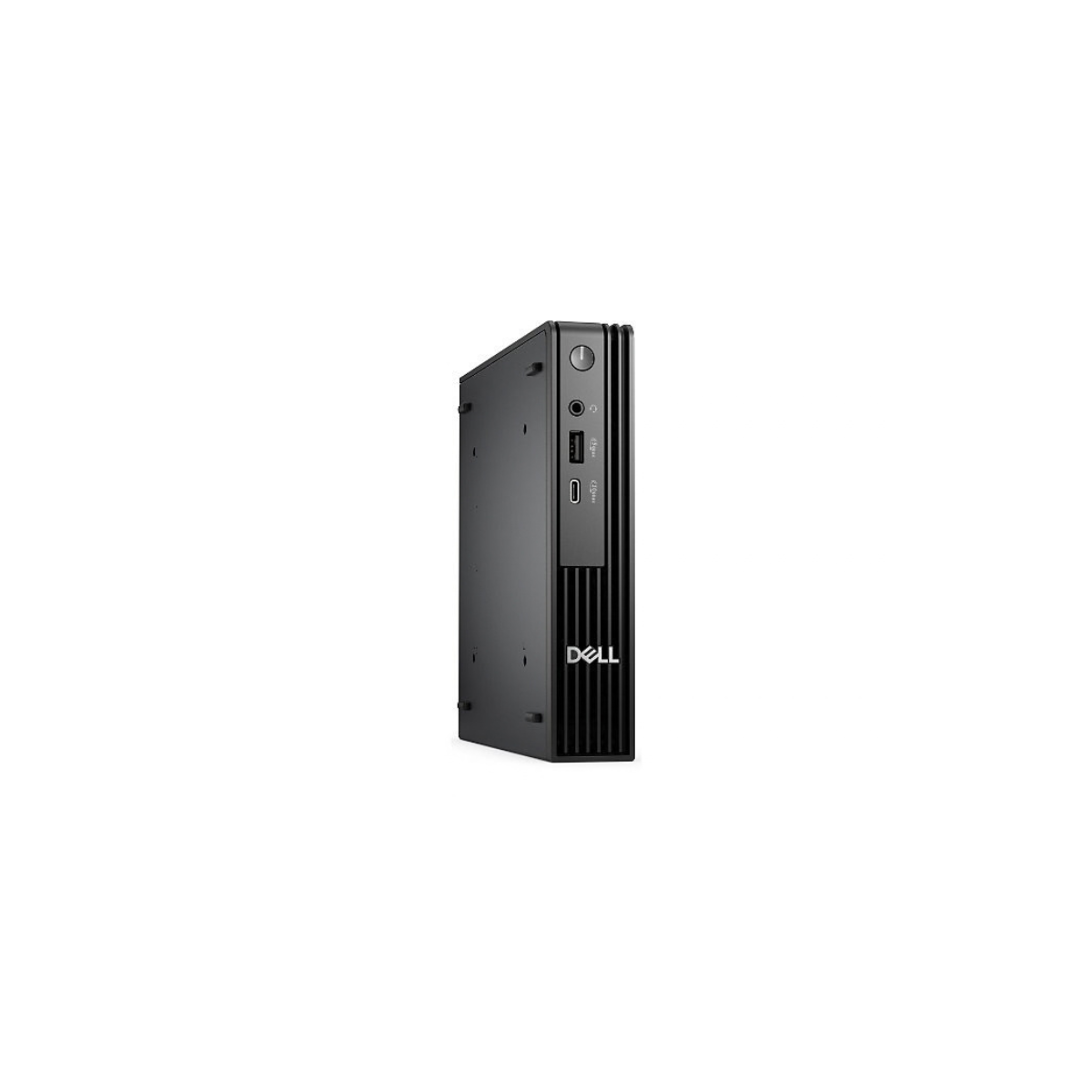

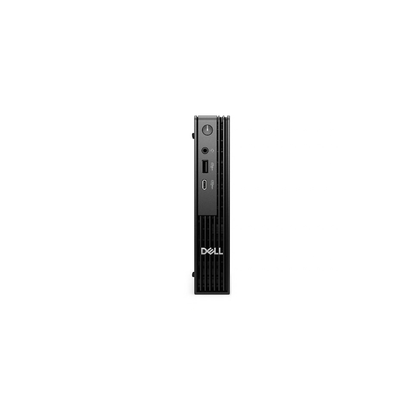

5G63M Dell Pro Micro QCM1250 Core Ultra 5 235T 16GB 512GB SSD

BRAND NEW WITH FULL DELL WARRANTY!!!

Overview

The 5G63M Dell Pro Micro QCM1250 is a compact business AI PC built around the Intel Core Ultra 5 235T processor, 16GB DDR5 memory, and a 512GB PCIe 4.0 NVMe SSD. The 14-core processor reaches up to 5 GHz and includes Intel AI Boost with 13 TOPS of NPU performance, providing a practical platform for office productivity, multitasking, collaboration, and AI-enabled business applications.

Designed for organizations that need capable desktop computing without a traditional tower footprint, the 5G63M uses a compact Micro PC chassis measuring 182 × 178 × 36 mm and weighing approximately 1.4 kg. It provides Gigabit Ethernet, Wi-Fi 6E, Bluetooth, USB connectivity, HDMI 2.1, and DisplayPort 1.4a, making it well suited to corporate offices, reception areas, education, retail, branch offices, and other space-constrained deployments.

Key Features – 5G63M Dell Pro Micro QCM1250

• Processor: Intel Core Ultra 5 235T, 14 cores / 14 threads, 2.2 GHz base frequency, up to 5 GHz turbo.
• Memory: 16GB DDR5-5600 SDRAM, configured as 1 × 16GB; two memory slots; supports up to 64GB.
• Storage: 512GB M.2 PCIe 4.0 NVMe SSD.
• Graphics: Integrated Intel Graphics with shared system memory.
• Networking / Ports: Gigabit Ethernet, Wi-Fi 6E 802.11ax 2×2, Bluetooth, USB-C, USB-A, HDMI 2.1 and DisplayPort 1.4a.
• Power & Cooling: 90W external AC adapter.
• Management: Dell business desktop platform; this configuration does not support Intel vPro.
• Security: Hardware TPM security chip, chassis intrusion switch and Kensington security slot.
• Form Factor: Micro PC.

Technical Specifications

• Processor Type: Intel Core Ultra 5 235T, Series 2
• Processor Cores / Threads: 14 cores / 14 threads
• Processor Frequency: 2.20 GHz base; up to 5 GHz maximum turbo
• Processor Cache: 24MB L3 cache
• NPU: Intel AI Boost, up to 13 TOPS
• Chipset / Platform: Intel platform
• Memory Technology: DDR5 SDRAM, 5600 MT/s
• Installed Memory: 16GB, 1 × 16GB
• Maximum Memory: Up to 64GB
• Memory Slots: 2; one occupied and one available
• Storage Interface: PCIe NVMe 4.0
• Installed Storage: 512GB M.2 NVMe SSD
• Storage Expansion: One additional M.2 2280 slot available
• RAID Support: No RAID configuration is specified for this SKU.
• Expansion: M.2 storage expansion and an optional rear module port.
• Networking: 1 × Gigabit Ethernet RJ-45; Wi-Fi 6E 802.11ax 2×2; Bluetooth

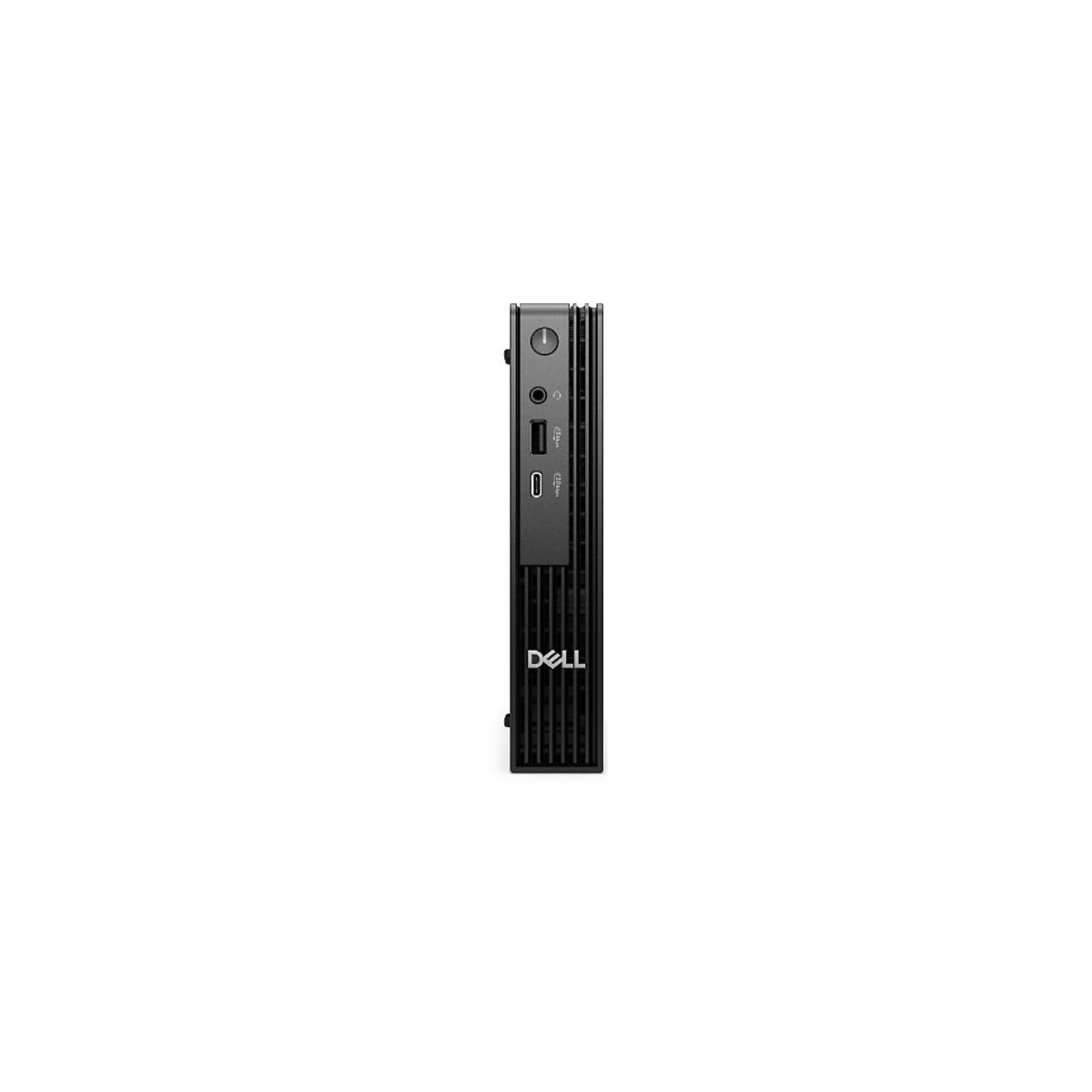

• Front I/O: 1 × USB-C 3.2 Gen 2, 2 × USB-A 3.2 Gen 1, 1 × USB-A 3.2 Gen 1 with Power Delivery, 1 × 3.5mm headset jack

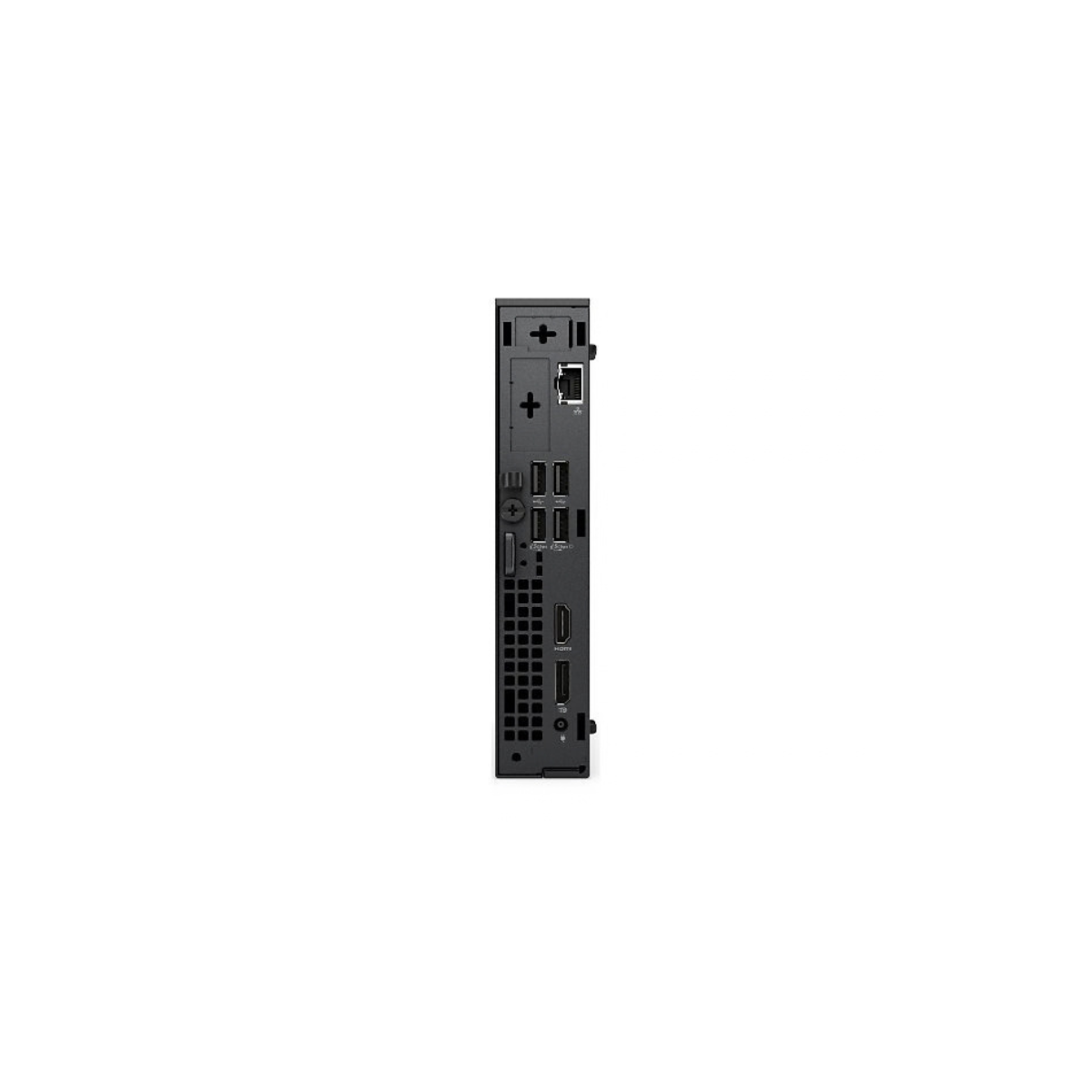

• Rear I/O: 2 × USB-A 2.0, 1 × HDMI 2.1, 1 × DisplayPort 1.4a, 1 × RJ-45 Ethernet
• Graphics: Integrated Intel Graphics
• Operating System: Windows 11 Pro
• Keyboard / Mouse: USB keyboard and USB mouse included.

Physical Specifications

• Form Factor: Micro PC
• Weight:
  • 1.4 kg
  • 3.09 lbs
• Dimensions:
  • 182 × 178 × 36 mm (H × W × D)
  • 7.17 × 7.01 × 1.42 inches (H × W × D)
• Rack Compatibility: Not a rack-mount server. The Micro PC is designed for desktop, monitor-mount, or compact workstation deployment.

Ideal For

• Corporate office workstations
• Small and medium business environments
• Reception and front-desk systems
• Retail and point-of-sale deployments
• Education and training facilities
• Branch and satellite offices
• Remote and hybrid employee workstations
• Digital signage and space-constrained installations
• AI-assisted productivity environments
• Managed Windows 11 Pro desktop fleets

Warranty & Support

• Standard Manufacturer Warranty: 3-year limited warranty with Basic Onsite Service after remote diagnosis with Hardware-Only Support.
• Support Contract Compatibility: Dell ProSupport and other applicable Dell commercial support upgrades can be selected according to deployment and service requirements.

FAQs – 5G63M Dell Pro Micro QCM1250

1. Can the memory be upgraded on the 5G63M?
Yes. The system has two memory slots and supports up to 64GB of DDR5 memory. The standard configuration uses one 16GB module, leaving one slot available for expansion.

2. Can additional storage be installed?
Yes. The system has two M.2 2280 positions, with one occupied by the supplied 512GB NVMe SSD and one available for additional storage.

3. Does the 5G63M support Wi-Fi?
Yes. It includes Wi-Fi 6E using 802.11ax 2×2 wireless connectivity, along with Bluetooth and Gigabit Ethernet for wired networking.

4. Does the 5G63M support remote enterprise management?
The exact 5G63M configuration is listed as having no Intel vPro support. It is therefore better suited to standard business desktop management environments rather than vPro-specific remote-management deployments.

5. Does this system have redundant power supplies?
No. The 5G63M uses a single 90W external AC adapter and is designed as a compact Micro PC rather than a redundant-power server.

6. Is the 5G63M suitable for space-constrained business environments?
Yes. Its Micro PC chassis measures only 182 × 178 × 36 mm and weighs approximately 1.4 kg, making it appropriate for compact workstations, reception desks, retail environments, classrooms, and other locations where desktop space is limited.
