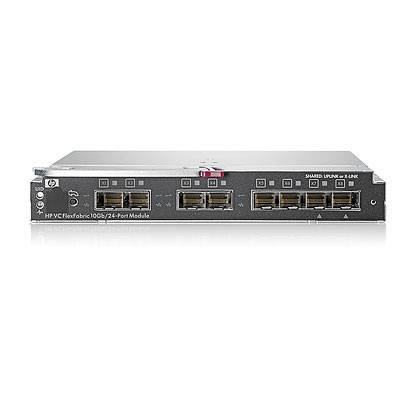

Description: HPE Virtual Connect FlexFabric 10/24 Enterprise Edition 605865-B21
BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!
HP Virtual Connect FlexFabric 10Gb/24-port Modules are the simplest, most converged and flexible way to connect virtualized server blades to any data or storage network. VC FlexFabric modules eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to LANs and SANs. Using Flex-10 technology with Fiber Channel over Ethernet and Accelerated iSCSI, these modules converge traffic over high speed 10Gb connections to servers with HP FlexFabric adapters. Each module provides 4 adjustable connections (3 data and 1 storage or all data) to each 10Gb server port.
| Device Type |
Switch - 24 ports - Managed - stackable |
| Enclosure Type |
Plug-in module |
| Subtype |
10 Gigabit Ethernet |
| Ports |
16 x 10Gb Ethernet (backplane) + 4 x 10Gb Ethernet/8Gb Fibre Channel SFP+ + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| MAC Address Table Size |
32K entries |
| Jumbo Frame Support |
9216 bytes |
| Routing Protocol |
IGMPv2, IGMP |
| Remote Management Protocol |
SNMP 1, SNMP 2, HTTP, HTTPS, CLI |
| Features |
Auto-negotiation, LDAP support, VLAN support, IGMP snooping, manageable |
| Compliant Standards |
IEEE 802.2, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq |
| Dimensions (WxDxH) |
26.797 cm x 19.253 cm x 2.794 cm |
| Weight |
1.27 kg |
| Manufacturer Warranty |
1-year warranty |
| Designed For |
BLc7000 Enclosure; BLc7000 Enclosure Model X; BLc7000 Matrix with FlexFabric Expansion Kit; BLc7000 Single-Phase Enclosure; BLc7000 Three-Phase Enclosure; CloudSystem Matrix FlexFabric Starter Kit |
| General |
| Compatible Slots |
1 x Expansion Slot |
| Compliant Standards |
IEEE 802.2, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq |
| Device Type |
Switch - 24 ports - Managed - stackable |
| Enclosure Type |
Plug-in module |
| Encryption Algorithm |
SSL |
| Features |
Auto-negotiation, LDAP support, VLAN support, IGMP snooping, manageable |
| Fibre Channel |
FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI, FC-BB-5 |
| Jumbo Frame Support |
9216 bytes |
| MAC Address Table Size |
32K entries |
| Ports |
16 x 10Gb Ethernet (backplane) + 4 x 10Gb Ethernet/8Gb Fibre Channel SFP+ + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Remote Management Protocol |
SNMP 1, SNMP 2, HTTP, HTTPS, CLI |
| Routing Protocol |
IGMPv2, IGMP |
| Status Indicators |
Port status, link OK, module locator, link/activity |
| Subtype |
10 Gigabit Ethernet |
| Compatibility Information |
| Designed For |
HPE BLc7000 Enclosure ¦ HPE BLc7000 Enclosure Model X ¦ HPE BLc7000 Matrix with FlexFabric Expansion Kit ¦ HPE BLc7000 Single-Phase Enclosure ¦ HPE BLc7000 Three-Phase Enclosure ¦ HPE CloudSystem Matrix FlexFabric Starter Kit |
| Dimensions & Weight |
| Depth |
19.253 cm |
| Height |
2.794 cm |
| Weight |
1.27 kg |
| Width |
26.797 cm |
| Environmental Parameters |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Max Operating Temperature |
35 °C |
| Max Storage Temperature |
60 °C |
| Min Operating Temperature |
10 °C |
| Min Storage Temperature |
-20 °C |
| Expansion / Connectivity |
| Interfaces |
16 x 10Gb Ethernet - backplane ¦ 4 x 10Gb Ethernet / 8Gb Fibre Channel - SFP+ ¦ 4 x 10Gb Ethernet / 1Gb Ethernet - SFP+ |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts and labour - 1 year - on-site |
