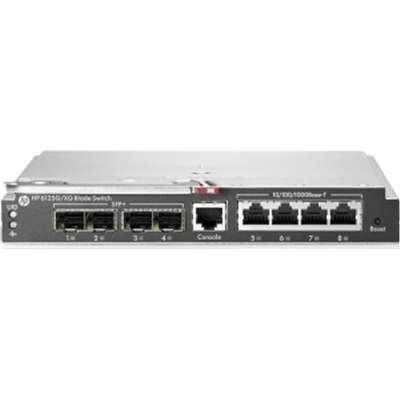

HPE 6125G XG Ethernet Blade Switch 658250-B21

Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

BRAND NEW WITH THE FULL HPE WARRANTY!!! HP · Gigabit Ethernet · Switches · Managed · 8 ethernet ports · Layer 3 · VLAN · 16 count The HP 6125G/XG Ethernet Blade Switch brings the rich features of the HP Comware network operating system, that delivers a common level of features, service and security levels from edge to core. Intelligent Resilient Framework (IRF) improves the performance and resiliency of the network while simplifying network deployment and management. Intelligent Management Center (IMC) is comprehensive management platform that provides one management application for all networking resources, manages 3rd party devices, unifies physical & virtual networks. HP 6125G/XG supports IPv6, full layer 3 routing and trunking. With sixteen 1G downlink ports, a combination of 1G and 10G uplink ports supporting both copper and fiber media, the HP 6125G/XG reduces network costs while increasing data center efficiency and capability. The HP 6125G/XG is perfect for low cost edge aggregation, virtualization, scale-out, and hyper-scale environments that require a 1G/10G connectivity and cost effective solution.

Specifications

• Device Type: Switch - 8 ports - managed - stackable
• Enclosure Type: Plug-in module
• Subtype: Gigabit Ethernet
• Ports: 4 x 10/100/1000 + 4 x Gigabit SFP / 10 Gigabit SFP+
• Capacity: IGMP groups: 1024
• MAC Address Table Size: 32K entries
• Jumbo Frame Support: 9220 bytes
• Routing Protocol: OSPF, BGP-4, RIP-1, RIP-2, BGP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng
• Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
• Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
• Min Operating Temperature: 50 °F
• Max Operating Temperature: 95 °F
• Humidity Range Operating: 5 - 95% (non-condensing)
• Min Storage Temperature: -40 °F
• Max Storage Temperature: 158 °F
• RAM: 1 GB
• Flash Memory: 256 MB
• Status Indicators: Unit ID, link/activity
• Interfaces: 4 x 1000Base-T RJ-45 ¦ 4 x SFP+ ¦ 1 x RJ-45 management ¦ 16 x Ethernet 1000 - backplane

Features : Flow control, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Jumbo Frames support, MLD snooping, Device Link Detection Protocol (DLDP) support, Rapid Ring Protection Protocol (RRPP) support, Endpoint Admission Defense (EAD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), IPv4 support, DHCP client, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP) UPC : 00886111726806
