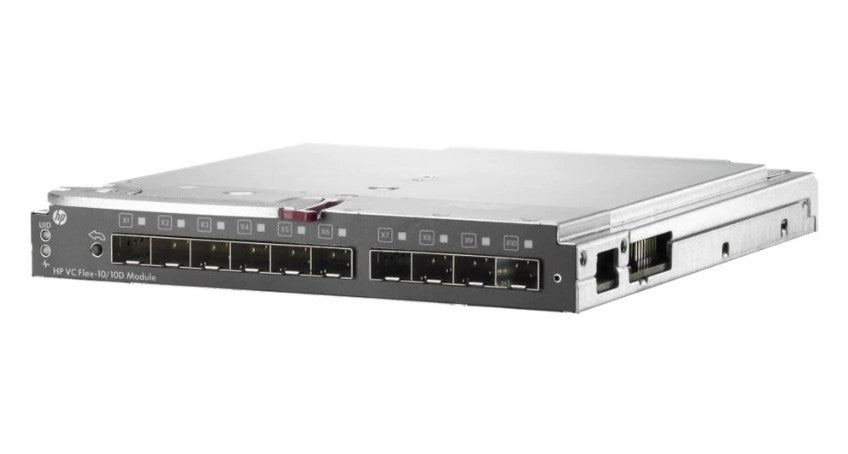

HPE Virtual Connect Flex-10 10D Enterprise Edition Expansion Module 662048-B21

Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

BRAND NEW WITH THE FULL HPE WARRANTY!!! Simplify and make your data center change-ready. The HPE Virtual Connect Flex-10/10D Module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge. VC Flex-10/10D modules converge traffic over high speed 10Gb connections to servers with HPE FlexFabric Adapters. Each module provides four adjustable connections (three data and one storage, or four data) to each 10Gb server port. Eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to an upstream FCoE bridge. Avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Virtual Connect wire-once connection management is built-in, enabling server adds, moves, and replacement in minutes instead of days.

TechnicalSpecifications
Latency	1.0 ps
Performance	Line Rate, full-duplex 600Gbps bridging fabric Non-blocking architecture Maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)
Connectors and cabling	16 x 10Gb downlinks midplane 4x 10Gb cross connect 10 x 10Gb SR, LR, or LRM fiber uplinks SFP+ Ethernet and RS-232 internal interface to c-Class Onboard Administrator Module
Indicators and buttons	Recessed Momentary Reset Switch Momentary Next/Step Switch Backlit port number and status indicator LED, one per bulkhead port,blue/amber/green Module status indicator, amber/green Module locator (UID), blue Link indicator, one per SFP+-port, green/amber
Power specifications	12V @ 5.83A (70W)
BladeSystem supported	C7000, C3000
Management features	Embedded Virtual Connect Manager plus Virtual Connect Enterprise Manager: Manage server connections for up to 1,000 enclosures from a central management console (GUI or CLI) with global address management, consistent configuration, failover automation and server profile mobility across data centers for agile environment.
Protocol supported	802.1AB, 802.1D, 802.1Q, IEEE 802.2,802.3ad
Media type technology	SFP+ SR, LR, LRM SFP SX, RJ-45SFP + Copper
Product dimensions (H x W x D)	10.63 x 13.88 x 4.75 in (shipping)
Weight	4.4 lb (shipping)

Compatibility : HPE BLc3000 Enclosure w/2 Power Supplies and 4 Fans, w/2 Power Supplies and 4 Fans w/8 Insight Control Environment 30 Day Evaluation Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment for BladeSystem Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment Licenses, w/2 Power Supplies and 4 Fans with Insight Control Environment Trial Licenses, w/4 Power Supplies and 6 Fans with Insight Control Environment Trial License, w/6 Power Supplies and 6 Fans with 8 Insight Control Licenses, with 8 Insight Control Environment 30 Day Trial Licenses, with 8 Insight Control Environment for BladeSystem Licenses HPE BLc7000 Single-Phase Enclosure w/2 Power Supplies and 4 Fans w/16 Insight Control Env. Linux Edition Licenses, w/2 Power Supplies and 4 Fans w/16 Insight Control Environment Licenses, w/2 Power Supplies and 4 Fans w/16 Insight Control Tower Licenses, w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses HPE BLc7000 Three-Phase Enclosure w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses, w/6 Power Supplies and 6 Fans w/16 Insight Control Environment Licenses, w/6 Power Supplies and 6 Fans w/8 Insight Control Environment Trial Licenses UPC : 00886111883271
