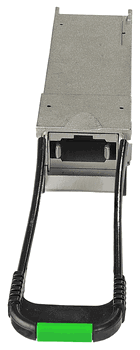

HPE BLC 40G QSFP+ Mpo SR4 100M XCVR 720187-B21

Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.

Do you need high-performance QSFP+ transceivers for your BladeSystem? The HPE BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.

• Supports 4 lanes x 10.3 Gb/s.
• Supports link distances up to 100 m on OM3 MMF and 150 m on OM4 MMF for SR4 and up to 10 km on SMF for LR4.
• Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4.
• Can be used either for 40GbE or for aggregating 4x 10GbE links.
• MPO connector (SR4) or LC connector (LR4).
• Ports: 1 MPO 40-GbE port (IEEE 802.3ba Type 40Gbase-SR4) Full Duplex
• Transceiver form factor: QSFP+
• Connector type: MPO
• Cable type: OM3, OM4
• Wavelength: 850 nm
• Maximum distance: Up to 100m (OM3) up to 150m (OM4)
• Fiber type: Multi-mode
• Product dimensions (H x W x D): 5.19(d) x 0.72(w) x 0.54(h) in. (13.18 x 1.835 x 1.371cm)
