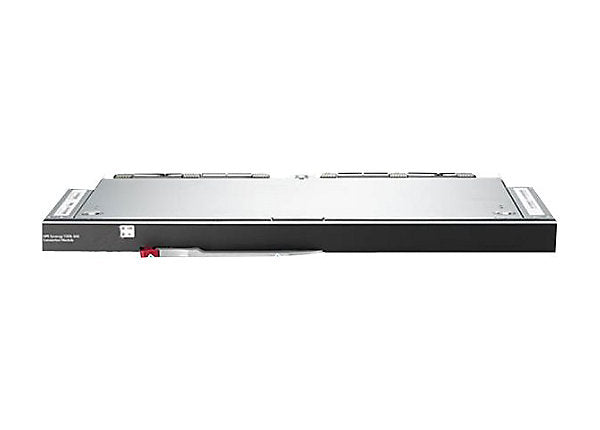

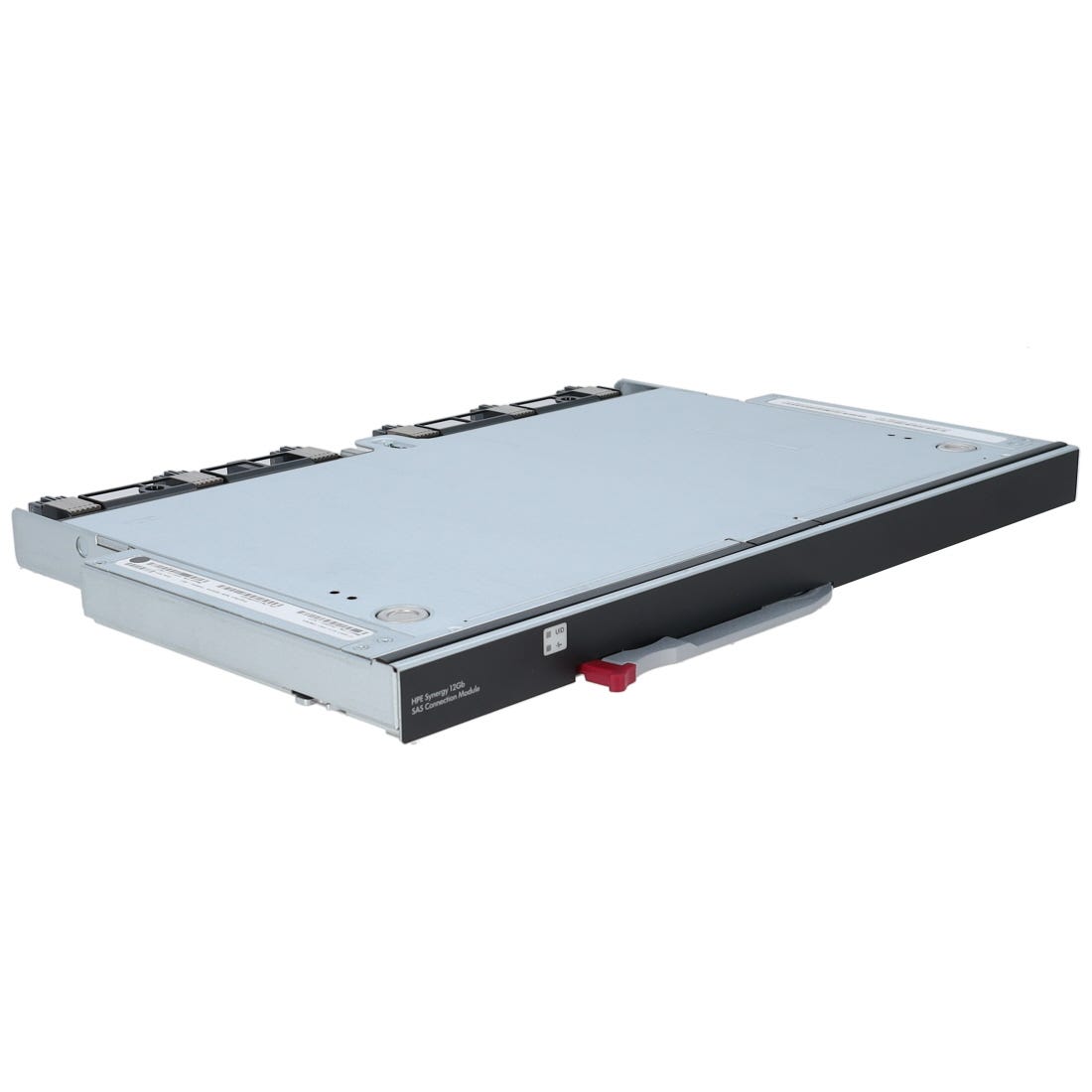

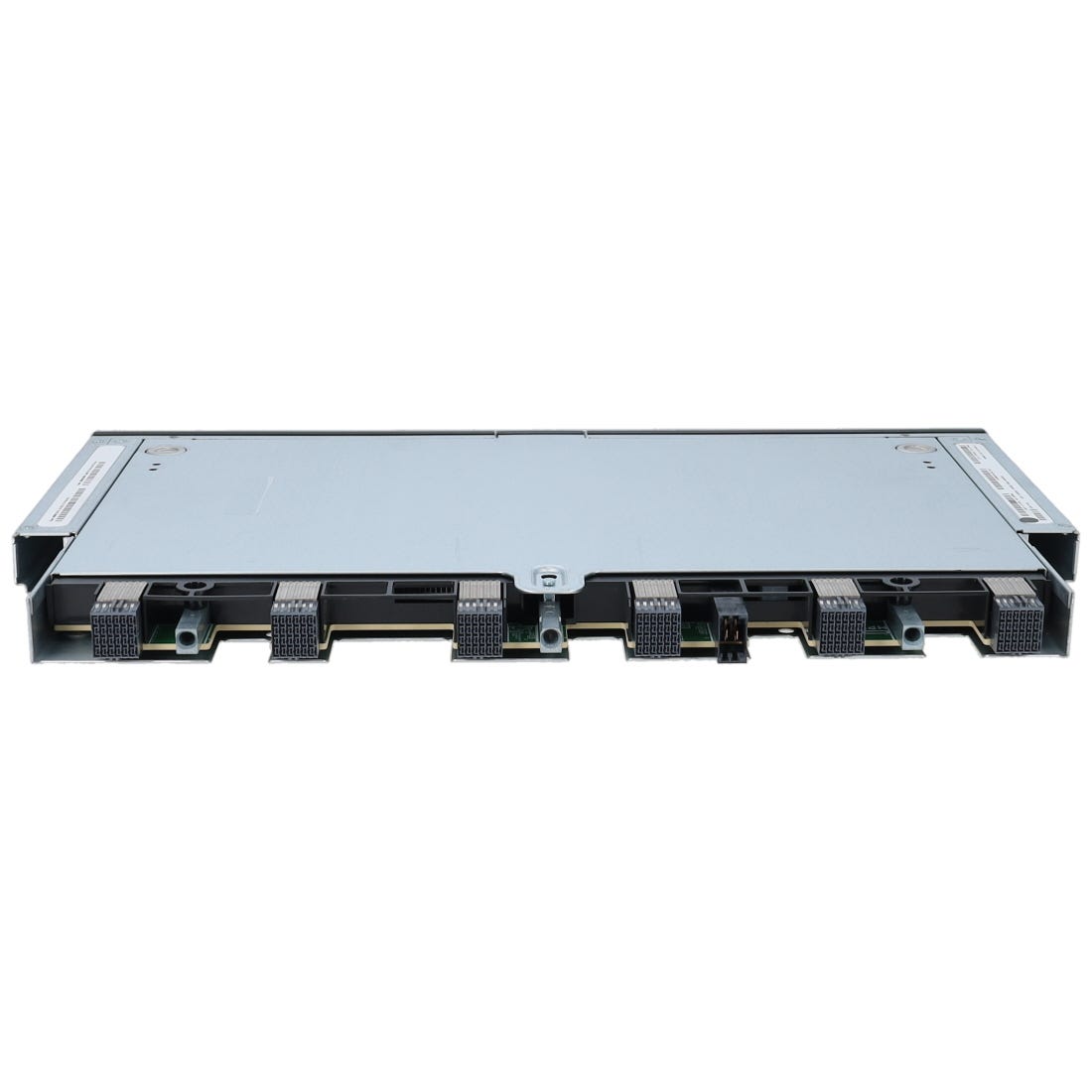

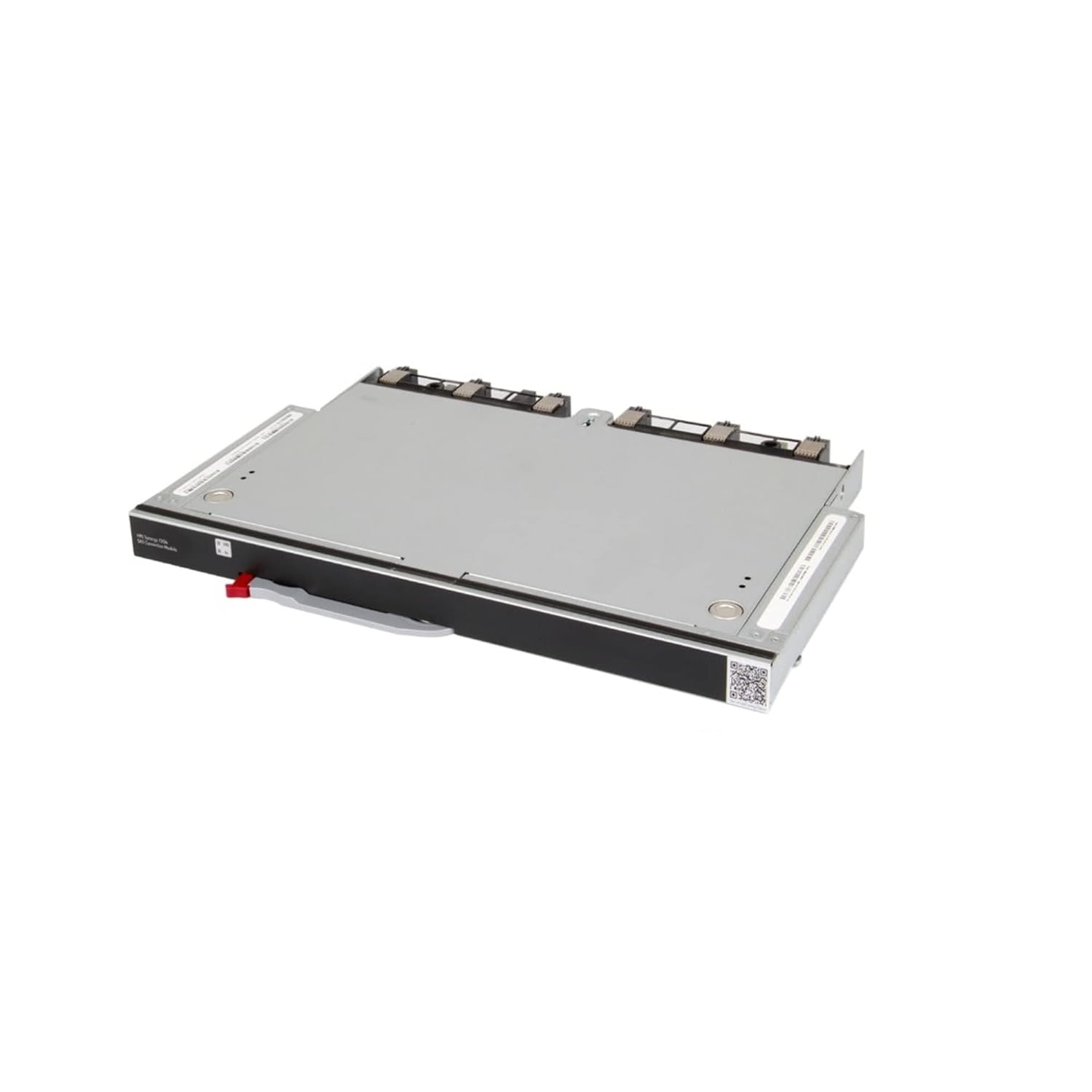

HPE Synergy 12Gb SAS Connection Module 755985-B21

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

In composable infrastructure, efficient storage connectivity inside the chassis is critical. Traditional external storage connections increase complexity and latency.

The HPE Synergy 12Gb SAS Connection Module (755985-B21) provides direct in-frame storage connectivity between Synergy compute modules and storage resources like the D3940. It enables flexible storage provisioning by dynamically mapping drives as virtual JBODs to compute modules.

Key Features

• 12Gb SAS connectivity for high-speed storage access
• Enables in-frame storage communication
• Dynamic virtual JBOD creation
• Profile-based configuration using Synergy Composer
• Supports flexible storage allocation
• Hot-swappable design
• Designed for Synergy composable infrastructure
• Simplifies storage management inside the frame

Technical Specifications

Brand: HPE
Model: Synergy SAS Connection Module
Part Number: 755985-B21
Product Type: Storage Connection Module

Device Type

SAS Storage Controller Module

Interface

12Gb SAS

Data Transfer Rate

Up to 12Gb/s per SAS lane

Channels

4 channels

Storage Support

Up to 12 storage devices

RAID Support

JBOD (no RAID processing)

Features

• Hot-swappable
• Dynamic storage mapping
• Profile-based provisioning

Connectivity

Internal Synergy mid-plane connectivity

Environmental

Operating Temperature: 10°C to 35°C
Humidity: 10% to 90% (non-condensing)

Dimensions

Height: 1.1 inches
Width: 16.9 inches
Depth: 11.1 inches

Compatibility

• HPE Synergy 12000 Frame
• HPE Synergy D3940 Storage Module

Use Cases

• Connecting compute modules to in-frame storage
• Creating flexible storage pools using JBOD
• Reducing dependency on external storage systems
• Supporting composable infrastructure environments

Why Choose HPE 755985-B21

• Enables direct storage connectivity inside Synergy
• Simplifies storage provisioning and management
• Supports dynamic resource allocation
• Reduces latency compared to external storage
• Designed for composable infrastructure
• Hot-swappable for easy maintenance
• Enterprise-grade reliability
• Brand new with full HPE warranty

FAQs

What is the HPE 755985-B21 used for?
It connects Synergy compute modules to in-frame storage resources using 12Gb SAS.

Is this a RAID controller?
No. It supports JBOD and does not provide RAID functionality.

Does it work with external storage?
No. It is designed for internal Synergy frame storage connectivity.

What storage module is it compatible with?
It is typically used with the Synergy D3940 storage module.

Is it hot-swappable?
Yes. It can be replaced without shutting down the system.
