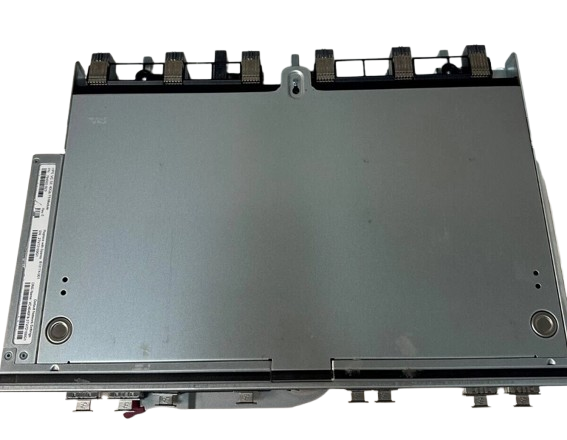

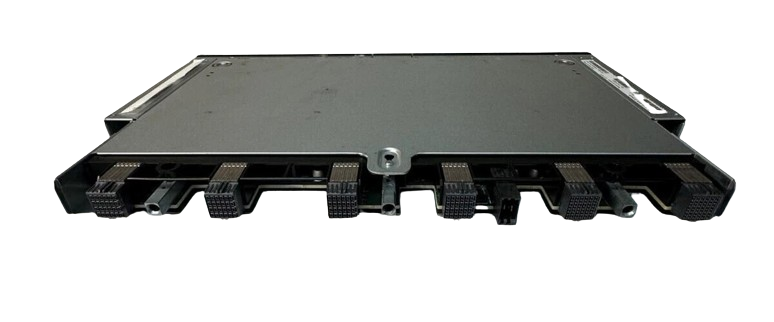

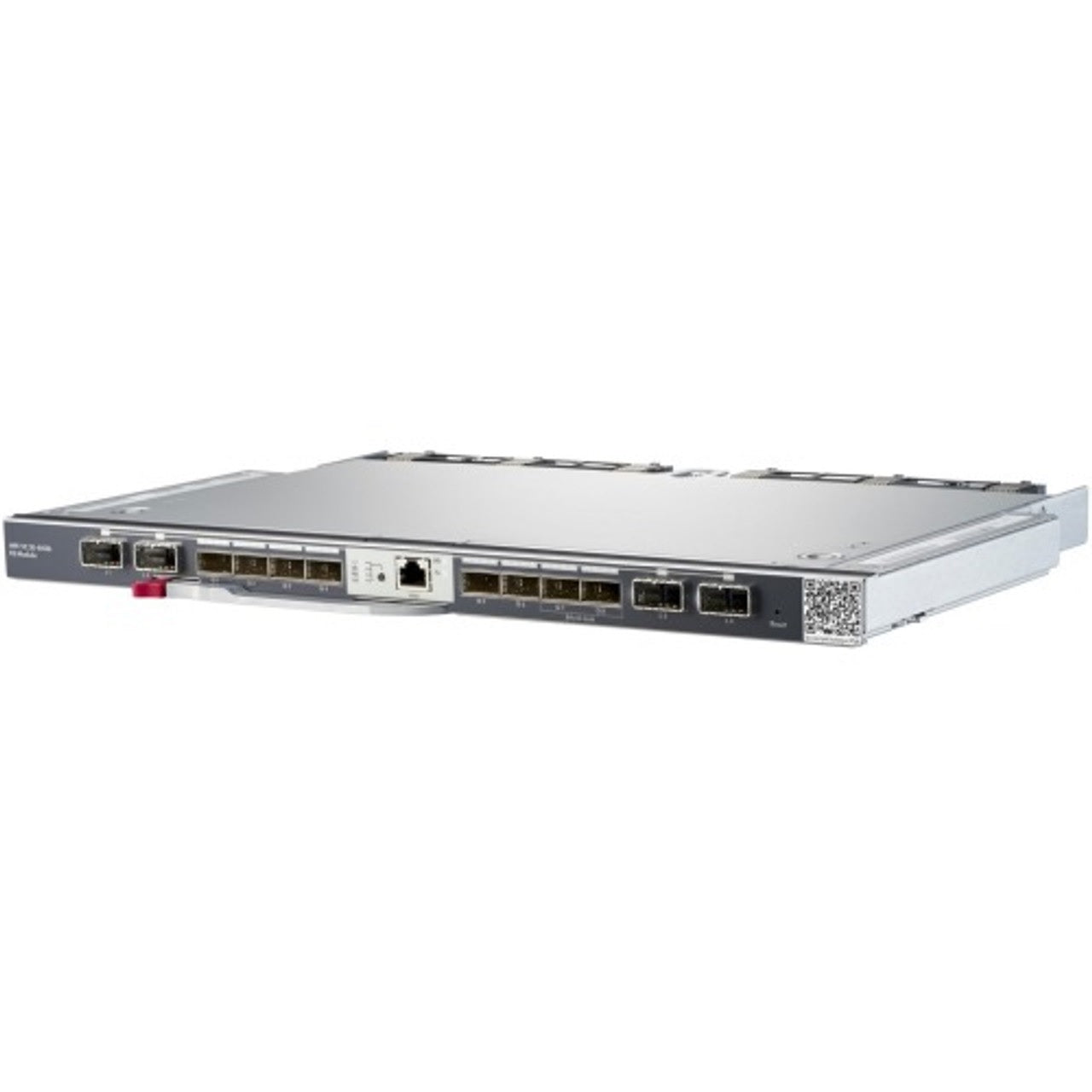

HPE Virtual Connect SE 40Gb F8 Interconnect Module 794502-B23

REFURBISHED. EXCELLENT CONDITION. 90 DAY CCS WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Modern data centers require high-bandwidth, low-latency networking to support east-west traffic between compute resources. Traditional top-of-rack architectures introduce bottlenecks and complexity.

The HPE Virtual Connect SE 40Gb F8 Module (794502-B23) is designed for HPE Synergy composable infrastructure. It acts as a master interconnect module, delivering intelligent network virtualization, high throughput, and simplified fabric management across multiple frames.

Key Features

• 40GbE interconnect module with master architecture
• 2.56 Tbps non-blocking switching fabric
• Supports east-west traffic optimization
• Master/satellite architecture for multi-frame scaling
• Reduces dependency on top-of-rack switches
• Jumbo frame support up to 9216 bytes
• Low latency (~1 microsecond)
• Designed for HPE Synergy environments

Technical Specifications

Brand: HPE
Model: Virtual Connect SE 40Gb F8 Module
Part Number: 794502-B23
Product Type: Interconnect / Fabric Module

Device Type

Synergy Interconnect (Virtual Connect Master Module)

Ports

• 12 × 10/20GbE downlinks (to compute modules)
• 6 × 40GbE QSFP+ uplinks
• 2 × 40GbE M-LAG ports
• 4 × 120Gb Interconnect Link ports

Network Technology

• 10GbE
• 20GbE
• 40GbE

Switching Capacity

2.56 Tbps (full-duplex, non-blocking)

Latency

~1 microsecond

MTU

Up to 9216 bytes (jumbo frames)

Connectivity

Wired

Media Support

• QSFP+ SR4, LR4
• DAC and AOC cables
• SFP+ via adapters

Architecture

Master/satellite interconnect design

Power

240W (12V @ 20A)

Dimensions (Shipping)

Width: 19.45 inches
Depth: 15.55 inches
Height: 5.75 inches

Application

• Composable infrastructure networking
• Data center fabric consolidation
• High-performance east-west traffic

Compatibility

• HPE Synergy Frames
• HPE Synergy Interconnect Link Modules

Use Cases

The HPE 794502-B23 module is used in Synergy environments to build a scalable, high-performance fabric. It enables efficient communication between compute modules and reduces reliance on external switching infrastructure.

Why Choose HPE 794502-B23

• High-capacity 40GbE fabric for modern workloads
• Reduces network complexity with Virtual Connect architecture
• Enables scalable multi-frame connectivity
• Optimized for east-west traffic patterns
• Low latency for performance-critical applications
• Consolidates networking infrastructure
• Reliable refurbished hardware with warranty
• Designed for enterprise data center environments

FAQs

What is the HPE 794502-B23 used for?
It provides high-speed interconnect and fabric management for HPE Synergy environments.

Is this a pass-through module?
No. It is an intelligent interconnect module with switching capabilities.

What is the switching capacity?
It supports up to 2.56 Tbps throughput.

Does it reduce the need for external switches?
Yes, it helps consolidate network connections and reduce top-of-rack dependency.

Is it required for Synergy environments?
It is a key component for building a scalable fabric architecture.

What is the warranty?
Refurbished with a 90-day CCS warranty.
