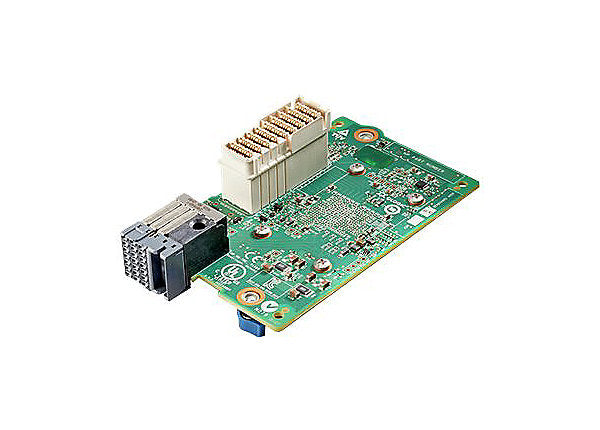

HPE Synergy 2820C 10Gb Converged Network Adapter 794538-B21

What if you could increase your HPE Synergy performance and simplify management with a relatively low-cost solution? The HPE Synergy 2820C 10Gb Converged Network Adapter is a key element in HPE composable fabric connecting pools of compute resources to networks with reliable, high-performing converged 10 Gb Ethernet connectivity. It has storage I/O functionality along with single root I/O virtualization (SR-IOV) capabilities. With Flex-10 Technology, it converges Ethernet and FCoE onto a single connection simplifying hardware and reducing costs. Provisioning and updating Synergy 2820C are simple, reliable and fast using the HPE Synergy software-defined template-driven, frictionless operation. The HPE Synergy Composer automatically delivers proper firmware and driver coordination including staging updates for execution to avoid workload disruption.

Specifications

• Device Type: Network adapter
• Form Factor: Plug-in card
• Interface (Bus) Type: PCI Express 3.0 x8 Mezzanine
• PCI Specification Revision: PCIe 3.0
• Ports: 10Gb CEE x 2
• Connectivity Technology: Wired
• Data Link Protocol: 10Gb Converged Enhanced Ethernet (CEE)
• Data Transfer Rate: 10 Gbps
• Capacity: Jumbo frame size: up to 9 KB
• Features: PXE support, Large Send Offload (LSO), NIC Partitioning (NPAR), TCP Segmentation Offload (TSO), TCP Offload Engine (TOE), FCoE support, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE)
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ap
• Processor: 1 x 57840S - Qlogic
• RAM: 900 MB
• Interfaces: 2 x 10Gb Ethernet
• Compliant Standards: FCC Class A certified, UL, BSMI, WEEE, RoHS, FCC Part 15 A, VCCI V-3, AS/NZS, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, KN22 Class A, EN55024:1998 + A1 + A2, ICES-003 issue 4, EN55022:2006 + A1:2007 Class A, CNS 13438 Class A
• Min Operating Temperature: 32 °F
• Max Operating Temperature: 131 °F
• Humidity Range Operating: 10 - 90% (non-condensing)
