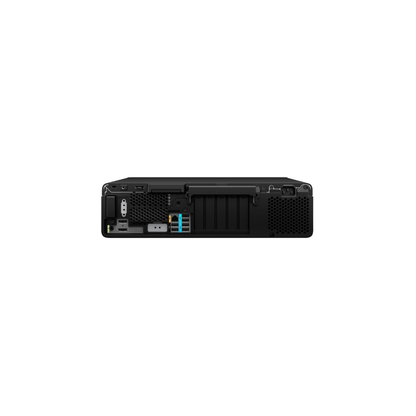

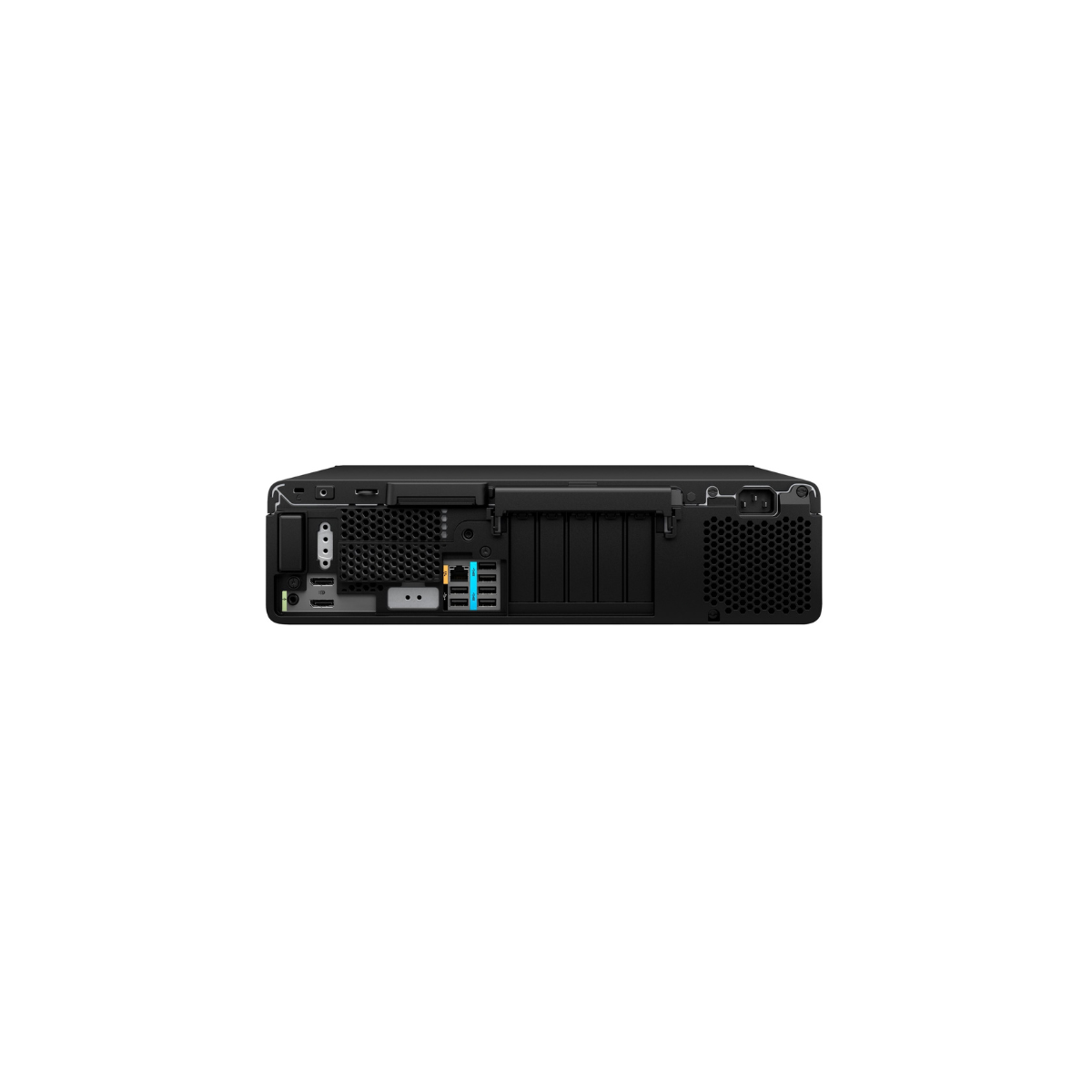

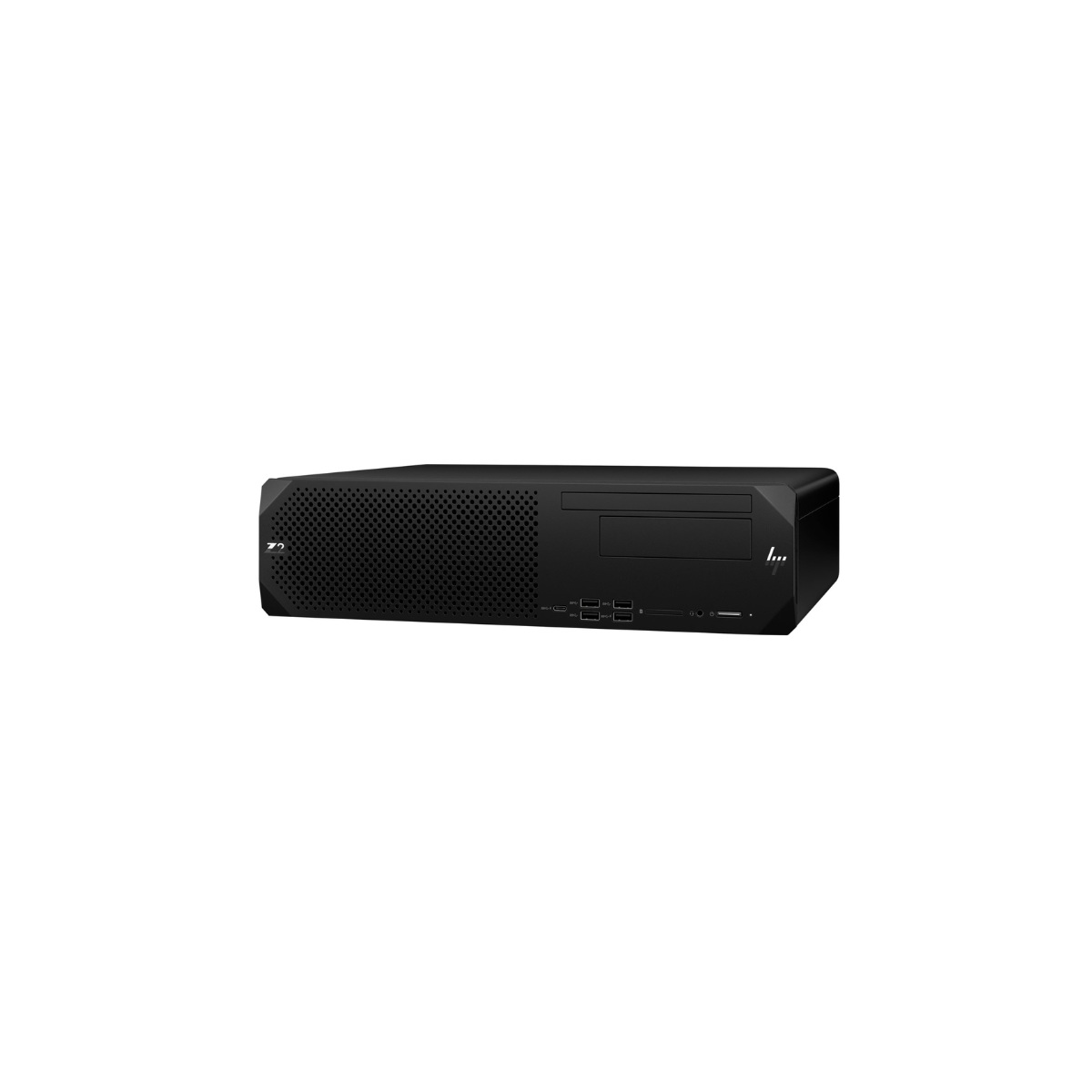

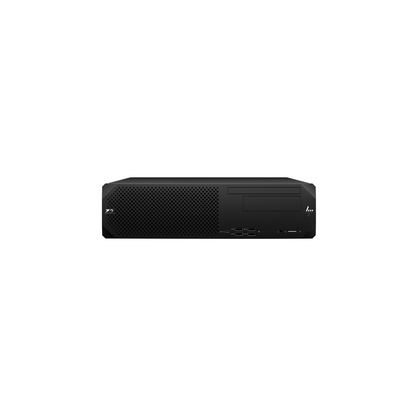

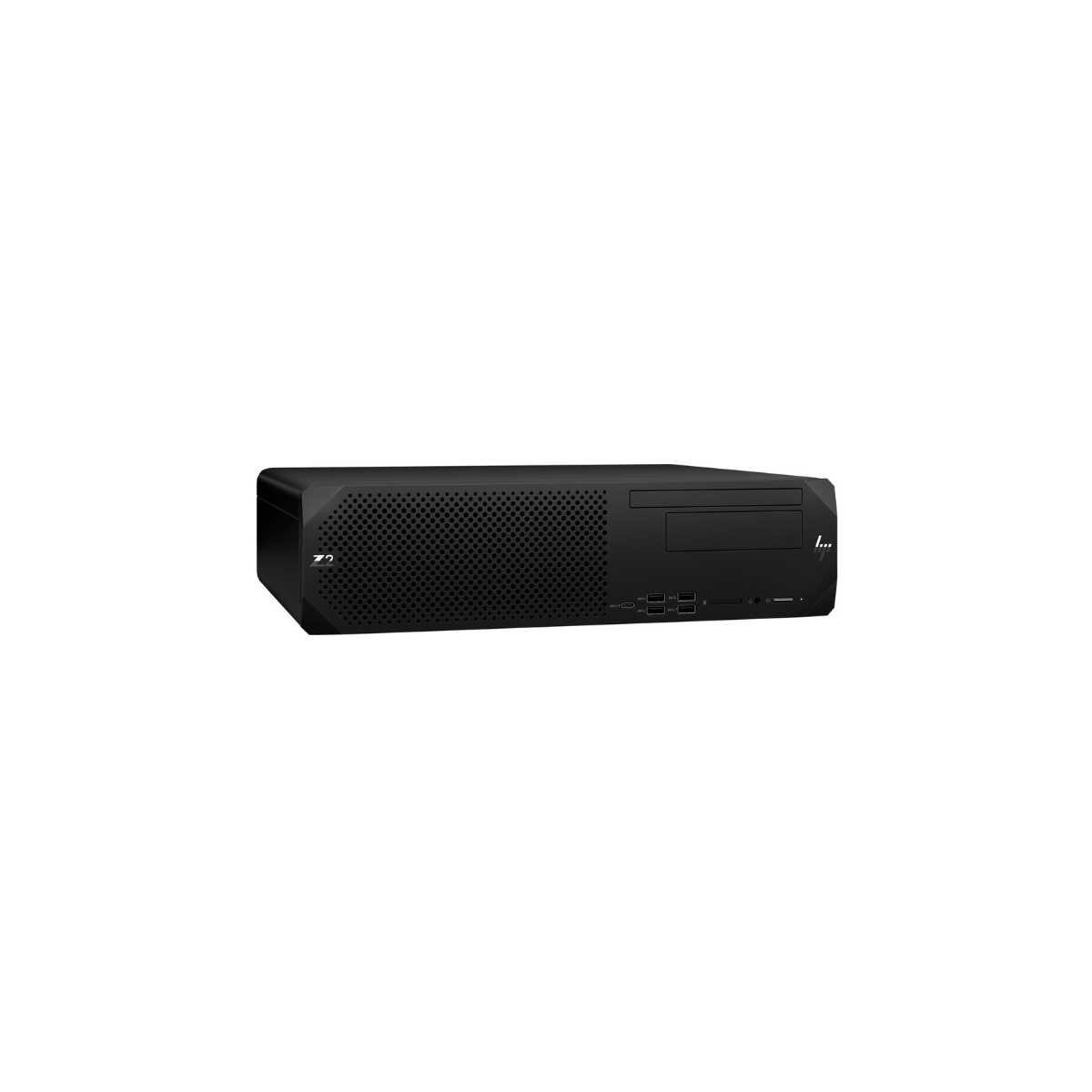

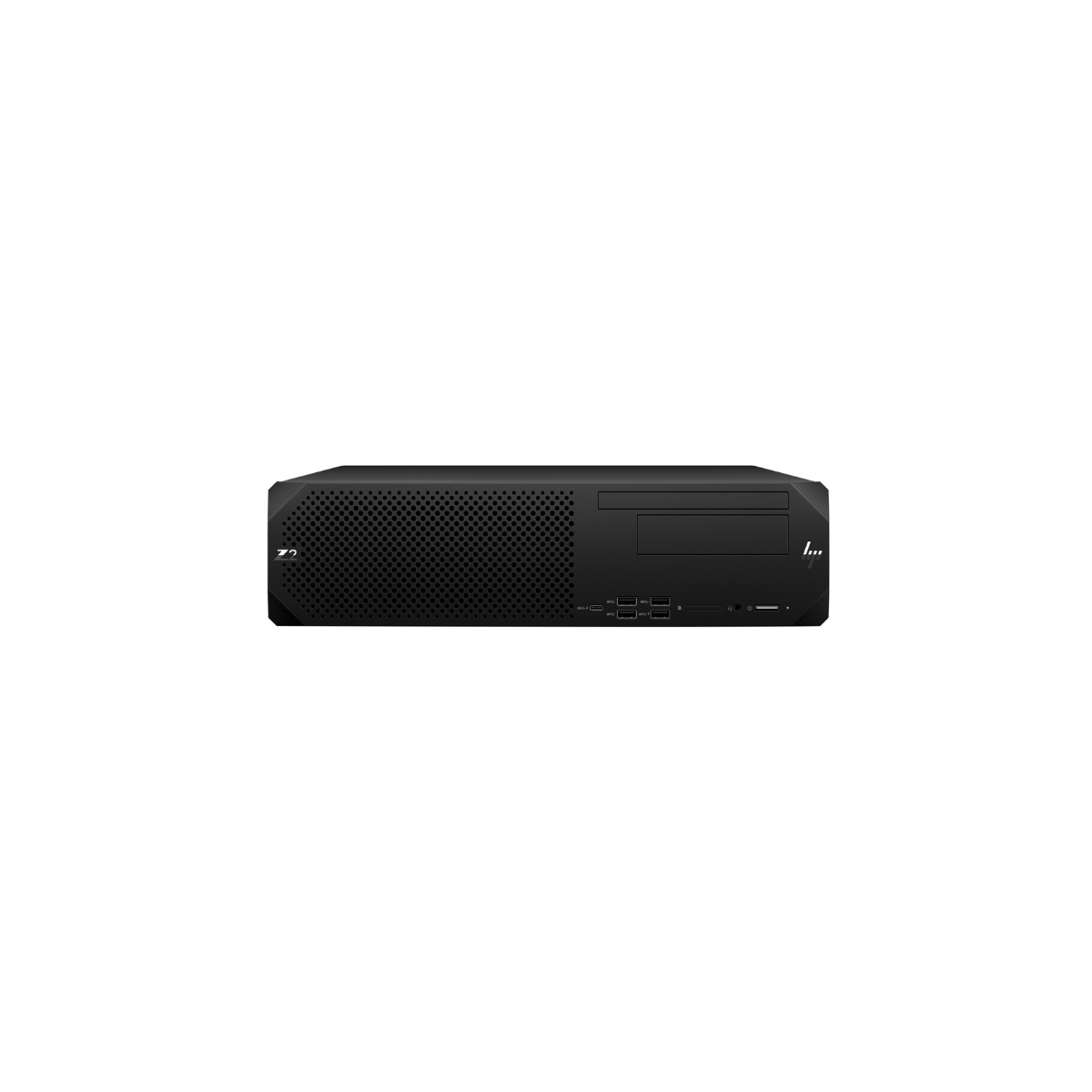

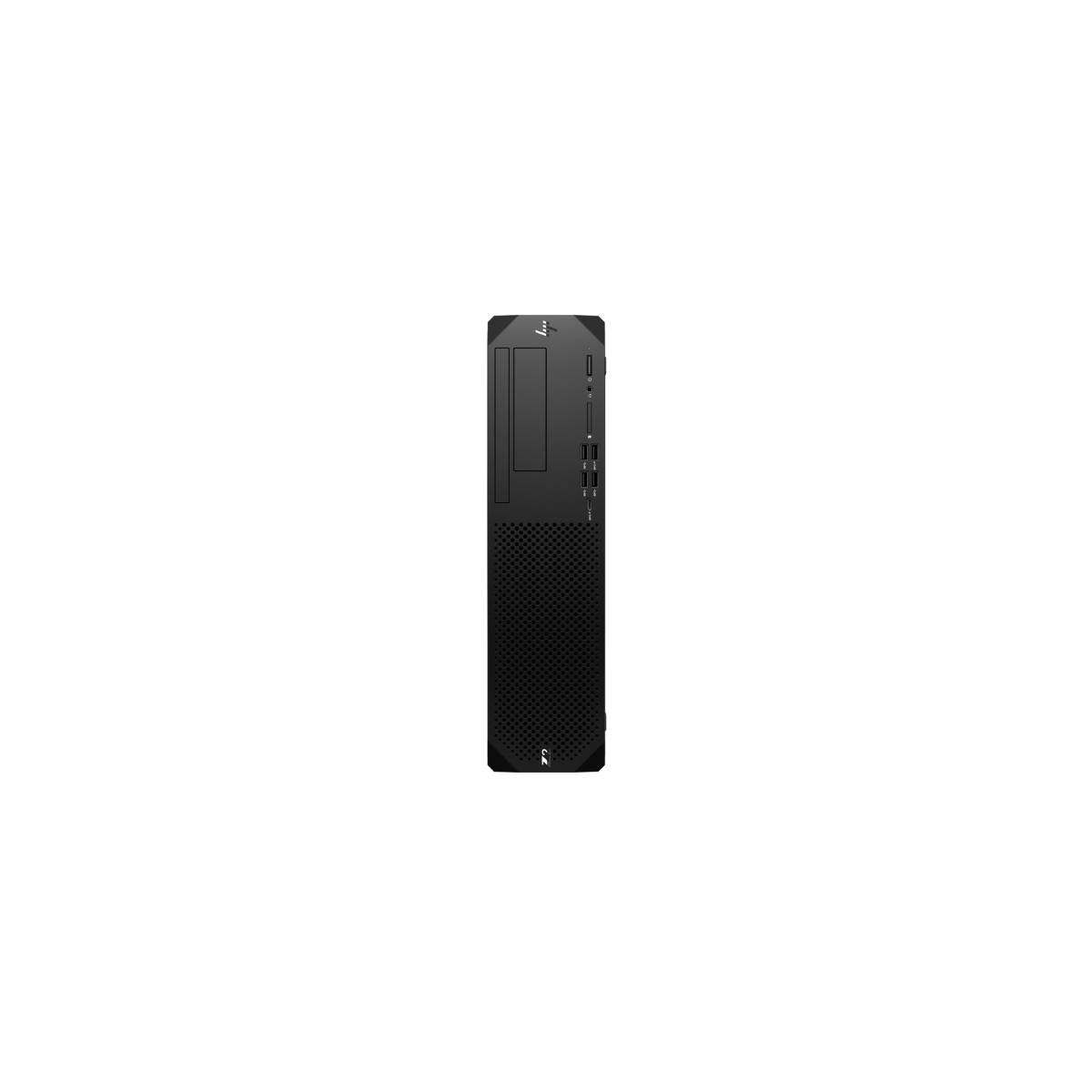

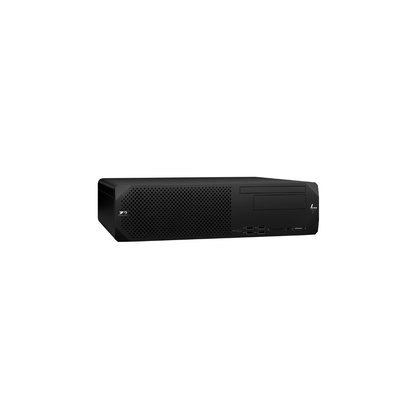

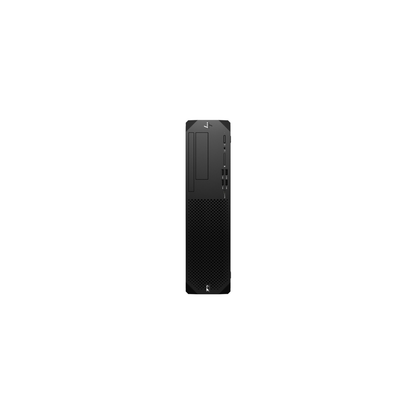

A1QP8UT#ABA HP Z2 Small Form Factor G9 Workstation Core i5-14500 16GB 512GB SSD

BRAND NEW WITH FULL HP WARRANTY!!!

Overview

The A1QP8UT#ABA HP Z2 Small Form Factor G9 Workstation is an entry-level professional workstation built around the 14th Gen Intel Core i5-14500 processor, 16GB DDR5 memory, and a 512GB PCIe NVMe SSD. Its 14-core, 20-thread processor can reach up to 5 GHz and works with integrated Intel UHD Graphics 770 to deliver responsive performance for professional productivity, engineering applications, technical workloads, data analysis, and demanding multitasking.

Designed for organizations that need workstation-class expandability without the footprint of a traditional tower, the A1QP8UT#ABA HP Z2 Small Form Factor G9 Workstation supports multiple PCIe expansion slots, additional M.2 storage, and SATA storage options. Its 450W 90%-efficient power supply and compact SFF chassis make it a strong fit for engineering offices, CAD environments, professional workstations, laboratories, studios, and other enterprise deployments where performance and expansion are important.

Key Features – A1QP8UT#ABA HP Z2 Small Form Factor G9

• Processor: Intel Core i5-14500, 14 cores / 20 threads, up to 5 GHz.
• Memory: 16GB DDR5-4800, configured as 1 × 16GB; supports up to 64GB.
• Storage: 512GB HP Z Turbo Drive PCIe NVMe SSD.
• Controller: SATA controller with RAID 0/1 support.
• Networking / Ports: Intel I219-LM Gigabit Ethernet, USB-C, USB-A and dual DisplayPort 1.4.
• Power & Cooling: 450W, 90%-efficient power supply with active PFC.
• Management: HP workstation management and diagnostic utilities.
• Security: TPM security chip, Kensington lock support and HP Wolf Pro Security Edition service.
• Form Factor: Small Form Factor (SFF).

Technical Specifications

• Processor Type: Intel Core i5-14500
• Processor Generation: 14th Generation
• Processor Cores / Threads: 14 cores / 20 threads
• Processor Base Frequency: 2.6 GHz
• Maximum Turbo Frequency: Up to 5 GHz
• Processor Cache: 24MB Intel Smart Cache
• Chipset / Platform: Intel W680
• CPU Socket: LGA1700
• Memory Technology: DDR5 SDRAM
• Memory Speed: 4800 MT/s
• Installed Memory: 16GB, 1 × 16GB
• Maximum Memory: Up to 64GB
• Storage Interface: PCIe NVMe
• Installed Storage: 512GB M.2 NVMe SSD
• Storage Expansion: Three M.2 2280 storage slots; two available in addition to the installed drive; two 3.5-inch SATA drive bays are also available.
• RAID Support: Yes; RAID 0 and RAID 1.
• Expansion Slots: PCIe 4.0 x16, PCIe 3.0 x4, PCIe 3.0 x4 with x16 connector, PCIe 3.0 x1, plus additional full-height PCIe slots depending on platform configuration.
• Networking: Intel I219-LM Gigabit Ethernet.

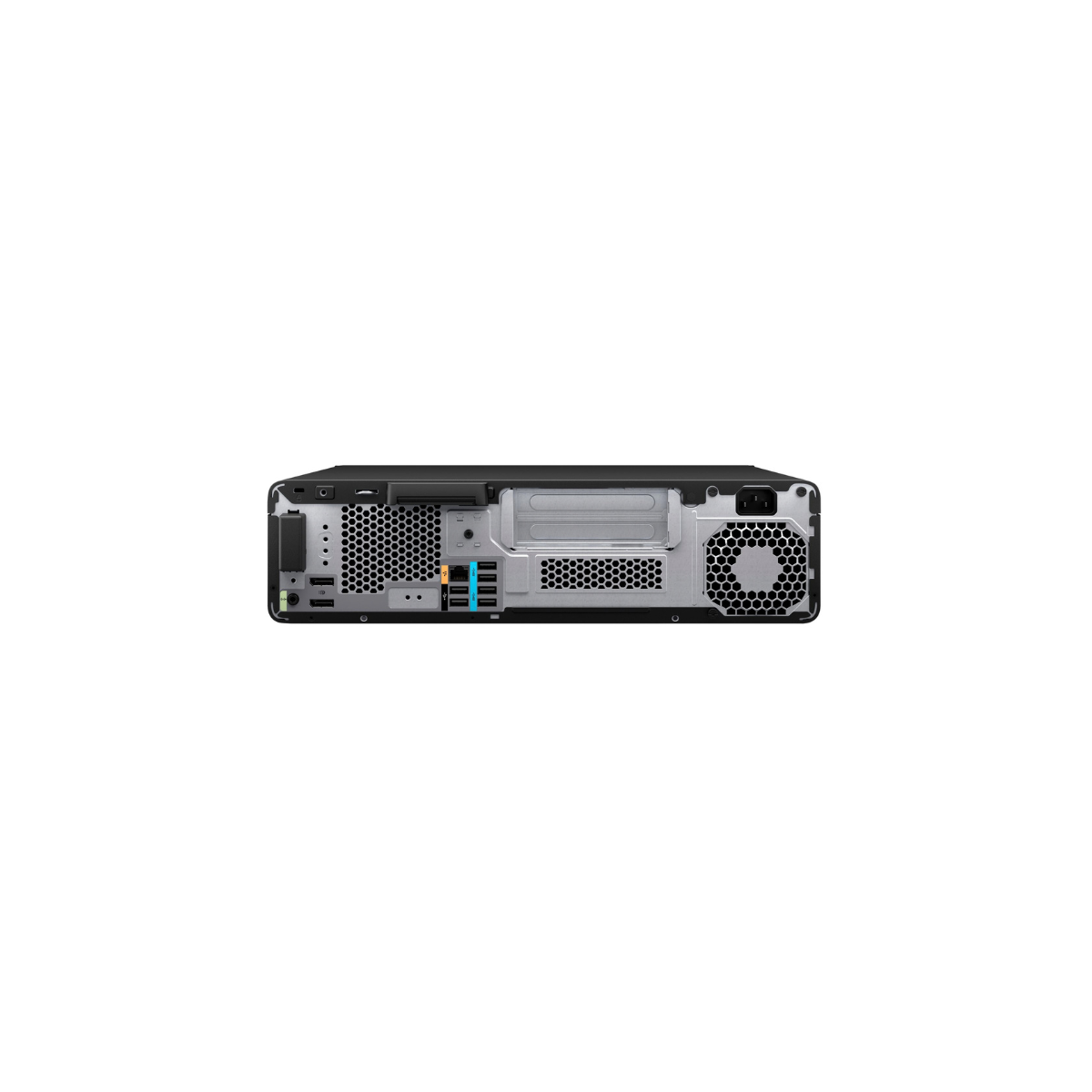

• USB / I/O Ports: 1 × USB-C 20Gbps with USB Power Delivery, DisplayPort 1.4 and HP Sleep and Charge; multiple USB-A ports; dual DisplayPort 1.4; RJ-45 Gigabit Ethernet; audio connections.
• Graphics: Integrated Intel UHD Graphics 770.
• Operating System: Windows 11 Pro.
• Power Supply: 450W, 90% efficient, wide-ranging, active PFC.

Physical Specifications

• Form Factor: Small Form Factor (SFF)
• Weight:
  • 5.00 kg
  • 11.02 lbs
• Dimensions:
  • 384 × 308 × 100 mm (W × D × H)
  • 15.12 × 12.13 × 3.94 inches (W × D × H)
• Rack Compatibility: Not a rack-mount workstation. It is designed for desktop or workstation placement.

Ideal For

• CAD and engineering workstations
• 3D design and technical visualization
• Architecture and design offices
• Product development environments
• Data analysis and technical computing
• Professional content and studio workflows
• Engineering laboratories
• Corporate workstation deployments
• Education and research environments
• Applications requiring PCIe and storage expansion

Warranty & Support

• Standard Manufacturer Warranty: 3-year limited warranty covering parts, labor and on-site repair.
• Included Security Service: HP Wolf Pro Security Edition Service is included for 1 year with this configuration.
• Support Contract Compatibility: HP Care Pack services can be used to extend or enhance support coverage for eligible HP workstation deployments.

FAQs – A1QP8UT#ABA HP Z2 Small Form Factor G9 Workstation

1. Can the memory be upgraded on the A1QP8UT#ABA?
Yes. The platform supports up to 64GB of DDR5 memory. The supplied configuration includes 16GB, providing an upgrade path for users requiring additional memory capacity.

2. Can additional storage be installed?
Yes. The workstation provides three M.2 2280 PCIe 4.0 x4 storage positions, along with available 3.5-inch SATA storage bays. This gives organizations substantial expansion flexibility beyond the installed 512GB NVMe SSD.

3. Does the A1QP8UT#ABA support RAID?
Yes. The specified SATA controller supports RAID 0 and RAID 1 configurations, allowing organizations to configure supported storage for performance or redundancy requirements.

4. Does this workstation support multiple displays?
Yes. The system provides two DisplayPort 1.4 outputs, supporting multi-display workstation configurations with compatible monitors.

5. Does the A1QP8UT#ABA have redundant power supplies?
No. It uses a single 450W internal power supply. The 450W supply is designed to provide the required power for the workstation and its supported expansion components.

6. Is the A1QP8UT#ABA suitable for professional workstation environments?
Yes. Its Core i5-14500 processor, professional Z2 platform, PCIe expansion capability, NVMe storage, DDR5 memory, and compact SFF chassis make it suitable for engineering, CAD, technical computing, design, and enterprise workstation deployments.
