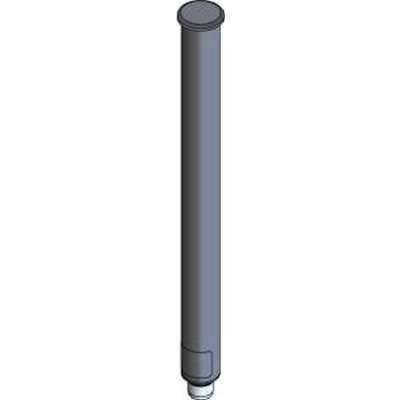

Cisco Aironet 2.4GHZ Dual-Band Omnidirectional Antenna AIR-ANT2568VG-N

The Cisco Aironet AIR-ANT2547VG-N dual-band omnidirectional antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points (hereafter referred to as access points) with radios operating in the 2.4-GHz and 5-GHz frequency bands.

Specifications

• Manufacturer: Cisco Systems
• Brand: Cisco
• Product Line: Cisco Aironet
• Model: Dual-Band Omnidirectional Antenna
• Packaged Quantity: 1
• Product Type: Antenna
• Category of Accessory: Antennas
• Gain: 8 dBi (for 5 GHz), 6 dBi (for 2.4 GHz)
• Antenna Placing / Mounting: Outdoor
• Directivity: Omni-directional
• Frequency Range: 5.15 - 5.925 GHz, 2.4 - 2.483 GHz
• Impedance: 50 ohm
• Voltage Standing Wave Ratio (VSWR): 1.5:1 (for 2400 MHz - 2483 MHz), 2.0:1 (for 5150 MHz - 5925 MHz)
• Connector Provided: 1 x N-Series connector male
• Color: Gray
• Width: 1.5 inch
• Depth: 1.5 inch
• Height: 14.8 inch
• Weight: 7.2 ounce
• Min Operating Temperature: -22 degree Fahrenheit
• Max Operating Temperature: 158 degree Fahrenheit
