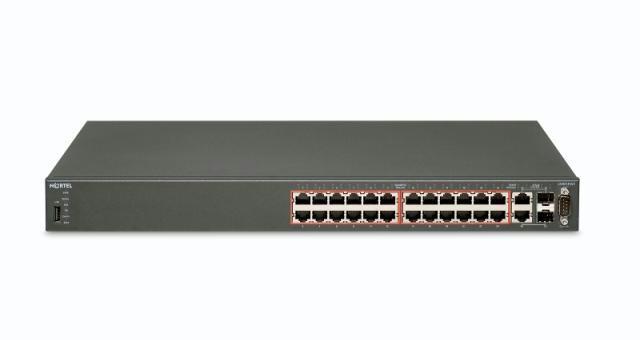

Nortel 4526T-PWR Ethernet Routing Switch AL4500E13-E6

BRAND NEW WITH THE FULL NORTEL AVAYA WARRANTY!!! The Nortel AL4500E13-E6 Ethernet Routing Switch (ERS) 4526T-PWR is a Fast Ethernet stackable, scalable and economical product that provides the resiliency, security and convergence-readiness required by application-driven and constantly changing enterprise networks.

With 24 10/100 plus 2 10/100/100 or SFP ports , the Nortel AL4500E13-E6 ERS 4526T-PWR delivers flexible Ethernet switching with Power over Ethernet (PoE) support for simplified network deployments - helping to drive lower total cost of ownership. Nortel AL4500E13-E6 ERS 4526T-PWR Key Features: Ability to mix and match with other ERS 4500s in the same stack for resilience and scalability Feature-rich solution with functionality enabling by Secure Always On access to mission critical applications High performance switch architecture and stacking performance delivering 320Gbps High-density 10/100 ports for edge connectivity Two combo 10/100/1000/SFP uplinks ports per switch for high speed gigabit or low speed connections such as 100FX Simplified converged network deployments through support for Power over Ethernet (PoE), advanced Quality of Service (QoS), and auto-configuration of ports with IP Handsets Nortel AL4500E13-E6 ERS 4526T-PWR Technical Specifications:

• 10/100 Power over Ethernet ports : 24 per switch
• 10/100/1000/SFP Gigabit ports : 2 per switch
• SFP support : SX, LX, XD, ZX, CWDM, 100FX,& T1
• Resilient Stacking : up to 8 units / 192 ports per stack
• Stacking ports : 2 built-in stacking ports per switch
• Total stacking capacity : 320 Gbps
• Individual switch packet throughput : 6.6 Mpps
• Individual switch capacity : 48.8Gbps
• Concurrent VLANs : 256

Jumbo Frame Support on Gigabit ports

• Maximum MAC addresses : 8,000

Avaya Part Numbers : AL4500E13-E6, AL4500E13-E6GS UPC : 00056097065316, 00056097072727
