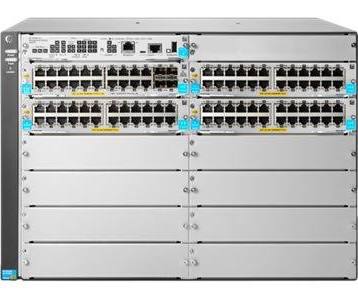

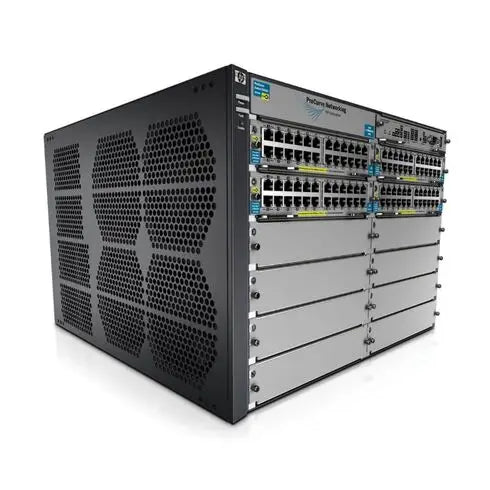

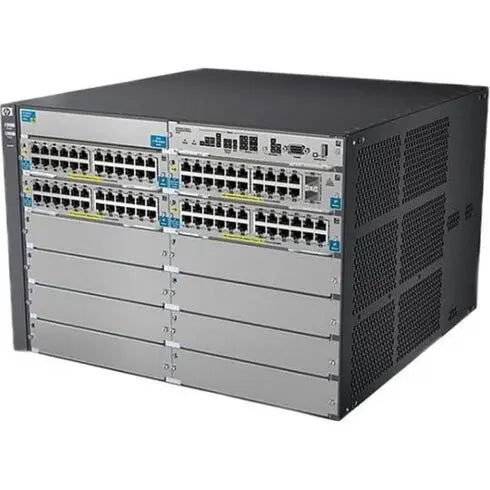

HPE Aruba 5412R 92GT PoE+ 4SFP+ v3 zl2 Managed Switch JL001A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HP LIMITED LIFETIME WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Enterprise networks require high-performance switching with scalability, resiliency, and advanced management capabilities. Core and aggregation layers must support demanding applications, secure access, and continuous uptime.

The HPE Aruba 5412R 92GT PoE+ 4SFP+ v3 zl2 Managed Switch JL001A delivers advanced Layer 3 switching with high-density PoE+ connectivity and modular scalability. Built on a programmable 6th generation HP Networking ASIC, this switch supports advanced networking features, secure operations, and flexible deployment. Designed for enterprise environments, it provides reliable performance, simplified management, and long-term scalability.

Key Features

• 92 × Gigabit Ethernet PoE+ ports for high-density device connectivity
• 4 × SFP+ uplink ports for high-speed fiber aggregation
• Advanced Layer 3 switching with enterprise routing capabilities
• Programmable 6th generation HP Networking ASIC
• MACsec-ready hardware for enhanced network security
• Resilient architecture with redundant management support
• Advanced QoS for traffic prioritization
• Designed for enterprise core and aggregation deployments

Technical Specifications

Brand: HPE Aruba
Model: Aruba 5412R zl2
Part Number: JL001A
Product Type: Managed Switch

Switch Type

Layer 3 Managed Switch
Enterprise Core / Aggregation Switch

Ports

• 92 × Gigabit Ethernet RJ-45 PoE+ ports
• 4 × SFP+ uplink ports supporting 10G Ethernet

Network Features

Flow control
Routing
DHCP support
BOOTP support
ARP support
Trunking
VLAN support
Auto MDI/MDI-X
IGMP snooping
DiffServ support
IPv4 and IPv6 support
SNTP support
Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)
Tunneling
Non-Stop Routing (NSR)
Bandwidth control
Energy Efficient Ethernet

Security and Access Control

Access Control Lists (ACL)
STP Root Guard
Uni-Directional Link Detection (UDLD)
Port security
Dynamic ARP protection
DHCP protection
MACsec support

Management Protocols

SNMP
CLI
Web-based management
Management Information Base (MIB)

Additional Network Features

MLD snooping
Rapid Per-VLAN Spanning Tree Plus (PVRST+)
DHCP relay
DHCP client
Dual firmware images
Class of Service (CoS)
sFlow v5
GARP VLAN Registration Protocol (GVRP)
Type of Service (ToS)

Interfaces

92 × Gigabit Ethernet RJ-45 PoE+ ports
4 × SFP+ uplink ports

Architecture

Programmable HP Networking ASIC
Enterprise-grade switching architecture

Use Cases

The Aruba 5412R JL001A switch is designed for enterprise core and aggregation networks. It supports high-density PoE+ deployments, advanced routing, and secure network environments. Organizations deploy this switch in campus networks, large offices, and data center environments where scalability, performance, and resiliency are critical.

Why Choose HPE Aruba 5412R JL001A

• Provides high-density PoE+ connectivity for enterprise environments
• Supports high-speed uplinks for efficient network aggregation
• Delivers advanced Layer 3 routing for complex network architectures
• Enhances security with MACsec-ready hardware
• Ensures reliability with resilient and redundant design
• Simplifies operations with centralized management tools
• Ideal for enterprise core, aggregation, and campus deployments
• Brand new hardware backed by a full HP limited lifetime warranty

FAQs

What is the Aruba 5412R JL001A switch used for?
It is an enterprise Layer 3 switch designed for core and aggregation network deployments.

How many ports does the switch provide?
The switch includes 92 Gigabit Ethernet PoE+ ports and 4 SFP+ uplink ports.

Does this switch support PoE devices?
Yes. It supports PoE+ for powering wireless access points, IP phones, and other devices.

Does the switch support advanced security features?
Yes. It includes MACsec-ready hardware and multiple network security features.

Is this switch suitable for large enterprise networks?
Yes. It is designed for high-density and scalable enterprise environments.

Does the warranty cover the switch?
Yes. The product is brand new, factory-sealed, retail-boxed, and includes the full HP limited lifetime warranty.
