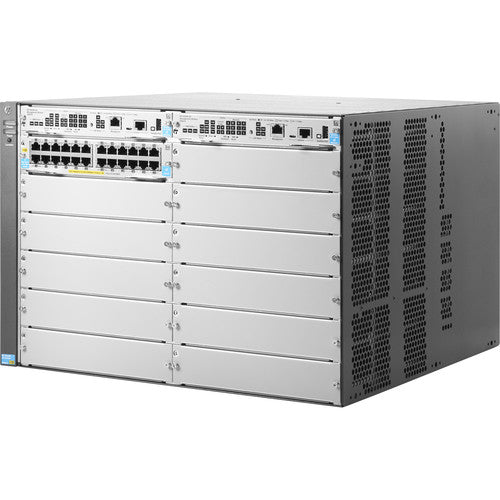

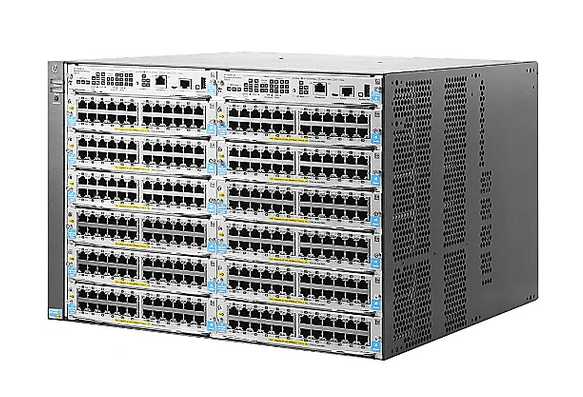

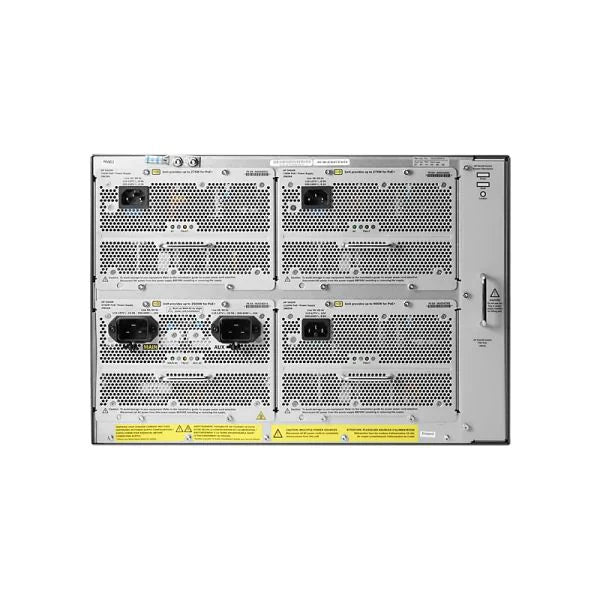

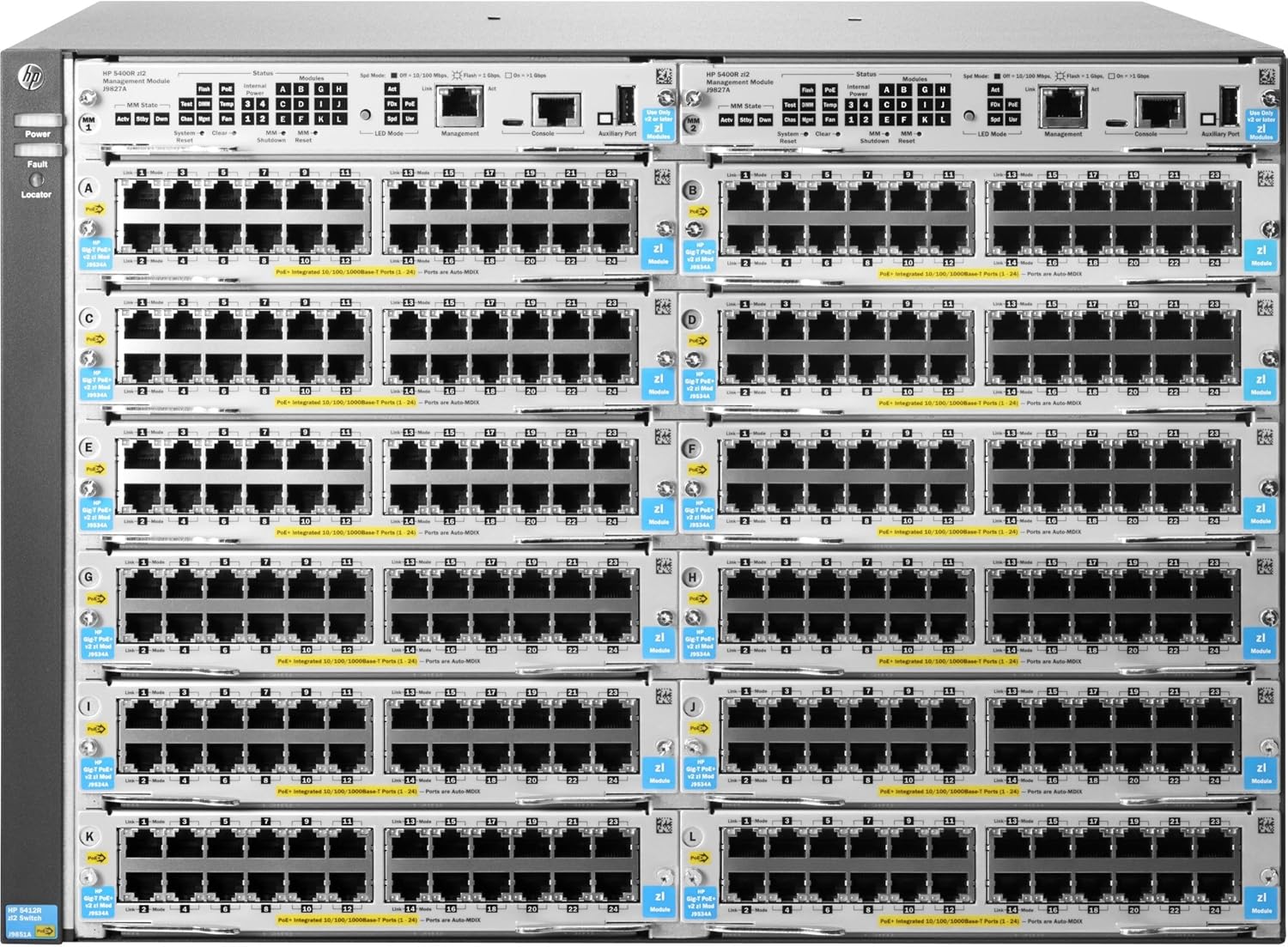

HPE Aruba 5412R zl2 Managed Switch Chassis J9822A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE LIMITED LIFETIME WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Enterprise networks require scalable and resilient switching to support high-performance applications, mobile users, and growing infrastructure demands. Core and aggregation layers must provide flexibility, reliability, and continuous uptime to maintain business operations.

The HPE Aruba 5412R zl2 Managed Switch Chassis J9822A delivers advanced Layer 3 switching with modular scalability and enterprise-grade resiliency. Designed for aggregation and core deployments, this chassis supports high-speed connectivity, VSF stacking, and hitless failover. With flexible expansion slots and centralized management tools, it provides a powerful and adaptable network foundation.

Key Features

• Modular switch chassis with up to 12 expansion slots
• Advanced Layer 3 switching with enterprise routing capabilities
• HPE Smart Rate support for high-speed multi-gigabit connectivity
• VSF stacking for scalable network deployments
• Hitless failover for high availability and uptime
• High-performance switching with support for 40GbE uplinks
• Advanced QoS for traffic prioritization
• Centralized management with Aruba AirWave and Aruba Central

Technical Specifications

Brand: HPE Aruba
Model: Aruba 5412R zl2
Part Number: J9822A
Product Type: Managed Switch Chassis

Switch Type

Layer 3 Managed Switch
Enterprise Core / Aggregation Switch

Ports

• 1 × RJ-45 management port
• Expansion Slots: 12 total (11 available)

Expansion

Installed Modules: 1 (installed) / up to 12 supported

Network Features

Flow control
DHCP support
BOOTP support
ARP support
Trunking
VLAN support
Auto MDI/MDI-X
DiffServ support
IPv4 and IPv6 support
SNTP support
Rapid Spanning Tree Protocol (RSTP)
Multiple Spanning Tree Protocol (MSTP)
Tunneling
Non-Stop Routing (NSR)
Bandwidth control
Energy Efficient Ethernet

Security and Access Control

Access Control Lists (ACL)
STP Root Guard
Uni-Directional Link Detection (UDLD)
Port security
Dynamic ARP protection
DHCP protection

Management Protocols

SNMP
CLI
Web-based management
Management Information Base (MIB)

Additional Network Features

MLD snooping
Rapid Per-VLAN Spanning Tree Plus (PVRST+)
DHCP relay
DHCP client
Dual firmware images
Class of Service (CoS)
sFlow v5
GARP VLAN Registration Protocol (GVRP)
Type of Service (ToS)

Interfaces

1 × RJ-45 management port
Modular expansion slot interfaces

Architecture

Modular chassis-based switching architecture
Supports scalable enterprise network deployments

Use Cases

The Aruba 5412R zl2 J9822A switch chassis is designed for enterprise core and aggregation networks. It supports large-scale deployments requiring high availability, modular expansion, and advanced Layer 3 capabilities. Organizations deploy this chassis in data centers, campus networks, and high-density environments where scalability and resiliency are critical.

Why Choose HPE Aruba 5412R zl2 J9822A

• Provides scalable modular architecture for growing networks
• Supports high-performance aggregation and core switching
• Enables continuous operation with hitless failover
• Delivers advanced Layer 3 routing for complex environments
• Simplifies management with Aruba centralized tools
• Supports high-speed connectivity including 40GbE uplinks
• Ideal for enterprise campuses and data center networks
• Brand new hardware backed by a full HPE limited lifetime warranty

FAQs

What is the Aruba 5412R zl2 J9822A used for?
It is a modular Layer 3 switch chassis designed for enterprise core and aggregation network deployments.

How many expansion slots does the chassis provide?
The chassis includes 12 expansion slots, with 11 available for modules.

Does this switch support high availability?
Yes. It supports hitless failover and Non-Stop Routing for continuous network operation.

Is this switch scalable for large networks?
Yes. Its modular design allows flexible expansion for growing enterprise environments.

What management options are available?
The switch supports CLI, SNMP, web-based management, and Aruba centralized management platforms.

Does the warranty cover the switch?
Yes. The product is brand new, factory-sealed, retail-boxed, and includes the full HPE limited lifetime warranty.
