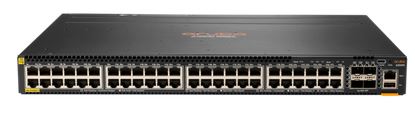

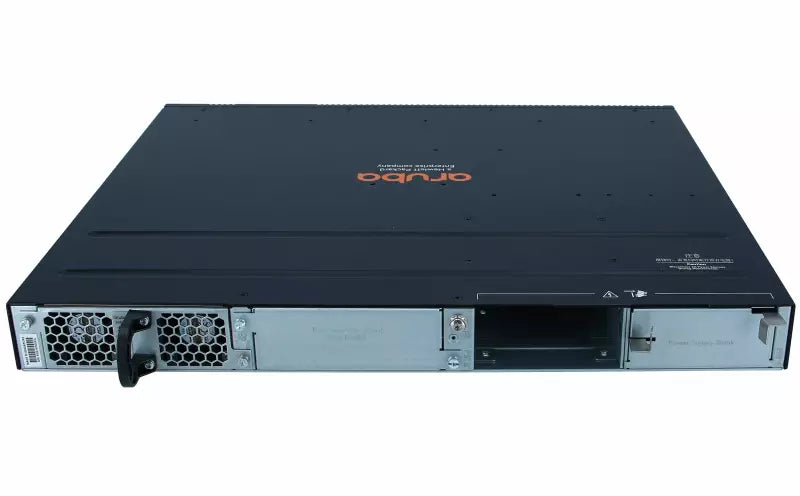

HPE Aruba CX 6300M 48G Class 4 PoE 4SFP56 Switch JL661A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Modern enterprise networks require high-performance switching to support increasing traffic, cloud applications, and connected devices. Access, aggregation, and core layers must work together efficiently to deliver consistent performance and scalability.

The HPE Aruba CX 6300M 48G Class 4 PoE Switch JL661A delivers advanced Layer 3 switching with high-speed connectivity and intelligent network capabilities. Designed for enterprise access, aggregation, and core deployments, this switch supports IoT, mobile, and cloud environments. With stackable architecture, high switching capacity, and advanced routing features, it provides a reliable and scalable network foundation.

Key Features

• 48 × Gigabit Ethernet Class 4 PoE ports for device connectivity
• 4 × SFP56 uplink ports supporting high-speed 1/10/25/50G connections
• Advanced Layer 3 switching with BGP, OSPF, and VXLAN support
• Stackable architecture with high-bandwidth stacking capability
• High-performance switching with 880 Gbps capacity and 660 Mpps throughput
• Advanced QoS for optimized traffic management
• Built-in security and resilient network design
• Designed for enterprise access, aggregation, and core deployments

Technical Specifications

Brand: HPE Aruba
Model: Aruba CX 6300M
Part Number: JL661A
Product Type: Managed Switch

Switch Type

Layer 3 Managed Switch
Enterprise Access / Aggregation / Core Switch

Ports

• 48 × 10/100/1000Base-T Gigabit Ethernet PoE+ ports
• 4 × SFP56 uplink ports supporting 1G / 10G / 25G / 50G Ethernet

Performance

Switching Capacity: 880 Gbps
Throughput: 660 Mpps
Stacking Bandwidth: up to 200 Gbps

Network Features

Layer 2 switching
Advanced Layer 3 routing
BGP support
OSPF support
VXLAN support
EVPN support
VRF support
Quality of Service (QoS)
IPv4 and IPv6 support

Security and Access Control

Access control and network security features
Built-in protection for enterprise networks

Management Protocols

SNMP
CLI
Web-based management
Centralized management through Aruba ecosystem tools

Interfaces

48 × Gigabit Ethernet RJ-45 PoE+ ports
4 × SFP56 uplink ports

Power

AC 100–120V / 200–240V
50/60 Hz

Architecture

High-performance Aruba CX switching architecture
Stackable design with resilient operation

Physical

Form Factor: Rack-mountable
Dimensions: 17.40 × 15.20 × 1.73 inches

Use Cases

The Aruba CX 6300M JL661A switch is ideal for enterprise access, aggregation, and core network deployments. It connects high-density devices, supports wireless infrastructure, and enables high-speed uplinks for large-scale environments. Organizations deploy this switch when they require advanced routing, high performance, and scalable network architecture.

Why Choose HPE Aruba CX 6300M JL661A

• Delivers high-performance switching for enterprise environments
• Supports scalable network growth with stackable architecture
• Enables advanced routing with BGP, OSPF, and VXLAN
• Provides high-speed uplinks for modern data traffic demands
• Enhances reliability with built-in security and resiliency
• Supports IoT, mobile, and cloud-based applications
• Ideal for access, aggregation, and core network layers
• Brand new hardware backed by a full HPE warranty

FAQs

What is the Aruba CX 6300M JL661A switch used for?
It is a high-performance Layer 3 switch designed for enterprise access, aggregation, and core network deployments.

How many ports does the switch provide?
The switch includes 48 Gigabit Ethernet PoE+ ports and 4 SFP56 uplink ports.

Does this switch support high-speed uplinks?
Yes. The SFP56 ports support 1G, 10G, 25G, and 50G Ethernet connectivity.

Is the switch suitable for large enterprise networks?
Yes. It is designed for scalable enterprise environments with high performance and advanced routing features.

Does the switch support stacking?
Yes. It supports stackable deployment with high-bandwidth stacking capability.

Does the warranty cover the switch?
Yes. The product is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty.
