BRAND NEW WITH FULL CYBERPOWER WARRANTY!!!

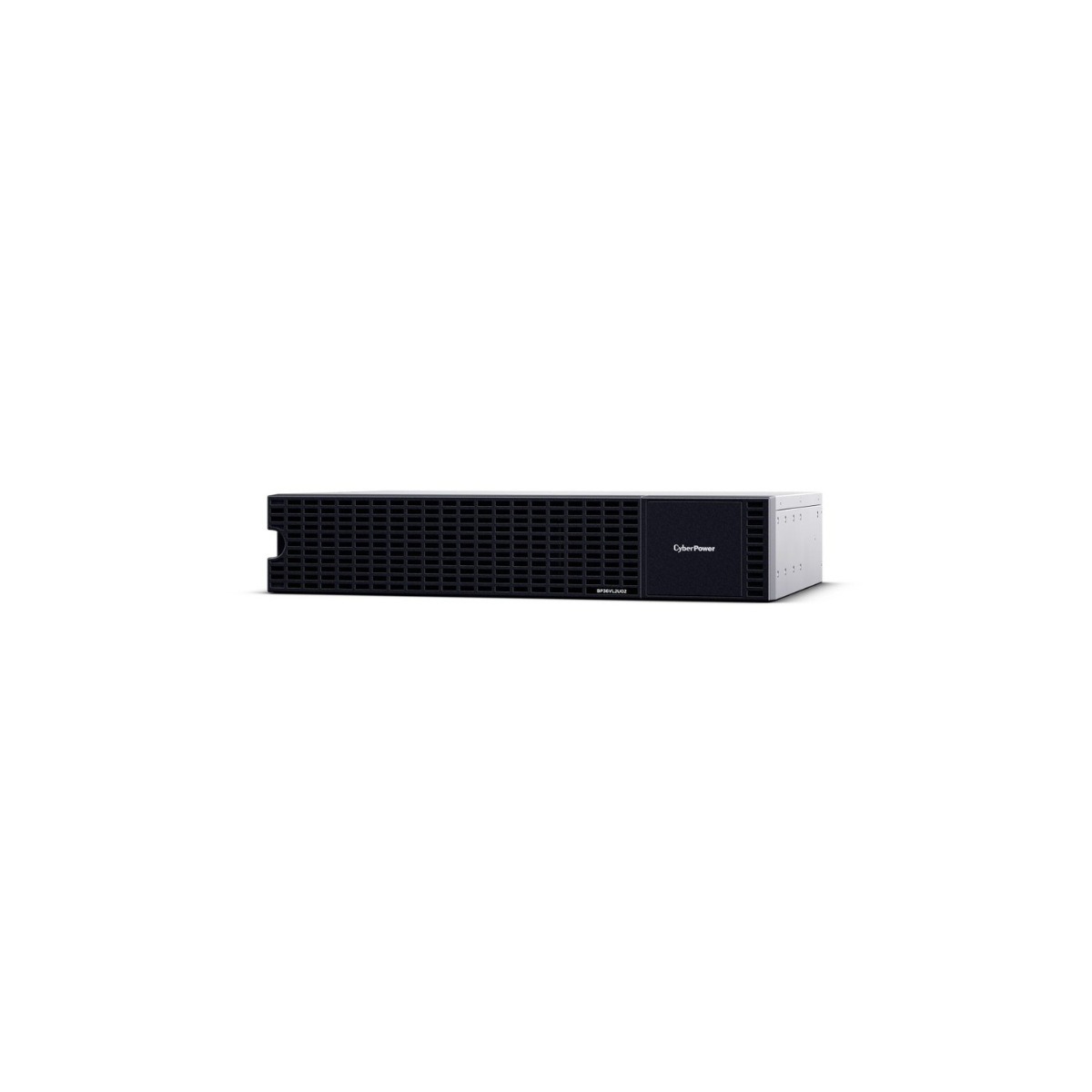

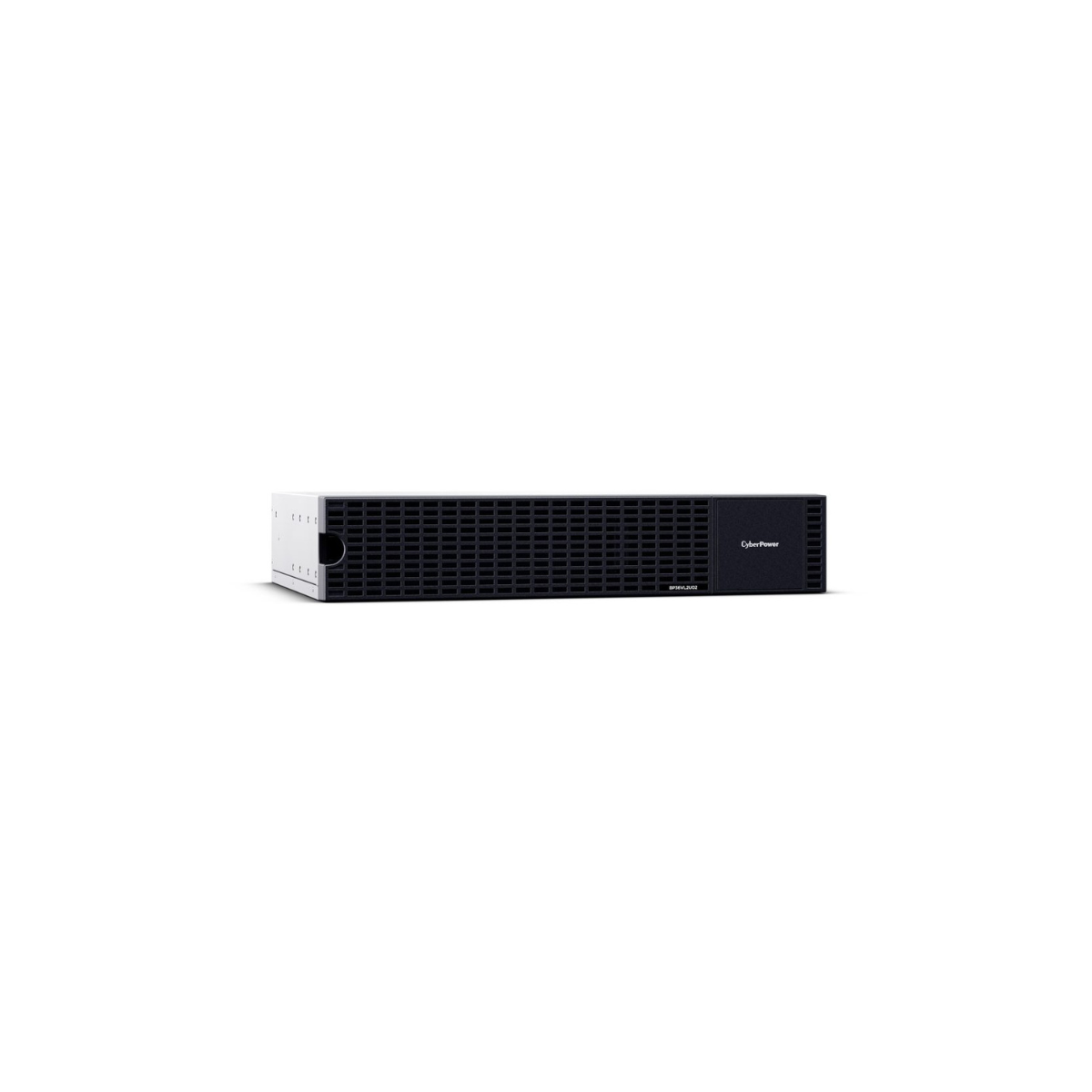

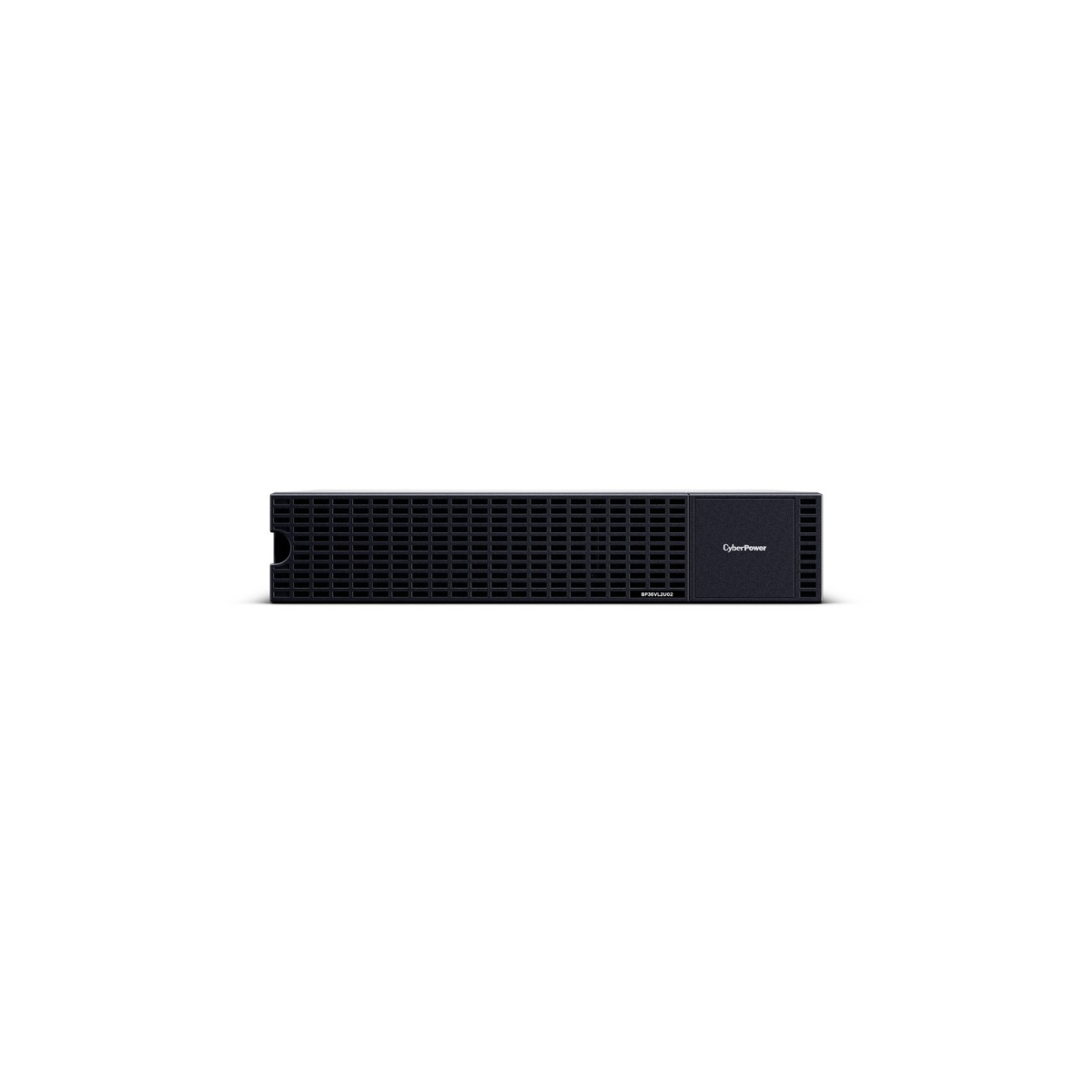

The CyberPower BP36VL2U02 Extended Battery Module is a 2U rack/tower convertible external battery pack engineered to extend runtime for compatible CyberPower Smart App Online UPS systems. Designed specifically for OL1K5RM and OL2K2RM models, this 36V DC battery module provides scalable backup power capacity for enterprise IT environments.

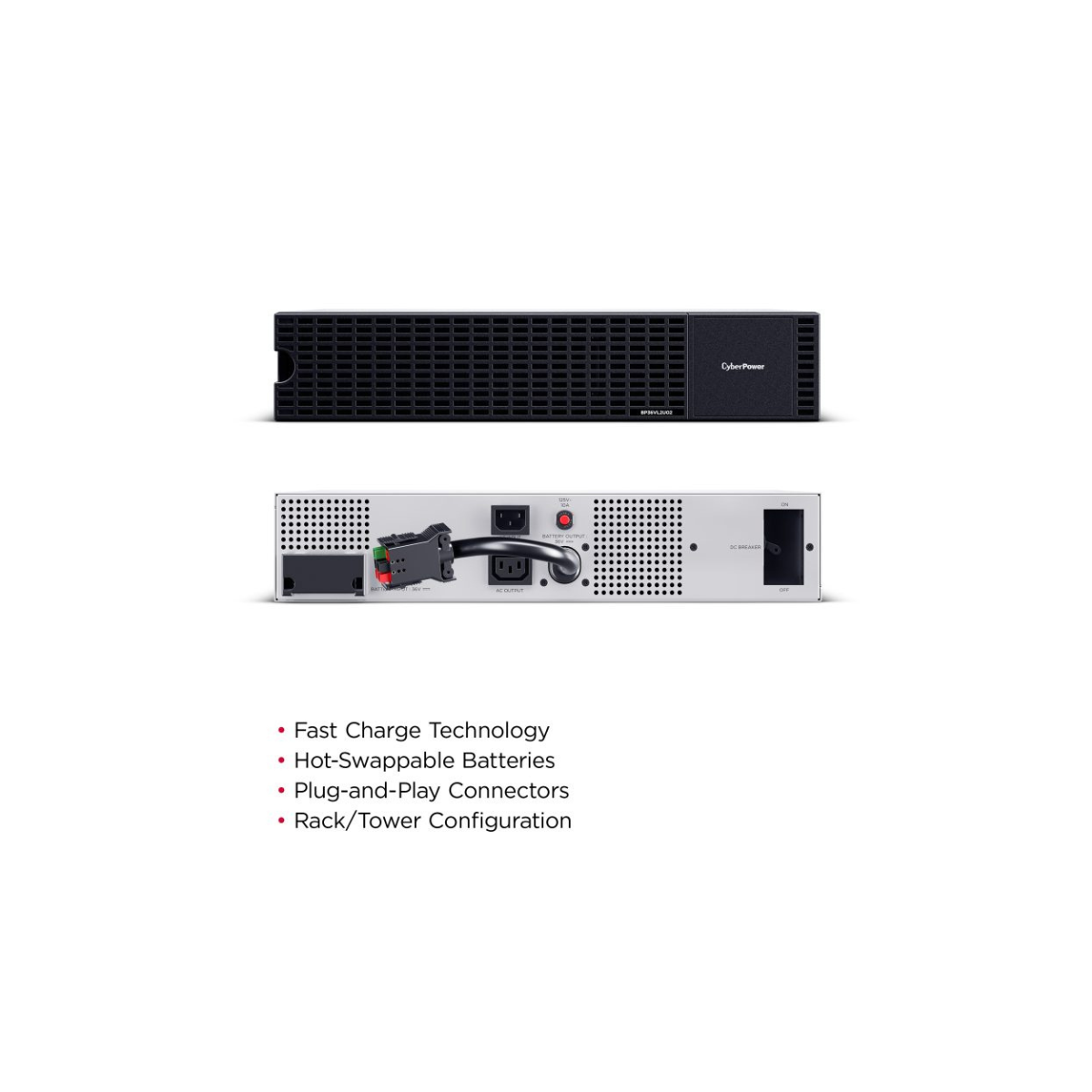

Built for high-availability deployments, the BP36VL2U02 integrates seamlessly using plug-and-play DC connectors, allowing multiple battery modules to be daisy-chained for extended runtime. Its hot-swappable sealed lead-acid batteries ensure uninterrupted operation during maintenance, while Smart Battery Management optimizes charging cycles and extends battery lifespan.
Ideal for data centers, network infrastructure, and distributed edge environments, this module delivers a flexible and cost-effective way to increase UPS runtime without replacing existing systems. The compact 2U form factor and rack/tower versatility make it suitable for space-constrained enterprise deployments.
Key Features – CyberPower BP36VL2U02
• Processor:
N/A (Battery module)
• Memory:
N/A
• Storage:
6 × 12V / 7Ah sealed lead-acid (SLA) batteries
• Controller (if applicable):
Smart Battery Management (3-cycle charging system)
• Networking / Ports:
Plug-and-play DC expansion connectors
• Power & Cooling:
36V DC output / 60A
Fast Charge Technology (0–90% in ~4 hours)
Passive cooling
• Management:
Managed via connected UPS (PowerPanel compatible)
• Security (if applicable):
Sealed, leak-proof battery design
• Form Factor:
2U Rackmount / Tower Convertible
Technical Specifications
• Processor Type:
N/A
• Chipset / Platform:
Compatible with CyberPower OL1K5RM and OL2K2RM UPS systems
• Memory Technology:
N/A
• Storage Interface:
Direct DC connection to UPS
• RAID Support:
N/A
• Expansion Slots:
Supports daisy-chaining of multiple EBMs (up to 10 units)
• Networking:
N/A
• I/O Ports:

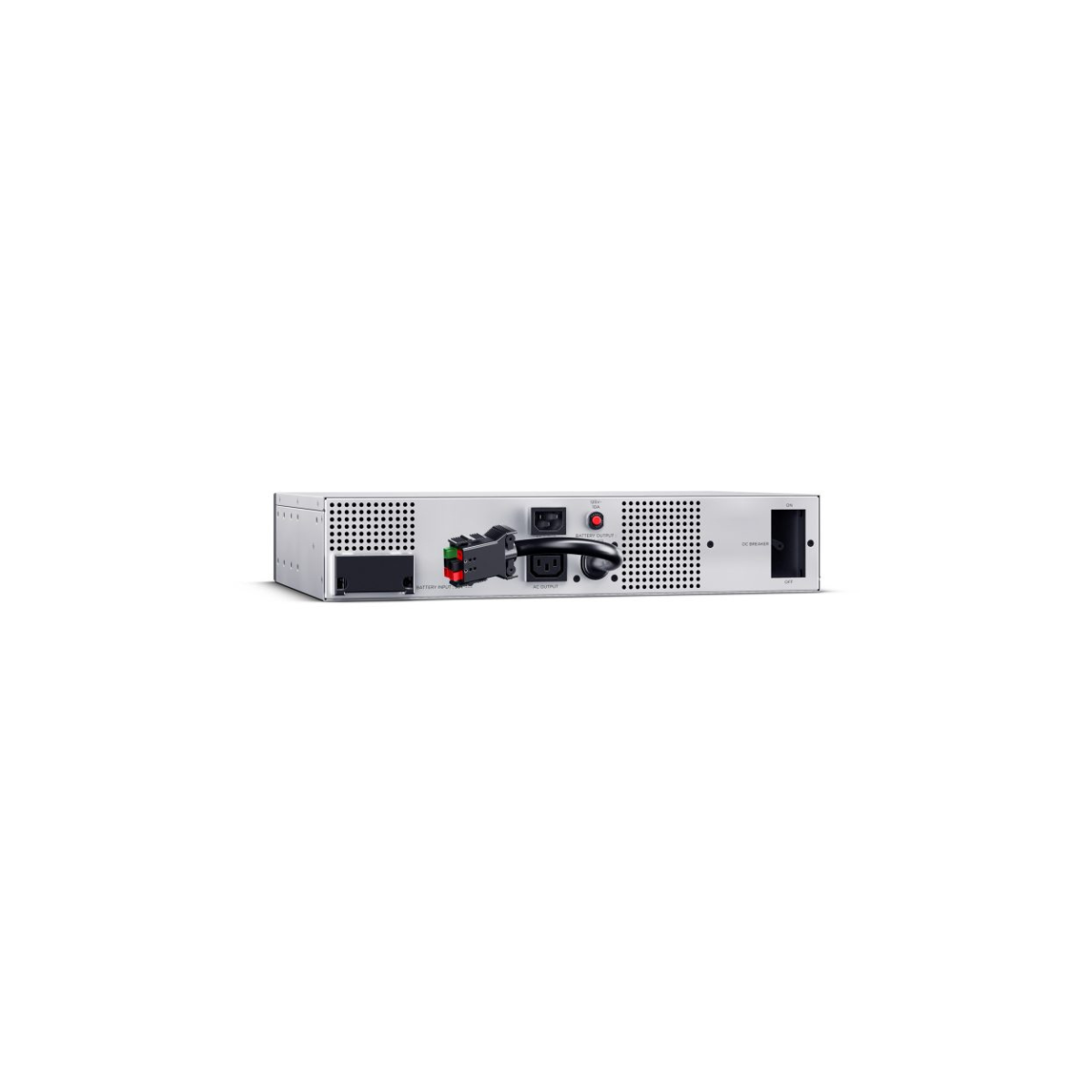

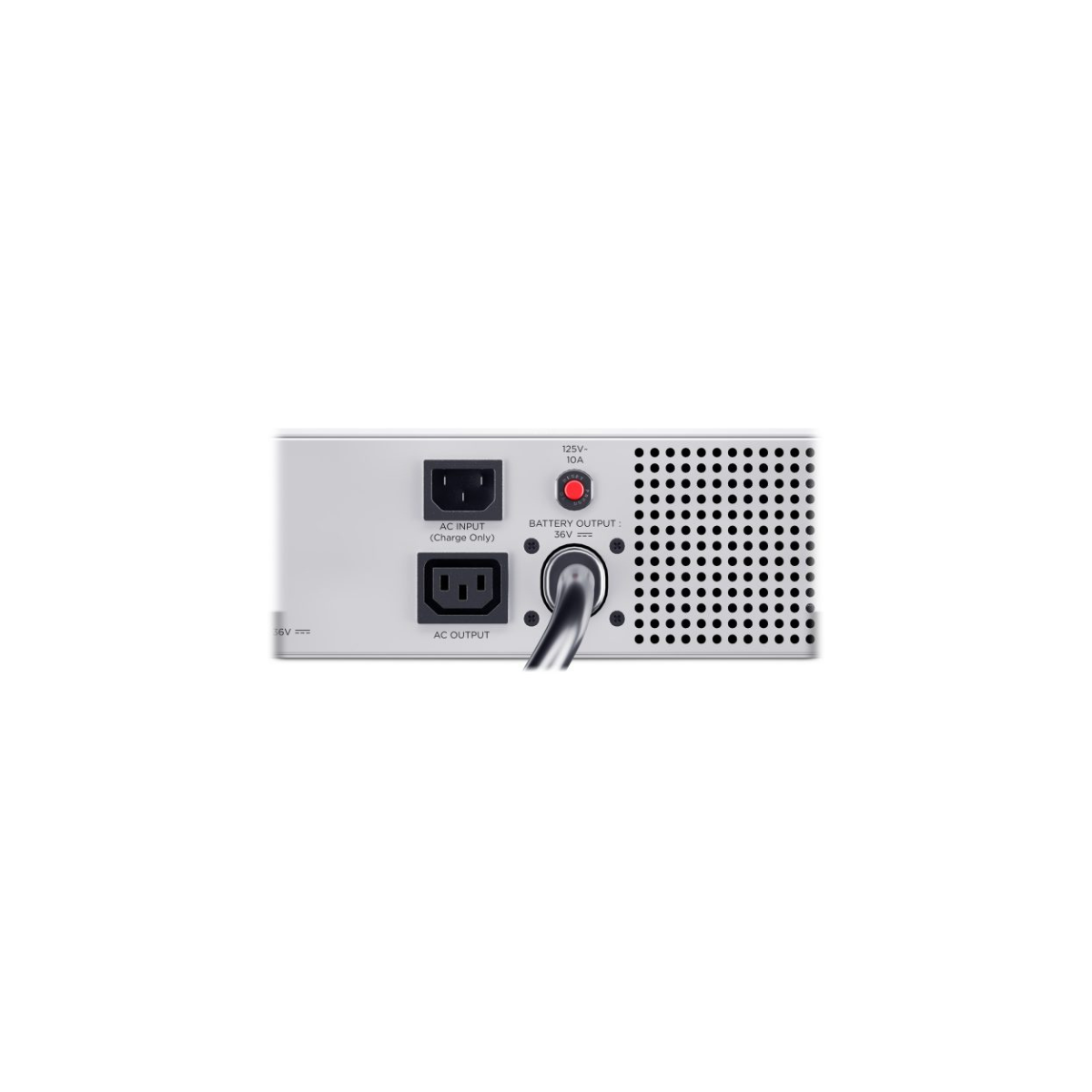

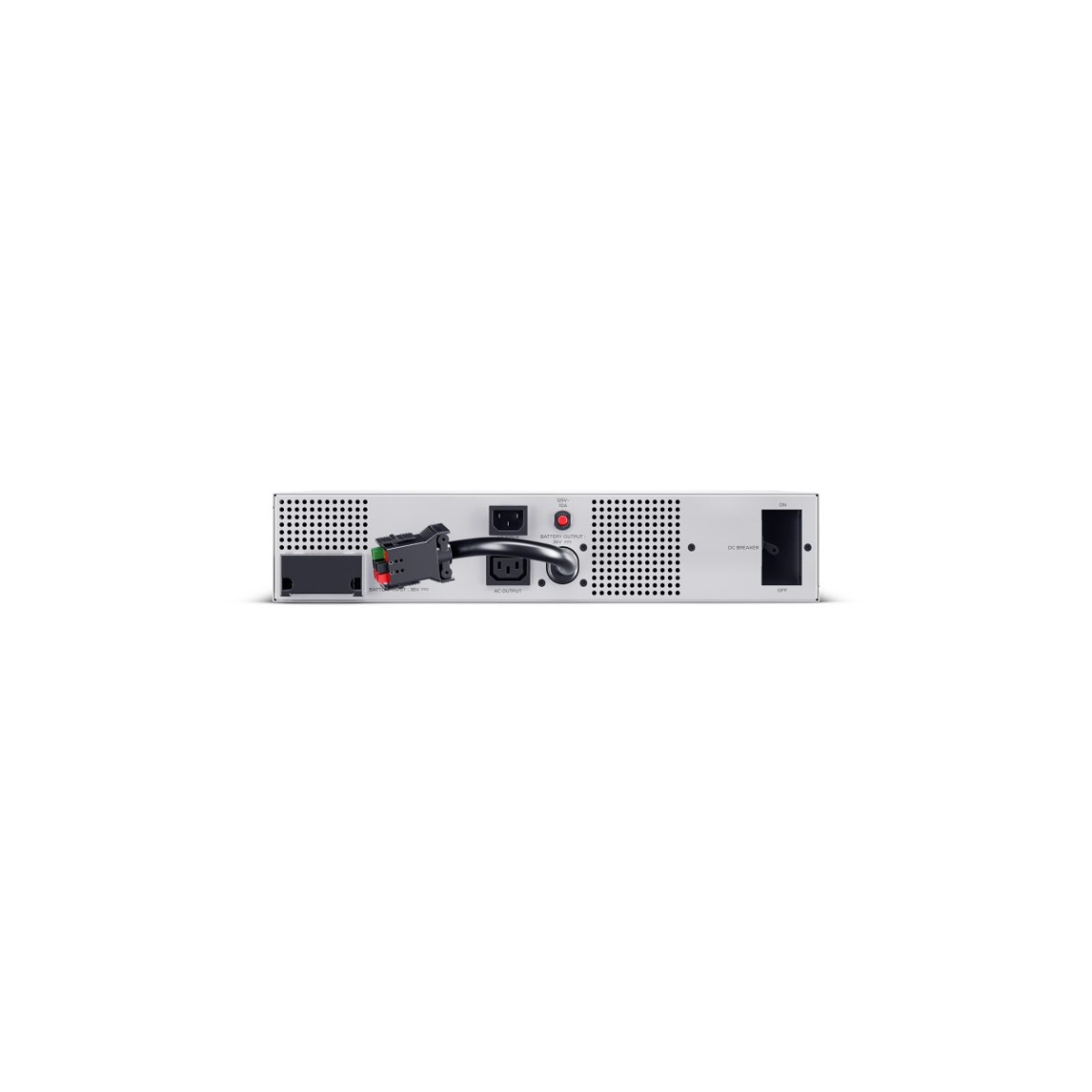

DC battery expansion connector
• Operating System Compatibility (if relevant):
OS-independent (UPS-managed)
Physical Specifications ← VERY IMPORTANT
• Form Factor:
2U Rackmount / Tower Convertible
• Weight:
o 21.6 kg
o 47.62 lbs

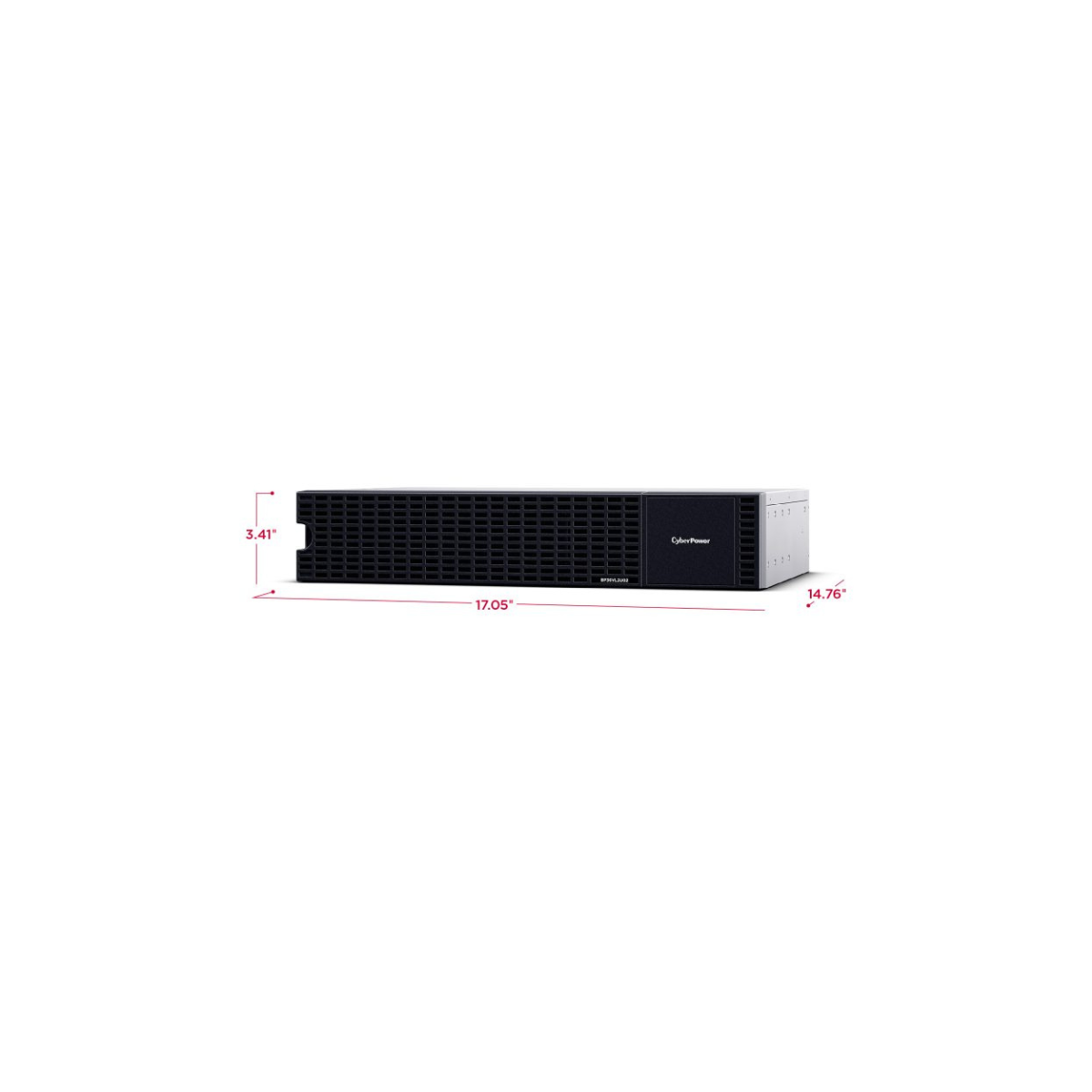

• Dimensions:
o 433 x 87 x 375 mm (W x H x D)
o 17.05 x 3.41 x 14.76 inches (W x H x D)
• Rack Compatibility:

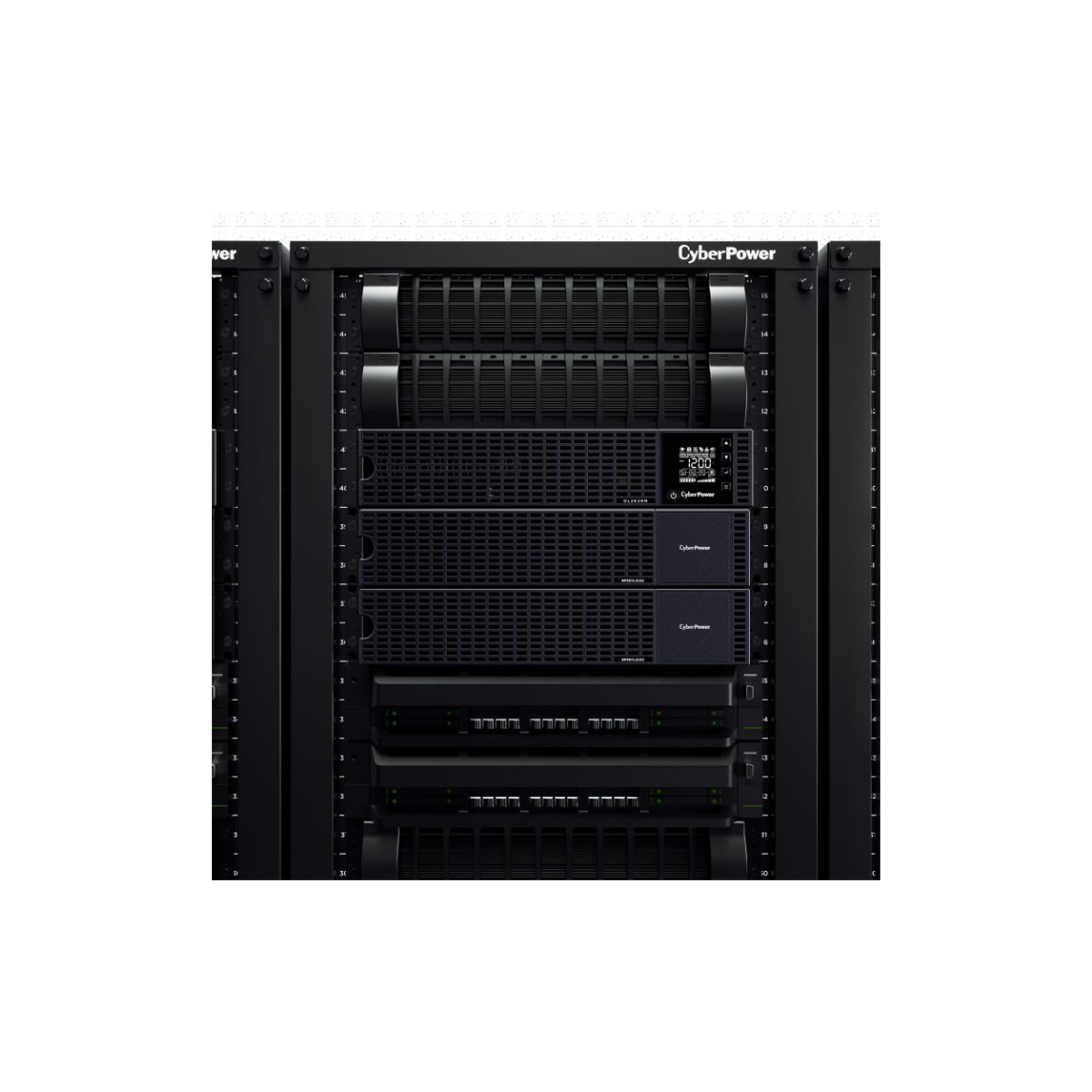

Standard 19-inch rack (2U height)
Ideal For
• Enterprise data centers requiring extended UPS runtime
• Server and storage infrastructure protection
• Network closets and telecom deployments
• Edge computing and branch office IT environments
• Mission-critical applications in healthcare, finance, and manufacturing
Warranty & Support
• 3-year limited manufacturer warranty (including batteries)
• Optional extended warranty (WEXT5YR-BP1) available
• Full compatibility with CyberPower support and lifecycle services
FAQs – CyberPower BP36VL2U02
1. Which UPS systems are compatible with this module?
It is designed for CyberPower OL1K5RM and OL2K2RM Smart App Online UPS systems.
2. Can multiple battery modules be connected?
Yes, up to 10 EBMs can be daisy-chained to significantly increase runtime.
3. Are the batteries hot-swappable?

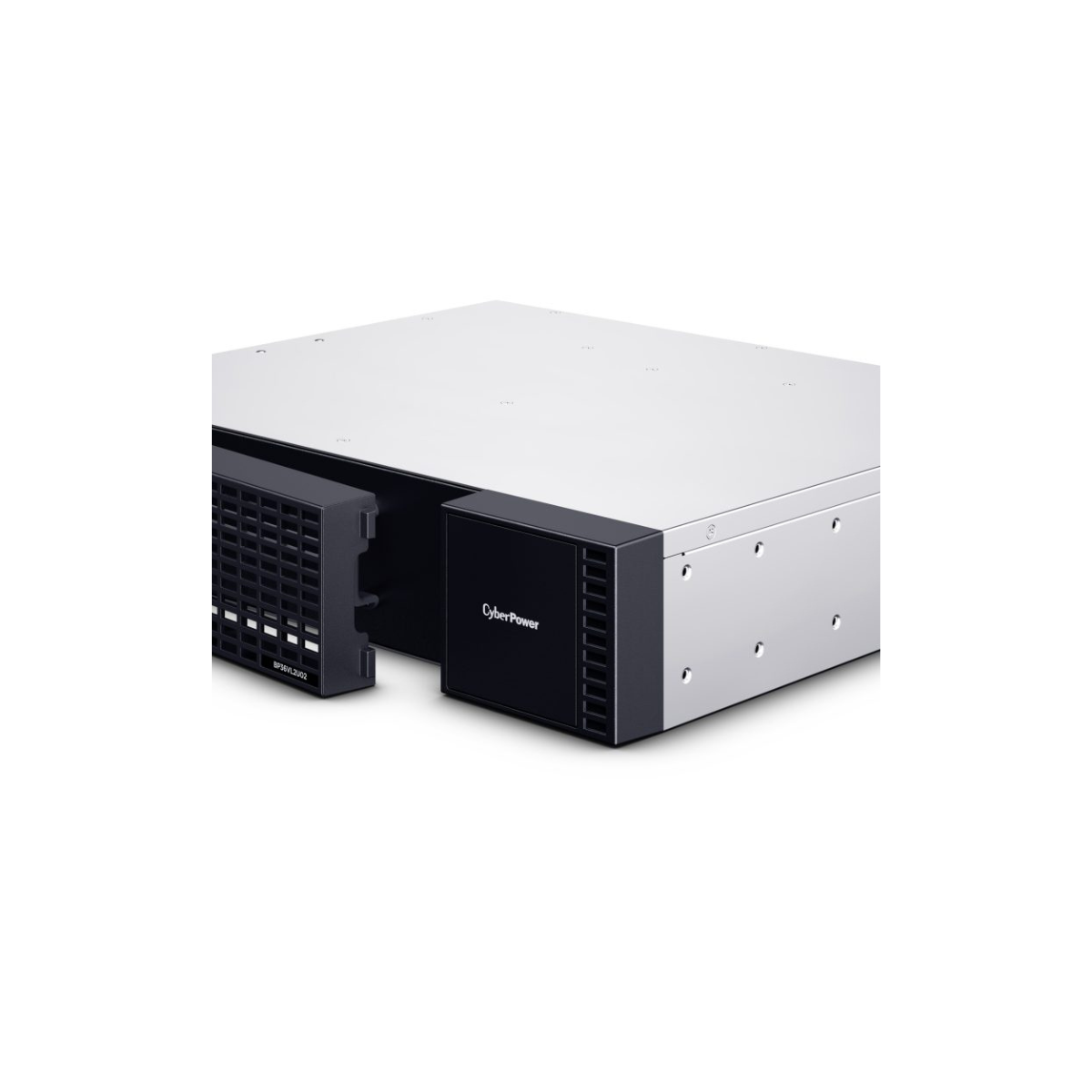

Yes, the SLA batteries are hot-swappable, enabling replacement without downtime.
4. How long does it take to recharge?
The module recharges from 0–90% in approximately 4 hours using Fast Charge Technology.
5. Does this module supply power directly to equipment?
No, it must be connected to a compatible UPS system.
6. Is it suitable for both rack and tower installations?
Yes, it supports both 2U rackmount and tower configurations for flexible deployment.
