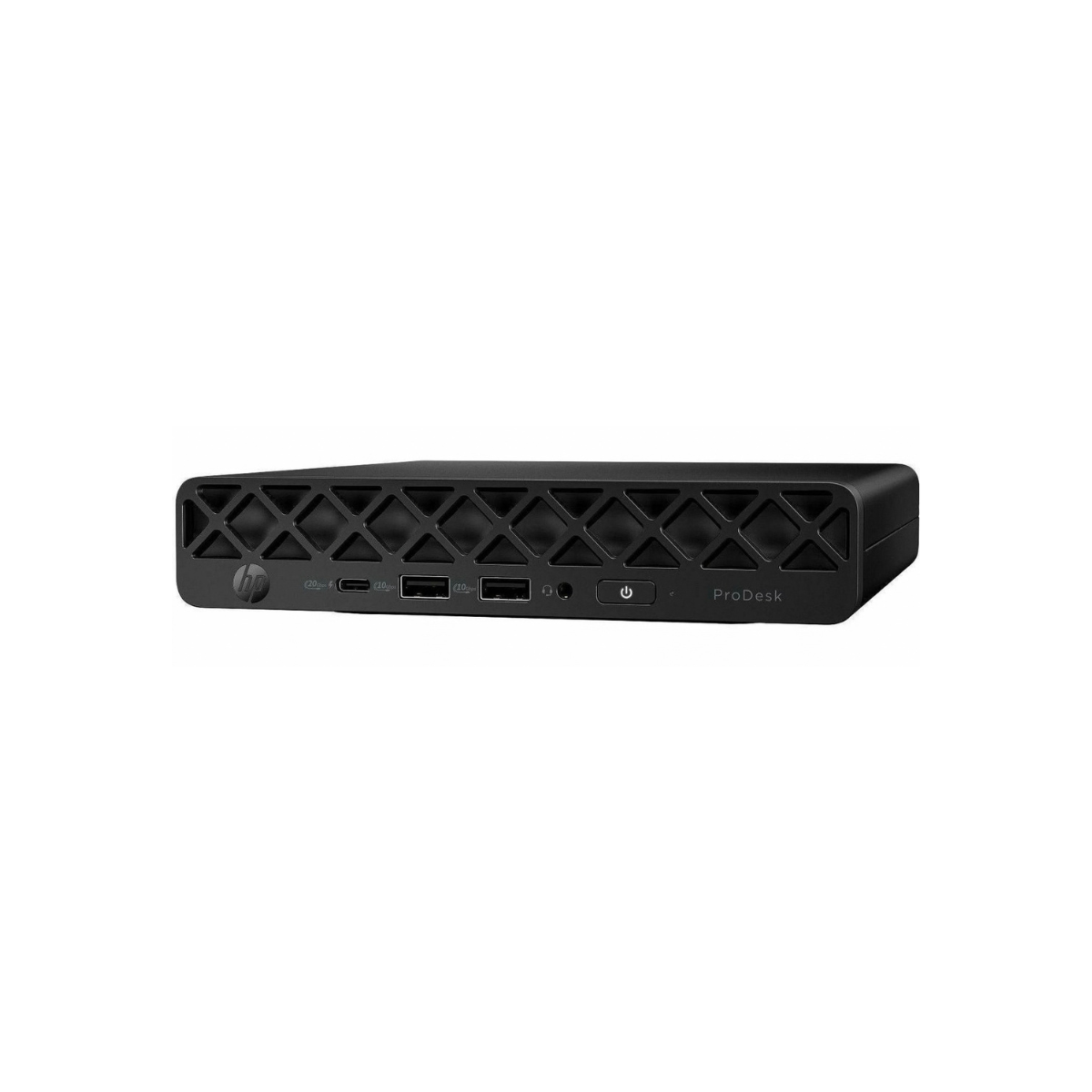

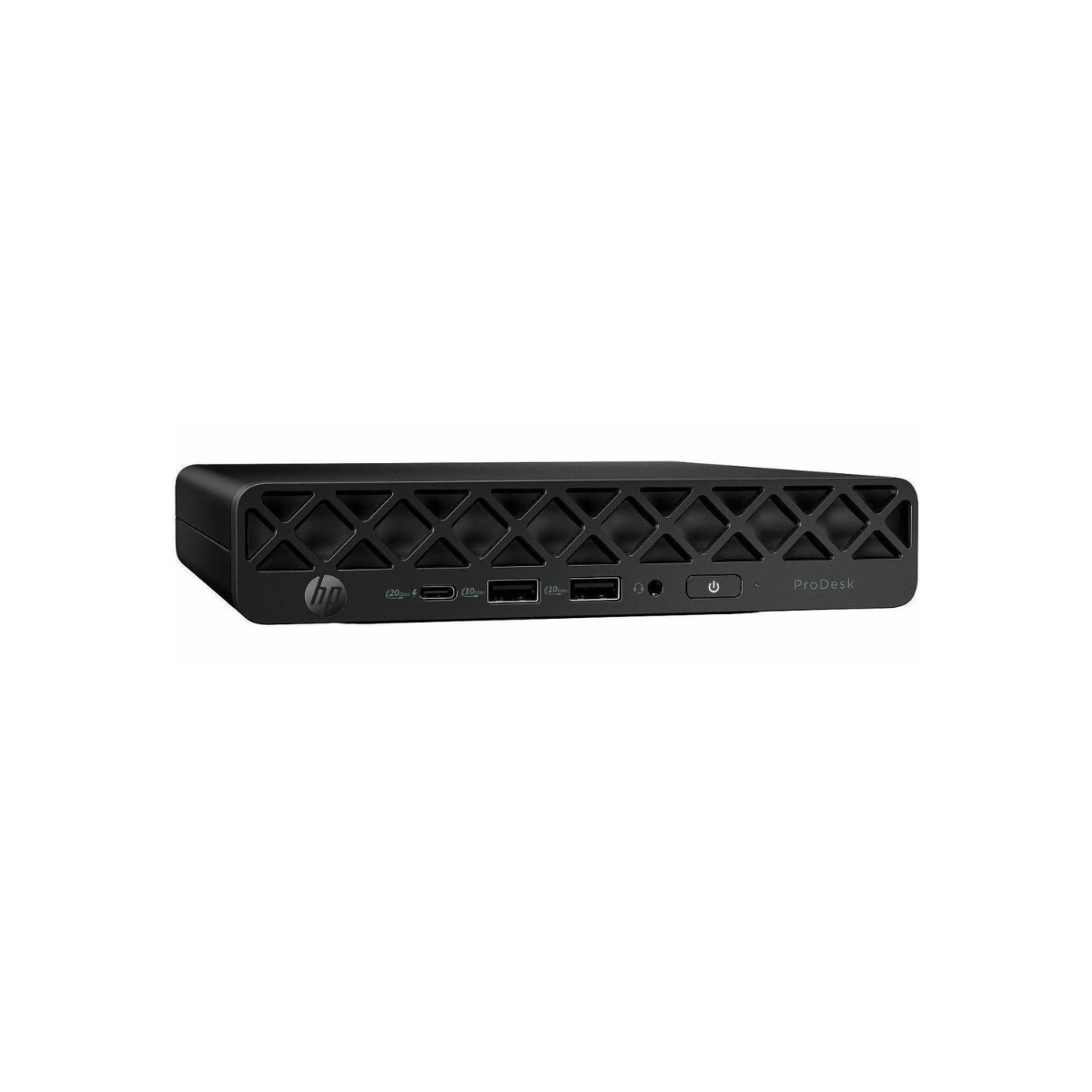

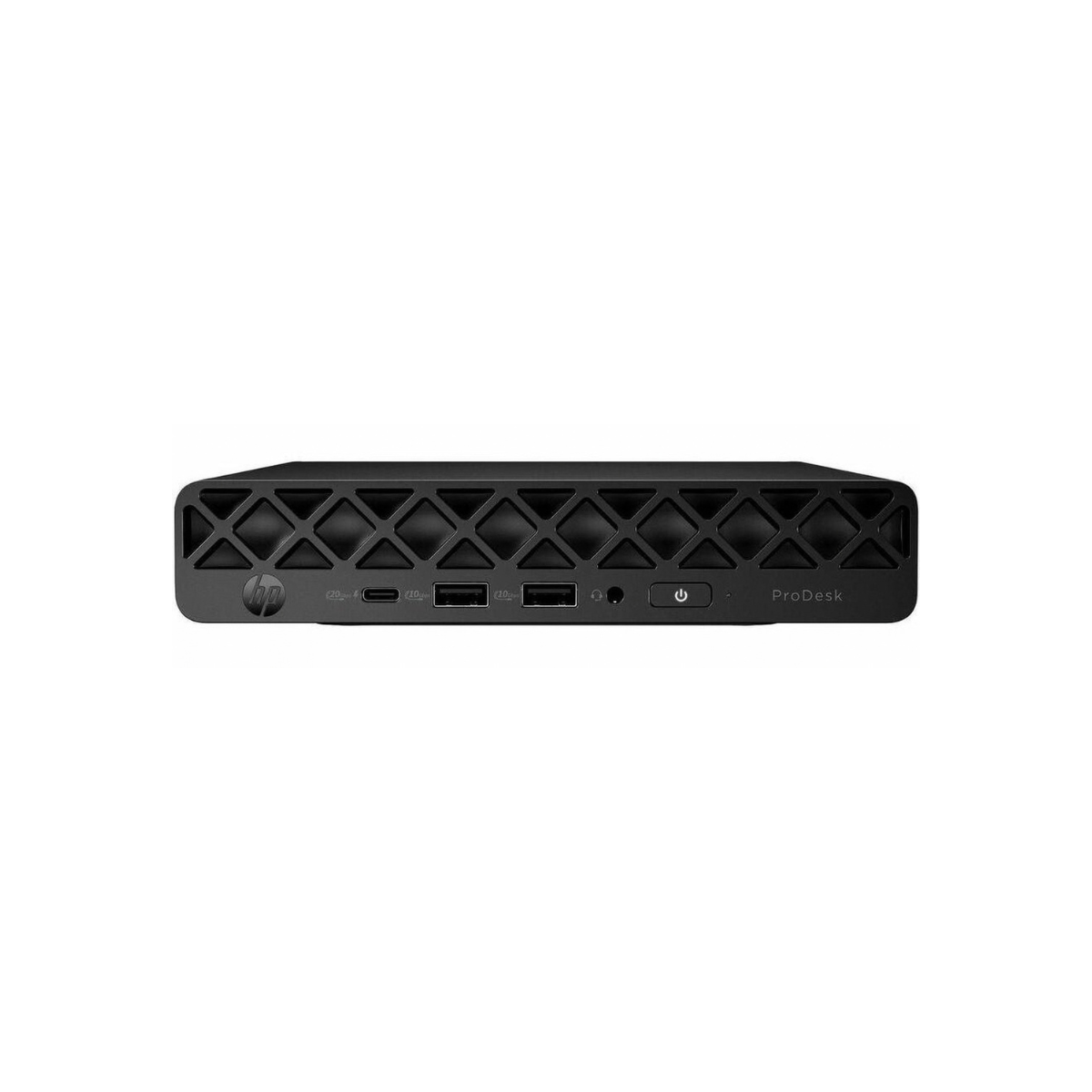

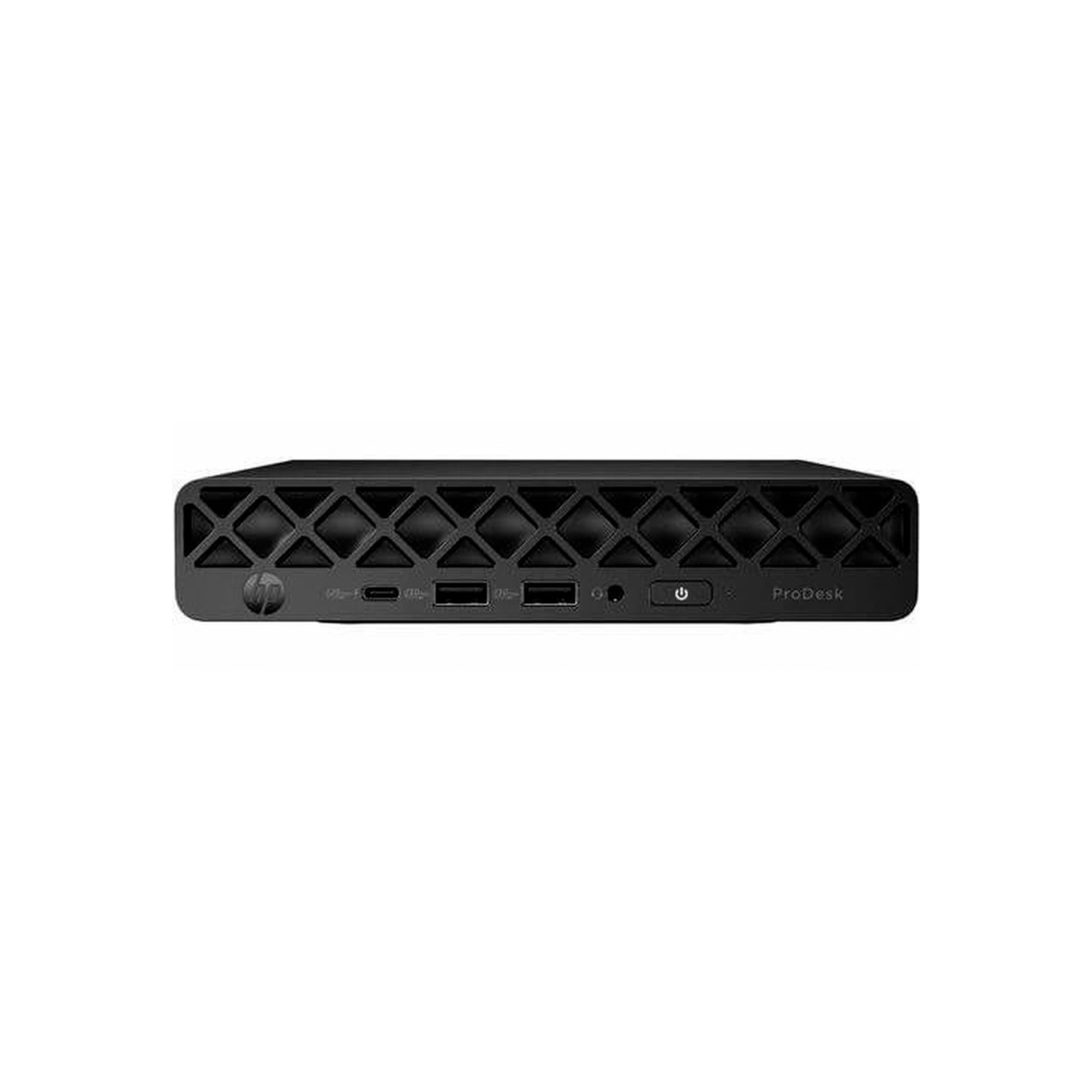

BS7M0UT#ABA HP ProDesk 4 Mini G1i Desktop AI PC Core Ultra 5 235T 16GB 512GB SSD

BRAND NEW WITH FULL HP WARRANTY!!!

Overview

The BS7M0UT#ABA HP ProDesk 4 Mini G1i Desktop AI PC Wolf Pro Security Edition is a compact commercial desktop designed for modern business environments. It combines an Intel Core Ultra 5 235T processor with 14 cores, 16GB DDR5-5600 memory, a 512GB PCIe NVMe SSD, integrated Intel Graphics, and Intel AI Boost with up to 13 TOPS of NPU performance. This configuration is built to handle office productivity, collaboration, multitasking, and AI-assisted business workloads in a highly space-efficient platform.

The BS7M0UT#ABA HP ProDesk 4 Mini G1i is built around a one-liter Mini PC design that can be positioned on a desk or mounted behind a compatible monitor. Enterprise connectivity includes Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.3, USB-C, USB-A, HDMI 2.1, and dual DisplayPort 2.1 outputs. With Intel vPro support, HP Wolf Pro Security features, and a 90W external power adapter, it is well suited for managed corporate desktops, branch offices, education, reception areas, and other space-constrained deployments.

Key Features – BS7M0UT#ABA HP ProDesk 4 Mini G1i

• Processor: Intel Core Ultra 5 235T, 14 cores / 14 threads, 2.2 GHz base frequency, up to 5.0 GHz Turbo Boost.
• Memory: 16GB DDR5-5600, configured as 1 × 16GB; two DIMM slots; supports up to 64GB.
• Storage: 512GB M.2 PCIe NVMe SSD.
• Controller: Intel Q870 chipset with Intel vPro support.
• Networking / Ports: Intel I219-LM Gigabit Ethernet, Wi-Fi 6E 802.11ax 2×2, Bluetooth 5.3, USB-C, USB-A, HDMI 2.1 and dual DisplayPort 2.1.
• Power & Cooling: 90W external power adapter.
• Management: Intel vPro support with enterprise remote-management capabilities.
• Security: HP Wolf Pro Security Edition with HP Sure Start, HP Secure Erase, HP Sure Admin, HP Sure Click and HP Sure Run.
• Form Factor: One-liter Mini PC.

Technical Specifications

• Processor Type: Intel Core Ultra 5 235T
• Processor Cores / Threads: 14 cores / 14 threads
• Processor Frequency: 2.2 GHz base; up to 5.0 GHz maximum turbo
• Processor Cache: 24MB L3 cache
• NPU: Intel AI Boost, up to 13 TOPS
• Chipset / Platform: Intel Q870
• Memory Technology: DDR5 SDRAM
• Memory Speed: 5600 MT/s
• Installed Memory: 16GB, 1 × 16GB
• Maximum Memory: Up to 64GB
• Memory Slots: 2 DIMM slots
• Storage Interface: PCIe NVMe
• Installed Storage: 512GB M.2 NVMe SSD
• Storage Expansion: Additional M.2 2280 storage capability
• RAID Support: No RAID configuration is specified for this exact SKU.
• Expansion Slots: No conventional PCIe expansion slot; M.2 expansion is supported.
• Networking: Intel I219-LM Gigabit Ethernet; Intel Wi-Fi 6E AX211 2×2; Bluetooth 5.3.
• Front I/O: 1 × USB-C 20Gbps; 2 × USB-A 10Gbps; 1 × headphone/microphone combo jack.
• Rear I/O: 3 × USB-A 5Gbps; 1 × HDMI 2.1; 2 × DisplayPort 2.1; 1 × RJ-45 Gigabit Ethernet; power connector.
• Graphics: Integrated Intel Graphics.
• Audio: Realtek ALC3252 audio codec.
• Operating System: Windows 11 Pro, English.
• Power Supply: 90W external power adapter.
• Keyboard / Mouse: HP USB 320K keyboard and HP 125 wired mouse.

Physical Specifications

• Form Factor: Mini PC / approximately 1-liter chassis
• Weight:
  • 1.19 kg
  • 2.62 lbs
• Dimensions:
  • 181 × 177 × 34 mm (H × W × D)
  • 7.1 × 7.0 × 1.3 inches (H × W × D)
• Rack Compatibility: Not a rack-mount system. The Mini PC is designed for desktop placement or compatible monitor-mounted deployments.

Ideal For

• Enterprise office workstation deployments
• Small and medium business environments
• Managed Windows 11 Pro desktop fleets
• Branch and satellite offices
• Reception and front-desk workstations
• Education and training facilities
• Healthcare and administrative workstations
• Space-constrained corporate desks
• Monitor-mounted workstation installations
• AI-assisted business productivity environments

Warranty & Support

• Standard Manufacturer Warranty: 1-year HP Wolf Pro Security Edition service is listed for this SKU.
• Support Contract Compatibility: HP Care Pack services can be used to extend or enhance support coverage for eligible HP commercial desktop deployments.

FAQs – BS7M0UT#ABA HP ProDesk 4 Mini G1i

1. Can the memory be upgraded on the BS7M0UT#ABA?
Yes. The system has two DDR5 DIMM slots and supports up to 64GB of memory. The supplied configuration uses one 16GB module, leaving one memory slot available.

2. Can the 512GB SSD be expanded?
Yes. The platform provides additional M.2 storage capability, allowing organizations to expand storage beyond the installed 512GB NVMe SSD.

3. Does the BS7M0UT#ABA support enterprise remote management?
Yes. The configuration uses the Intel Q870 platform with vPro support, making it suitable for enterprise IT environments requiring remote management capabilities.

4. Does this model support multiple displays?
Yes. The system provides HDMI 2.1 and two DisplayPort 2.1 outputs, allowing multiple compatible displays to be connected.

5. Does the BS7M0UT#ABA have redundant power supplies?
No. This Mini PC uses a single 90W external power adapter and is designed as a compact commercial desktop rather than a redundant-power server.

6. Is the BS7M0UT#ABA suitable for space-constrained enterprise deployments?
Yes. Its approximately one-liter Mini PC design measures 181 × 177 × 34 mm and weighs approximately 1.19 kg, making it suitable for compact desks and compatible monitor-mounted installations.
