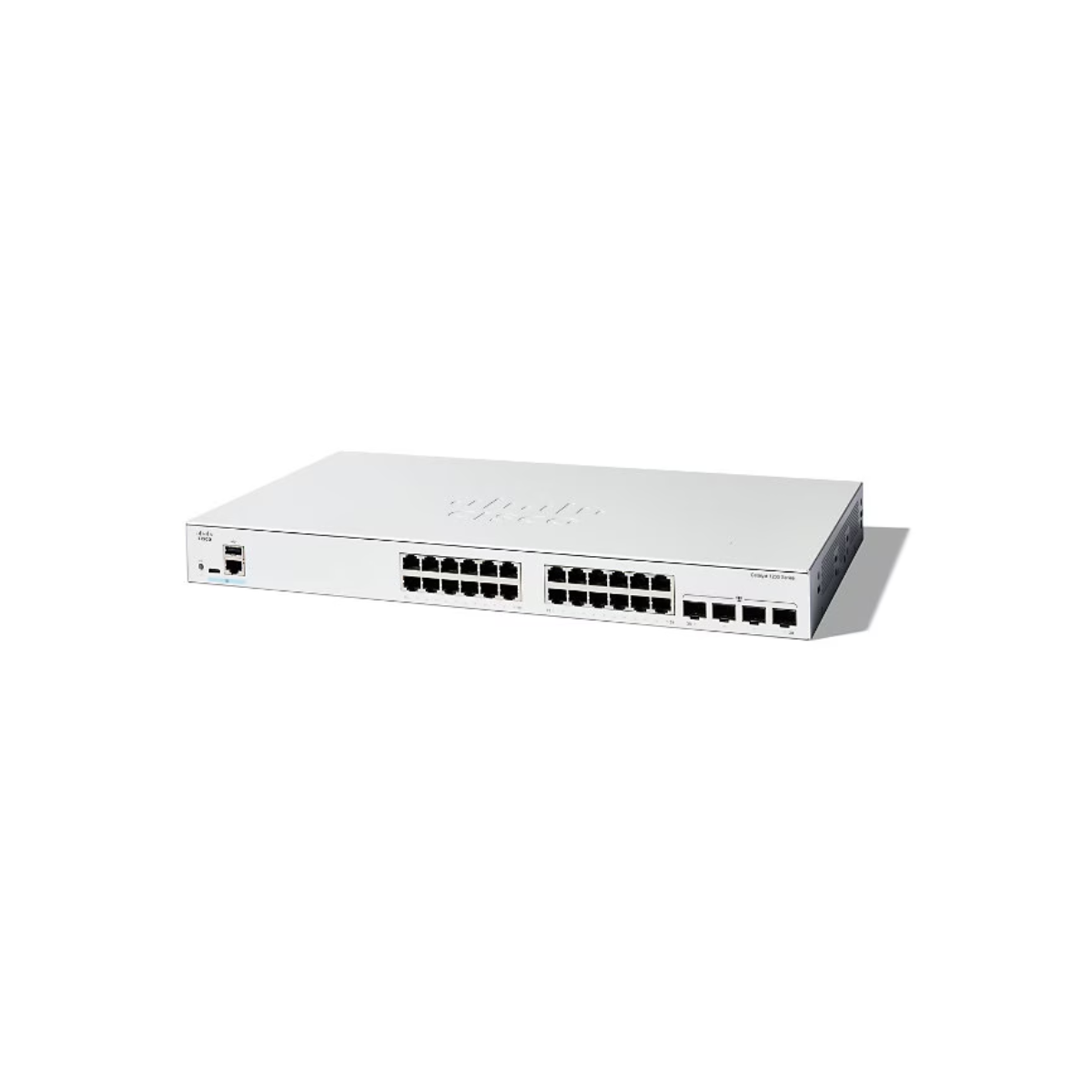

C1200-24T-4G Cisco Catalyst 1200 24-Port Gigabit Ethernet Switch

BRAND NEW WITH FULL CISCO WARRANTY!!!

Overview

The Cisco Catalyst 1200-24T-4G (C1200-24T-4G) is a smart-managed Gigabit Ethernet switch designed for small and medium-sized businesses that require reliable wired connectivity, network segmentation, and flexible uplink options. It provides 24 Gigabit Ethernet RJ-45 ports and four dedicated Gigabit SFP uplinks, making it suitable for connecting employee workstations, printers, servers, and other essential business networking equipment.

Built for dependable access-layer networking, the Cisco Catalyst 1200-24T-4G delivers a 56 Gbps switching capacity and a forwarding rate of 41.67 million packets per second. Its Layer 3 static routing capabilities enable communication between network segments, while VLANs and Quality of Service (QoS) help administrators organize traffic and prioritize business-critical applications.

The rack-mountable 1U design fits standard network cabinets and wiring closets. With browser-based configuration, Cisco Business Dashboard support, and integrated security features, this switch offers a practical solution for organizations seeking managed network functionality without the cost and complexity of higher-tier enterprise switching platforms.

Key Features – Cisco Catalyst 1200-24T-4G

• Processor: Dual-core ARM processor operating at 1.4 GHz.
• Memory: 1 GB DDR4 DRAM and 512 MB flash memory.
• Storage: 512 MB flash storage for firmware and system files.
• Controller: Integrated Layer 2 switching and Layer 3 static routing.
• Networking / Ports:
  • 24 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 ports.
  • 4 × 1 Gigabit SFP uplink slots.
  • 56 Gbps switching capacity.
  • 41.67 Mpps forwarding rate.
• Power & Cooling: Internal universal AC power supply supporting 100–240V AC, 50–60 Hz; fanless design.
• Management: Web-based management interface, Cisco Business Dashboard, Cisco Business mobile app, CLI, SNMP, and Cisco Network Plug and Play.
• Security: IEEE 802.1X authentication, access control lists (ACLs), SSH, HTTPS, port security, and denial-of-service (DoS) prevention.
• Form Factor: Rack-mountable 1U switch.
• PoE Support: No PoE output on this model; connected access points, IP phones, and cameras require their own power sources.

Technical Specifications

• Processor Type: Dual-core ARM, 1.4 GHz.
• Chipset / Platform: Cisco Catalyst 1200 Series; customized Linux-based operating software.
• Memory Technology: 1 GB DDR4 DRAM.
• Flash Memory: 512 MB.
• Storage Interface: Internal flash storage; no user-accessible drive bays.
• RAID Support: Not applicable.
• Switching Capacity: 56 Gbps.
• Forwarding Rate: 41.67 Mpps with 64-byte packets.
• MAC Address Table: 8,000 addresses.
• VLAN Support: Up to 255 active VLANs simultaneously.
• Layer 3 Routing: IPv4 and IPv6 routing; supports static routes.
• Link Aggregation: IEEE 802.3ad LACP.
• Expansion Slots: Four dedicated Gigabit SFP uplink slots.
• Networking: 24 × Gigabit Ethernet RJ-45 and 4 × Gigabit SFP.
• I/O Ports: RJ-45 console port and USB Type-C port, in addition to network interfaces.
• Management Protocols: SNMP v1/v2c/v3, HTTPS, SSH, RADIUS, Syslog, and browser-based management.
• Quality of Service: Traffic prioritization, eight hardware queues, and rate limiting.
• Operating System Compatibility: Managed through its built-in web interface, CLI, and supported Cisco management applications; it does not require a host operating system.
• Power Input: 100–240V AC, 50–60 Hz.
• Power Consumption: Approximately 14.2 W at 220V under the manufacturer's specified worst-case system consumption conditions.

Physical Specifications

• Form Factor: Rack-mountable 1U.
• Weight:
  • 2.63 kg
  • 5.80 lbs
• Dimensions (W × D × H):
  • 445 × 240 × 44 mm
  • 17.5 × 9.45 × 1.73 inches
• Rack Compatibility: Designed for installation in a standard 19-inch equipment rack using compatible rack-mount hardware.
• Cooling: Fanless.
• Operating Temperature: -5°C to 50°C (23°F to 122°F).

Ideal For

• Small and Medium-Sized Businesses: Connect employee workstations, printers, servers, and other wired network devices.
• Corporate Office Networks: Provide managed Gigabit Ethernet connectivity for departments and shared business resources.
• Network Segmentation: Separate departments, guest access, and business applications using VLANs and access controls.
• Branch Offices: Deploy managed access switching with centralized provisioning and monitoring options.
• Retail and Commercial Locations: Support point-of-sale systems, computers, and other wired equipment.
• Network Cabinet Deployments: Install in a standard rack as an access-layer switch with fiber uplinks to upstream network equipment.

Warranty & Support

• Standard Manufacturer Warranty: Cisco Catalyst 1200 Series products are covered by Cisco's limited lifetime warranty, subject to the applicable product warranty terms.
• Technical Support: Cisco Small Business Support Center access is available for the specified complimentary one-year period, subject to Cisco's terms.
• Support Contract Compatibility: Confirm current support entitlement and any eligible service options directly with Cisco or an authorized reseller. Do not assume Cisco SMARTnet coverage without SKU-specific confirmation.
• Replacement and Service: Warranty service, replacement eligibility, and shipping terms depend on Cisco's applicable warranty policy and the seller's terms.

FAQs – Cisco Catalyst 1200-24T-4G

1. Can the Cisco Catalyst 1200-24T-4G be upgraded to support Power over Ethernet?

No. This model does not provide PoE output. If connected devices such as IP phones, cameras, or wireless access points require power over Ethernet, select a compatible PoE model, such as the C1200-24P-4G, or use separate power supplies.

2. What types of businesses should use this switch?

It is suitable for small and medium-sized businesses, branch offices, retail environments, and corporate departments that need managed Gigabit Ethernet connectivity, VLAN segmentation, and fiber uplinks.

3. How is the switch configured and managed?

Administrators can configure and monitor the switch through its web-based interface, CLI, SNMP, Cisco Business Dashboard, and the Cisco Business mobile app. Available management methods depend on the selected configuration and software features.

4. Does the Cisco Catalyst 1200-24T-4G have redundant power supplies?

No. This model has an internal power supply and does not provide dual redundant power supplies. For deployments requiring power redundancy, consider a suitable alternative or an external power protection strategy.

5. Can the switch connect to fiber-optic network infrastructure?

Yes. Its four dedicated 1 Gigabit SFP slots support compatible SFP transceivers, enabling fiber uplinks to other switches or network equipment. The transceiver type and supported distance depend on the selected module and fiber infrastructure.

6. Is this switch suitable for a 19-inch network rack?

Yes. It is a 1U rack-mountable switch measuring 445 × 240 × 44 mm. Use compatible rack-mount hardware and allow adequate clearance for cabling and maintenance.
