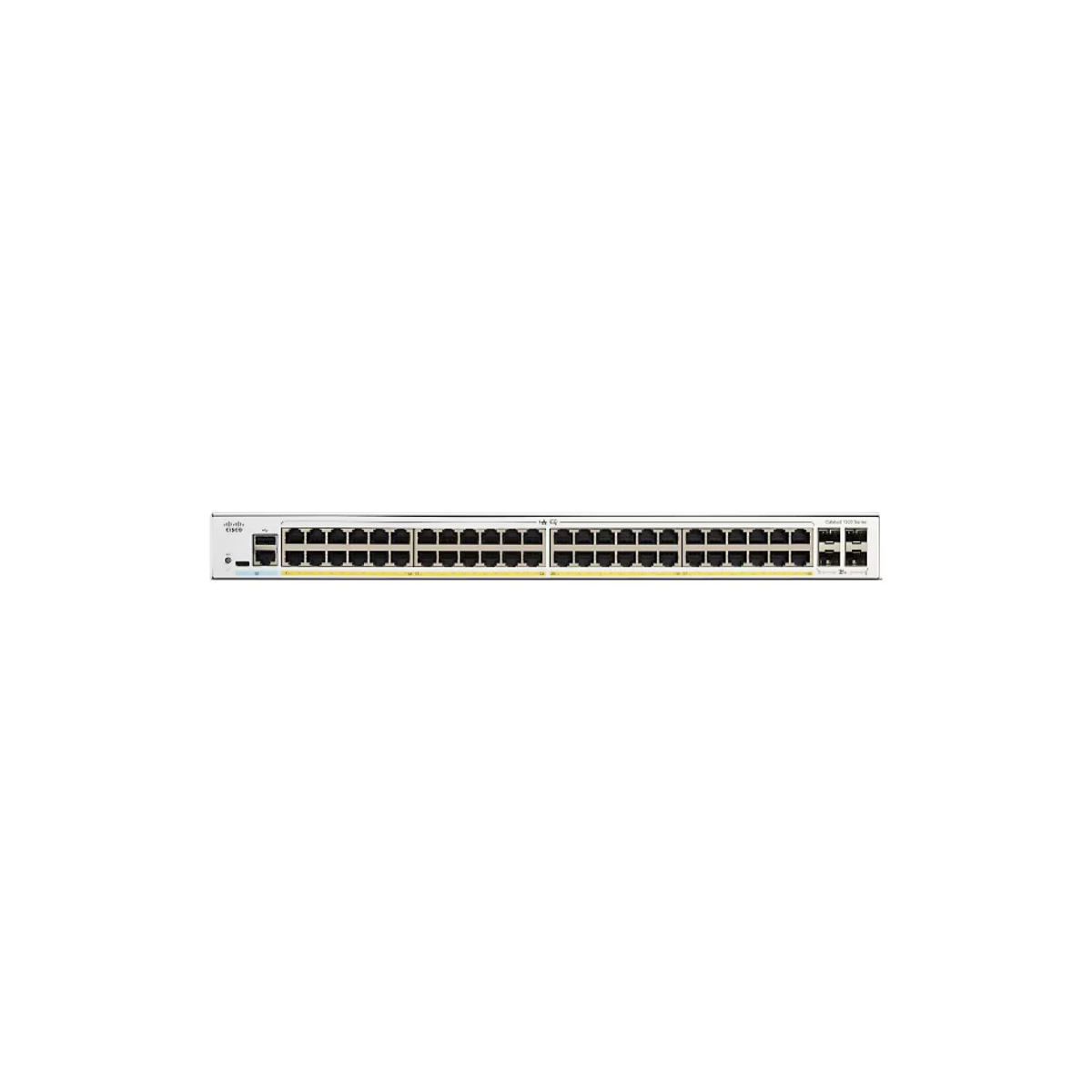

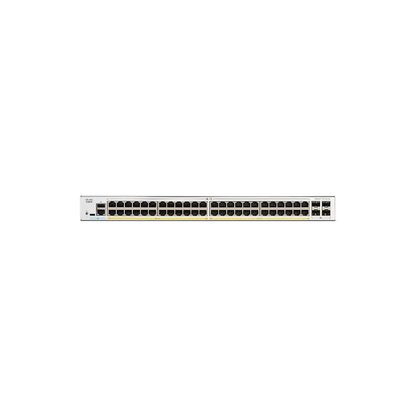

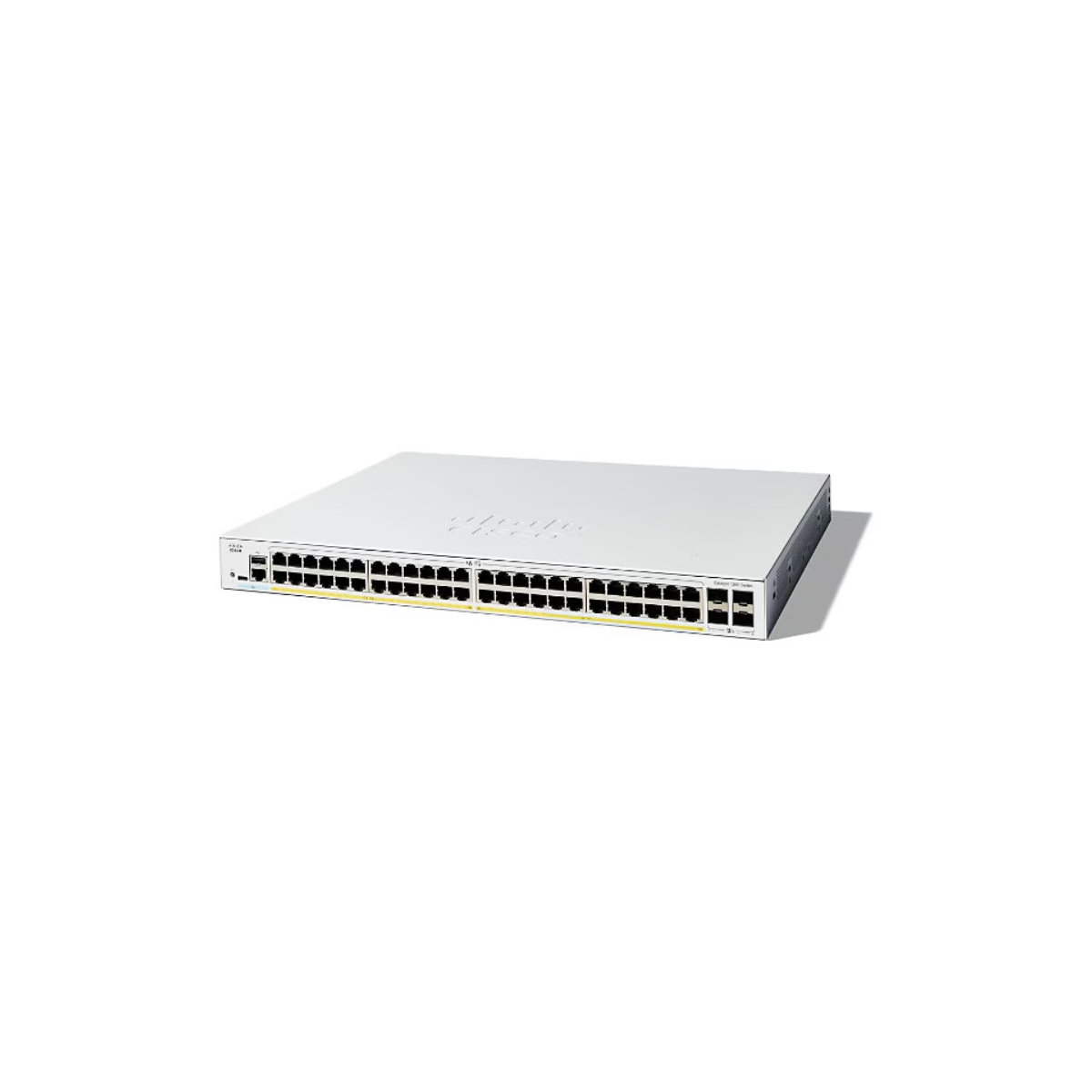

C1300-48FP-4X Cisco Catalyst 1300 48-Port PoE+ Managed Switch

BRAND NEW WITH FULL CISCO WARRANTY!!!

Overview

The Cisco Catalyst 1300-48FP-4X 48-Port PoE+ Managed Switch (C1300-48FP-4X) is a business-class Layer 3 network switch designed to deliver reliable wired connectivity and power to network devices from a centralized platform. It provides 48 Gigabit Ethernet ports with PoE+ support and four 10Gbps SFP+ uplinks, making it suitable for growing office networks, branch locations, and professional network deployments.

With a 740W PoE power budget, the switch can supply power and data over Ethernet to compatible IP phones, wireless access points, surveillance cameras, and other network endpoints. Its 176Gbps switching capacity and 130.94 million packets-per-second forwarding rate support simultaneous traffic across connected devices, while the four 10Gbps uplinks provide higher-bandwidth connections to aggregation switches or core network infrastructure.

The Catalyst 1300 series combines advanced Layer 2 and Layer 3 networking features with centralized management options and front-panel stacking support. Businesses can use Cisco Business Dashboard, a web-based interface, or the command-line interface to manage network operations, segment traffic, and simplify administration. Its 1U rack-mountable design helps make efficient use of equipment-room and wiring-closet space.

Key Features – Cisco Catalyst 1300-48FP-4X

• Networking / Ports:
  • 48 × 10/100/1000Mbps Gigabit Ethernet ports with PoE+.
  • 4 × 10Gbps SFP+ uplink ports
• PoE Power: 740W total PoE power budget.
• PoE Standard: IEEE 802.3af and 802.3at PoE/PoE+.
• Switching Performance: 176Gbps switching capacity.
• Forwarding Rate: 130.94 million packets per second.
• Management: Cisco Business Dashboard, web-based GUI, CLI, and SNMP management.
• Security: Supports IEEE 802.1X, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, and access control lists.
• Layer 3 Features: IPv4/IPv6 routing, RIP v2, and policy-based routing.
• Stacking: Supports stacking of up to eight compatible switches within the supported Catalyst 1300 family.
• Power & Cooling: Internal power supply and active cooling.
• Form Factor: 1U rack-mountable switch.

Technical Specifications

• Product Type: Managed Ethernet switch
• Manufacturer: Cisco
• Product Family: Catalyst 1300 Series
• Model: Catalyst 1300-48FP-4X
• Manufacturer Part Number: C1300-48FP-4X
• Switching Layer: Layer 2 and Layer 3
• Ethernet Ports: 48 × 10/100/1000Mbps
• PoE+ Ports: 48
• Uplink Ports: 4 × 10Gbps SFP+
• PoE Power Budget: 740W
• Switching Capacity: 176Gbps
• Forwarding Rate: 130.94 Mpps
• VLAN Support: Supports VLAN segmentation, including 802.1Q VLANs.
• Link Aggregation: IEEE 802.3ad LACP support.
• Routing: IPv4 and IPv6 routing, RIP v2, and policy-based routing.
• Management Protocols: SNMP, SSH, HTTPS, and CLI management.
• Security Features: IEEE 802.1X, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, and ACLs.
• Stacking: Up to eight compatible Catalyst 1300 switches, subject to supported family and stacking configuration.
• Power Input: 100–240V AC, 50–60Hz.
• Power Supply: Internal, universal-input power supply.
• Cooling: Fan-based cooling.
• Operating System: Cisco Catalyst 1300 customized Linux-based switch software.
• Rack Height: 1U.

Physical Specifications

• Form Factor: Rack-mountable Ethernet switch
• Weight:
  • 5.16 kg
  • 11.38 lbs
• Dimensions (W × D × H):
  • 444.3 × 350 × 43.94 mm
  • 17.49 × 13.78 × 1.73 inches
• Rack Compatibility: Standard 19-inch equipment rack; occupies 1U of rack space.

Ideal For

• Office Network Infrastructure: Connecting desktop computers, printers, and shared business devices.
• IP Telephony: Supplying data connectivity and PoE+ power to compatible VoIP phones.
• Wireless Network Deployments: Connecting and powering compatible wireless access points.
• IP Surveillance Systems: Supporting PoE-powered security cameras across commercial sites.
• Branch Offices: Providing managed connectivity, traffic segmentation, and Layer 3 routing.
• Growing Business Networks: Expanding port capacity through supported stacking configurations.
• Network Uplinks: Connecting access-layer devices to aggregation or core switches using 10Gbps SFP+ links.

Warranty & Support

• Standard Manufacturer Warranty: Cisco lists a limited lifetime warranty with return-to-factory replacement for the Catalyst 1300 series, subject to the applicable warranty terms.
• Support Resources: Cisco provides access to its Small Business Support Center for one year, as described in the product datasheet.
• Support Contract Compatibility: Confirm eligibility for additional Cisco support services with Cisco or the authorized reseller.
• Technical Assistance: Cisco documentation and software resources support installation, configuration, monitoring, and troubleshooting.

FAQs – Cisco Catalyst 1300-48FP-4X

1. How many devices can connect directly to this switch?
The switch provides 48 Gigabit Ethernet ports, allowing up to 48 wired Ethernet connections, subject to the network design and available PoE budget.

2. Can this switch power IP phones and wireless access points?
Yes. Its 48 PoE+ ports support compatible IEEE 802.3af/802.3at devices, with a total PoE budget of 740W.

3. What uplink options are available?
The switch includes four 10Gbps SFP+ uplink ports for compatible fiber or other supported SFP+ connectivity options.

4. Does the switch support Layer 3 routing?
Yes. It supports IPv4 and IPv6 routing and additional Layer 3 features, including RIP v2 and policy-based routing.

5. Can multiple switches be managed as one stack?
Yes. The supported Catalyst 1300 models can be stacked in configurations of up to eight switches, subject to family compatibility and stacking requirements.

6. What are the physical dimensions and weight?
The switch measures 444.3 × 350 × 43.94 mm (17.49 × 13.78 × 1.73 inches) and weighs 5.16 kg (11.38 lbs), according to Cisco's published specifications.
