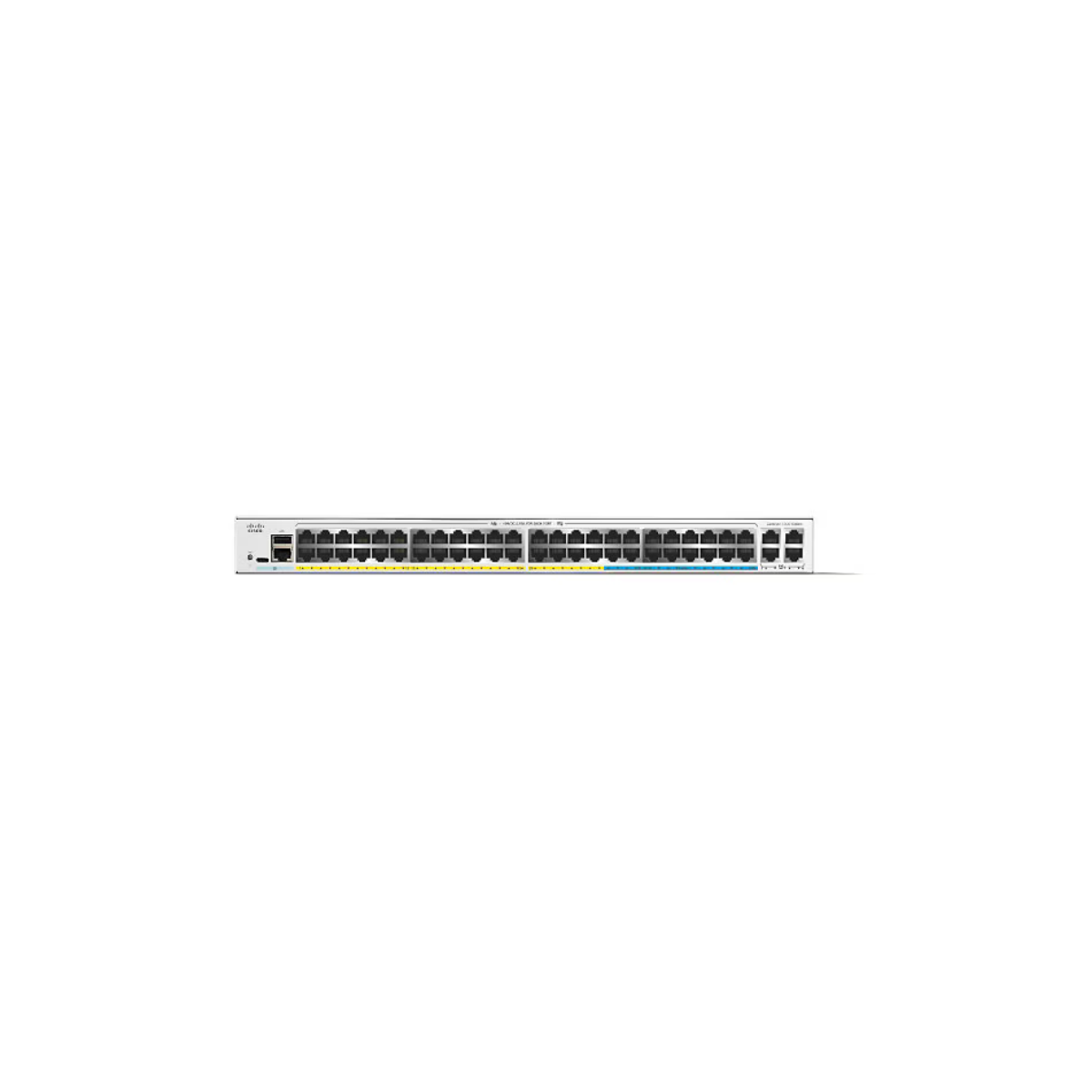

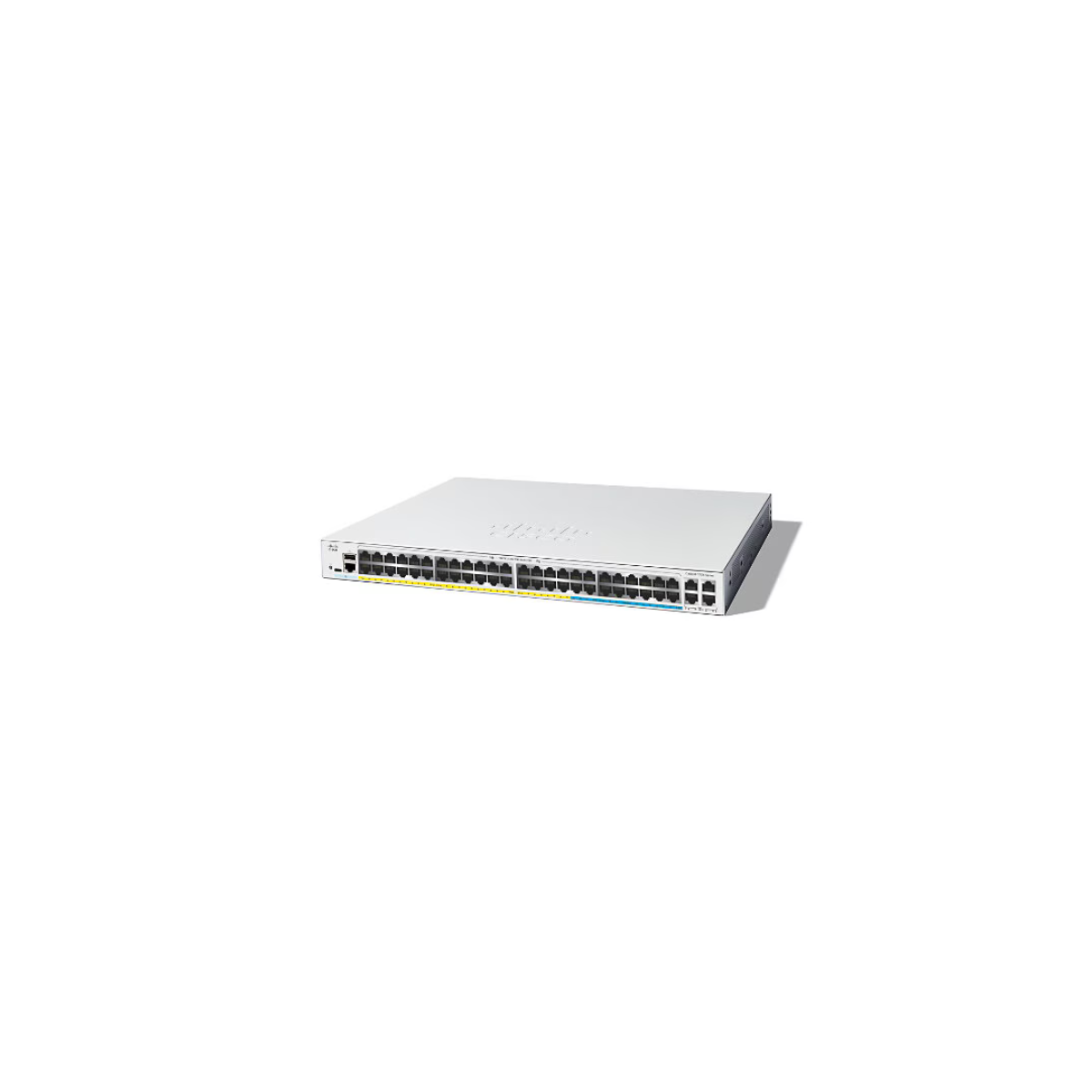

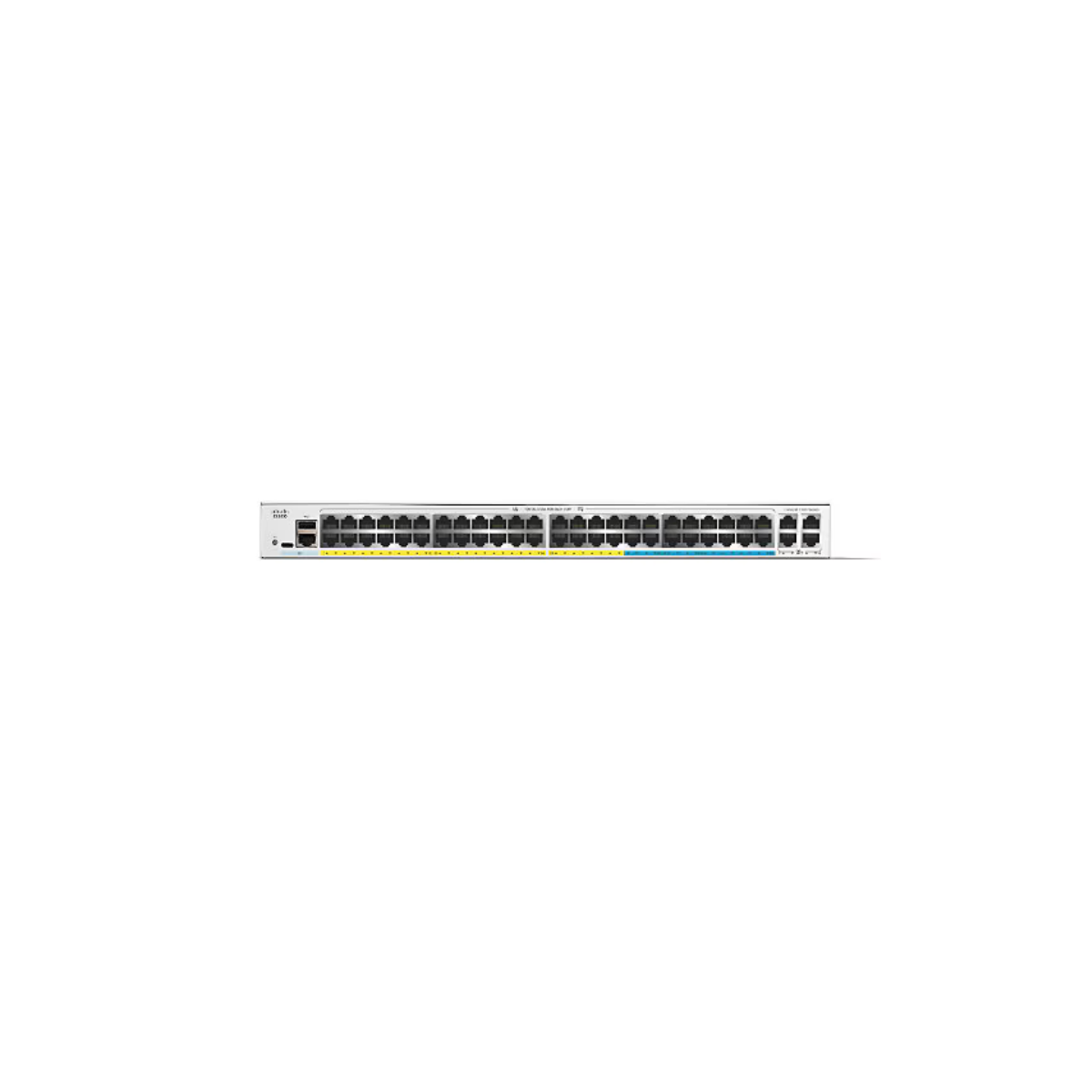

C1300-48MGP-4X Cisco Catalyst 1300 48-Port Multi-Gigabit PoE+ Switch

BRAND NEW WITH FULL CISCO WARRANTY!!!

Overview

The Cisco Catalyst 1300-48MGP-4X (C1300-48MGP-4X) is a fully managed Layer 3 multi-gigabit Ethernet switch designed for growing businesses, enterprise branch offices, and high-density network deployments. It features 32 Gigabit Ethernet ports, 16 2.5 Gigabit Ethernet ports, and four 10 Gigabit SFP+ uplinks. With support for Power over Ethernet Plus (PoE+) across all 48 access ports and a total PoE power budget of 740 W, this switch can connect and power compatible wireless access points, IP phones, surveillance cameras, and other network devices.

Designed for demanding access-layer environments, the Cisco Catalyst 1300-48MGP-4X delivers a 224 Gbps switching capacity and a forwarding rate of 166.65 million packets per second. Multi-gigabit connectivity supports compatible devices that require more bandwidth than standard Gigabit Ethernet, while 10 Gigabit SFP+ uplinks provide high-speed connections to aggregation switches and network backbones. Layer 3 routing, VLAN segmentation, Quality of Service (QoS), and network security features help organizations manage traffic efficiently.

Its 1U rack-mountable form factor makes it suitable for standard 19-inch network racks and equipment cabinets. Centralized management options, front-panel stacking, and advanced network controls make the Cisco Catalyst 1300-48MGP-4X a practical choice for organizations that need scalable connectivity, integrated device power, and enterprise-oriented network management without moving to a higher-cost switching platform.

Key Features – Cisco Catalyst 1300-48MGP-4X

• Processor: ARM dual-core processor operating at 1.5 GHz.
• Memory: 1 GB DDR4 DRAM.
• Storage: 1 GB SLC flash memory.
• Controller: Integrated managed Ethernet switching with Layer 2 and Layer 3 networking capabilities.
• Networking / Ports:
  • 32 × 10/100/1000BASE-T Gigabit Ethernet ports.
  • 16 × 2.5 Gigabit Ethernet multi-gigabit ports.
  • 4 × 10 Gigabit SFP+ uplink slots.
  • 224 Gbps switching capacity.
  • 166.65 Mpps forwarding rate.
• Power & Cooling: Internal 100–240V AC power supply, 50–60 Hz; 740 W total PoE budget; one cooling fan.
• Management: Web-based management interface, Cisco Business Dashboard, Cisco Business mobile app, CLI, SNMP, and Cisco Network Plug and Play.
• Security: IEEE 802.1X authentication, access control lists (ACLs), SSH, HTTPS, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, and port security.
• Form Factor: Rack-mountable 1U switch with front-panel stacking support.

Technical Specifications

• Processor Type: ARM dual-core, 1.5 GHz.
• Chipset / Platform: Cisco Catalyst 1300 Series; customized Linux-based operating software.
• Memory Technology: 1 GB DDR4 DRAM.
• Flash Memory: 1 GB SLC.
• Packet Buffer: 3 MB.
• Storage Interface: Internal flash storage; no user-accessible drive bays.
• RAID Support: Not applicable.
• Switching Capacity: 224 Gbps.
• Forwarding Rate: 166.65 Mpps with 64-byte packets.
• Expansion Slots: Four 10 Gigabit SFP+ uplink slots for compatible optical transceivers or supported direct-attach connectivity.
• Networking:
  • 32 × 10/100/1000 Mbps Ethernet ports.
  • 16 × 2.5 Gigabit Ethernet ports.
  • 4 × 10 Gigabit SFP+ uplinks.
  • IPv4 and IPv6 routing.
  • IEEE 802.1Q VLAN support.
  • Link aggregation using IEEE 802.3ad LACP.
  • Front-panel stacking support for compatible Catalyst 1300 switches.
• PoE Support: IEEE 802.3af and IEEE 802.3at PoE+.
• PoE Power Budget: 740 W total across supported PoE ports.
• I/O Ports: 48 Ethernet access ports, four SFP+ uplink slots, and a USB port for supported management accessories.
• Management Protocols: SNMP, SSH, HTTPS, CLI, Cisco Business Dashboard, and Cisco Network Plug and Play.
• Quality of Service: Eight hardware priority queues with traffic classification, prioritization, and rate-limiting capabilities.
• Operating System Compatibility: Managed through the integrated switch interface and compatible Cisco management applications; no host operating system installation is required.
• Power Input: 100–240V AC, 50–60 Hz.
• Power Consumption: Manufacturer-listed worst-case system consumption is approximately 92.4 W at 110V and 93.6 W at 220V without PoE load; consumption increases when PoE devices are powered.

Physical Specifications

• Form Factor: Rack-mountable 1U.
• Weight:
  • 5.83 kg
  • 12.86 lbs
• Dimensions (W × D × H):
  • 444.3 × 350 × 43.94 mm
  • 17.49 × 13.78 × 1.73 inches
• Rack Compatibility: Standard 19-inch equipment racks; compatible rack-mount brackets are included with the 48-port model.
• Cooling: One internal fan.
• Operating Temperature: -5°C to 50°C (23°F to 122°F).
• Storage Temperature: -25°C to 70°C (-13°F to 158°F).

Ideal For

• Enterprise Branch Offices: Connect employee workstations, network printers, wireless access points, and shared business resources.
• High-Density Wireless Deployments: Provide multi-gigabit access and PoE+ power for compatible wireless access points.
• IP Telephony Infrastructure: Connect and power compatible VoIP phones while using VLANs and QoS to prioritize voice traffic.
• IP Surveillance Networks: Support compatible PoE+ cameras and network video equipment within the available power budget.
• Growing Corporate Networks: Combine standard Gigabit and 2.5 Gigabit connections with 10 Gigabit uplinks for improved network capacity.
• Retail and Commercial Environments: Connect point-of-sale equipment, access points, cameras, and other wired devices through a managed network.
• Rack-Based Network Infrastructure: Deploy in standard 19-inch cabinets with Layer 3 routing, VLAN segmentation, and supported switch stacking.

Warranty & Support

• Standard Manufacturer Warranty: Cisco Catalyst 1300 Series switches are covered by a limited lifetime warranty with return-to-factory replacement, subject to Cisco's applicable warranty terms.
• Technical Support: Cisco provides complimentary one-year access to its Small Business Support Center under the applicable product support terms.
• Support Contract Compatibility: Confirm current service-contract eligibility and coverage directly with Cisco or an authorized reseller. Do not assume Cisco SMARTnet coverage without SKU-specific confirmation.
• Replacement and Service: Warranty replacement eligibility, return procedures, and shipping conditions depend on Cisco's published warranty policy and the seller's terms.

FAQs – Cisco Catalyst 1300-48MGP-4X

1. Can the Cisco Catalyst 1300-48MGP-4X support multi-gigabit wireless access points?

Yes. Its 16 multi-gigabit ports support speeds up to 2.5 Gbps, making them suitable for compatible wireless access points and other network devices that require more bandwidth than a standard Gigabit Ethernet connection. Actual connection speed depends on the connected device and cabling.

2. What devices can receive power from this switch?

Compatible IP phones, wireless access points, IP cameras, and other IEEE 802.3af/802.3at-compliant devices can receive power through its PoE+ ports. The total PoE power budget is 740 W, so deployment planning should account for the combined power requirements of all connected devices.

3. How is the switch managed?

Administrators can use the web-based management interface, CLI, SNMP, Cisco Business Dashboard, and supported Cisco management tools. These options help with configuration, monitoring, troubleshooting, VLAN administration, and network security management.

4. Does this switch have redundant power supplies?

The product specification identifies an internal power supply but does not establish a dual-redundant power-supply configuration. Do not treat the unit as having redundant PSUs. For deployments requiring power redundancy, confirm the available hardware options or consider a suitable alternative.

5. Can multiple Cisco Catalyst 1300-48MGP-4X switches be stacked?

Yes. The model supports front-panel stacking with compatible switches in the supported Catalyst 1300 family. Cisco documents stacking support for up to eight switches in a stack, subject to family compatibility and the manufacturer's stacking requirements.

6. Is this switch suitable for a standard 19-inch rack?

Yes. The switch is a 1U rack-mountable model measuring 444.3 × 350 × 43.94 mm and weighing 5.83 kg. It is designed for standard 19-inch equipment racks and includes rack-mount brackets. Ensure adequate depth, airflow, cable clearance, and electrical capacity before installation.
