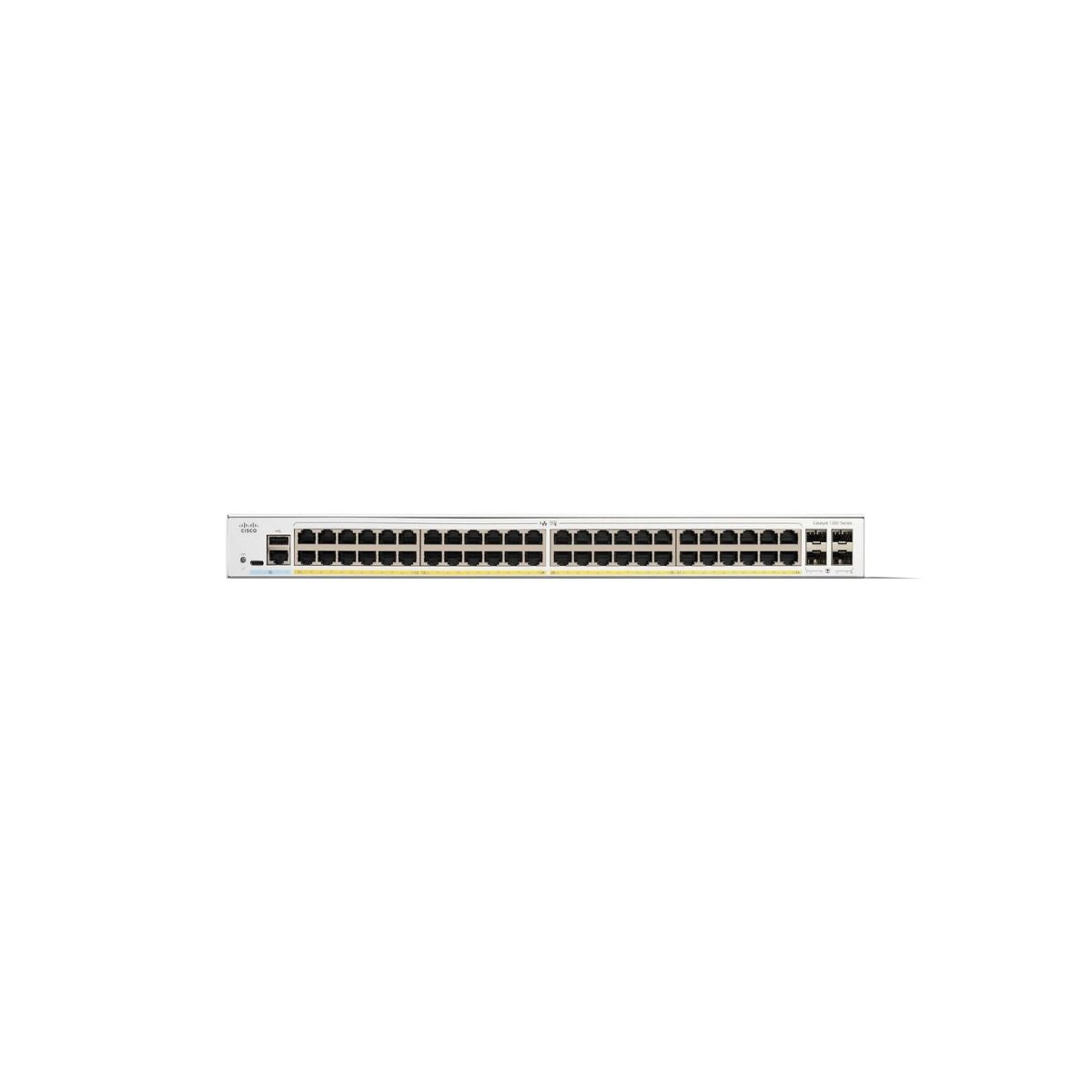

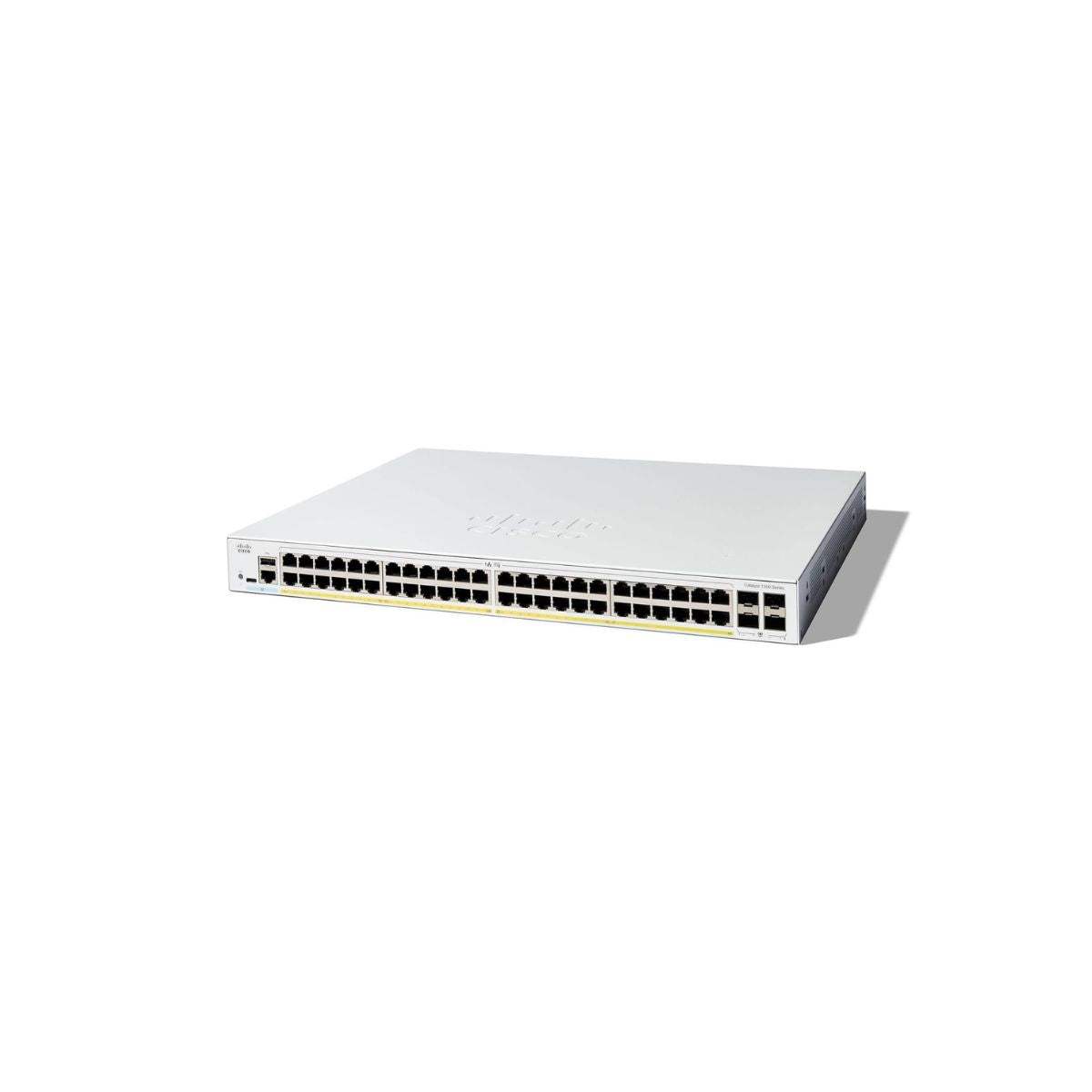

C1300-48P-4G Cisco Catalyst 48-Port Managed PoE+ Switch

BRAND NEW WITH FULL CISCO WARRANTY!!!

The C1300-48P-4G Cisco Catalyst 48-Port Managed PoE+ Switch is a business-class managed Gigabit Ethernet switch engineered to deliver secure, reliable, and scalable network connectivity for small to mid-sized organizations and enterprise branch offices. Equipped with 48 Gigabit PoE+ access ports, four dedicated Gigabit SFP uplinks, and a 370W PoE budget, it simplifies the deployment of IP phones, wireless access points, surveillance cameras, and other powered network devices.

Designed for modern enterprise environments, the C1300-48P-4G combines advanced Layer 2 switching with Layer 3 Lite routing, comprehensive security features, intuitive management tools, and dependable Cisco performance in a compact 1U rack-mount form factor. It is an ideal solution for organizations seeking a cost-effective managed switching platform that supports business growth while maintaining high network availability and security.

Key Features – Cisco Catalyst C1300-48P-4G

• Processor:
  • Purpose-built switching ASIC optimized for Gigabit Ethernet switching

• Memory:
  • Embedded system memory supporting enterprise switching functions

• Storage:
  • Internal flash memory for firmware and configuration storage

• Controller:
  • Integrated managed Layer 2 / Layer 3 Lite switching engine

• Networking / Ports:
  • 48 × 10/100/1000 Gigabit Ethernet PoE+ RJ-45 ports
  • 4 × 1G SFP uplink ports
  • RJ-45 console port
  • USB Type-C console port

• Power & Cooling:
  • 370W PoE budget

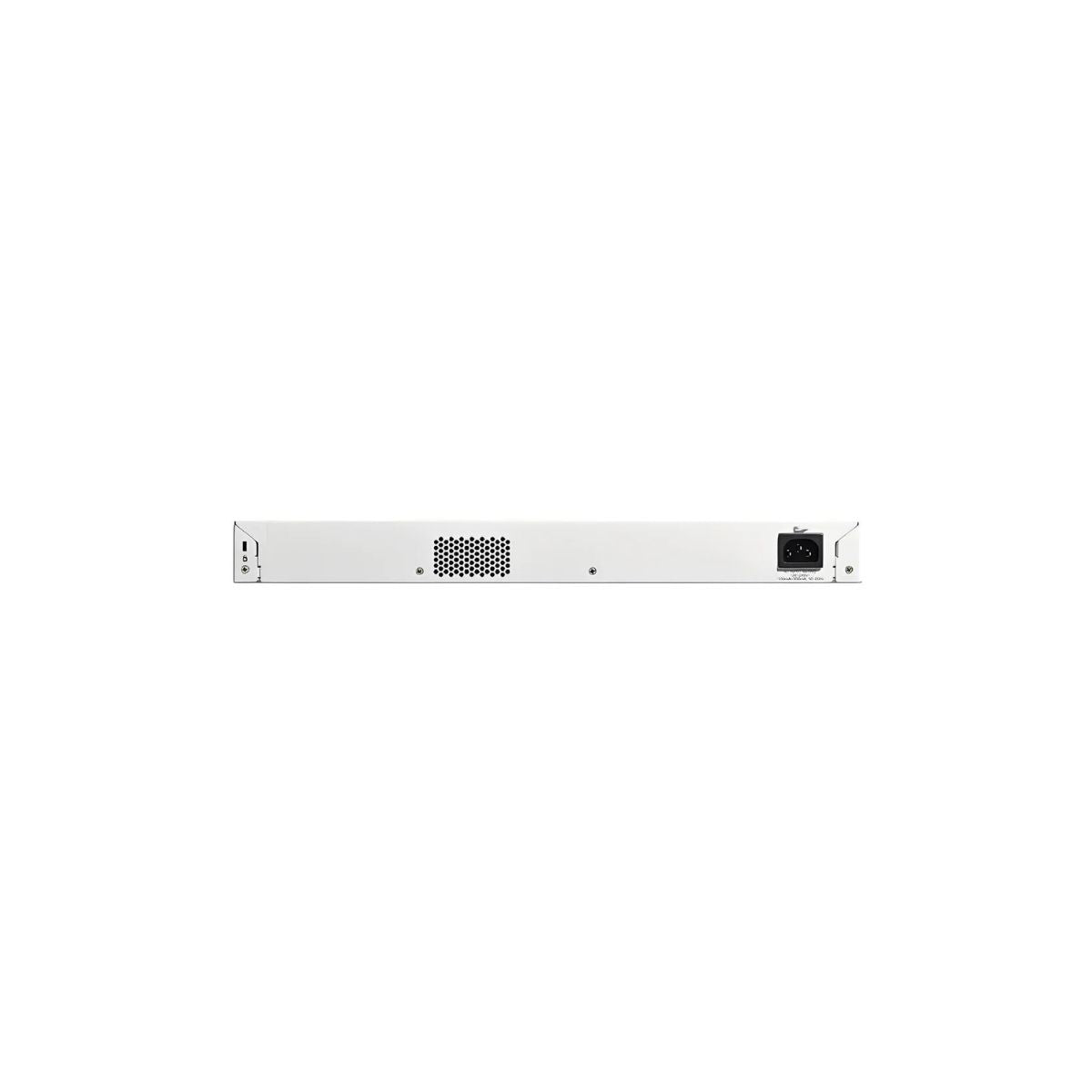

  • Internal power supply
  • Active cooling with intelligent fan management

• Management:
  • Web GUI
  • Command Line Interface (CLI)
  • SNMP v1/v2c/v3
  • SSH
  • RMON
  • Syslog
  • Dual firmware images

• Security:
  • IEEE 802.1X Authentication
  • Access Control Lists (ACLs)
  • DHCP Snooping
  • Dynamic ARP Inspection
  • Port Security
  • Storm Control
  • Secure Management (SSH/HTTPS)

• Form Factor:
  • 1U Rack-Mount Switch

Technical Specifications

• Processor Type:
  • Cisco integrated switching processor

• Chipset / Platform:
  • Cisco Catalyst 1300 Series Platform

• Memory Technology:
  • Embedded DRAM and Flash

• Storage Interface:
  • Internal Flash Storage

• RAID Support:
  • Not Applicable

• Expansion Slots:
  • 4 × Gigabit SFP uplink ports

• Networking:
  • 48 × 10/100/1000Base-T PoE+ ports
  • 4 × 1000Base-X SFP uplinks
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • 802.1Q VLAN
  • Link Aggregation (LACP)
  • QoS
  • Static Routing
  • RIP Dynamic Routing
  • IPv4 / IPv6 Support

• I/O Ports:
  • 48 × RJ-45 Ethernet
  • 4 × SFP
  • RJ-45 Console
  • USB Type-C Console

• Operating System Compatibility:
  • Browser-based management
  • Cisco CLI management
  • SNMP-compatible network management platforms

Physical Specifications

• Form Factor:
  • 1U Rack Mount

• Weight:
  • 5.43 kg
  • 11.97 lbs

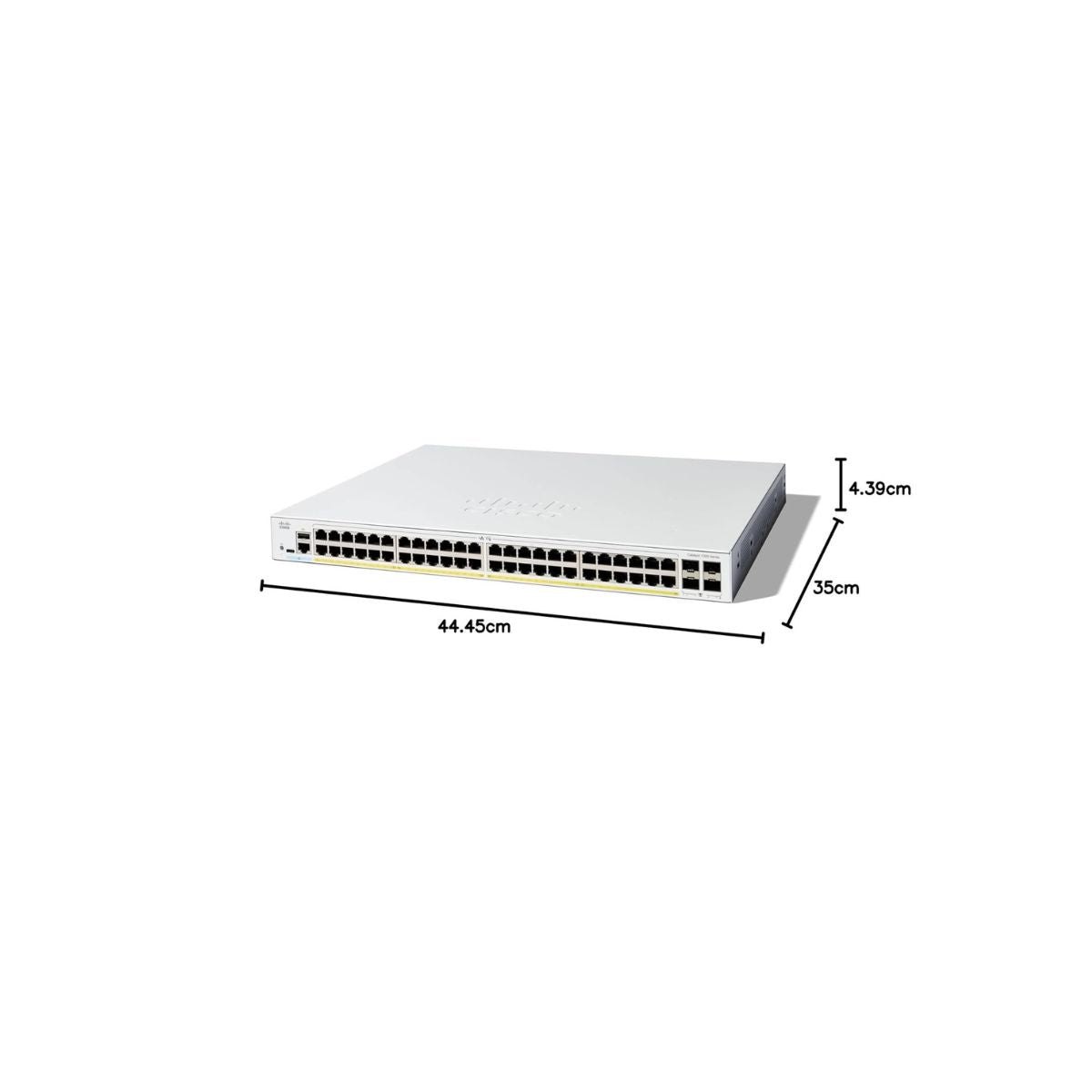

• Dimensions:
  • 444.3 × 350 × 43.94 mm (W × D × H)
  • 17.49 × 13.78 × 1.73 inches (W × D × H)

• Rack Compatibility:
  • Standard 19-inch equipment rack

Ideal For

• Enterprise access layer networking
• Branch office deployments
• Small and medium-sized businesses
• Educational institutions
• Healthcare facilities
• Hospitality networks
• Retail stores
• IP surveillance deployments
• VoIP phone infrastructure
• Wireless access point aggregation

Warranty & Support

• Cisco Limited Lifetime Hardware Warranty
• Software updates available through Cisco support policies
• Compatible with Cisco Smart Net Total Care service offerings for enhanced technical support and hardware replacement options

FAQs – Cisco Catalyst C1300-48P-4G

1. Does the C1300-48P-4G support Power over Ethernet?

Yes. It supports IEEE 802.3af PoE and IEEE 802.3at PoE+ with a total available PoE budget of 370 watts.

2. Can this switch perform Layer 3 routing?

Yes. It supports Layer 3 Lite capabilities including static routing and RIP, making it suitable for segmented business networks.

3. How is the switch managed?

It supports a web-based graphical interface, command-line interface (CLI), SNMP, SSH, HTTPS, Syslog, and RMON for flexible administration.

4. Does the switch support redundant power supplies?

No. The C1300-48P-4G includes a single integrated internal power supply and does not support field-replaceable redundant power supplies.

5. What uplink options are available?

The switch includes four dedicated Gigabit SFP uplink ports for fiber connectivity to aggregation or core switches.

6. What environments is this switch best suited for?

The C1300-48P-4G is ideal for SMBs, branch offices, schools, healthcare organizations, retail locations, hospitality venues, and enterprise edge deployments requiring secure Gigabit connectivity with PoE+ support.
