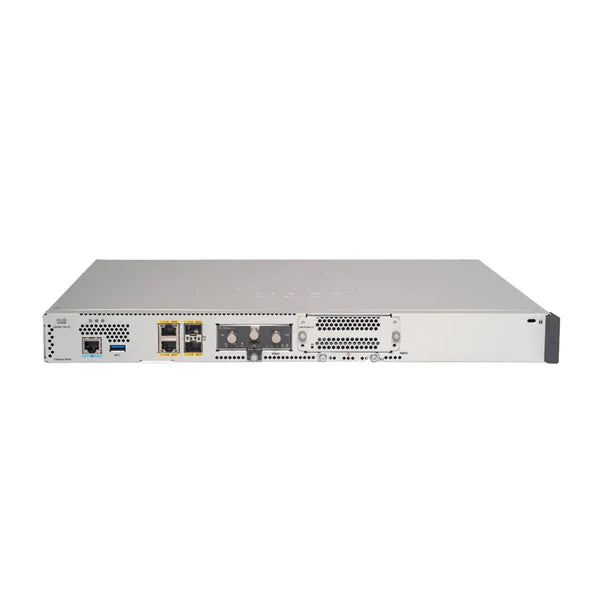

Cisco Catalyst 8200L-1N-4T Router

BRAND NEW WITH THE FULL CISCO WARRANTY!!!

The Cisco Catalyst 8200L-1N-4T is a purpose-built enterprise edge router designed to provide secure, high-availability connectivity for distributed branch networks. Powered by an Intel x86 multicore architecture and running Cisco IOS XE software, this rack-mountable 1RU platform delivers integrated SD-WAN, advanced routing, and hardware-accelerated IPsec encryption for small to medium-sized branch deployments.

Optimized for edge applications and SASE-compliant security services, the Catalyst 8200L-1N-4T is engineered to scale with growing WAN demands while maintaining low total cost of ownership. Its compact 1RU footprint and support for both fiber (SFP) and copper connectivity make it ideal for corporate branches, retail sites, and remote offices that require secure, reliable access to cloud resources and enterprise applications.

Key Features – Cisco Catalyst 8200L-1N-4T

• Processor: Intel x86 multicore CPU
• Memory: 4 GB DRAM (default)
• Storage: 8 GB onboard flash (with optional M.2 storage upgrades)
• Controller: Cisco IOS XE software
• Networking / Ports: 4×1 Gbps WAN (2×RJ45 + 2×SFP)
• Power & Cooling: Internal fixed AC power; rack fans
• Management: CLI, SNMP, WebUI, Cisco SD-WAN Manager support
• Security: Integrated IPsec, zone-based firewall, SUDI secure boot support
• Form Factor: 1 RU rack-mountable

Technical Specifications

• Processor Type: Intel x86 multicore
• Chipset / Platform: Cisco Catalyst 8200 Series Edge – IOS XE
• Memory Technology: 4 GB DRAM default; upgradable
• Storage Interface: Onboard flash + optional M.2 storage
• RAID Support: N/A
• Expansion Slots: 1×NIM, 1×PIM
• Networking: 4×1 Gbps WAN ports (2 SFP, 2 RJ45)
• I/O Ports: Ethernet, console, USB (varies by configuration)
• Operating System Compatibility: Cisco IOS XE SD-WAN & routing platforms

Physical Specifications

• Form Factor: 1 RU rack-mountable

• Weight:
  o 4.54 kg
  o 10.0 lbs

• Dimensions (H x W x D):
  o 43.9 mm × 438.1 mm × 299.7 mm
  o 1.73 in × 17.25 in × 11.8 in

• Rack Compatibility: 19-inch rack, 1RU height

Ideal For

• Enterprise branch connectivity demanding secure SD-WAN and VPN services.
• Distributed retail, campus edge, and remote office routing platforms.
• Secure internet access and cloud application acceleration at small-to-mid-sized sites.

Warranty & Support

• Standard Manufacturer Warranty: Cisco standard hardware warranty with RMA support.
• Support Contract Compatibility: Cisco Smart Net Total Care, Cisco DNA subscriptions for SD-WAN and advanced features.

FAQs – Cisco Catalyst 8200L-1N-4T

Q1: Can the DRAM be upgraded beyond 4 GB?
A1: Yes. The Catalyst 8200L-1N-4T supports upgraded DRAM configurations up to 32 GB for higher route and VPN scale.

Q2: What’s the recommended deployment environment?
A2: Designed for small-to-medium enterprise branches requiring secure SD-WAN, IPsec VPN, and cloud edge connectivity.

Q3: How is the device managed centrally?
A3: Through CLI, SNMP, local WebUI, and Cisco SD-WAN Manager or Cisco DNA Center.

Q4: Does it support redundant power?
A4: This SKU uses an internal AC power supply; redundant power options require external hardware additions.

Q5: Can I expand the interface count?
A5: Yes, through the NIM and PIM expansion slots for additional modules.

Q6: Is this suitable for SD-WAN encryption?
A6: Yes—supports up to 500 Mbps IPsec throughput and 1500 overlay tunnels for secure SD-WAN.
