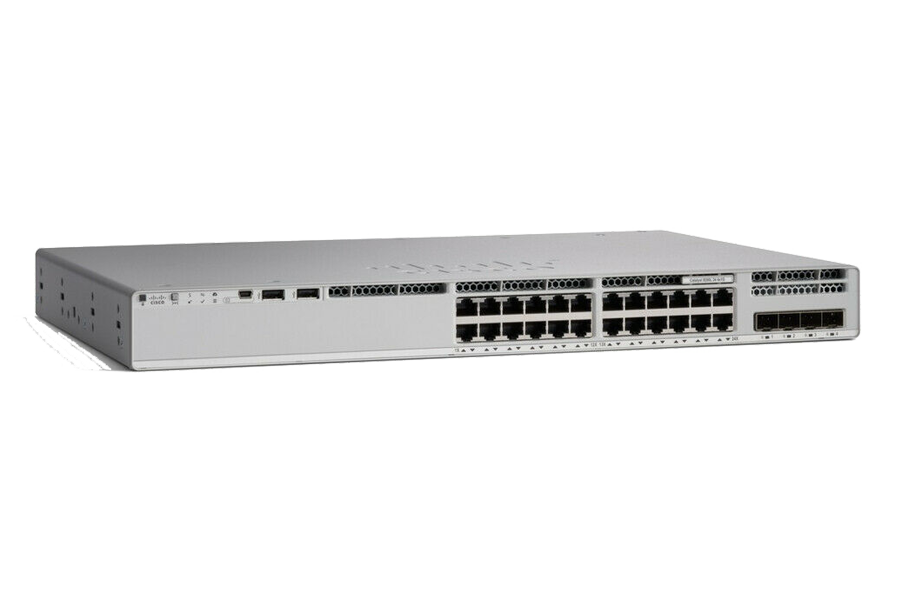

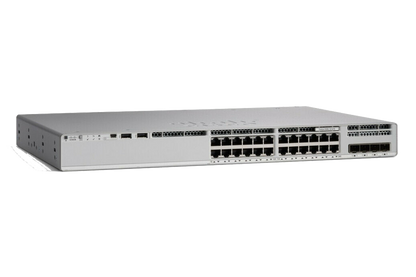

C9200-24P-A Cisco Catalyst 9200 Series 24-Port PoE+ Layer 3 Switch | Network Advantage

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9200-24P-A is an enterprise-class access switch built for secure, scalable, and power-efficient networks. Designed on the Catalyst 9000 architecture, this model combines full PoE+ support with advanced Layer 3 routing and policy-based controls.

With 24 PoE+ Gigabit Ethernet ports and Network Advantage software, the C9200-24P-A supports modern access-layer demands such as IP phones, wireless access points, and security cameras while maintaining strong segmentation, resiliency, and centralized management across growing enterprise environments.

Key Features

• 24 full PoE+ Gigabit Ethernet ports delivering up to 30W per port
• Network Advantage software with advanced Layer 3 and routing intelligence
• Stackable architecture for scalable and simplified deployments
• Hardware-based security with MACsec and control plane protection
• Built for long-term stability on the Catalyst 9000 platform

Technical Specifications

General

• Manufacturer: Cisco
• Product Line: Catalyst
• Product Series: 9200
• Model: C9200-24P-A
• Software Edition: Network Advantage
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable

Ports & Interfaces

• 24 × 10/100/1000 Gigabit Ethernet PoE+ ports
• 4 × 10G SFP+ uplink ports
• Jumbo Frame Support: 9198 bytes
• MAC Address Table: 32,000 entries

Performance & Scale

• VLAN Support: Up to 4,096 VLANs
• Switched Virtual Interfaces (SVIs): Up to 1,000
• IPv4 Routes: Up to 4,000
• IPv6 Routes: Up to 2,000
• Packet Buffer: 6 MB

Routing & Management

• Supported Protocols: OSPF, EIGRP, IS-IS, RIP, VRRP, HSRP, PIM, Policy-Based Routing
• Management Interfaces: NETCONF, RESTCONF
• Stackable: Yes

Power & Security

• Power over Ethernet:PoE+
• Encryption:128-bit AES
• Internal Power Supply with optional redundancy

Physical

• Height: 1.7 in
• Width: 17.5 in
• Depth: 13.8 in
• Weight: 12.13 lbs

UPC: 00889728168304

Use Cases

The C9200-24P-A is well-suited for enterprise access layers, branch offices, and campus environments that require PoE+ power delivery and advanced Layer 3 routing. It supports organizations deploying wireless networks, IP telephony, and IoT devices while maintaining consistent security and centralized policy control.

Why Choose the C9200-24P-A

• Delivers reliable PoE+ power for modern edge devices
• Supports advanced routing and segmentation with Network Advantage
• Scales easily through switch stacking
• Designed for standardized enterprise access architectures
• Ships brand new with full Cisco manufacturer warranty

Frequently Asked Questions

Does the C9200-24P-A support PoE+ on all ports?

Yes. All 24 Gigabit Ethernet ports provide PoE+ support with up to 30W per port.

What software license comes with this switch?

This model ships with Cisco Network Advantage software.

Is this switch stackable?

Yes. It supports stacking to simplify expansion and unified management.

What types of devices can this switch power?

It can power wireless access points, IP phones, cameras, and other PoE-enabled devices.

Is this product new and covered by warranty?

Yes. It is factory-sealed, retail-boxed, and includes full Cisco manufacturer warranty coverage.
