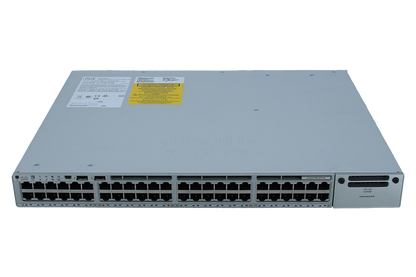

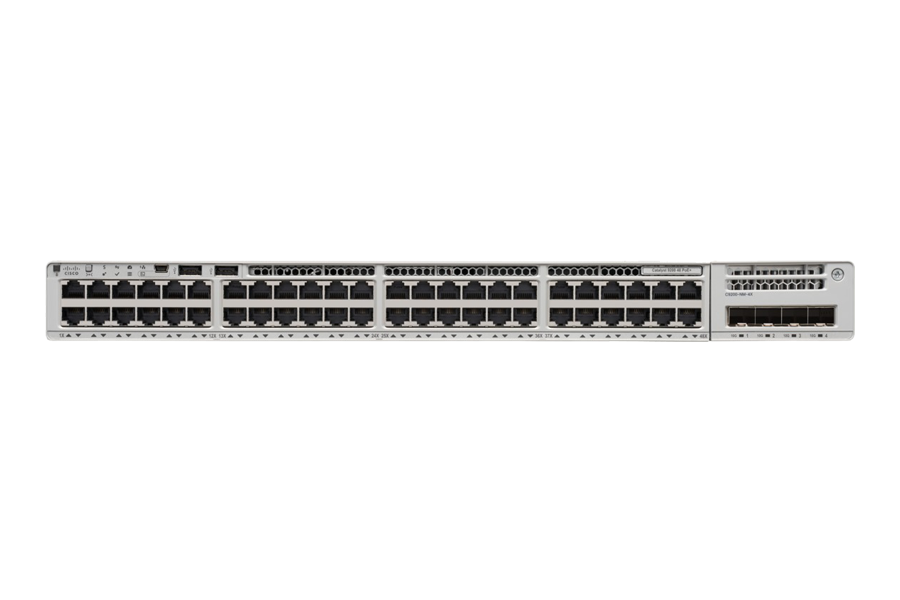

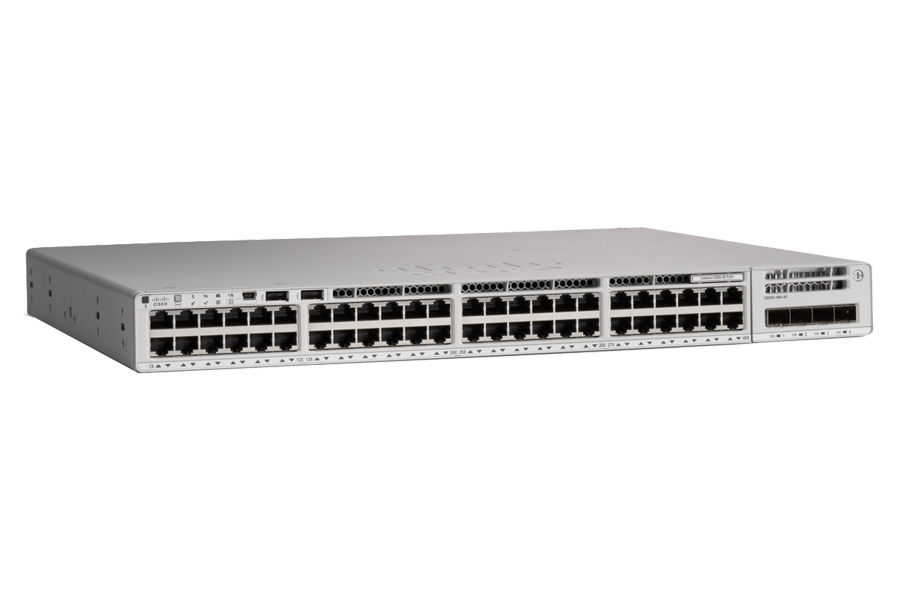

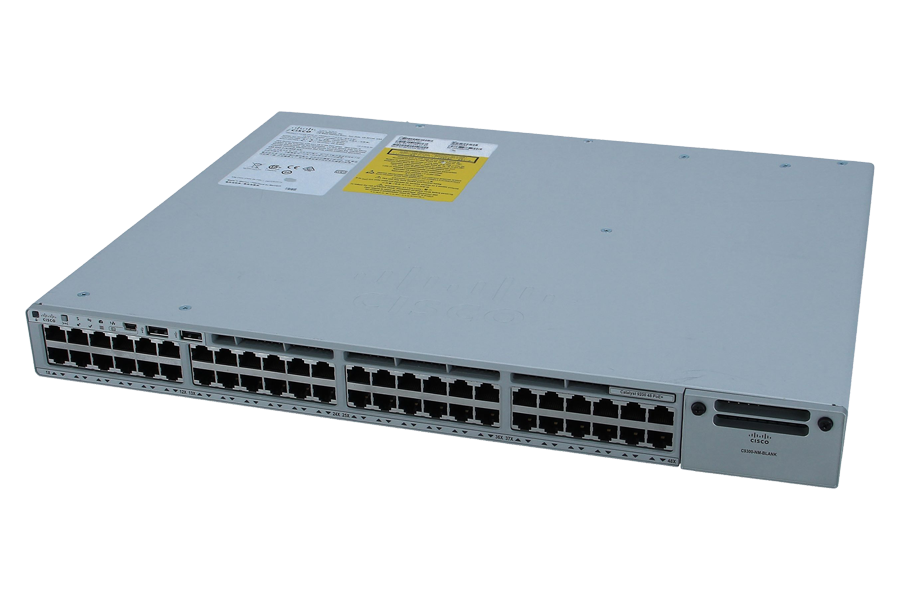

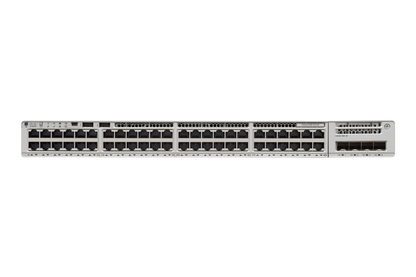

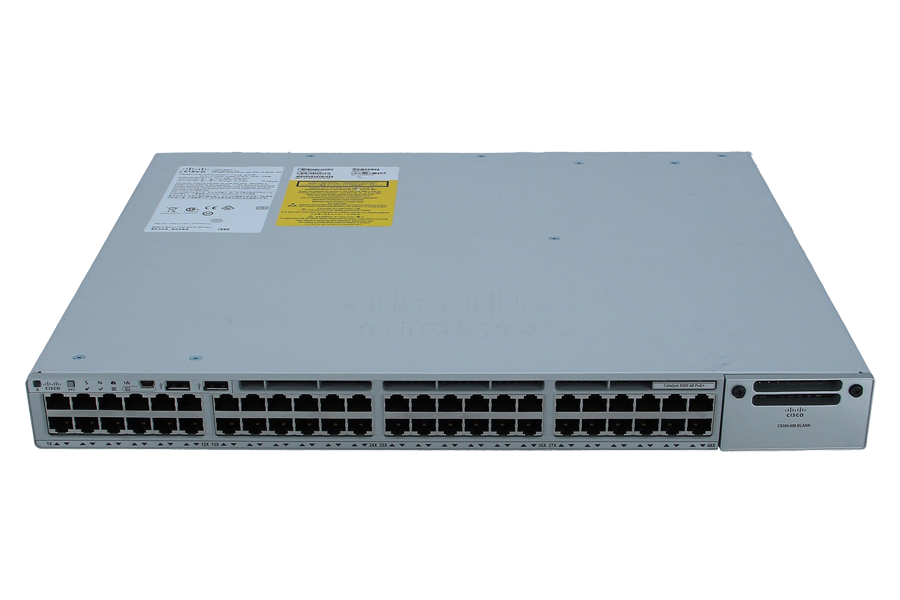

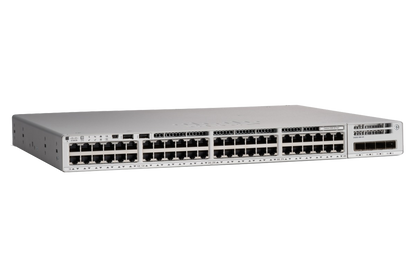

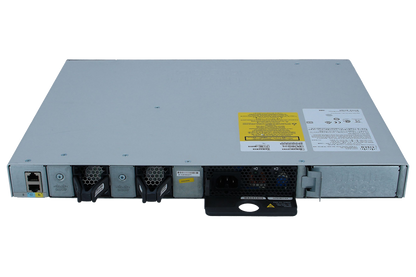

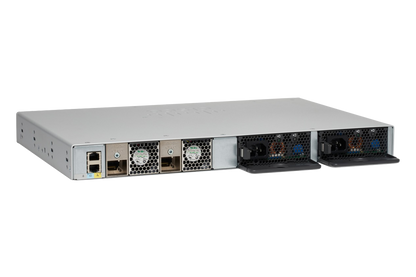

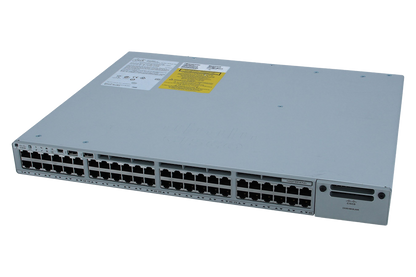

C9200-48P-A Cisco Catalyst 9200 48-Port PoE+ Layer 3 Switch | Network Advantage

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The C9200-48P-A is a Cisco Catalyst 9200 Series access switch built for enterprises that demand high PoE capacity, advanced Layer 3 routing, and long-term operational resilience. Designed as part of Cisco's Digital Network Architecture, this model delivers secure, always-on connectivity while simplifying network operations at scale.

With 48 full PoE+ Gigabit Ethernet ports and Network Advantage software, the C9200-48P-A supports advanced routing, segmentation, and policy-based services. It is a strong choice for organizations standardizing on a future-ready access layer that balances performance, scalability, and security.

Key Features

·         48 Gigabit Ethernet PoE+ ports for phones, access points, cameras, and IoT devices

·         Network Advantage software with advanced Layer 3 routing

·         High switching and forwarding performance for dense enterprise access

·         Stackable architecture for simplified expansion and resiliency

·         Integrated security aligned with Cisco's intent-based networking

·         Cisco IOS XE support for automation and programmability

Technical Specifications

Manufacturer: Cisco
Product Series: Catalyst 9200
Model: C9200-48P-A
Edition: Network Advantage
Product Type: Managed Layer 3 Ethernet Switch
Form Factor: Rack-mountable
Packaged Quantity: 1 Unit

Ports & Interfaces

·         48 × 10/100/1000Base-T RJ-45 PoE+ ports (up to 30 W per port)

Performance

·         Switching bandwidth: 176 Gbps

·         Forwarding rate: 261.9 Mpps

·         Stacking bandwidth: 160 Gbps

·         Jumbo frame support: up to 9198 bytes

Networking & Routing

·         Advanced Layer 3 switching and routing

·         Supports OSPF, OSPFv3, EIGRP, IS-IS, RIP, VRRP, HSRP, PIM, MSTP, and policy-based routing

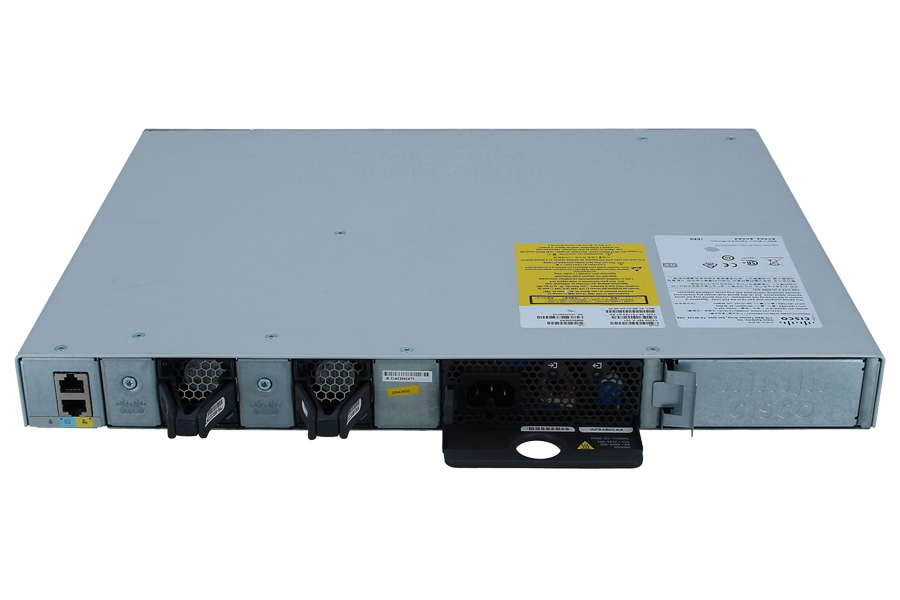

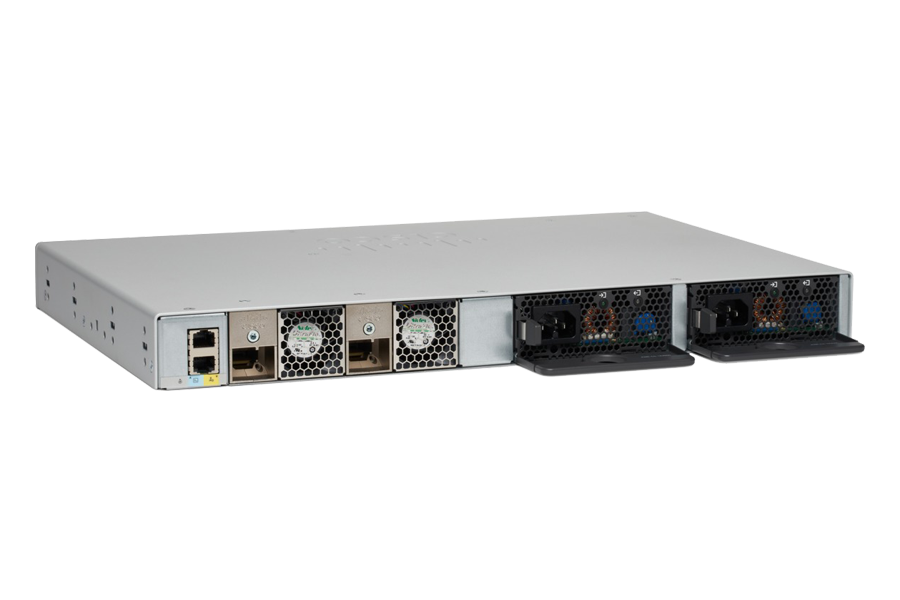

Power & PoE

·         Power over Ethernet: PoE+

·         Internal power supply

·         Optional power redundancy

·         Hot-plug power support

Management & Software

·         Managed through Cisco IOS XE

·         API-driven automation

·         Remote management via NETCONF and RESTCONF

Physical Specifications

·         Width: 17.5 inches

·         Depth: 13.8 inches

·         Height: 1.7 inches

·         Weight: 12.13 lbs

UPC: 00889728168311

Use Cases

The C9200-48P-A is ideal for enterprise campus access layers, branch offices, education networks, healthcare environments, and organizations deploying large numbers of PoE-powered devices with advanced routing needs.

Why Choose the C9200-48P-A

·         High PoE+ density for power-hungry edge devices

·         Network Advantage software for advanced routing and segmentation

·         Scalable stacking for simplified growth

·         Strong security and policy control at the access layer

·         Proven Catalyst platform for long-term stability

FAQs

What is the C9200-48P-A used for?

The C9200-48P-A is for enterprise access networks that require PoE+, advanced Layer 3 routing, and scalable performance.

Does this switch support Power over Ethernet?

Yes. All 48 ports support PoE+, delivering power and data to connected devices.

What software license comes with this model?

This switch includes Cisco Network Advantage software, enabling advanced routing and enterprise features.

Is the C9200-48P-A stackable?

Yes. It supports stacking to improve resiliency and simplify network expansion.

Does a Cisco warranty cover this switch?

Yes. The unit is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
