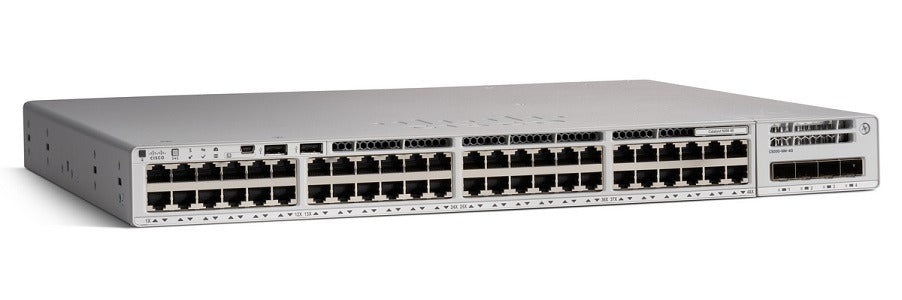

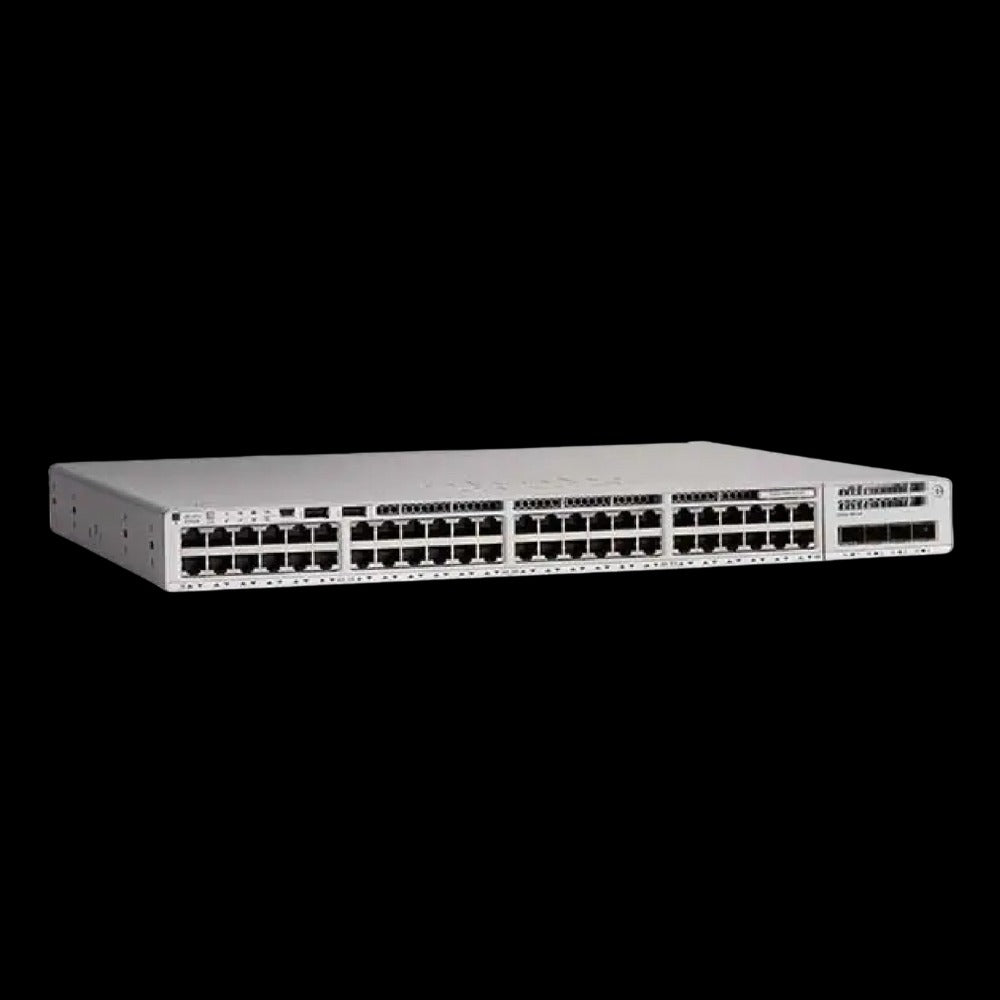

C9200-48T-A Cisco Catalyst 9200 48-Port Gigabit Layer 3 Switch | Network Advantage

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER’S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The C9200-48T-A is a high-performance Cisco Catalyst 9200 Series access switch designed for enterprise networks that demand reliability, security, and scalable growth. Built for always-on operations, this model delivers predictable Layer 3 routing, advanced security, and simplified management for modern campus and branch deployments.

With 48 Gigabit Ethernet access ports and full stacking support, the C9200-48T-A is ideal for organizations standardizing on Catalyst 9200 switches to support long-term network expansion while maintaining consistent performance and control.

Key Features

·         48 Gigabit Ethernet access ports for high-density campus connectivity

·         Full Layer 3 routing with advanced enterprise protocols

·         High switching and forwarding performance for traffic-intensive networks

·         Stackable architecture for simplified scalability and redundancy

·         Enterprise-grade security with hardware-based encryption

·         Cisco IOS XE support for automation, programmability, and lifecycle control

Technical Specifications

Manufacturer: Cisco
Product Series: Catalyst 9200
Model: C9200-48T-A
Edition: Network Advantage
Product Type: Managed Layer 3 Ethernet Switch
Form Factor: Rack-mountable
Packaged Quantity: 1 Unit

Ports & Interfaces

·         48 × 10/100/1000Base-T RJ-45 Gigabit Ethernet ports

·         1 × Management (LAN) RJ-45

·         1 × Console RJ-45

·         1 × Network stack device port

Performance

·         Switching bandwidth: 176 Gbps

·         Forwarding rate: 261.9 Mpps

·         Stacking bandwidth: 160 Gbps

·         MAC address table: 32,000 entries

·         Jumbo frame support: up to 9198 bytes

Networking & Routing

·         Layer 3 switching and routing

·         Supports OSPF, EIGRP, IS-IS, RIP, VRRP, HSRP, PIM, MSTP, and policy-based routing

Management & Security

·         Remote management via CLI, SNMP v1/v2c/v3, NETCONF, RESTCONF, RMON

·         128-bit AES hardware-based encryption

·         Role-based access and enterprise security controls

Power & Reliability

·         Internal power supply

·         Optional power redundancy

·         Hot-plug supported

·         MTBF: 571,440 hours

Physical Specifications

·         Width: 17.5 inches

·         Depth: 13.8 inches

·         Height: 1.7 inches

·         Weight: 11.02 lbs

·         Color: Gray

UPC: 889728168298

Use Cases

The C9200-48T-A is well-suited for enterprise campus access layers, branch offices, education networks, healthcare facilities, and organizations requiring high-density Gigabit access with advanced routing and security.

Why Choose the C9200-48T-A

·         Enterprise-class performance with high forwarding and switching capacity

·         Reliable Layer 3 routing for complex campus environments

·         Scalable stacking design for future network growth

·         Strong security is there in both hardware and software layers

·         Proven Catalyst platform for long-term operational stability

FAQs

What is the C9200-48T-A used for?

The C9200-48T-A is for enterprise access networks that require secure, high-performance Gigabit Ethernet connectivity with advanced Layer 3 routing.

Does this switch support stacking?

Yes. The switch supports stacking, allowing multiple units to operate as a single logical switch for scalability and redundancy.

Is Power over Ethernet supported on this model?

No. This model provides data-only Gigabit Ethernet ports and does not include PoE capabilities.

What software license does the C9200-48T-A use?

This model runs Cisco Network Advantage software, enabling advanced routing, security, and automation features.

Does a Cisco warranty cover this unit?

Yes. This switch is brand new, factory-sealed, and includes a full Cisco manufacturer warranty when purchased from Chicago Computer Supply.
