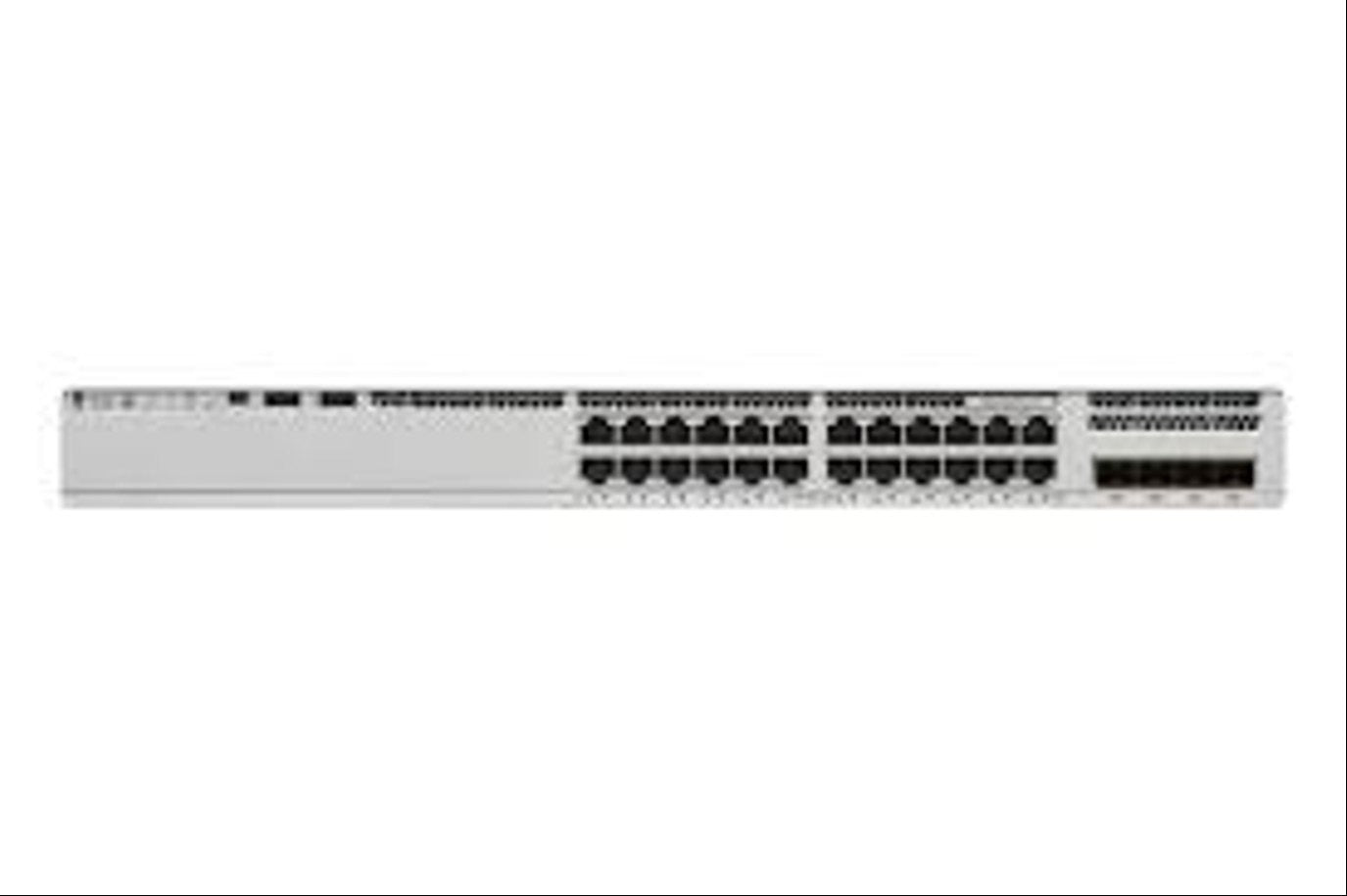

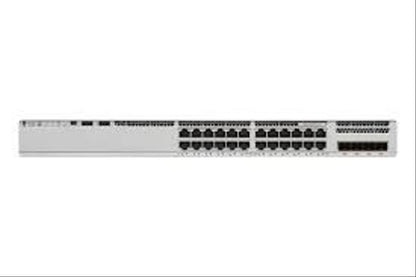

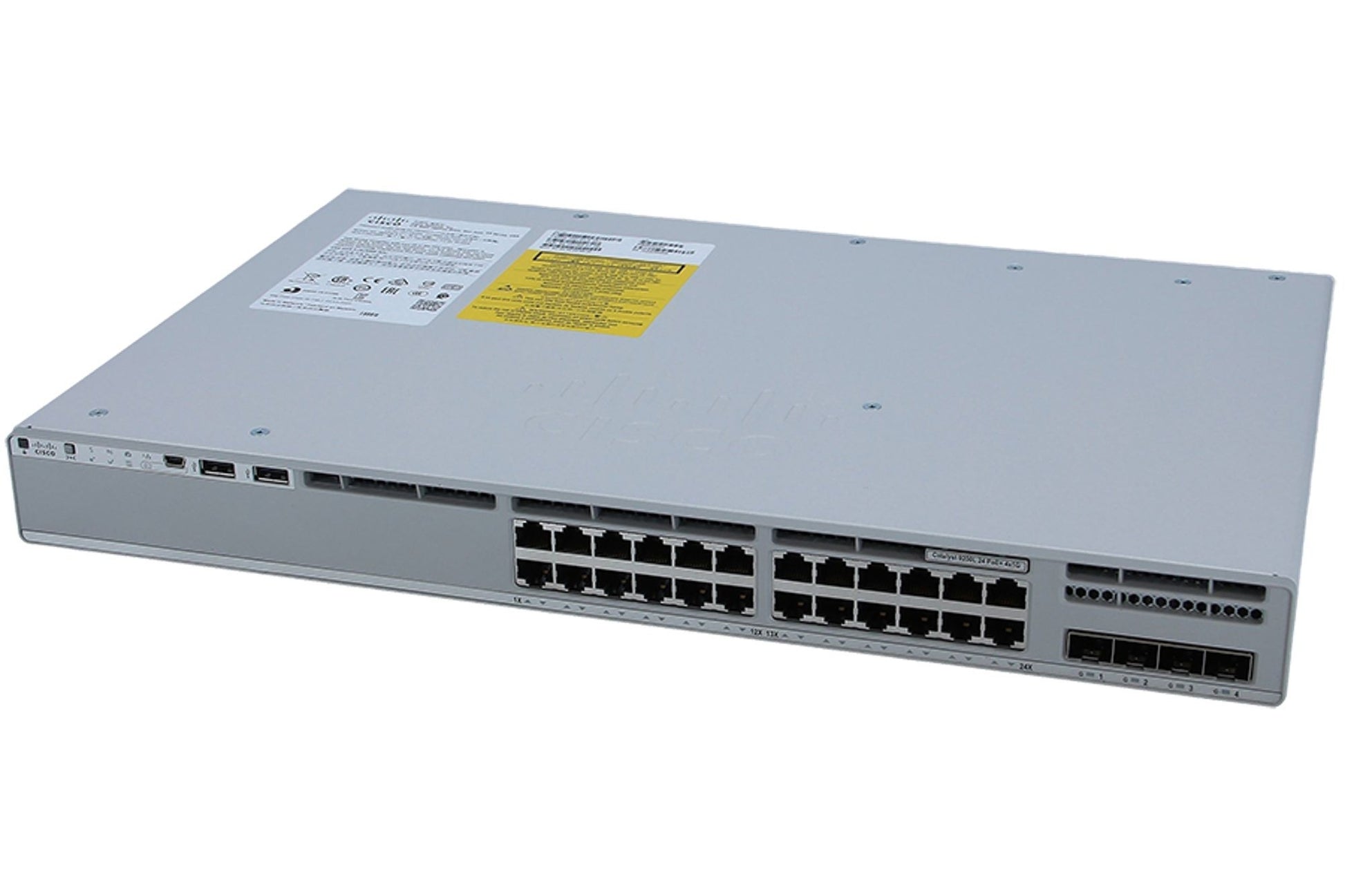

C9200L-24P-4X-E Cisco Catalyst 9200L Network Essentials 24-Port PoE+ Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The C9200L-24P-4X-E is a compact, enterprise-grade Layer 3 access switch designed for modern branch offices, campus edge deployments, and growing business networks. It delivers reliable PoE+ power, high-speed 10G uplinks, and advanced routing in a space-efficient rack-mount form factor.

Built on Cisco IOS XE, this switch supports automation, segmentation, and security-first networking. It is for continuous operation, scalable growth, and predictable performance across voice, video, wireless, and IoT workloads.

Key Capabilities

·         24 Gigabit Ethernet PoE+ access ports for powered devices

·         Four fixed 10G SFP+ uplinks for high-bandwidth aggregation

·         Advanced Layer 3 routing and traffic control

·         Stackable architecture for simplified scaling

·         Enterprise-grade security and policy enforcement

·         Optimized for Cisco Network Essentials licensing environments

Technical Specifications

Device Type: Managed Switch
Layer Support: Layer 3
Form Factor: Rack-mountable
Stackable: Yes

Ports & Interfaces

·         24 × 10/100/1000Base-T RJ-45 PoE+

·         4 × 10GBase-X SFP+ uplinks

Power & Performance

·         PoE Budget: 740 W

·         Switching Capacity: 128 Gbps

·         Forwarding Rate: 190.4 Mpps

·         Stacking Bandwidth: 80 Gbps

Networking & Routing

·         OSPF, EIGRP, RIP, VRRP, PIM

·         Policy-based routing

·         VLANs supported: 1024

·         SVIs supported: 512

Security & Management

·         SNMP v1/v2c/v3, CLI, NETCONF, RESTCONF

·         Access Control Lists and segmentation support

·         Jumbo Frame Support: 9198 bytes

·         MAC Address Table: 16,000 entries

Power & Physical

·         Power Input: AC 120/230 V

·         Power Redundancy: Optional

·         Dimensions: 44.5 × 4.4 × 28.8 cm

·         Weight: 5.5 kg

UPC: 889728170178

Use Cases

The C9200L-24P-4X-E is ideal for branch offices, campus access layers, retail networks, healthcare environments, and enterprise edge deployments where reliable PoE power and high-speed uplinks are critical.

Why Choose the C9200L-24P-4X-E

·         Enterprise-grade resiliency for always-on access network deployments

·         Consistent PoE+ performance to power access points, phones, and edge devices

·         10G SFP+ uplinks for future-ready bandwidth and aggregation

·         Scalable stacking architecture for simplified expansion

·         Strong security and Layer 3 features without added operational complexity

FAQs

What is the C9200L-24P-4X-E used for?

It is for enterprise access networks that require PoE+ power, advanced routing, and high-speed uplinks in a compact rack-mount switch.

Does this switch support Power over Ethernet?

Yes. All 24 access ports support PoE+, delivering power and data to devices such as access points, phones, and cameras.

What uplink options are available?

The switch includes four fixed 10-Gigabit SFP+ uplinks for fast aggregation and backbone connectivity.

Is this switch suitable for stacking?

Yes. It supports stacking, allowing multiple switches to operate as a single logical unit for simplified management.

Does it include a Cisco warranty?

Yes. This unit is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
