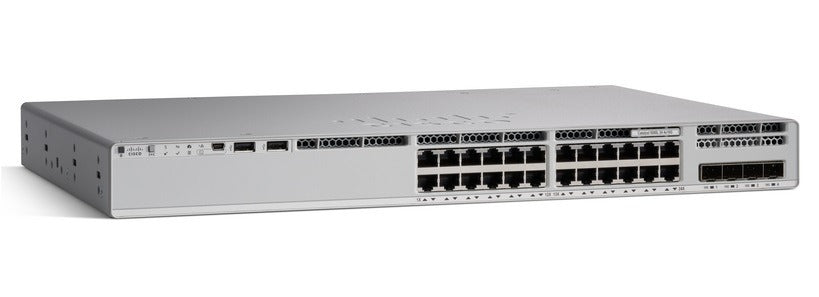

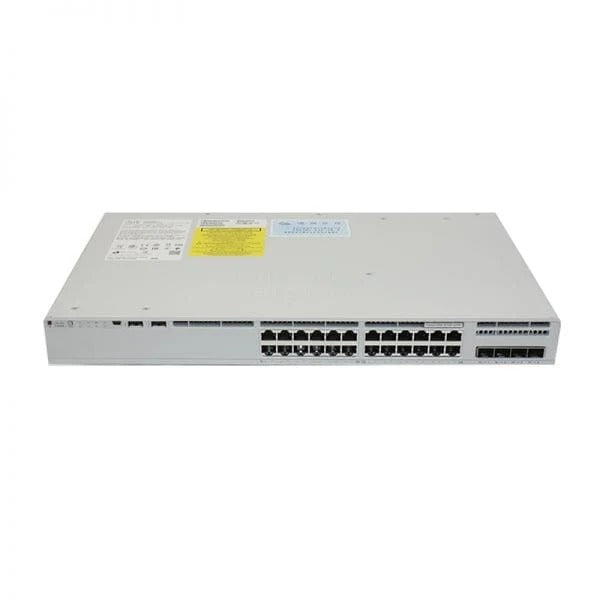

Cisco Catalyst 9200L 24-Port Multigigabit PoE+ Switch – C9200L-24PXG-4X-E

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER’S WARRANTY.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9200L-24PXG-4X-E is a high-performance Layer 3 access switch designed for modern enterprise networks that demand multigigabit speeds, PoE power, and scalable uplinks. Built for next-generation Wi-Fi, high-density endpoints, and campus access layers, it combines mGig connectivity, PoE+ support, and 10G uplinks in a compact rack-mountable design.

This model delivers 8 Multigigabit Ethernet ports supporting speeds up to 10G, along with 16 Gigabit Ethernet PoE+ ports, making it ideal for powering Wi-Fi 6 and Wi-Fi 6E access points, IP cameras, and advanced edge devices. With Cisco IOS XE, advanced routing, and automation capabilities, it fits seamlessly into intent-based enterprise networks.

Key Features

·         8 × Multigigabit Ethernet ports supporting up to 10G

·         16 × Gigabit Ethernet PoE+ access ports

·         4 × 10G SFP+ fixed uplinks for aggregation

·         High PoE budget for power-hungry edge devices

·         Advanced Layer 3 routing and enterprise security

·         Cisco IOS XE with automation and programmability

·         Stackable design for scalable deployments

Technical Specifications

Manufacturer: Cisco
Product Line: Catalyst
Series: 9200L
Model: C9200L-24PXG-4X-E
Product Type: Managed Layer 3 Switch
Software License: Network Essentials
Packaged Quantity: 1 Unit

Ports & Interfaces

·         8 × 100/1000/2.5G/5G/10GBase-T Multigigabit RJ-45

·         16 × 1000Base-T RJ-45 PoE+ ports

·         4 × 10GBase-X SFP+ uplink ports

·         1 × Management (LAN) RJ-45

·         1 × Console RJ-45

·         1 × Network stack device

Switching & Performance

·         Switching Capacity: 272 Gbps

·         Forwarding Rate: 214.28 Mpps

·         Stacking Bandwidth: 80 Gbps

·         MAC Address Table: 16,000 entries

·         Jumbo Frames: Up to 9198 bytes

Routing & Networking

·         Layer Support: Layer 2 and Layer 3

·         Routing Protocols: OSPF, OSPFv3, EIGRP, EIGRP for IPv6, RIP, RIPng, VRRP, PIM-SM, PIM-SSM, Policy-Based Routing

·         Advanced Switching: MSTP, VLAN segmentation

Power & PoE

·         Power over Ethernet: PoE+ (IEEE 802.3at)

·         PoE Budget: 740 watts

·         Power Supply: Internal

·         Redundant Power Support: Optional

Management & Security

·         Management Protocols: CLI, SNMP v1/v2c/v3, RMON 1 & 2, NETCONF, RESTCONF

·         Encryption: 128-bit AES

·         Security Features: ACLs, segmentation, encrypted management, control-plane protection

Physical Specifications

·         Form Factor: Rack-mountable

·         Width: 17.5 inches

·         Depth: 13.8 inches

·         Height: 1.7 inches

·         Weight: 11.99 lbs

·         Color: Gray

·         MTBF: 379,410 hours

Use Cases

The C9200L-24PXG-4X-E is ideal for enterprise access layers, campus networks, and branch deployments supporting high-speed wireless, IoT, and powered endpoints. It is especially suited for environments upgrading to Wi-Fi 6 and Wi-Fi 6E, where multigigabit backhaul and PoE power are essential.

Why Choose the C9200L-24PXG-4X-E

·         Supports multigigabit speeds for next-generation access points

·         High PoE budget for dense device deployments

·         Fixed 10G uplinks for predictable aggregation design

·         Advanced Layer 3 routing and enterprise security

·         Stackable for scalable, simplified network growth

·         Trusted Cisco Catalyst platform with full manufacturer warranty

FAQs

What is the Cisco C9200L-24PXG-4X-E used for?

It is for enterprise access networks that require multigigabit speeds, PoE power, and high-capacity uplinks for modern wireless and edge devices.

Does this switch support Multigigabit Ethernet?

Yes. It includes eight Multigigabit ports that support speeds from 100 Mbps to 10 Gbps.

How many PoE ports does this model provide?

The switch offers sixteen PoE+ Gigabit Ethernet ports, suitable for powering access points, cameras, and IP devices.

What uplink options are available?

It includes four fixed 10G SFP+ uplink ports for high-speed aggregation or core connectivity.

Is the C9200L-24PXG-4X-E a Layer 3 switch?

Yes. It supports advanced Layer 3 routing protocols, including OSPF, EIGRP, and policy-based routing.

Does this switch include a Cisco warranty?

Yes. It is brand new, factory-sealed, and includes the full Cisco manufacturer’s warranty when purchased from Chicago Computer Supply.
