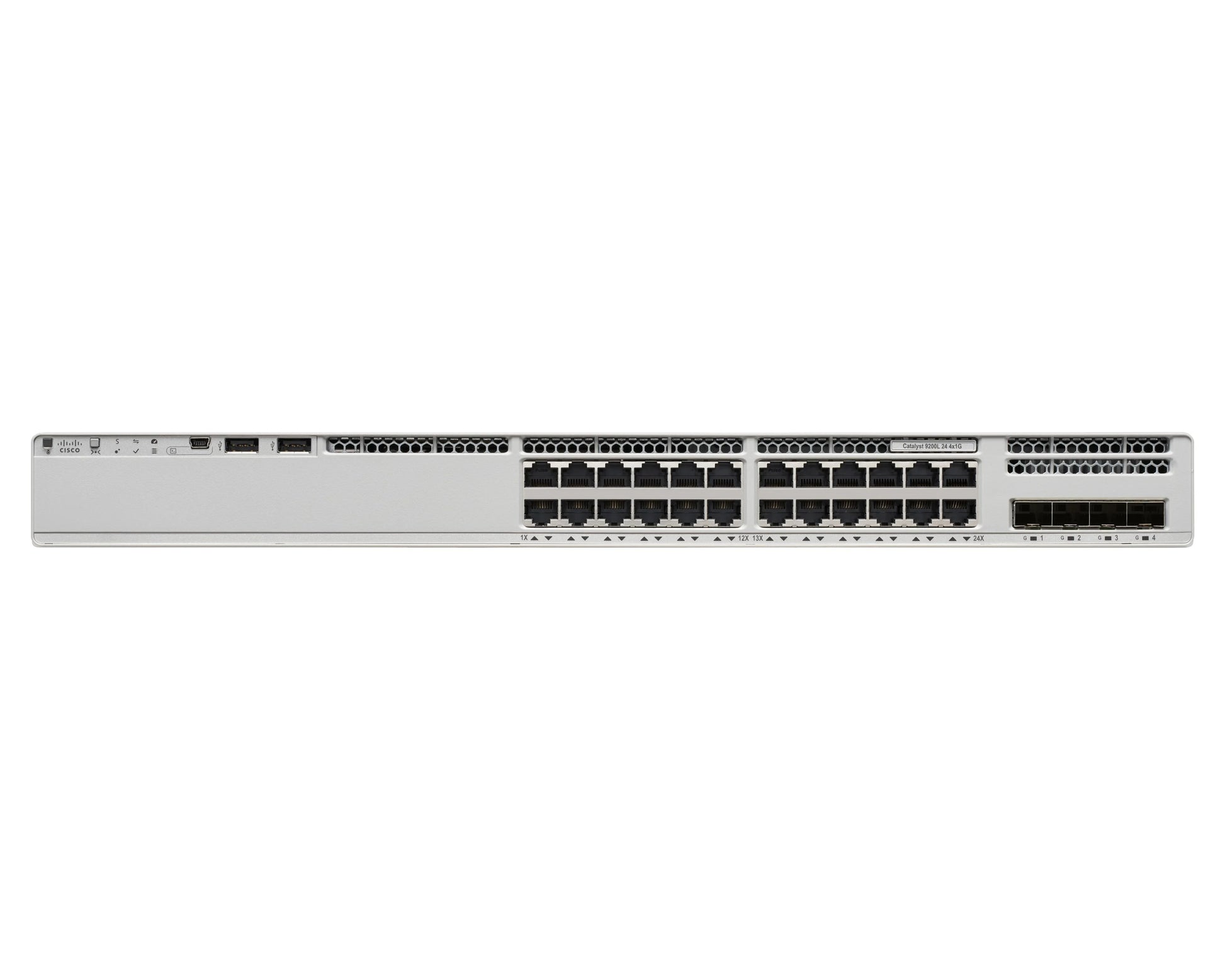

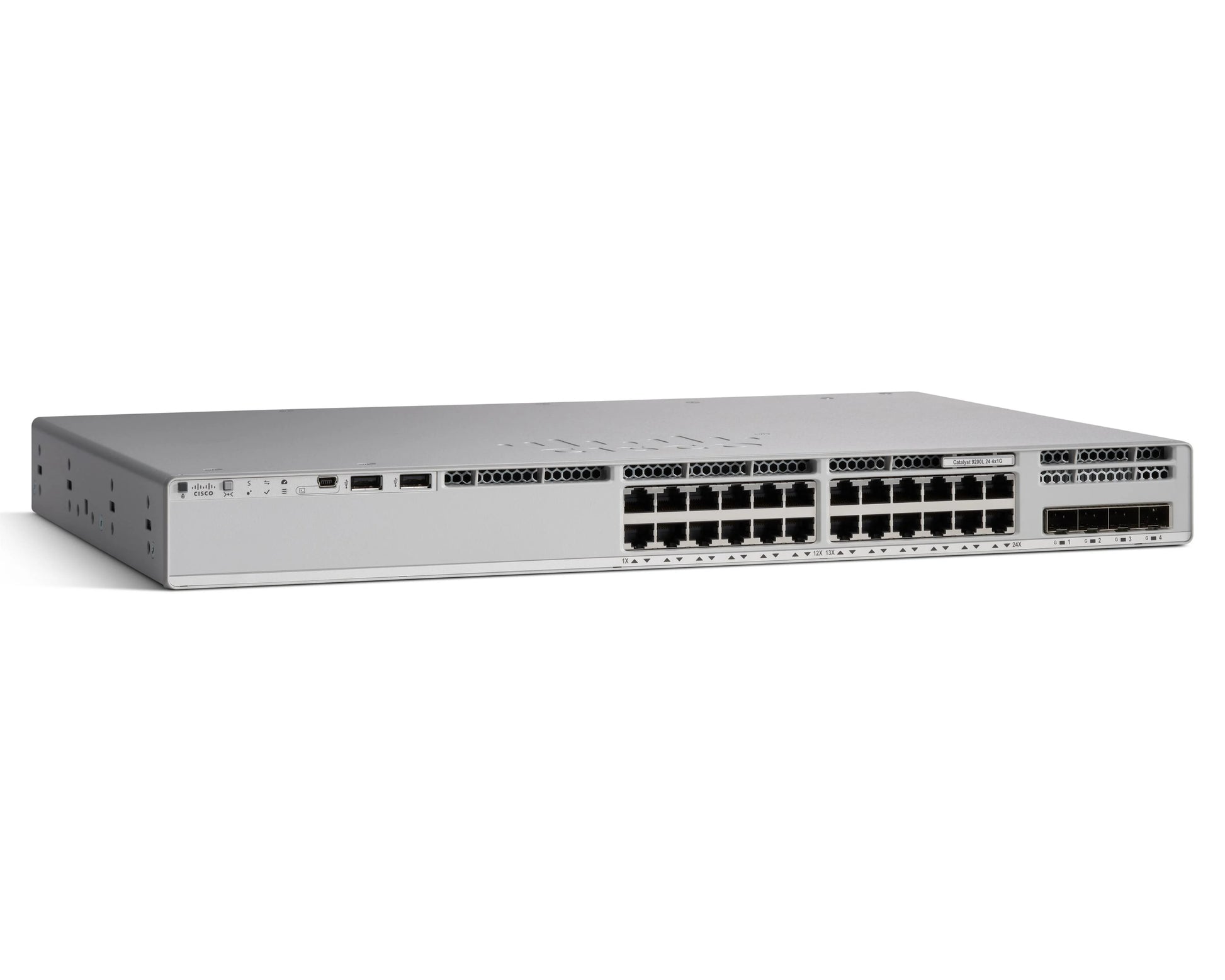

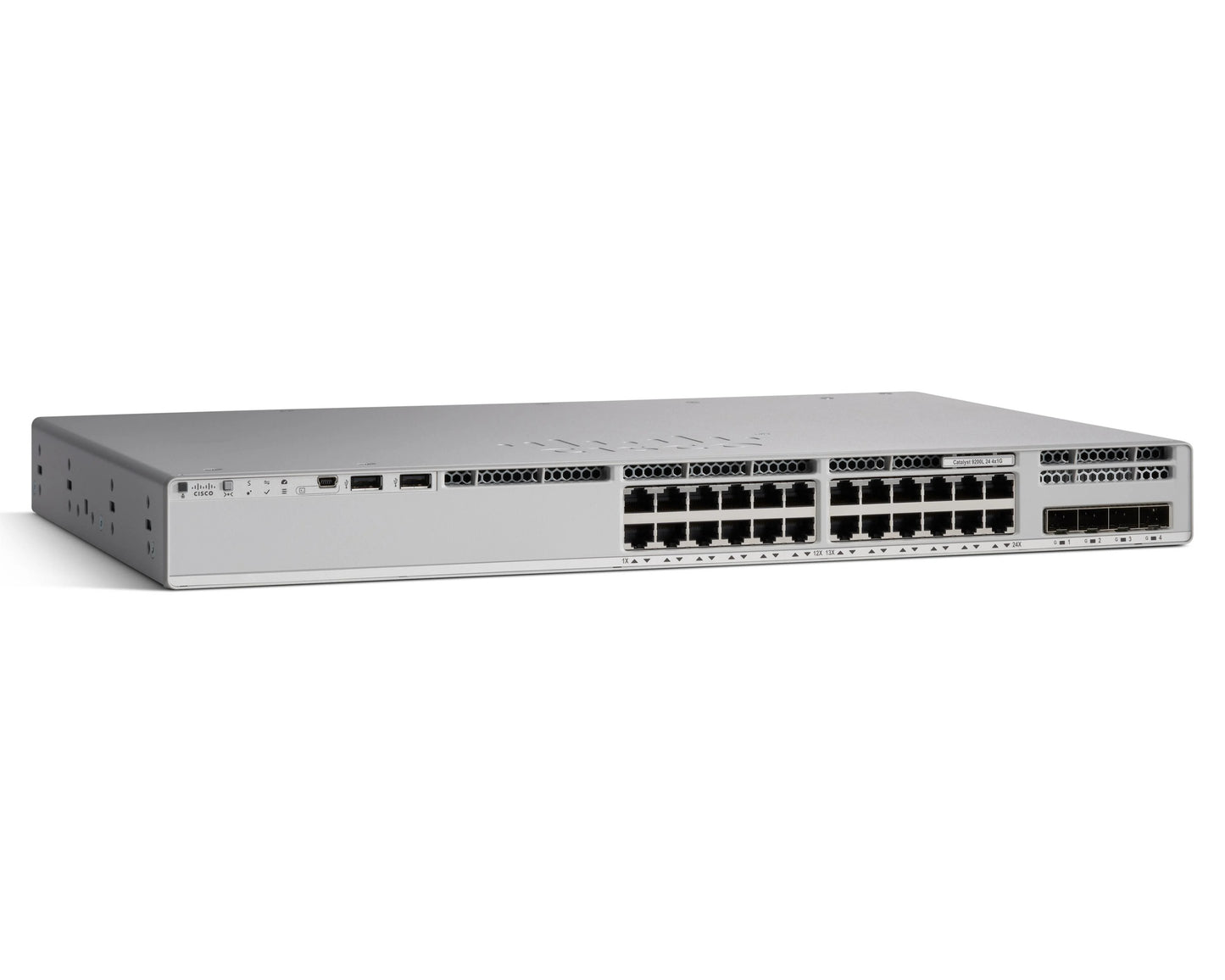

Cisco Catalyst 9200L 24-Port Gigabit Ethernet Switch C9200L-24T-4G-A

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9200L-24T-4G-A is a fully managed, enterprise-grade Layer 3 access switch designed for modern campus and branch networks. Built on the Cisco Catalyst 9200 platform, it delivers secure, resilient, and scalable Gigabit Ethernet connectivity with fixed SFP uplinks for aggregation and backbone access.

This model features 24 Gigabit Ethernet data ports and 4 fixed 1G SFP uplinks, making it ideal for environments that require reliable wired connectivity without PoE. Powered by Cisco IOS XE, the switch supports advanced routing, automation, and security features while maintaining operational simplicity.

Its rack-mountable design, stacking support, and redundant power options ensure continuous uptime in business-critical deployments.

Key Features

·         24 × Gigabit Ethernet RJ-45 access ports

·         4 × 1G SFP fixed uplink ports

·         Advanced Layer 3 routing and switching

·         Cisco IOS XE with RESTCONF and NETCONF support

·         Stackable architecture for simplified expansion

·         Strong security with ACLs, segmentation, and encryption

·         Designed for enterprise access and branch deployments

Technical Specifications

Manufacturer: Cisco
Product Line: Catalyst
Series: 9200L
Model: C9200L-24T-4G-A
Product Type: Managed Layer 3 Switch
Software License: Network Advantage
Packaged Quantity: 1 Unit

Ports & Interfaces

·         24 × 10/100/1000Base-T RJ-45 ports

·         4 × 1000Base-X SFP uplink ports

·         1 × Management (LAN) RJ-45

·         1 × Console RJ-45

·         1 × Network stack device

Switching & Routing

·         Layer Support: Layer 2 and Layer 3

·         Routing Protocols: OSPF, EIGRP, RIP, RIPng, IS-IS, VRRP, HSRP, PIM-SM, PIM-SSM, Policy-Based Routing

·         MAC Address Table: 16,000 entries

·         Jumbo Frame Support: Up to 9198 bytes

Management & Security

·         Management Protocols: CLI, SNMP v1/v2c/v3, RMON 1 & 2, NETCONF, RESTCONF

·         Security: ACLs, segmentation, encrypted management, control-plane protection

Hardware & Power

·         Form Factor: Rack-mountable

·         Power Supply: Internal

·         Redundant Power Support: Optional

·         Nominal Voltage: AC 120/230 V

·         Frequency: 50–60 Hz

Physical Specifications

·         Width: 17.5 inches

·         Depth: 11.3 inches

·         Height: 1.7 inches

·         Weight: 9.60 lbs

·         Color: Gray

Memory

·         DRAM: 2 GB

·         Flash: 4 GB

UPC: 00889728170246

Use Cases

The C9200L-24T-4G-A is ideal for enterprise access layers, branch offices, campus networks, and wired-only environments that require secure Gigabit connectivity with fiber uplinks. It fits well in education, healthcare, corporate offices, and distributed enterprise deployments.

Why Choose the C9200L-24T-4G-A

·         Enterprise-class Layer 3 switching without PoE overhead

·         Fixed SFP uplinks for predictable aggregation design

·         Advanced routing and automation with Cisco IOS XE

·         Stackable design for scalability and simplified management

·         Proven Cisco Catalyst reliability and long-term support

·         Supplied brand new with a full Cisco manufacturer's warranty

FAQs

What is the Cisco C9200L-24T-4G-A used for?

It is an enterprise access switch designed to deliver secure, high-performance Gigabit Ethernet connectivity for campus and branch networks.

Does this switch support Power over Ethernet?

No. This model is a data-only switch and does not provide PoE. It is ideal where powered endpoints are not required.

What uplink options are available?

The switch includes four fixed 1G SFP uplink ports for fiber or copper SFP connectivity to aggregation or core switches.

Is the C9200L-24T-4G-A a Layer 3 switch?

Yes. It supports advanced Layer 3 routing features, including OSPF, EIGRP, RIP, and policy-based routing.

Can this switch be stacked?

Yes. It supports Cisco StackWise technology, allowing multiple switches to operate as a single logical unit.

Does it include a Cisco warranty?

Yes. This unit is brand new, factory-sealed, and includes the full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
