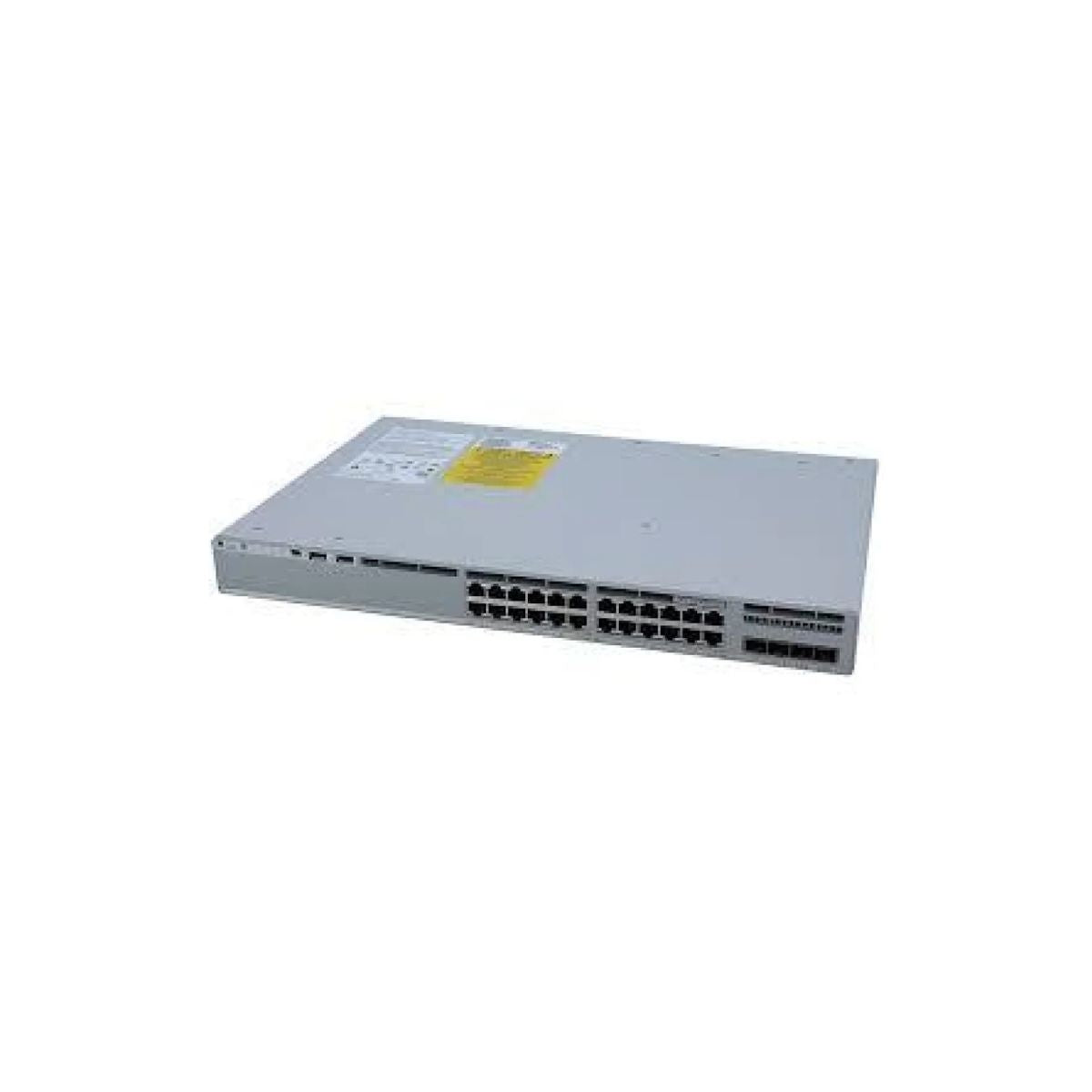

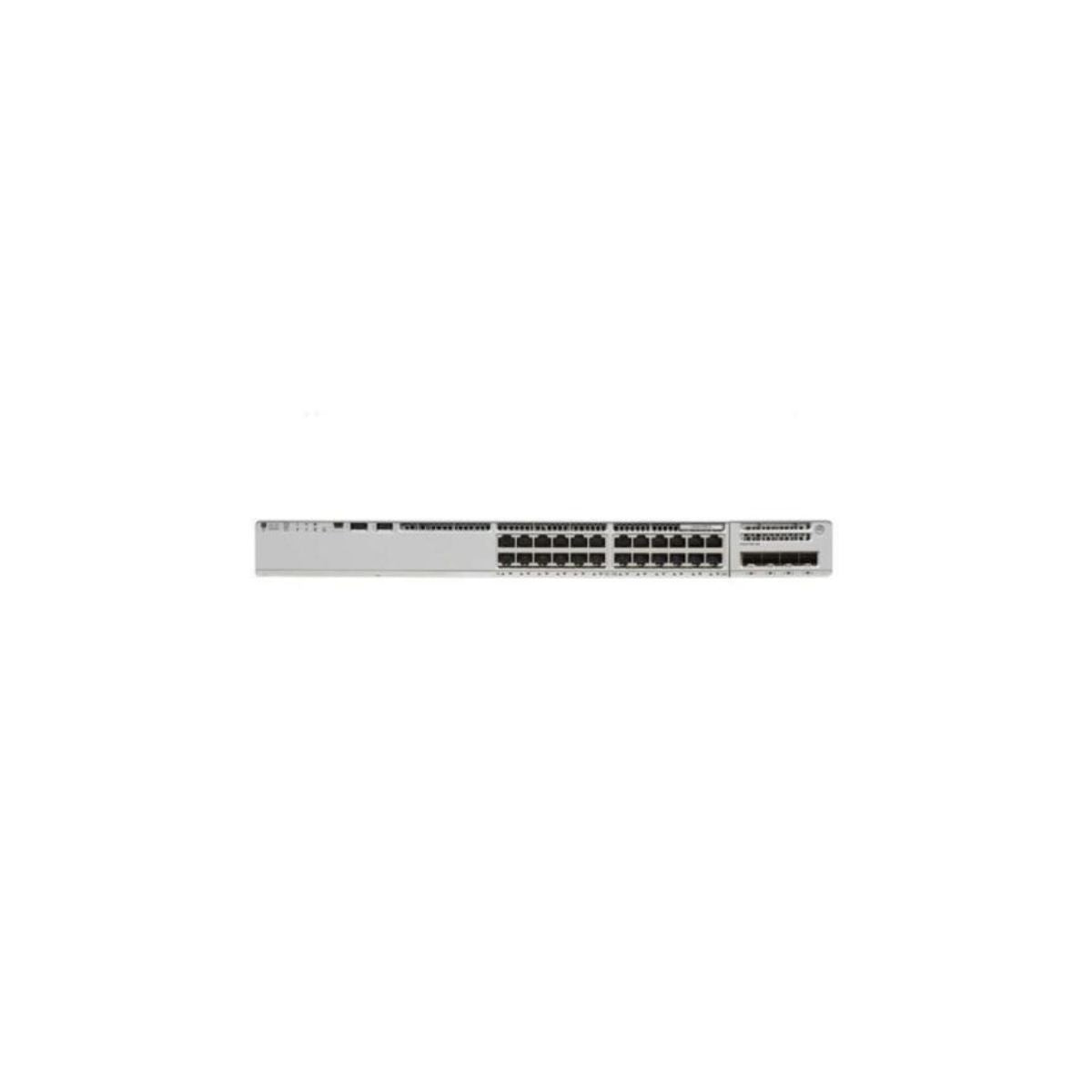

C9200L-24T-4X-E Cisco Catalyst 9200L 24-Port Gigabit Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER’S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The C9200L-24T-4X-E is a high-performance enterprise access switch designed for modern campus and branch networks. It delivers reliable Gigabit Ethernet connectivity with high-speed 10 Gigabit uplinks, making it ideal for aggregation, distribution, and access-layer deployments.

Built on the Cisco Catalyst 9200L platform and powered by Cisco IOS XE software, this switch supports advanced routing, automation, and security features. Its fixed uplink design simplifies deployment while ensuring consistent throughput for data-intensive applications.

Key Features

·         Twenty-four Gigabit Ethernet access ports

·         Four fixed 10-Gigabit SFP+ uplink ports

·         Layer 3 switching and advanced routing support

·         Cisco IOS XE software with automation and telemetry

·         Stackable architecture for scalability and resiliency

Technical Specifications

Manufacturer: Cisco
Brand: Cisco
Product Line: Catalyst
Product Series: 9200L
Model: C9200L-24T-4X-E
Product Type: Managed Layer 3 Ethernet Switch
Packaged Quantity: 1 Unit

Ports & Interfaces

·         24 × 10/100/1000Base-T RJ-45 Ethernet ports

·         4 × 10GBase-X SFP+ fixed uplink ports

Switching & Performance

·         Switching Capacity: 128 Gbps

·         Forwarding Rate: 190.4 Mpps

·         Stacking Bandwidth: 80 Gbps

·         Jumbo Frame Support: Up to 9198 bytes

·         MAC Address Table: 16,000 entries

Routing & Networking

·         Layer Support: Layer 2 and Layer 3

·         Routing Protocols: OSPF, EIGRP, RIP, RIPng, VRRP, PIM-SM, PIM-SSM, MSTP

·         Policy-Based Routing support

Management & Software

·         Cisco IOS XE operating system

·         Management via CLI, SNMP v1/v2c/v3, RMON, NETCONF, RESTCONF

·         API-ready for automation and monitoring

Memory

·         RAM: 2 GB

·         Flash Memory: 4 GB

Physical Characteristics

·         Form Factor: Rack-mountable

·         Height: 1.7 in

·         Width: 17.5 in

·         Depth: 11.3 in

·         Weight: 11.02 lb

UPC: 889728170130

Use Cases

The C9200L-24T-4X-E is well-suited for enterprise access layers, branch offices, campus buildings, and aggregation points requiring high-speed uplinks. It supports business-critical applications, virtualization, unified communications, and scalable wired network architectures.

Why Choose C9200L-24T-4X-E

·         High-density Gigabit access with 10G uplinks

·         Enterprise-grade Layer 3 routing capabilities

·         Simplified deployment with a fixed uplink design

·         Stackable for future expansion and redundancy

·         Proven Cisco Catalyst reliability and long-term support

FAQs

What is the primary role of the C9200L-24T-4X-E?

It functions as an enterprise access or aggregation switch providing Gigabit access ports with high-speed 10G uplinks.

Does this switch support Layer 3 routing?

Yes. It supports Layer 3 features, including dynamic routing protocols and policy-based routing.

What uplink options are there?

This model includes four fixed 10-Gigabit SFP+ uplink ports.

Is this switch suitable for stacking?

Yes. It supports stacking to improve scalability, redundancy, and simplified management.

Is the Cisco warranty included?

Yes. The switch is brand new, factory sealed, and includes a full Cisco manufacturer’s warranty when purchased from Chicago Computer Supply.
