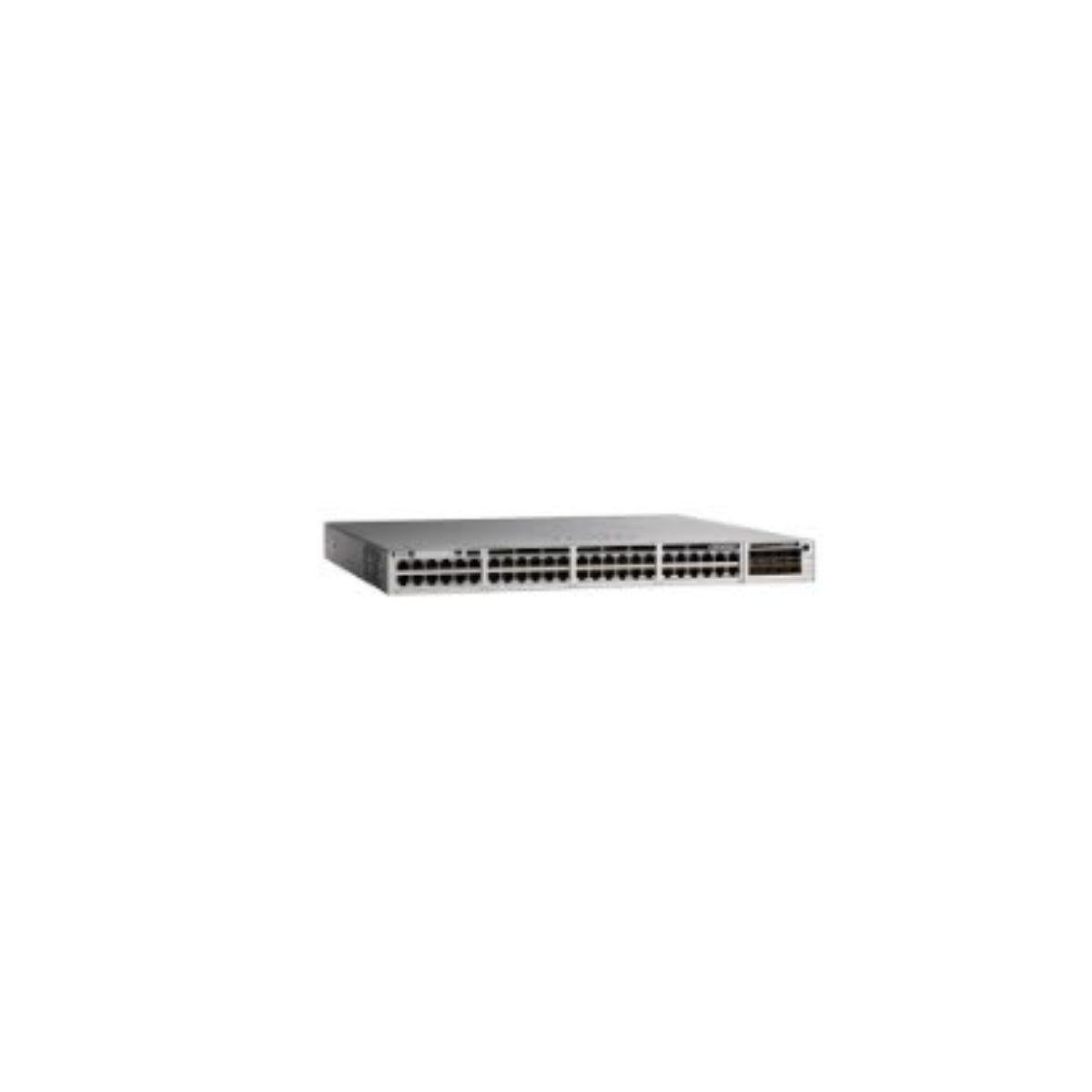

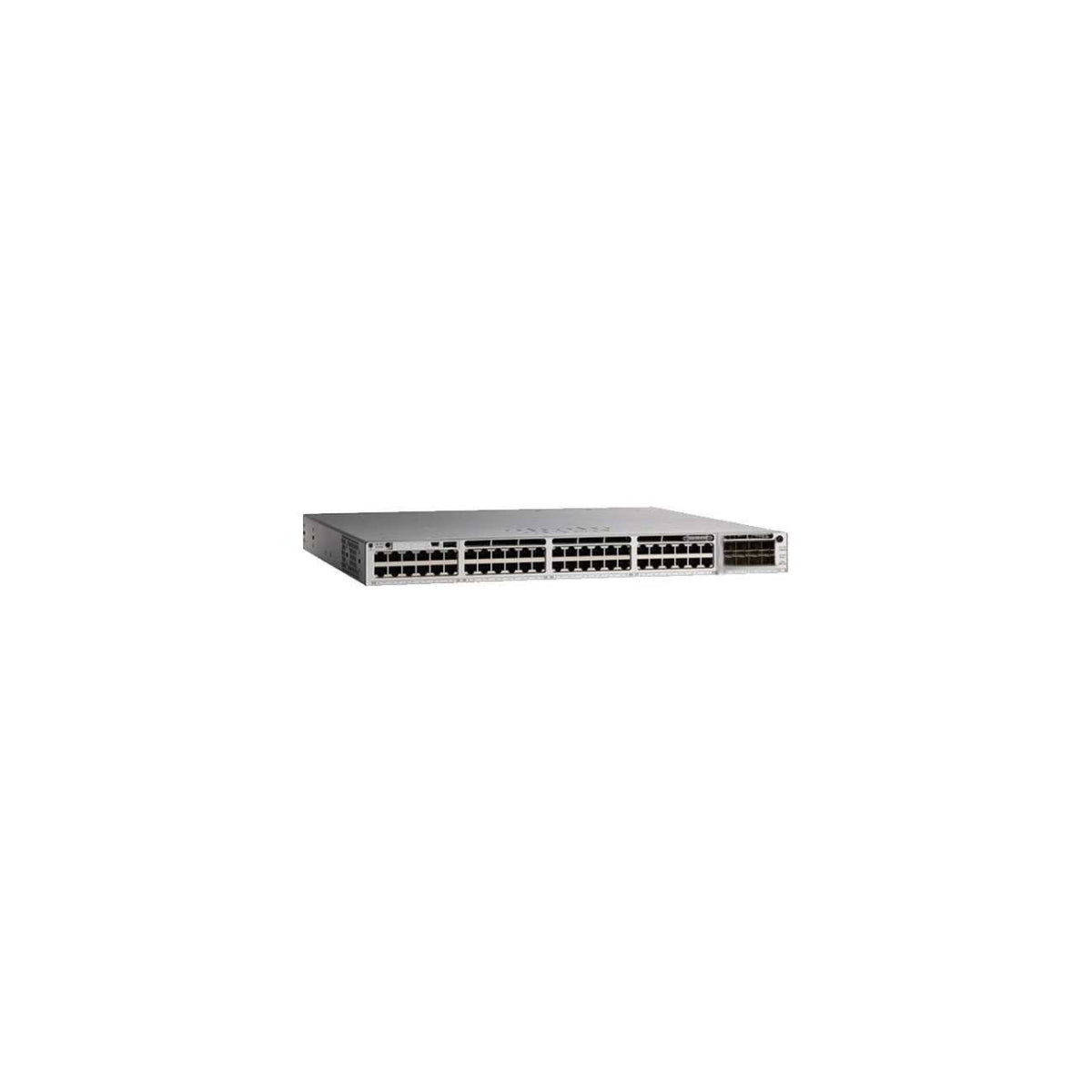

C9200L-48T-4G-A Cisco Catalyst 9200L 48-Port Layer 3 Enterprise Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER’S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The C9200L-48T-4G-A is an enterprise-class access switch designed to deliver consistent performance, advanced routing, and built-in resiliency for modern networks. As part of the Cisco Catalyst 9200L Series, this model supports high-density Gigabit access with fixed SFP uplinks, making it ideal for scalable campus and branch deployments.

Powered by Cisco IOS XE software, the switch enables automation, telemetry, and secure segmentation across the access layer. Its stackable design ensures operational continuity while supporting long-term network growth.

Key Features

·         Forty-eight Gigabit Ethernet access ports for enterprise endpoints

·         Four fixed 1G SFP uplinks for distribution connectivity

·         Full Layer 3 routing with enterprise protocol support

·         High-performance stacking with resilient architecture

·         Built-in security, automation, and visibility features

Technical Specifications

Manufacturer: Cisco Systems
Brand: Cisco
Product Line: Catalyst
Product Series: 9200L
Model: C9200L-48T-4G-A
Edition: Network Advantage
Product Type: Layer 3 Managed Ethernet Switch
Packaged Quantity: 1 Unit

Ports & Interfaces

·         48 × 10/100/1000Base-T RJ-45 Gigabit Ethernet ports

·         4 × 1000Base-X SFP fixed uplink ports

·         1 × RJ-45 console port

·         1 × Dedicated management LAN port

·         1 × Stack port interface

Switching & Performance

·         Switching Capacity: 104 Gbps

·         Forwarding Rate: 154.76 Mpps

·         Stacking Bandwidth: 80 Gbps

·         Jumbo Frames: Up to 9198 bytes

·         MAC Address Table: 16,000 entries

Routing & Network Scale

·         Layer Support: Layer 2 and Layer 3

·         VLANs Supported: Up to 1024

·         Switched Virtual Interfaces (SVIs): Up to 512

·         IPv4 Routes: Up to 11,000

·         IPv6 Routes: Up to 1,500

·         Multicast Groups: Up to 1000

Protocols & Features

·         OSPF, IS-IS, EIGRP, RIP, PIM, VRRP, HSRP

·         Policy-Based Routing (PBR)

·         Quality of Service (QoS)

·         Flexible NetFlow (FNF)

·         RESTCONF, NETCONF, SNMP, CLI management

Power & Physical

·         Form Factor: Rack-mountable

·         Power Supply: Internal

·         Power Redundancy: Optional

·         Hot-Plug Power Support: Yes

Dimensions & Weight

·         Width: 17.5 in

·         Depth: 11.3 in

·         Height: 1.7 in

·         Weight: 9.59 lbs

UPC: 889728170260

Use Cases

The C9200L-48T-4G-A is suited for enterprise access layers, corporate campuses, branch offices, and large office floors. It supports desktops, printers, servers, IP phones, and downstream switches while enabling secure segmentation and scalable routing.

Why Choose C9200L-48T-4G-A

·         High-density Gigabit access with fixed fiber uplinks

·         Advanced Layer 3 routing for enterprise networks

·         Stackable design for resilience and growth

·         Strong security and automation with IOS XE

·         Trusted Cisco Catalyst platform with full warranty

FAQs

What is the difference between the -4G-A and -4G-E models?

The -4G-A model includes the Network Advantage feature set, offering expanded Layer 3 routing and advanced enterprise capabilities compared to Network Essentials.

Does the C9200L-48T-4G-A support stacking?

Yes. It supports Cisco StackWise technology, allowing multiple switches to operate as a single logical unit.

Are the uplinks fixed or modular on this switch?

This model includes four fixed 1-Gigabit SFP uplinks designed for stable aggregation and distribution.

Is this switch appropriate for campus access networks?

Yes. It is built specifically for enterprise campus and branch access layers that require scalability, security, and performance.

Does this product include Cisco warranty coverage?

Yes. The switch is brand new, factory sealed, and includes a full Cisco manufacturer’s warranty when purchased from Chicago Computer Supply.
