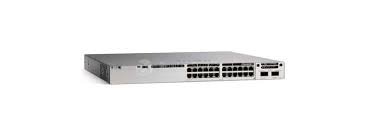

Cisco Catalyst 9300 24-Ports Managed Switch C9300-24P-A

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Specifications

• Device Type: Switch - 24 ports - L3 - Managed - stackable
• Enclosure Type: Rack-mountable 1U
• Subtype: Gigabit Ethernet
• Ports: 24 x 10/100/1000 (PoE+)
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 445 W
• Performance: Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
• Capacity: IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
• Power: AC 120/230 V (50 - 60 Hz)
• Power Redundancy: Optional
• Dimensions (WxDxH): 44.5 cm x 44.5 cm x 4.4 cm
• Weight: 7.4 kg
• System Requirements: Cisco IOS Universal
