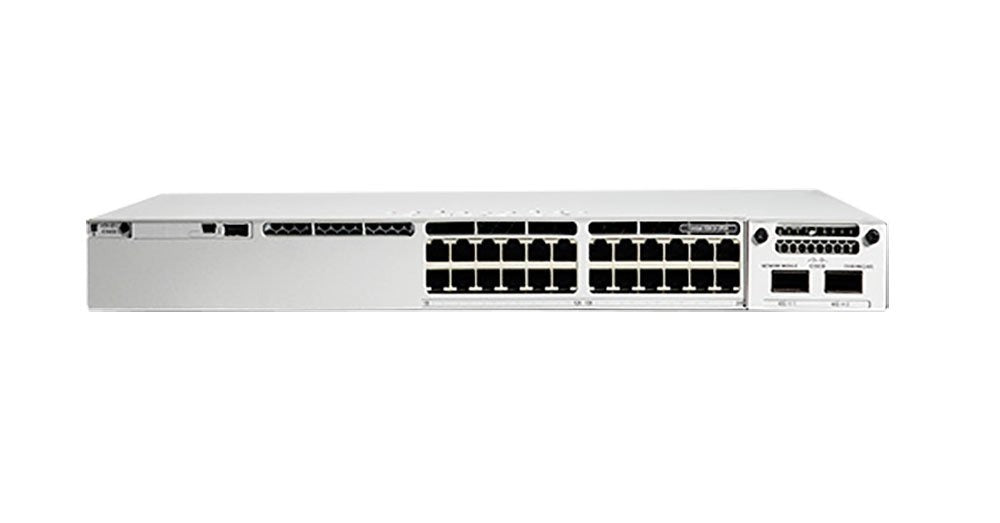

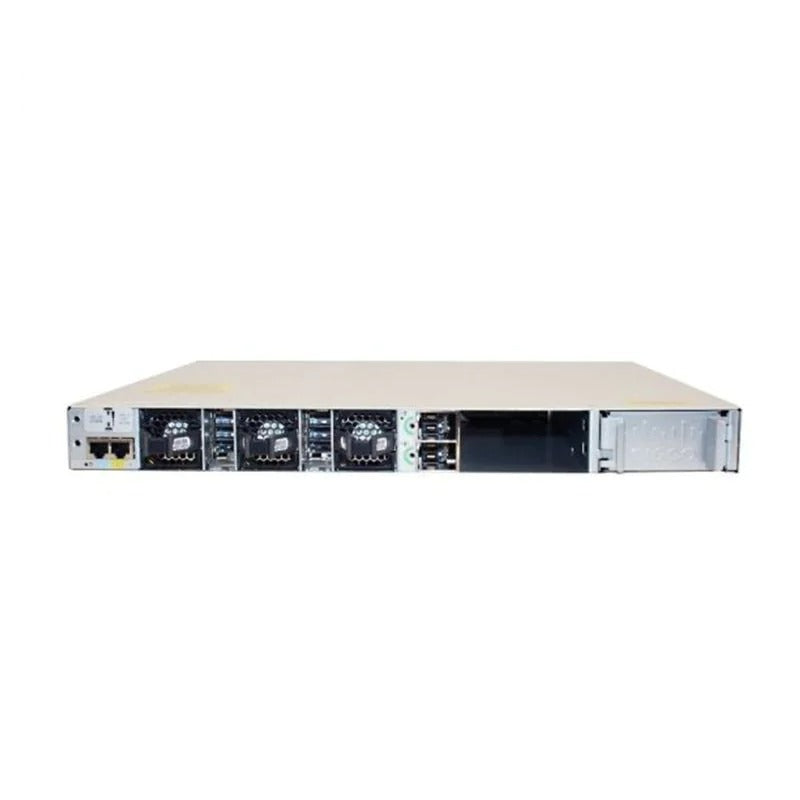

C9300-24P-A Cisco Catalyst 9300 Series 24-Port PoE+ Layer 3 Switch | Network Advantage

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9300-24P-A is an enterprise-class access switch designed for organizations that require advanced Layer 3 routing, full PoE+ power delivery, and scalable network intelligence. Built on the Catalyst 9300 platform, this model supports secure, high-performance access networks across campus and branch environments.

With 24 PoE+ Gigabit Ethernet ports and Network Advantage software, the C9300-24P-A enables policy-based routing, advanced segmentation, and deep traffic visibility. Its stackable architecture and resilient design make it a strong foundation for modern enterprise networks that must scale without compromising performance or security.

Key Features

• 24 Gigabit Ethernet PoE+ ports for powered edge devices
• Network Advantage software with advanced Layer 3 capabilities
• High-capacity stacking for scalable access-layer growth
• Enterprise-grade routing, segmentation, and traffic control
• Built for secure, long-term Catalyst 9300 deployments

Technical Specifications

General

• Device Type: Managed Layer 3 Switch
• Product Series: Cisco Catalyst 9300
• Model: C9300-24P-A
• Software Edition: Network Advantage
• Form Factor: Rack-mountable (1U)
• Stackable: Yes

Ports & Power

• 24 × 10/100/1000 Gigabit Ethernet PoE+ ports
• PoE+ budget: 445 W
• Optional power redundancy
• AC input: 120/230 V (50–60 Hz)

Performance & Scale

• Switching capacity: 128 Gbps
• Stacking bandwidth: 480 Gbps
• Forwarding rate: 154.76 Mpps
• MAC address table: 32,000 entries
• Jumbo frames: up to 9,198 bytes

Routing & Capacity

• IPv4 routes: 32,000
• IPv6 routes: 16,000
• VLAN IDs: 4,000
• Switched Virtual Interfaces (SVIs): 2,000
• Flexible NetFlow entries: 64,000

Routing Protocols

• OSPF, OSPFv3, IS-IS
• BGP, EIGRP, RIP, RIPng
• VRRP, HSRP
• PIM-SM, PIM-SSM
• Policy-based routing (PBR)

Management & Security

• Management protocols: CLI, SNMP, RMON, NETCONF, RESTCONF
• IEEE standards support including 802.1Q, 802.1X, LACP, PoE+

Physical

• Dimensions: 44.5 × 44.5 × 4.4 cm
• Weight: 7.4 kg

Operating System

• Cisco IOS Universal

UPC: 00889728051682

Use Cases

The C9300-24P-A is ideal for enterprise access layers that require PoE+ connectivity combined with advanced routing intelligence. It fits campus networks, branch offices, and environments supporting IP phones, wireless access points, cameras, and IoT devices where segmentation, visibility, and policy control are critical.

Why Choose the C9300-24P-A

• Delivers full PoE+ power for modern enterprise endpoints
• Supports advanced Layer 3 routing with Network Advantage
• Enables scalable growth through high-bandwidth stacking
• Designed for secure, policy-driven access networks
• Ships brand new with full Cisco manufacturer warranty

FAQs

What type of ports does the C9300-24P-A provide?

It offers 24 Gigabit Ethernet PoE+ ports for both data and power delivery.

What software license comes with this model?

The switch includes Network Advantage software for advanced Layer 3 features.

Is this switch suitable for enterprise environments?

Yes. It is for enterprise campus and branch access-layer deployments.

Does the C9300-24P-A support stacking?

Yes. It supports high-bandwidth stacking for simplified expansion and management.

Is this product new and covered by the Cisco warranty?

Yes. It is brand new, factory sealed, and includes full Cisco manufacturer warranty coverage.
