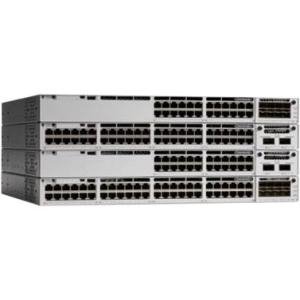

C9300-24U-A Cisco Catalyst 9300 Series 24-Port UPOE Switch | Network Advantage

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY

Overview

The C9300-24U-A is a high-performance Cisco Catalyst 9300 Series access switch built for enterprise environments that demand advanced routing, high-power PoE delivery, and software-defined scalability. With 24 UPOE-enabled Gigabit Ethernet ports, this switch supports power-hungry devices while maintaining strong Layer 3 intelligence at the access layer.

Powered by the Network Advantage software edition, the C9300-24U-A enables advanced routing protocols, segmentation, and policy-driven control. Its stackable design and high stacking bandwidth make it a reliable choice for campus networks, branch offices, and environments standardizing on Cisco's SD-Access architecture.

Key Features

• 24 Gigabit Ethernet UPOE ports for high-power endpoints
• Network Advantage software with advanced Layer 3 routing
• High stacking bandwidth for scalable campus deployments
• Enterprise-grade security and traffic segmentation
• Designed for long-term Cisco Catalyst 9300 architectures

Technical Specifications

General

• Manufacturer: Cisco
• Product Line: Cisco Catalyst
• Product Series: 9300
• Model: C9300-24U-A
• Software Edition: Network Advantage
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable

Ports & Interfaces

• 24 × 10/100/1000Base-T RJ-45 UPOE ports

Performance & Capacity

• Switching capacity: 128 Gbps
• Stacking bandwidth: 480 Gbps
• Forwarding rate: 154.76 Mpps
• VLAN IDs: up to 4,000
• MAC address table: 32,000 entries
• Jumbo frames: up to 9,198 bytes

Routing & Management

• Advanced routing: OSPF, BGP, EIGRP, IS-IS, VRRP, HSRP, PBR
• Managed via CLI, SNMP, NETCONF, and RESTCONF

Power & Physical

• PoE type: UPOE
• PoE budget: 830 W
• Internal power supply with optional redundancy
• Dimensions: 17.5" W × 17.5" D × 1.7" H
• Weight: 17.02 lbs

UPC: 889728051668

Use Cases

The C9300-24U-A is ideal for enterprise access layers powering Wi-Fi access points, video surveillance systems, IP phones, and IoT devices. It fits organizations that require advanced Layer 3 routing, high PoE capacity, and scalable stackable switching for campus and branch networks.

Why Choose the C9300-24U-A

• Delivers UPOE power for high-demand edge devices
• Supports advanced routing with Network Advantage licensing
• Scales easily within Catalyst 9300 campus architectures
• Designed for secure, policy-driven enterprise networks
• Ships brand new with full Cisco manufacturer warranty

FAQs

What type of PoE does the C9300-24U-A support?

It supports UPOE, providing higher power output for advanced enterprise devices.

Does this switch support advanced routing protocols?

Yes. Network Advantage enables protocols such as OSPF, BGP, EIGRP, and IS-IS.

Is the C9300-24U-A stackable?

Yes. It supports high-bandwidth stacking for simplified management and scalability.

What software license comes with this switch?

The switch ships with the Network Advantage software edition.

Does Cisco's warranty cover this product?

Yes. It is brand new, factory sealed, and includes full Cisco manufacturer warranty support.
