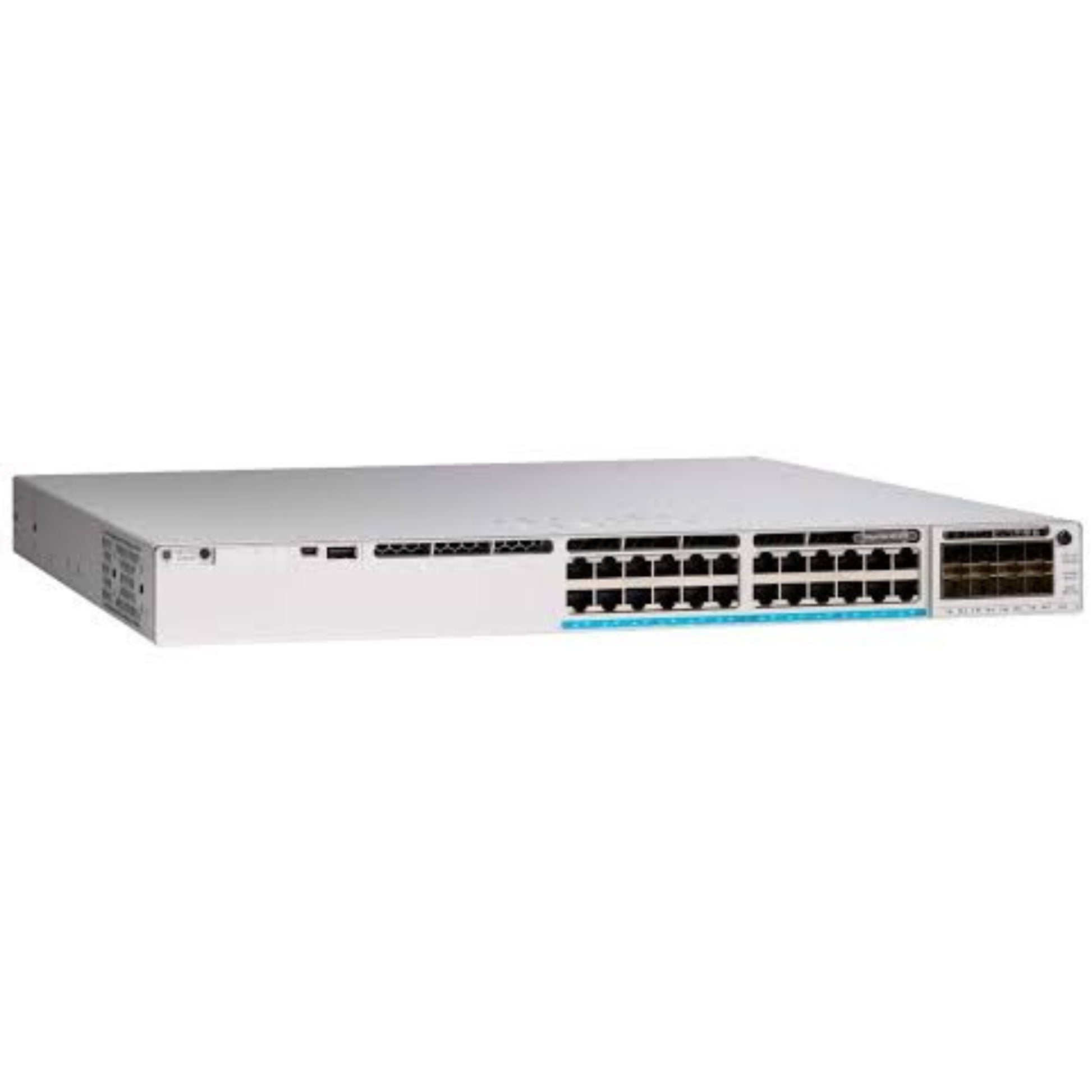

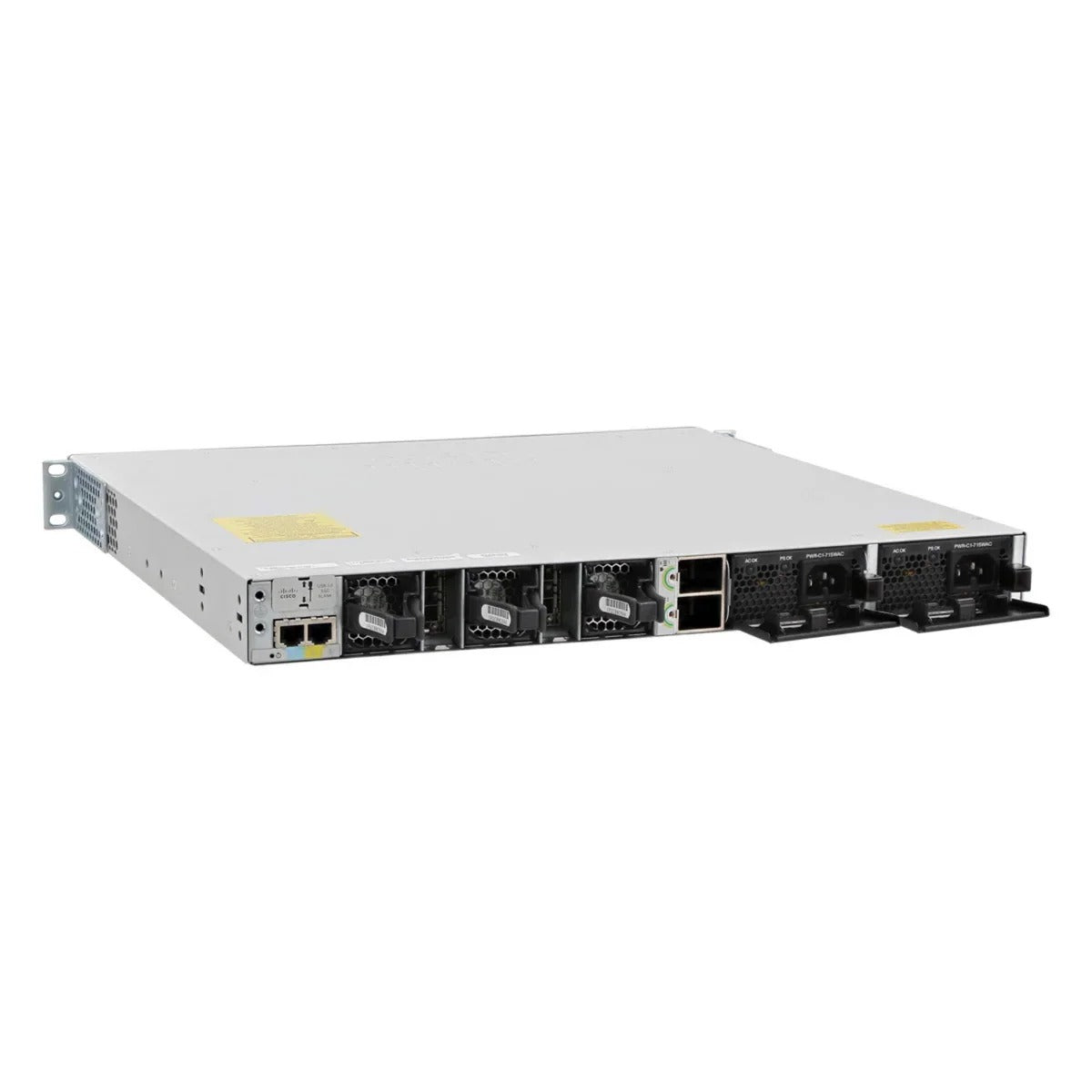

Cisco Catalyst 9300 Network Essentials 24-Ports Switch C9300-24U-E

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Specifications

• Manufacturer: CISCO DS HARDWARE DIRECT
• Brand: Cisco
• Product Line: Cisco Catalyst
• Model: 9300
• Edition: Network Essentials
• Packaged Quantity: 1
• RAM Installed Size: 8 GB
• Installed Size: 16 GB
• Performance: Stacking bandwidth: 480 Gbps, Forwarding rate: 154.76 Mpps, Switching capacity: 128 Gbps
• Type: Switch
• Subcategory: Network hubs and switches
• Subtype: Gigabit Ethernet
• Form Factor: Rack-mountable
• Stackable: Stackable
• Ports Qty: 24
• Advanced Switching: Layer 3
• Routing Protocol: RIPng, VRRP, RIP-2, PIM-SSM, PIM-SM, IGMP, OSPF, MSDP, Policy-based routing (PBR), IS-IS, OSPFv3, RIP-1, EIGRP
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Manageable: Yes
• Remote Management Protocol: RMON 1, SNMP 3, RESTCONF, SNMP 1, RMON 2, CLI, SNMP 2c, NETCONF
• Power Over Ethernet (PoE): UPOE
• PoE Budget: 830 watt
• Status Indicators: Status
• Capacity: VLAN IDs: 4000, Switched virtual interfaces (SVIs): 2000, IPv4 routing table entries: 32000, Flexible NetFlow entries: 64000, IPv6 routing table entries: 16000
• Compliant Standards: IEEE 802.1s, IEEE 802.1D, IEEE 802.1p, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.1w, IEEE 802.3
• Ports Qty: 24
• Type: 10/100/1000 (UPOE)
• Interfaces: 1 x USB 2.0, 48 x 1000Base-T RJ-45 UPOE
• Type: Internal power supply
• Hot-Plug: Hot-plug
• Power Redundancy: Optional
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 1100 watt
• Nominal Voltage: AC 120/230 V
• Frequency Required: 50 - 60 hertz
• Width: 17.5 inch
• Depth: 17.5 inch
• Height: 1.7 inch
• Weight: 16.62 lbs
